* If you require custom cut lengths please specify measurements in the order notes at checkout.
* Custom cut LED strip is sold per metre. Each cut is rounded up to the metre, e.g. 2 x 500mm is charged as 2 metres. To avoid delays, round each cut length up to the metre.
* All custom cut strip lighting is non refundable for change of mind.

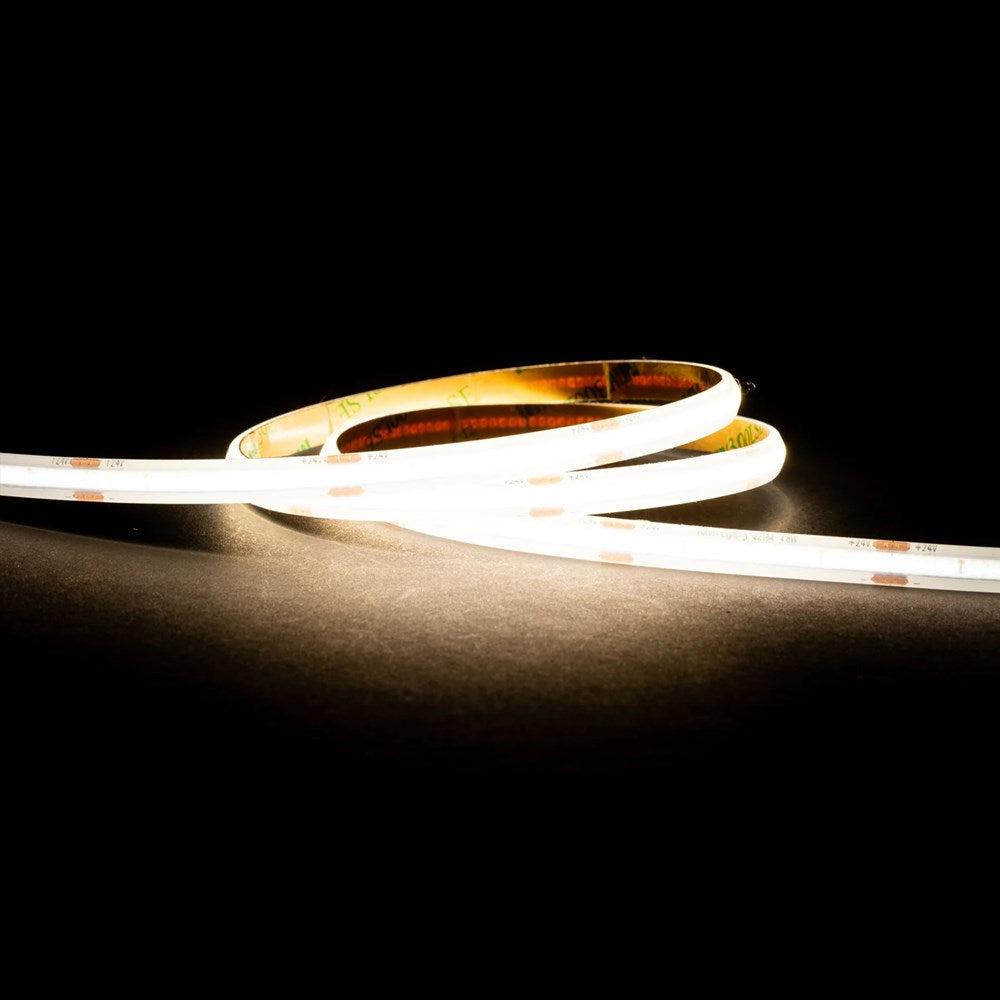

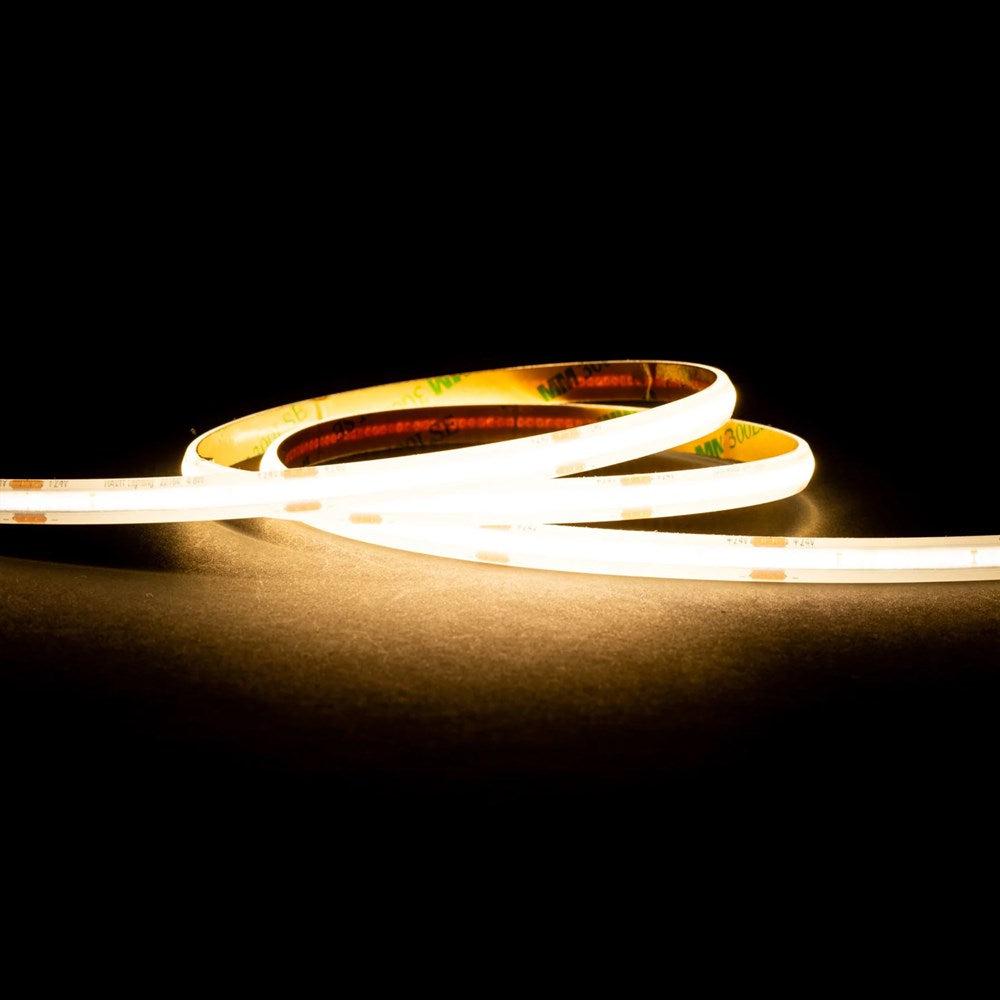

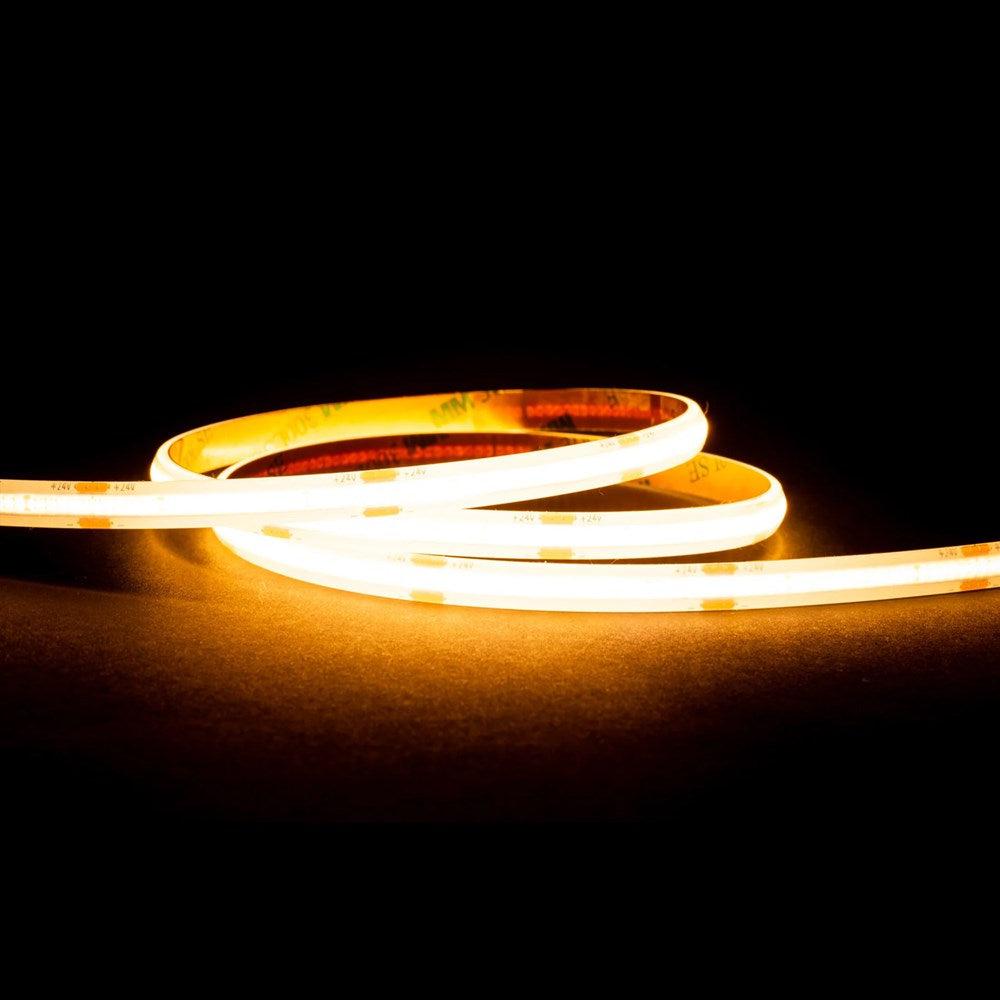

Dotless CSP LED strip, 10w per metre, IP54
This CSP strip gives a seamless line of light with no visible LED dots, now with an IP54 coating for spaces that see some moisture or dust. It keeps the clean look of a dotless strip in bathrooms, laundries and sheltered areas where a bare strip would not last.
Slim at 8mm wide, it fits narrow profiles in vanities, shelving, wall coves and joinery. Choose warm, cool or daylight white, buy it by the metre or as a 10 metre roll, and run up to 5 metres from one feed.
Key features
- 10w per metre, 1000 to 1035 lumens per metre
- CSP chips for smooth, dot free light
- IP54 protection against dust and light moisture
- Choice of 3000k, 4000k or 5500k
- 120° beam angle, CRI over 80

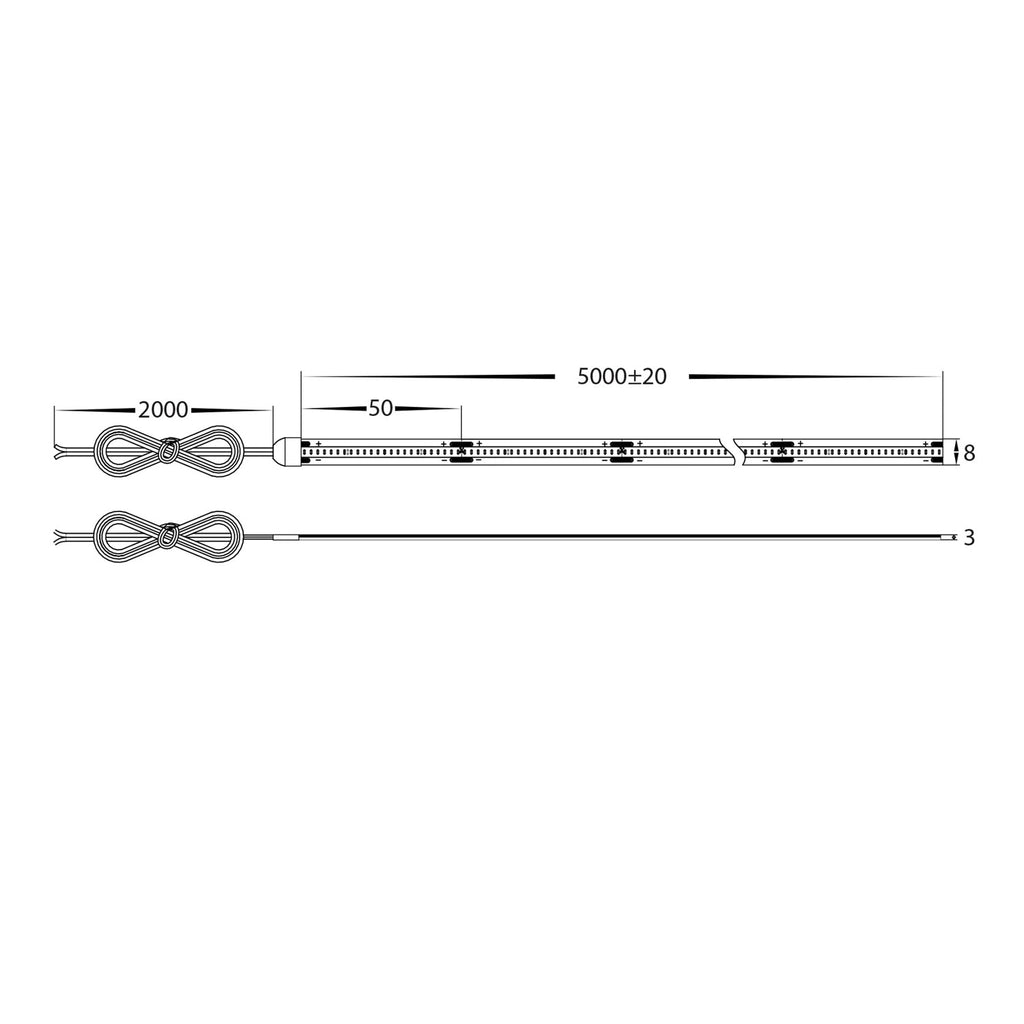

- 8mm wide, 3mm high
- 24v DC, maximum 5 metre run, dimmable
- Sold per metre or as a 10 metre roll
- 3 year warranty

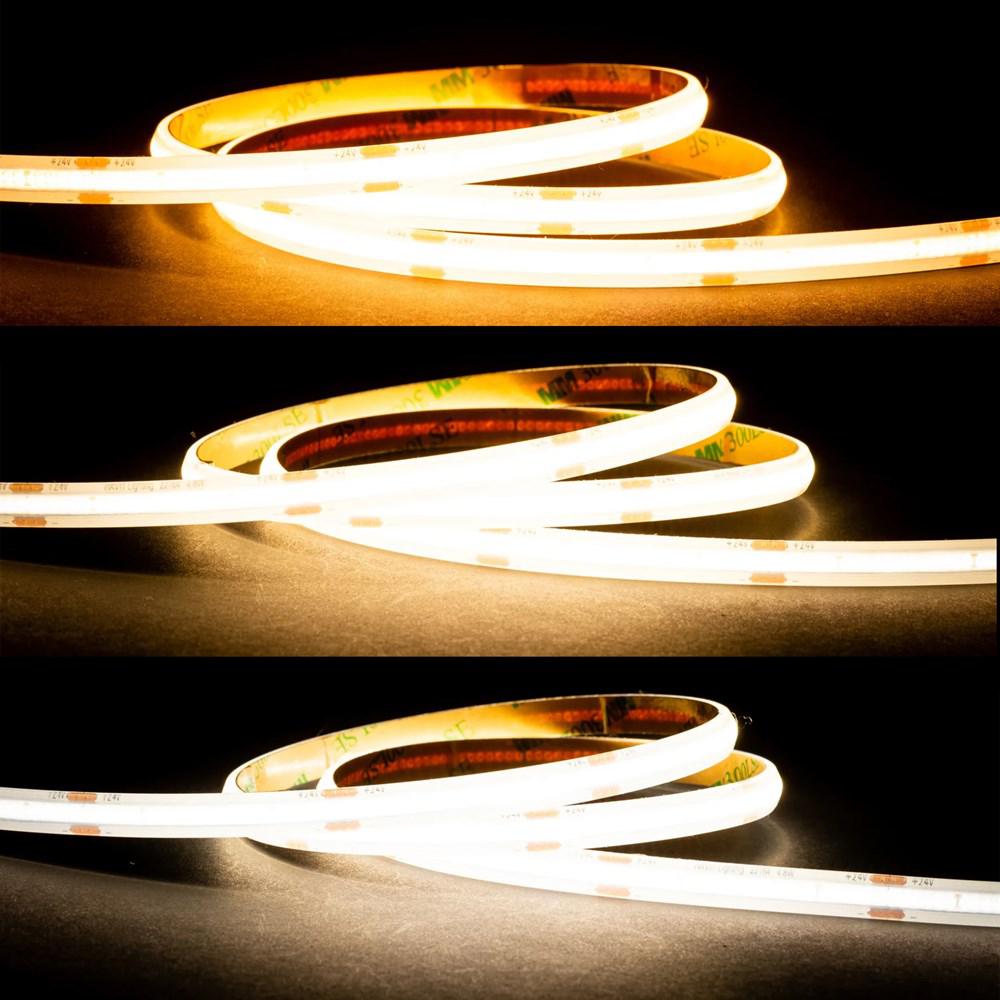

Colour temperature and output
| Colour temperature |
Output per metre |
Best for |
| 3000k Warm White |
1000 lumens |
Bathrooms, bedrooms, living areas |
| 4000k Cool White |
1035 lumens |
Laundries, kitchens, vanities |
| 5500k Bright Daylight |
1030 lumens |
Garages, covered work areas, display |
Choosing a driver
Allow 10w for every metre of strip and add about 20% headroom. A full 5 metre run draws 50w, so it needs a 24v driver of at least 60w. For longer installations, split the strip into runs of 5 metres or less and feed each run separately. The 10 metre roll is supplied as one reel, so plan your runs before cutting. Outdoors or in wet areas, use a weatherproof IP66 or IP67 driver or keep the driver under cover. To dim the strip, pair it with a dimmable 24v driver and a compatible dimmer.
Mounting and heat
We recommend mounting this strip in an aluminium profile. The profile draws heat away from the LEDs, protects the strip and extends its life. Choose a profile at least 9mm wide inside to suit the 8mm strip, and add a diffuser for the softest line of light. Every cut end must be resealed with an end cap and silicone to keep the IP54 rating, and any outdoor joins should be made in a waterproof connector or junction box.
IP54 rated, suitable for damp and sheltered locations such as bathrooms, laundries and covered outdoor areas.
