* If you require custom cut lengths please specify measurements in the order notes at checkout.
* Custom cut LED strip is sold per metre. Each cut is rounded up to the metre, e.g. 2 x 500mm is charged as 2 metres. To avoid delays, round each cut length up to the metre.
* All custom cut strip lighting is non refundable for change of mind.

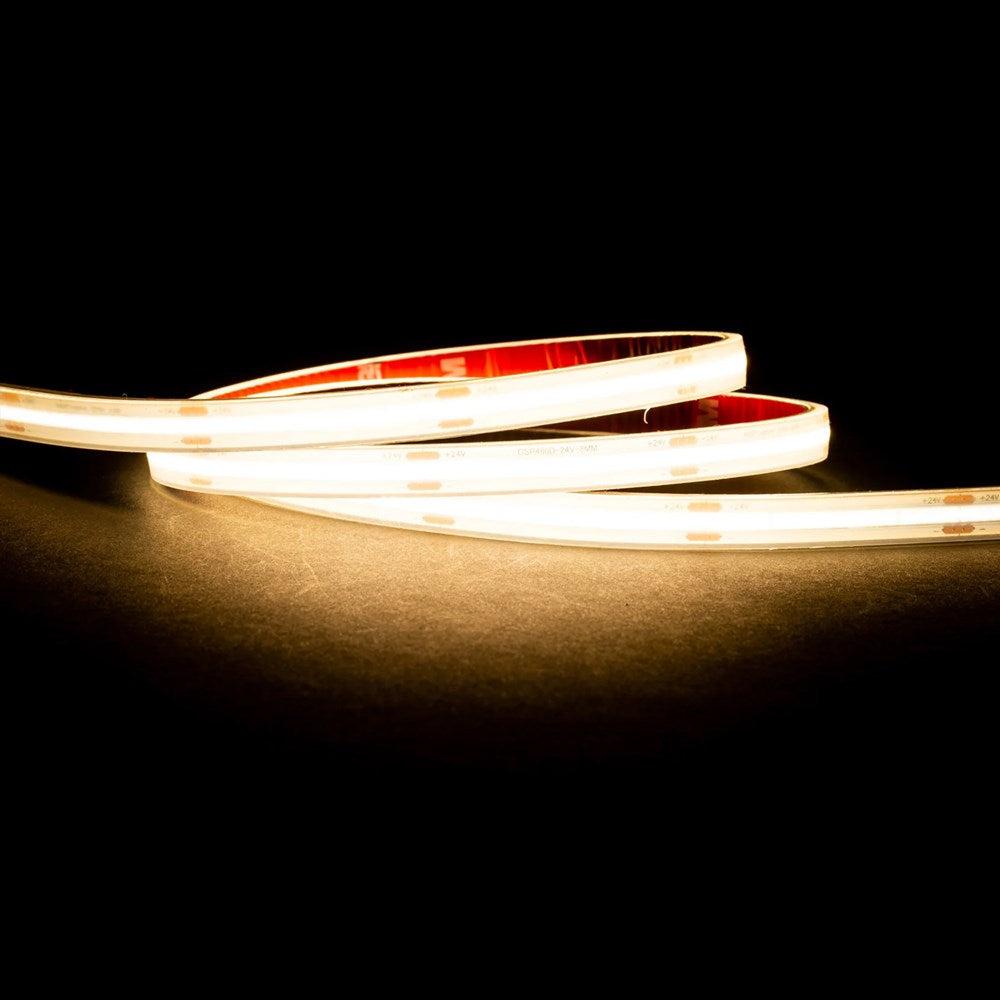

Dotless CSP LED strip, 10w per metre, IP67
This fully sealed CSP strip delivers smooth, even light with no hotspots, and its IP67 rating means it can go outside. A dense 320 LED layout gives a continuous glow that looks just as clean on a deck step as it does under a kitchen benchtop.
Use it along garden walls, steps, outdoor kitchens, pergolas and splash zones, or anywhere indoors that gets wet. It comes in warm, cool or daylight white, by the metre or on a 10 metre roll, and cuts every 50mm.
Key features
- 10w per metre, 1000 to 1035 lumens per metre
- CSP chips for smooth, dot free light
- IP67 rated for outdoor and wet area use
- Choice of 3000k, 4000k or 5500k
- 120° beam angle, CRI over 80

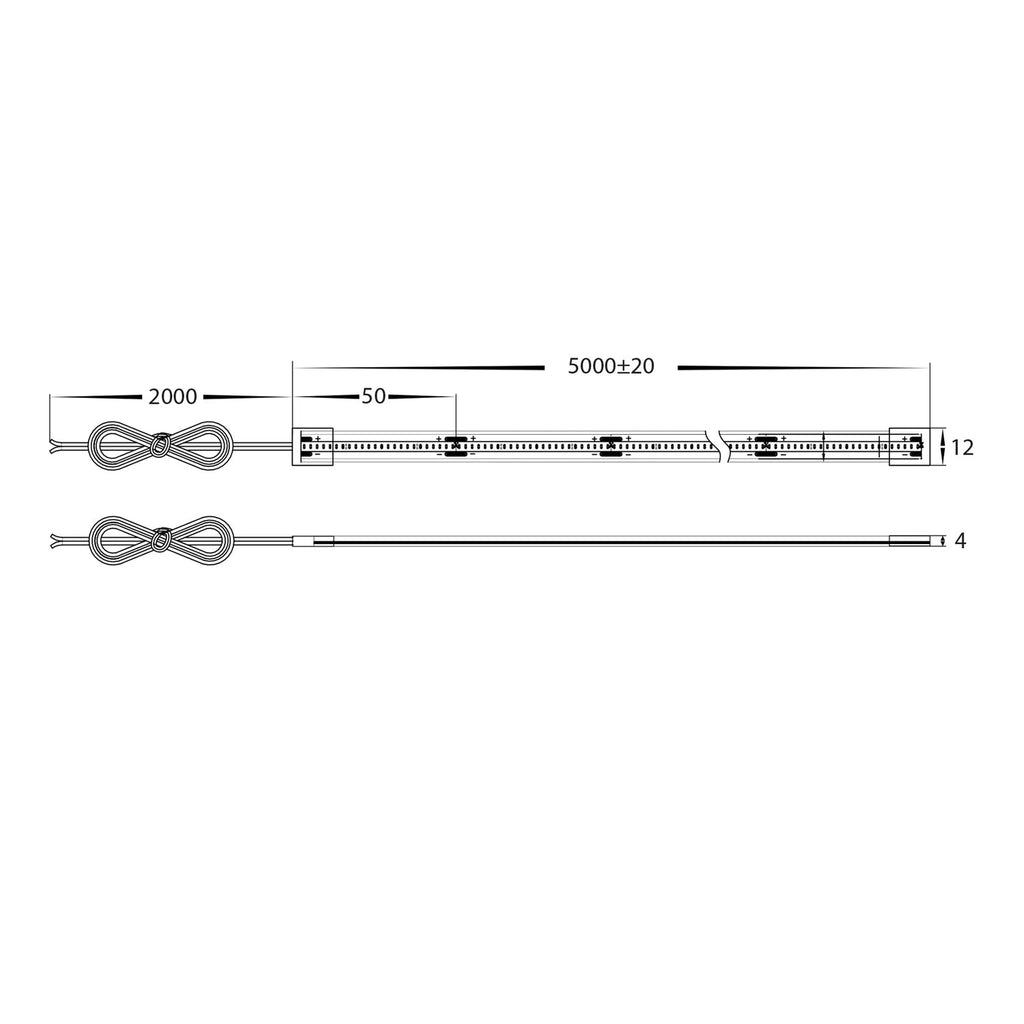

- 12mm wide, 4mm high
- Cut points every 50mm
- 24v DC, maximum 5 metre run, dimmable
- Sold per metre or as a 10 metre roll
- 3 year warranty

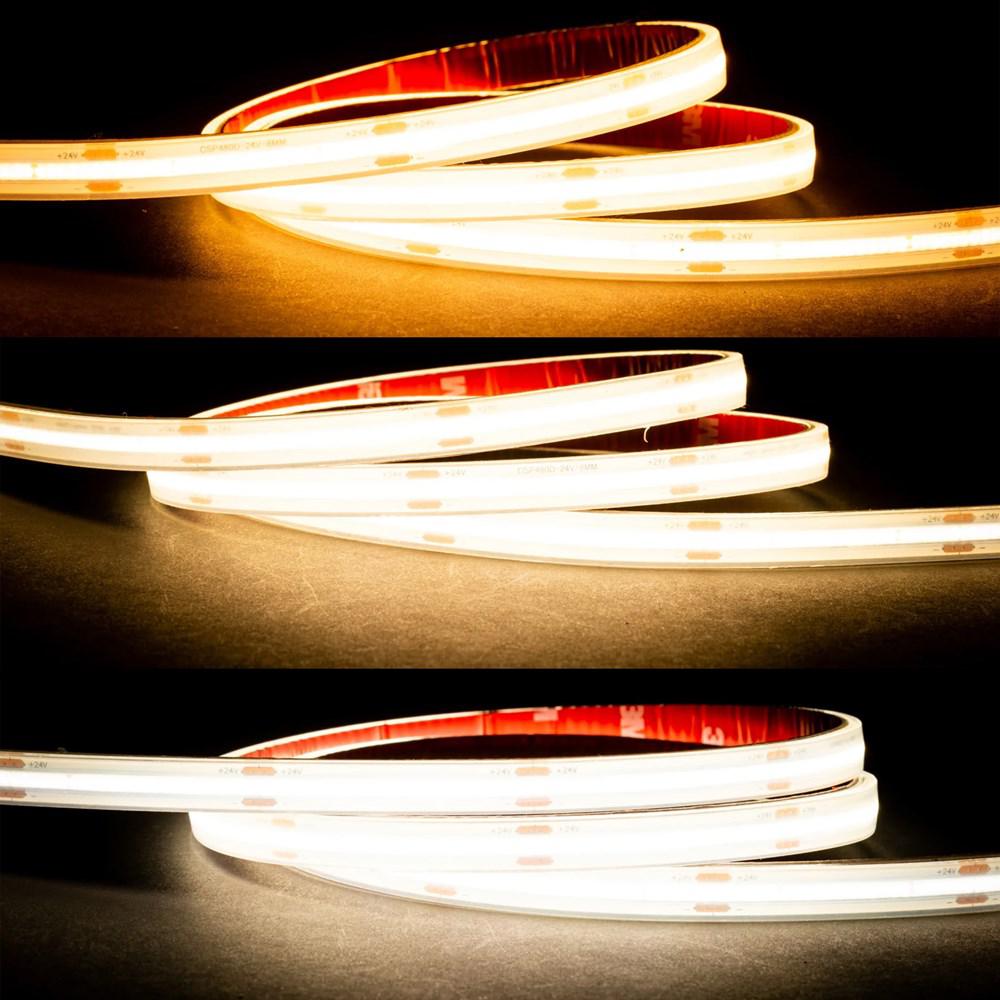

Colour temperature and output
| Colour temperature |
Output per metre |
Best for |

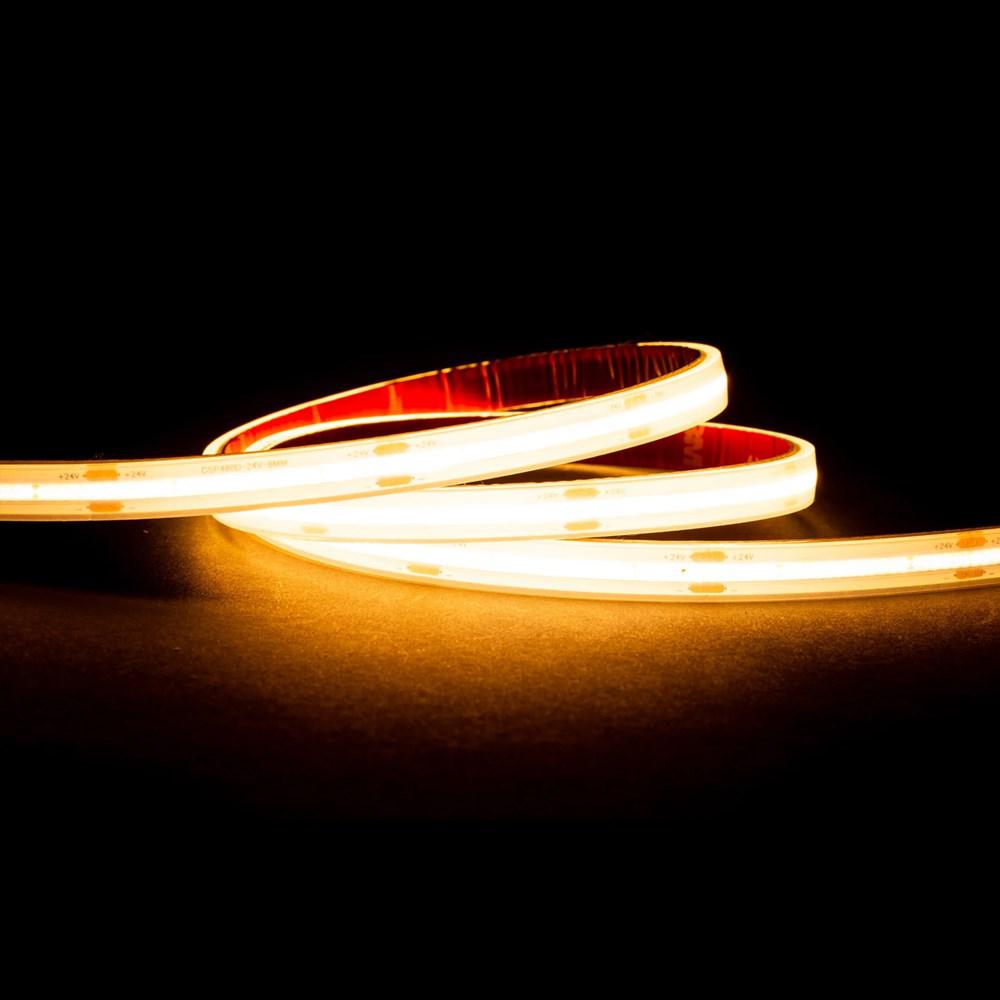

| 3000k Warm White |
1000 lumens |
Decks, gardens, outdoor entertaining |
| 4000k Cool White |
1035 lumens |
Outdoor kitchens, bathrooms, splashbacks |

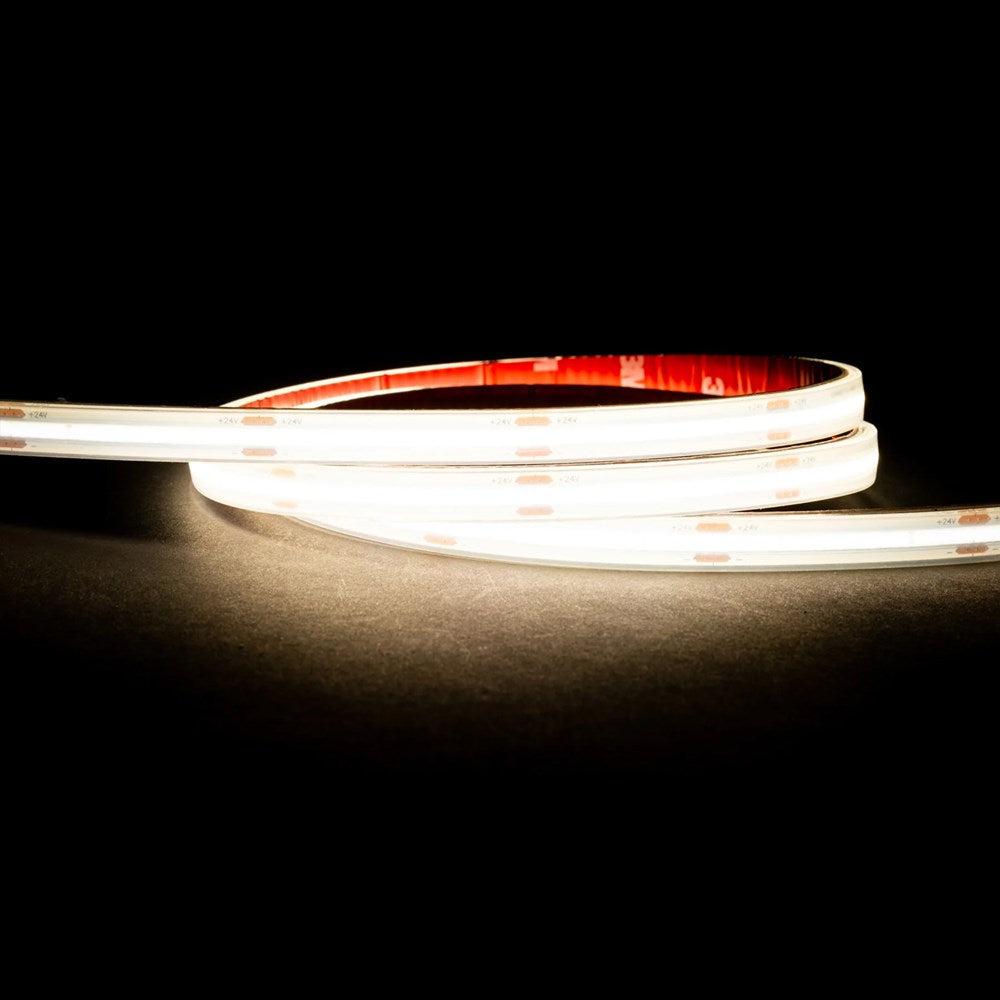

| 5500k Bright Daylight |
1030 lumens |
Driveways, workshops, commercial outdoor |
Choosing a driver
Allow 10w for every metre of strip and add about 20% headroom. A full 5 metre run draws 50w, so it needs a 24v driver of at least 60w. For longer installations, split the strip into runs of 5 metres or less and feed each run separately. The 10 metre roll is supplied as one reel, so plan your runs before cutting. Outdoors or in wet areas, use a weatherproof IP66 or IP67 driver or keep the driver under cover. To dim the strip, pair it with a dimmable 24v driver and a compatible dimmer.
Mounting and heat
We recommend mounting this strip in an aluminium profile, which draws heat away from the LEDs, protects the strip and extends its life. Choose a profile at least 13mm wide inside to suit the 12mm strip, and add a diffuser for the softest line of light. Every cut end must be resealed with an end cap and silicone to keep the IP67 rating, and any outdoor joins should be made in a waterproof connector or junction box.
IP67 rated for outdoor use.
