* If you require custom cut lengths please specify measurements in the order notes at checkout.
* Custom cut LED strip is sold per metre. Each cut is rounded up to the metre, e.g. 2 x 500mm is charged as 2 metres. To avoid delays, round each cut length up to the metre.
* All custom cut strip lighting is non refundable for change of mind.
RGB 360° bend neon LED strip, IP67

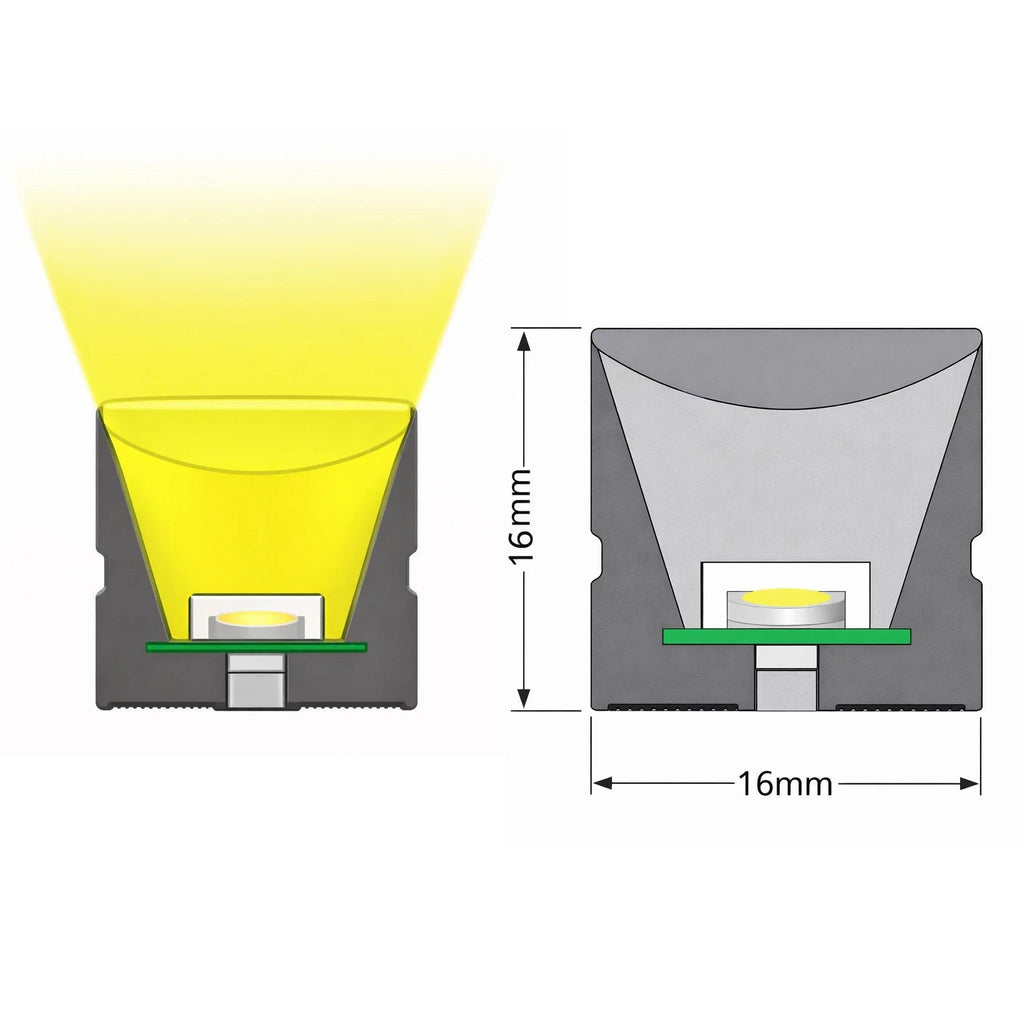

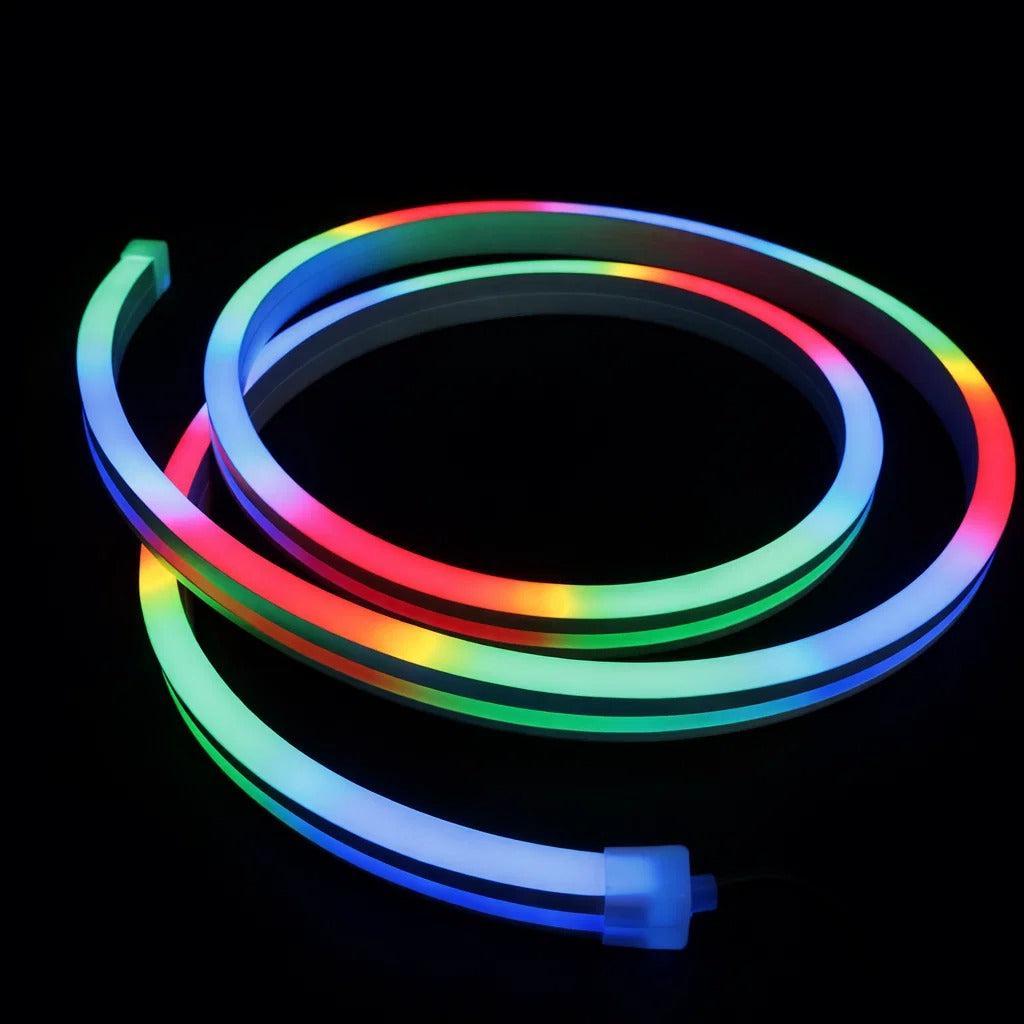

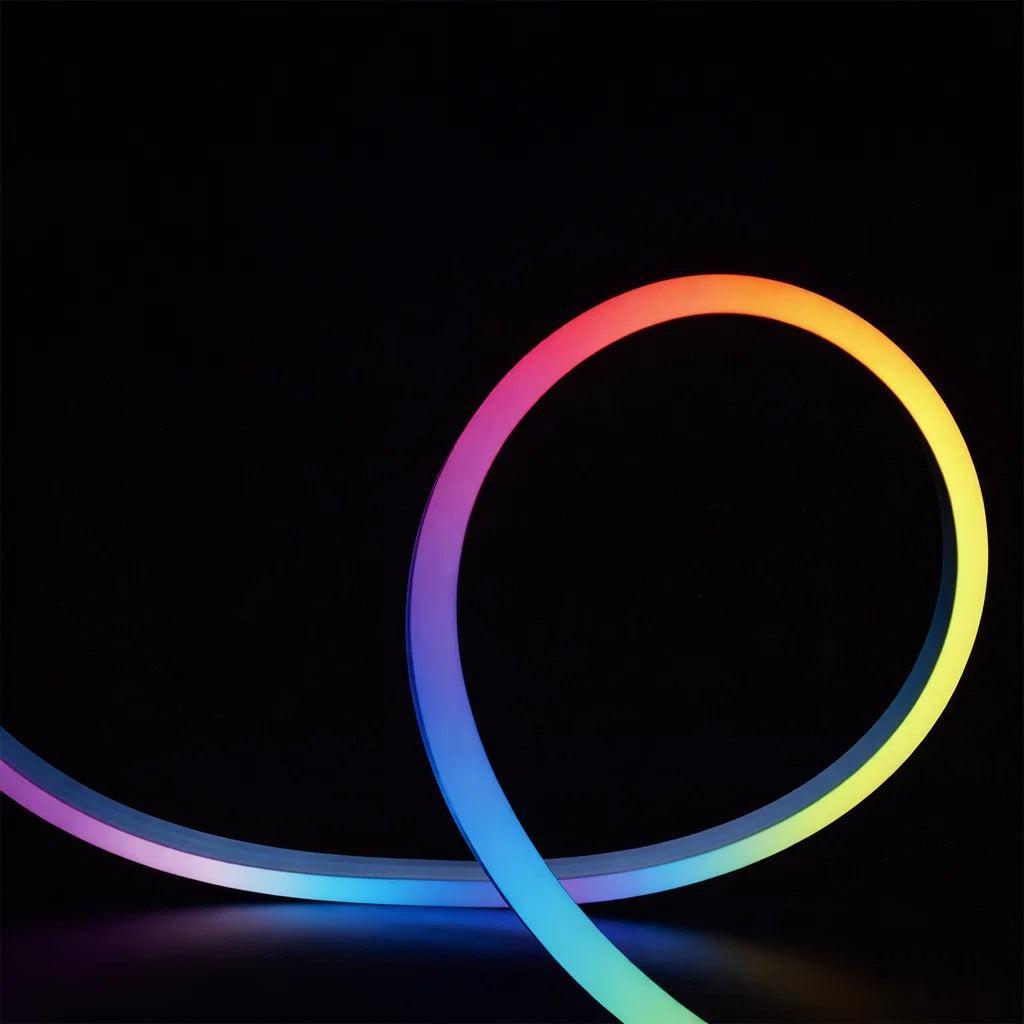

This Pixel RGB neon flex bends in every direction and changes colour on demand, so it can trace curves, outlines, lettering and shapes in any colour you choose. The silicone housing diffuses 120 LEDs per metre into one smooth, continuous glow with no visible dots, and there is no separate profile or diffuser to buy.
Rated IP67 and encased in UV resistant silicone, it suits facades, signage, pool and garden features, bars, entertainment areas and any feature lighting that needs colour, indoors or out.
Key features

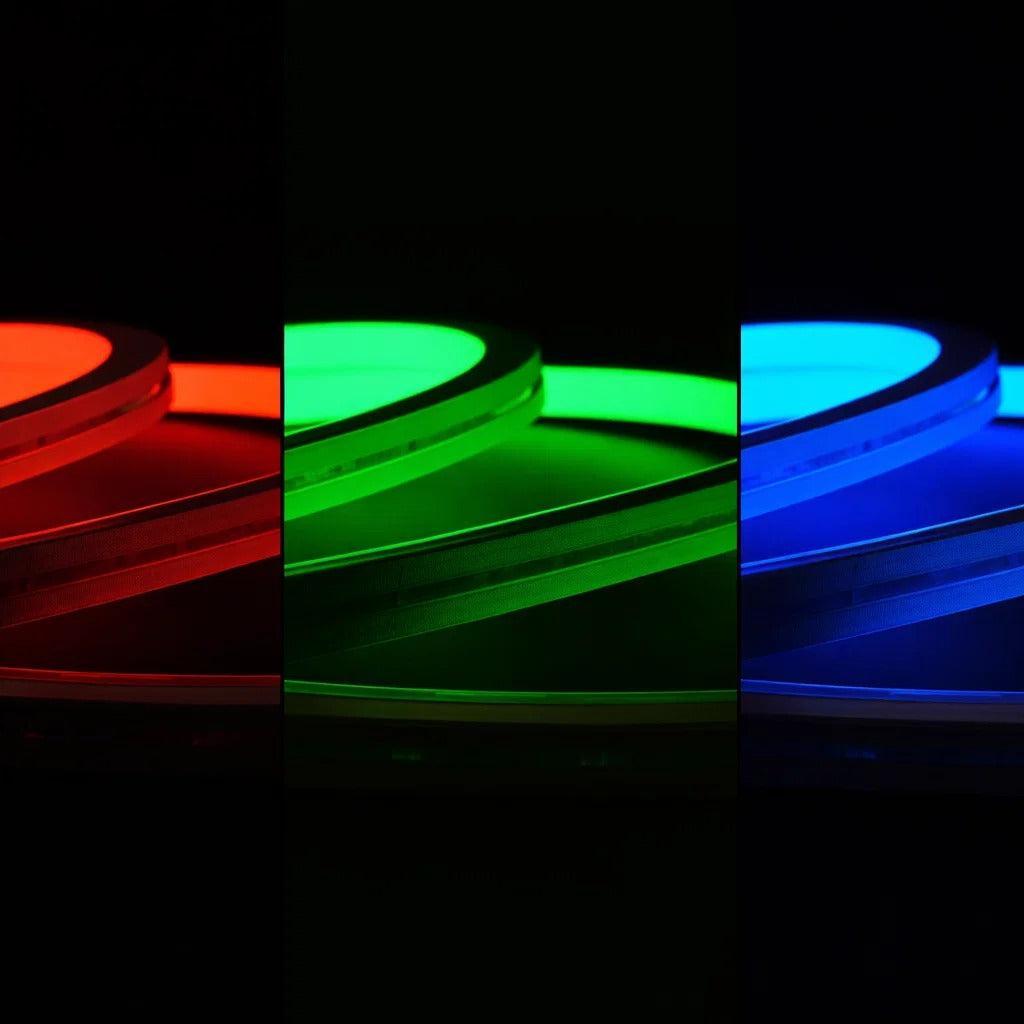

- Full RGB colour, compatible with any standard RGB controller

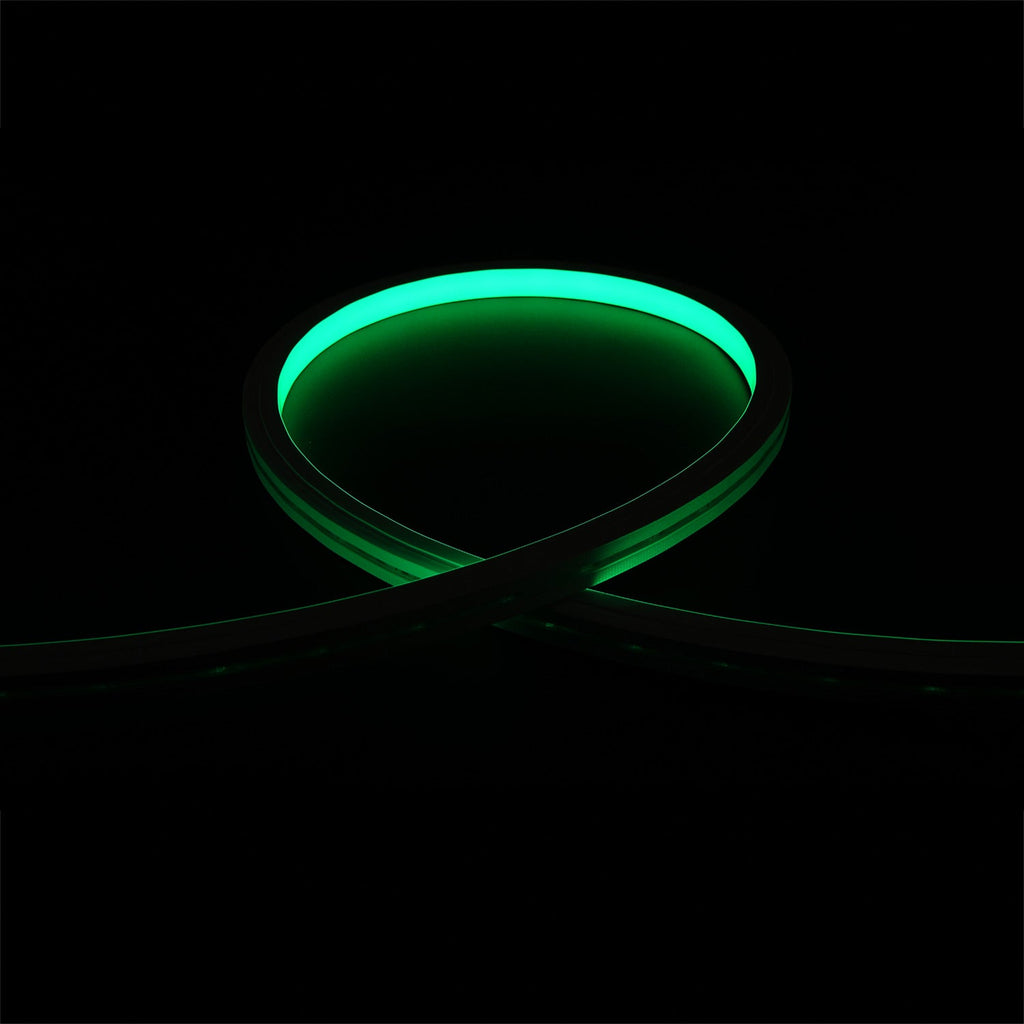

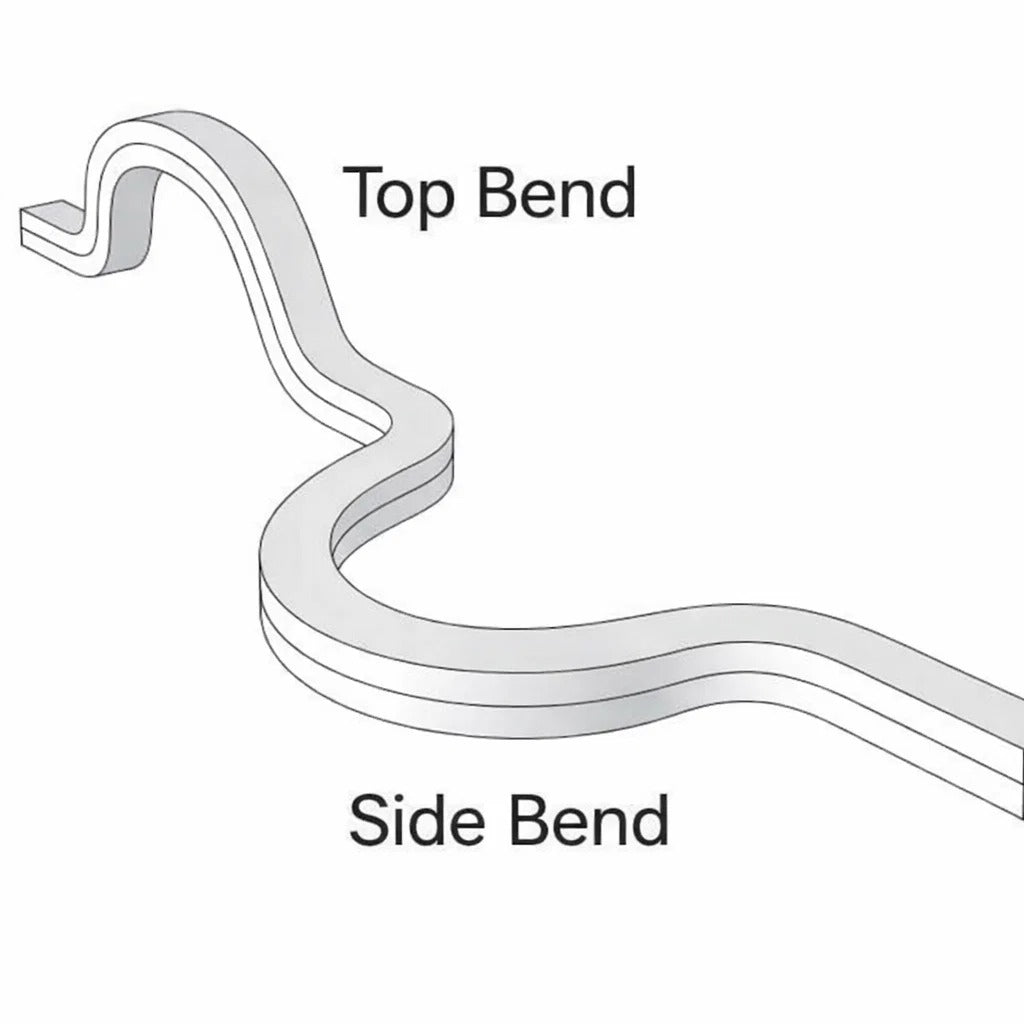

- Bends 360° in any direction, minimum bend radius 60mm
- 12w per metre at full white (4w per colour channel)

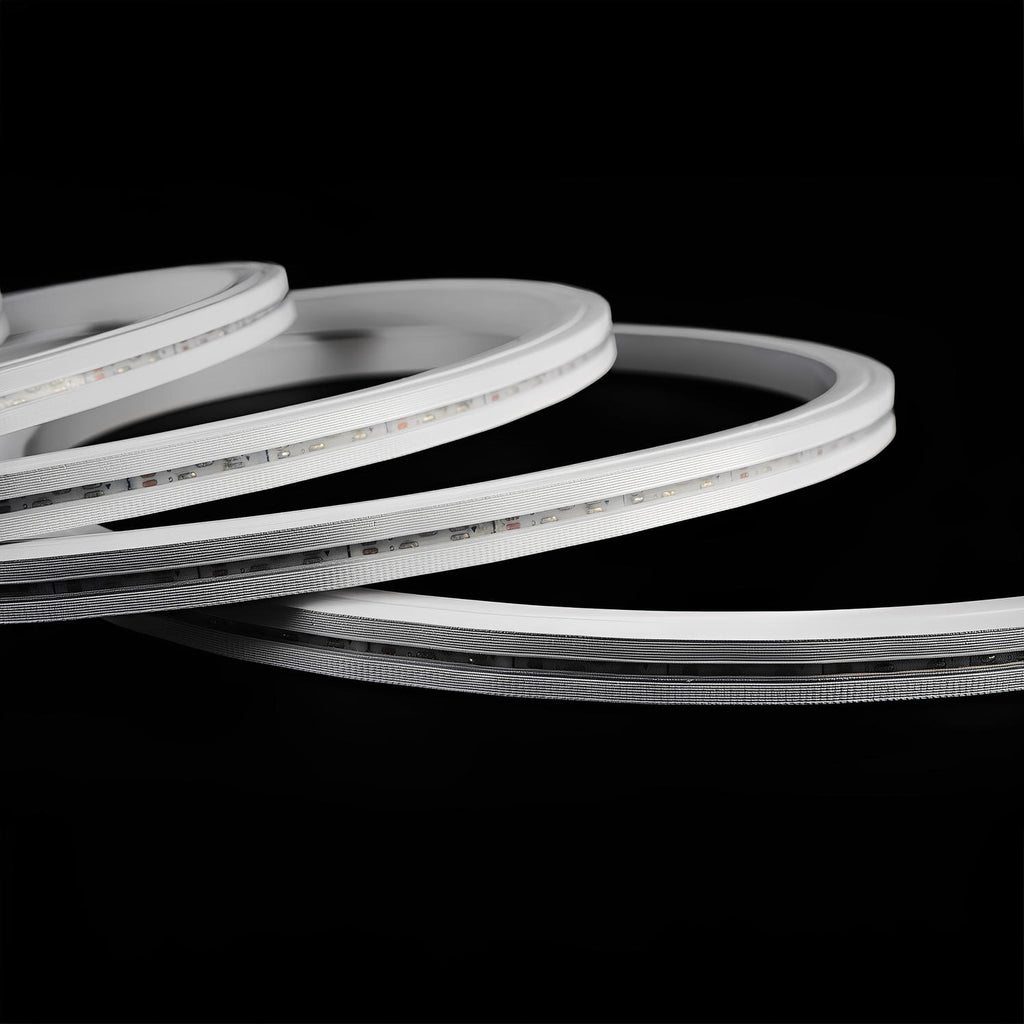

- 120 LEDs per metre behind a silicone diffuser for a smooth glow
- 110° beam angle

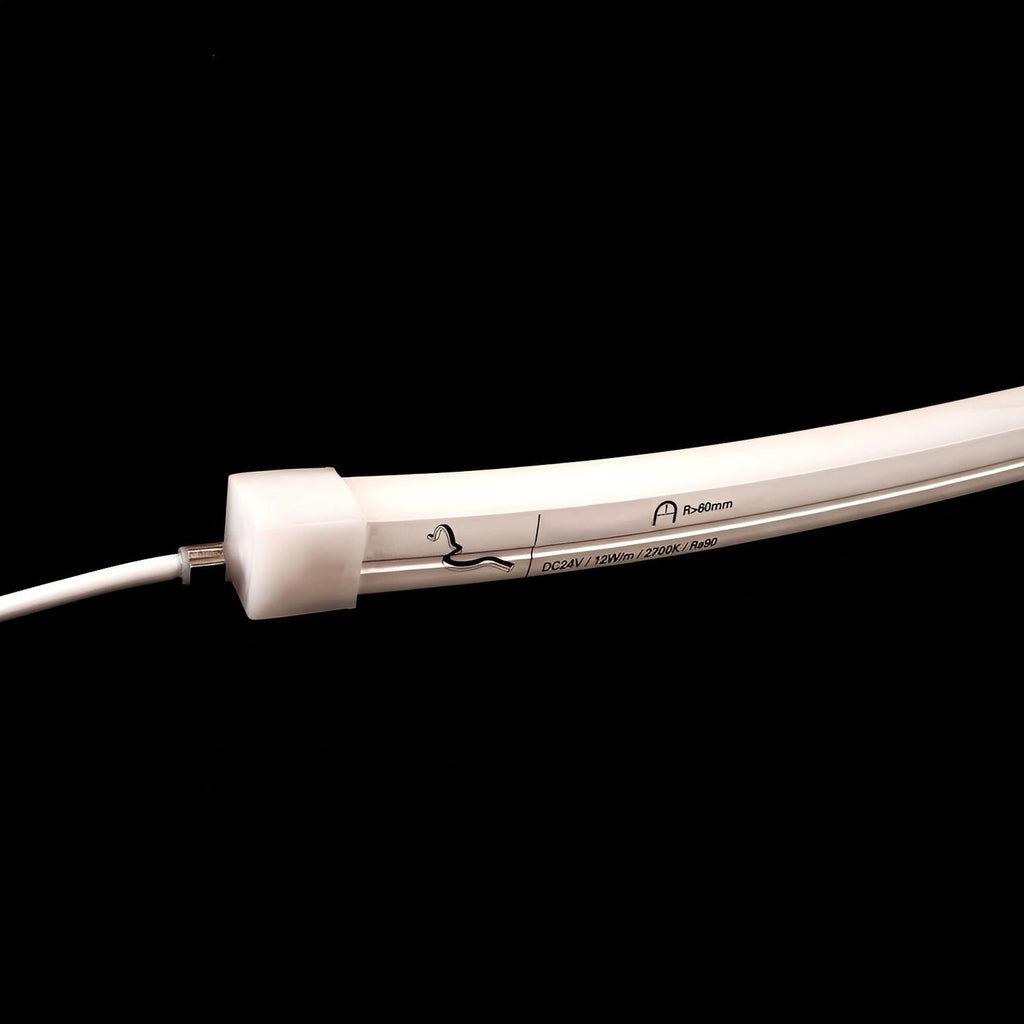

- Factory fitted 22AWG four core end feed cable
- 24v DC, 5 metres from a single feed or 10 metres fed from both ends
- IP67, UV resistant silicone, rated minus 40°C to 55°C
- 3 year warranty

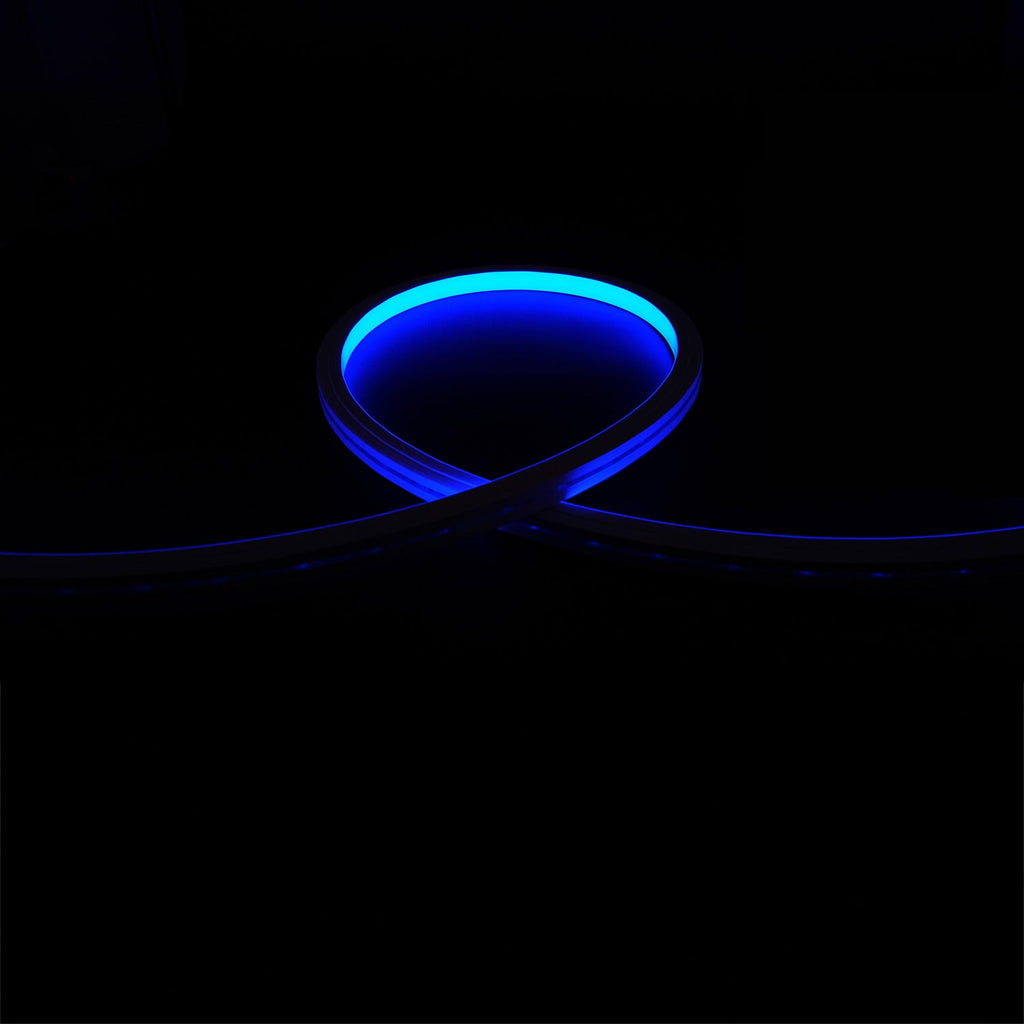

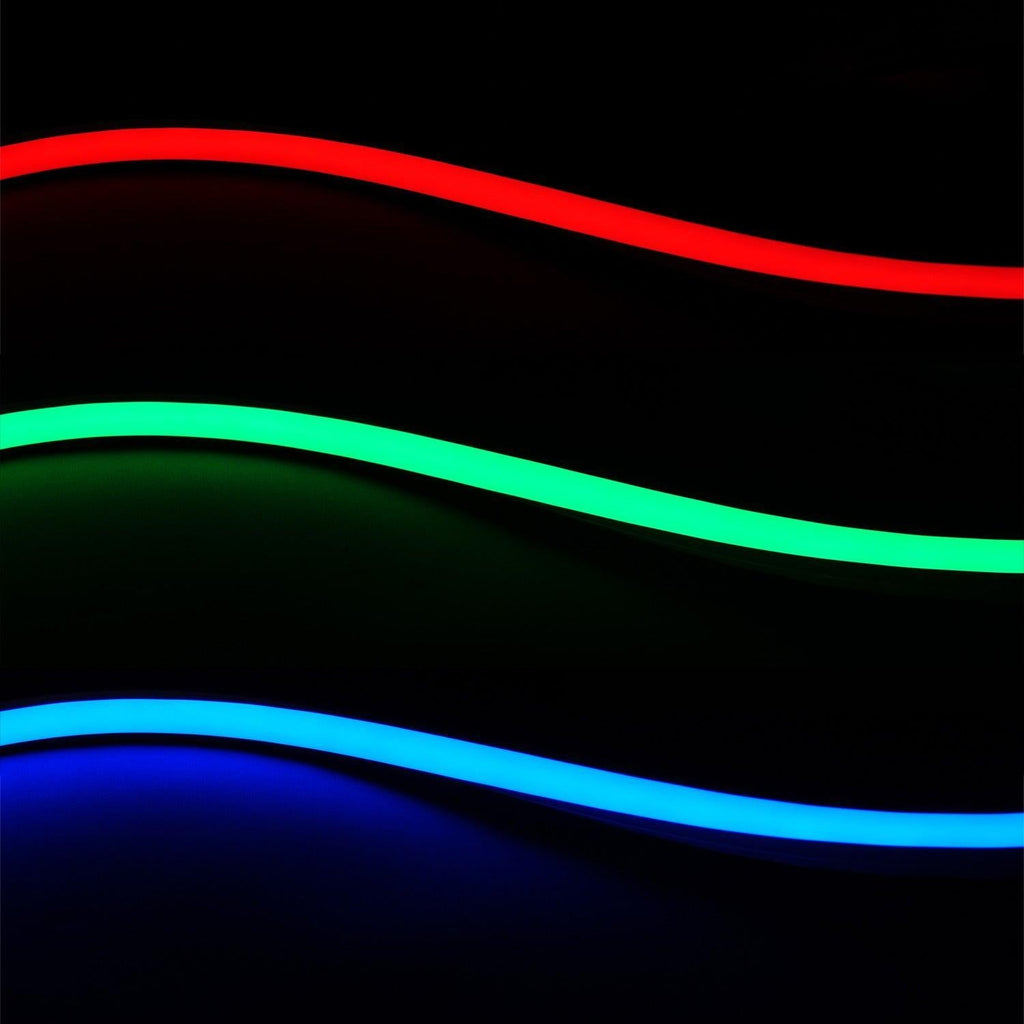

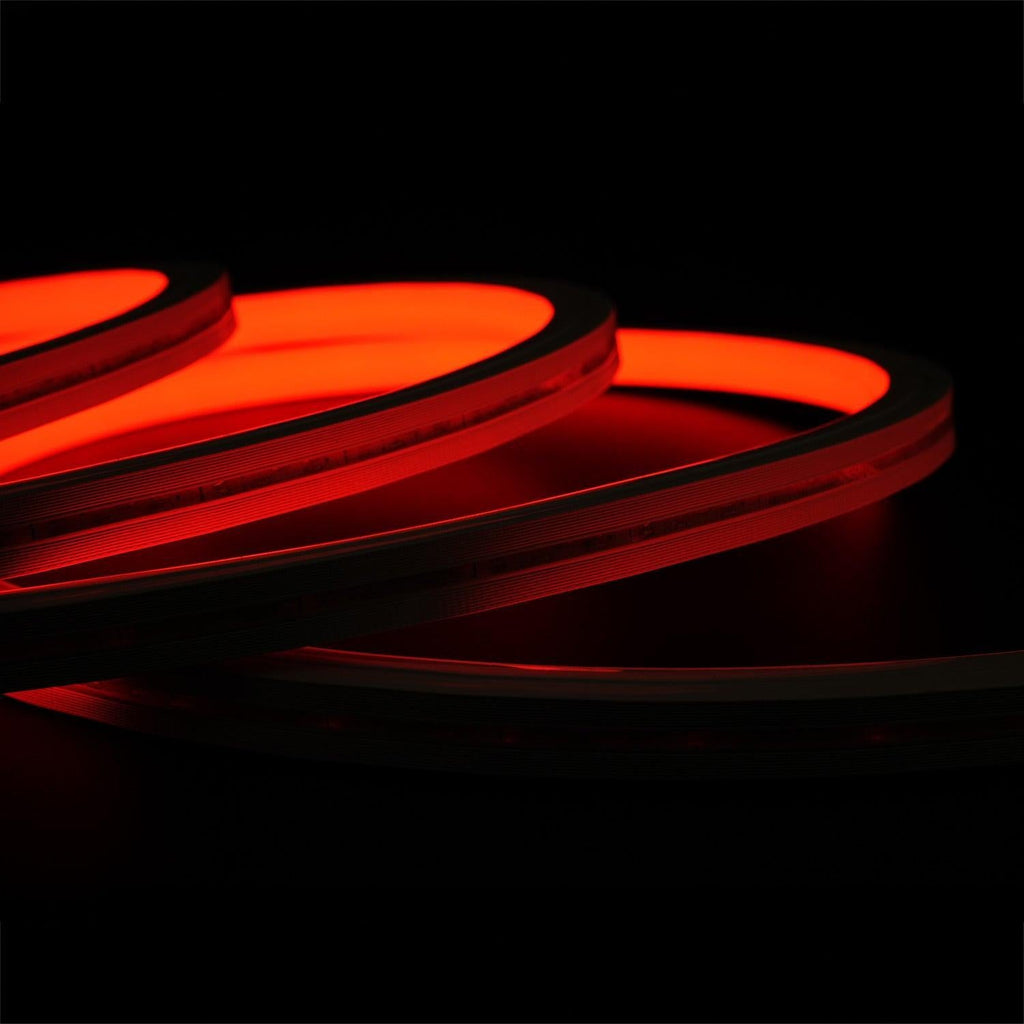

Colour options
| How you run it |
What you need |
Best for |
| Full colour changing |
24v driver plus an RGB controller |
Feature lighting, bars, entertainment areas, events |
| One fixed colour |
24v driver wired to a single channel |
Signage, brand colours, wayfinding |
| White (all channels on) |
24v driver plus an RGB controller |
General glow when colour is not needed |
Choosing a driver and controller

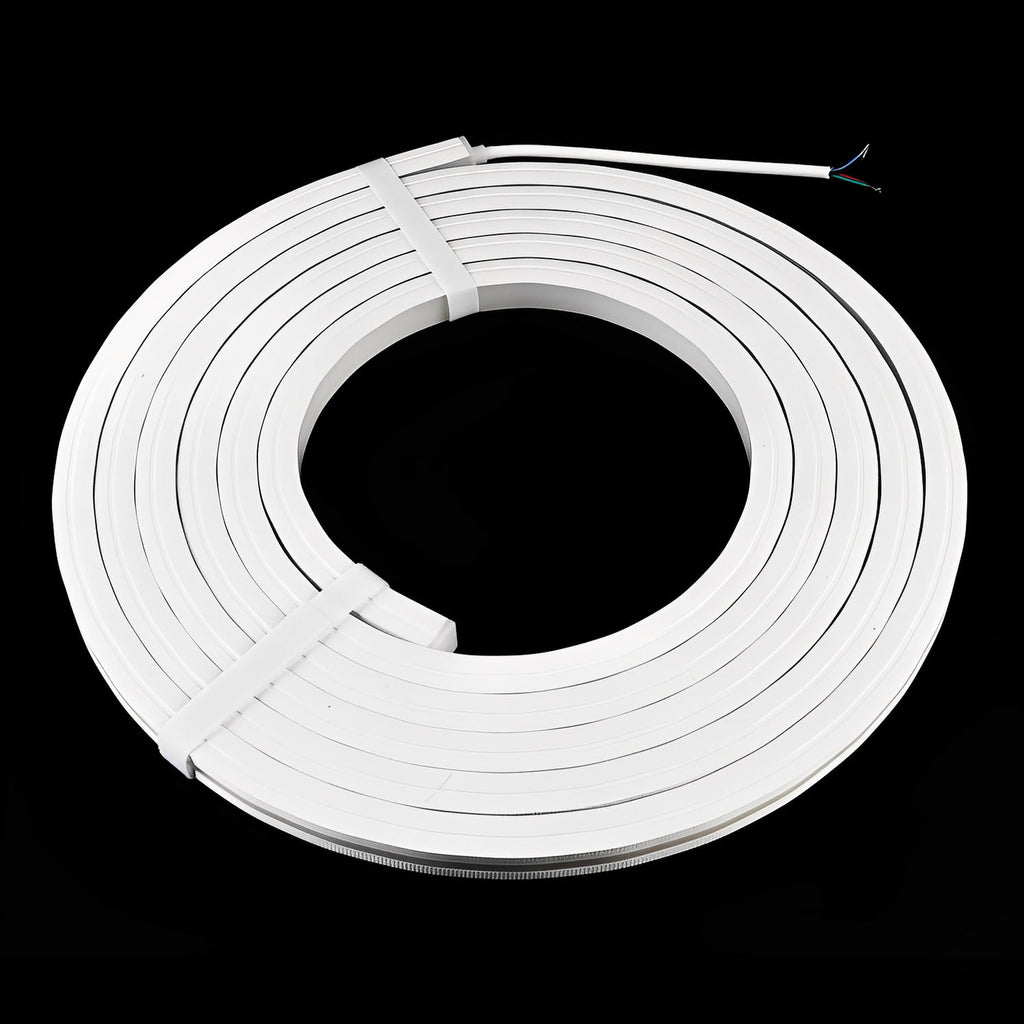

Allow 12w for every metre and add about 20% headroom. A full 5 metre run draws 60w, so it needs a 24v driver of at least 72w, which in practice means a 100w driver. Fed from both ends, a 10 metre run draws 120w and needs a 150w driver. Your RGB controller must also be rated for the full load of the run. For anything longer, split the neon into separate runs and feed each one. The 20 metre roll is supplied as one reel, so plan your runs before cutting. Outdoors, use a weatherproof driver and controller or keep them under cover.
Mounting and outdoor use
Neon flex does not need an aluminium profile. Fix it with mounting clips or a mounting channel, keeping bends at a 60mm radius or larger so the internal strip is not stressed. Every cut end must be resealed with an end cap and silicone to keep the IP67 rating, and any outdoor joins should be made in a waterproof connector or junction box.
