Please note: the fan body and the fascia must be added to the cart separately
Description:
• The stylish Response header box exhaust fan is the quietest and most powerful in its class. It includes features such as a unique swing clip and removable spigot that makes it very easy to install. Its elegant and contemporary looking design will fit in with any modern toilet, bathroom or ensuite.
• The Rapid Response Grille with TRI LED will brighten up any bathroom, ensuite or toilet. Unlike the traditional models, these feature an LED light in the centre of the grille which can be controlled separately to the fan itself. It maintains a stylish, modern design to suit any setting.
Header Box Features:
• Advanced impeller and housing design provides powerful air flow and minimises noise
• Can be retrofitted into a standard 10” round fan cut out
• Low resistance non-return backdraft damper maximises air flow performance
• Easy to remove grille makes cleaning easy
• Rated “Continuous Run”
• Fitted plug and lead simplifies installation
• Grille can be easily rotated to align with walls
• High strength swing clips make installation easy
• Available with a modern square or round grille
• Available with variable 3-15 minute run-on timer
• IPX4
LED Grille Features:
• 2 Year Warranty
• Built in LED light feature

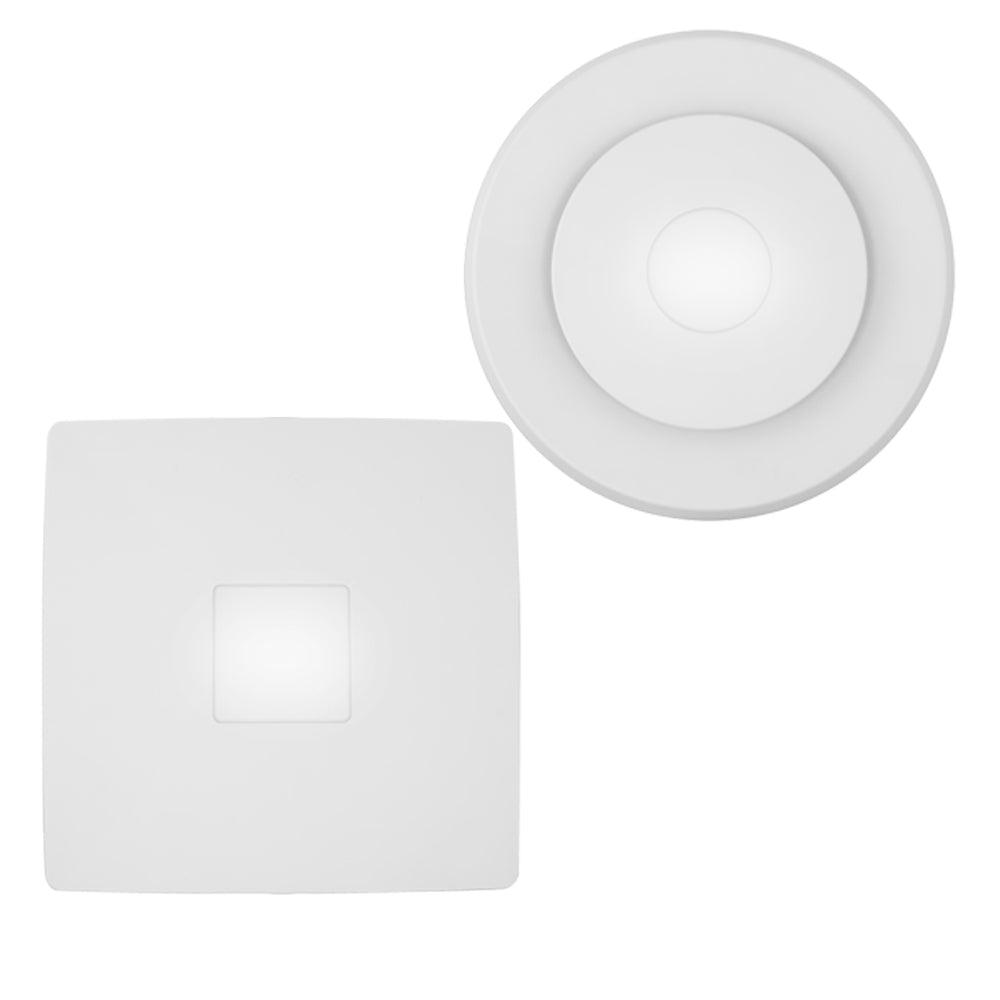

• Available in round and square
• Stylish, contemporary design
• LED and Rapid Response Fan can be controlled separately
• Quick and easy to install
• Can be retrofitted to a previously installed Rapid Response Fan
| Model | Description | Grille | Lumens | Input Power | Colour Temperature | Beam Angle |
|---|---|---|---|---|---|---|
| RESPG150RNWH-TRILED | 10” Round Grille White | Round | 800lm | 9w | 3000k/4200k/6000k | 180° |
| RESPG150SQWH-TRILED | 10" Square Grille White | Square | 1000lm | 12w | 3000k/4200k/6000k | 180° |
The Driver for the LED lights has the following specifications:
| Input Voltage | Input Frequency | Output Voltage | Output Current | Output Power | Dimensions |
|---|---|---|---|---|---|
| AC 100-240V | 50Hz | DC 24-45v | 300 mA +/- 5% | 8-12w (13w max) | 95 x 45 x 22.5mm |
Ok if came with the cover not being an extra
Tri LED is miss leading there is no LED that comes with the fan, it is an expensive extra, but Middys have them cheaper
Product as described and functions well.

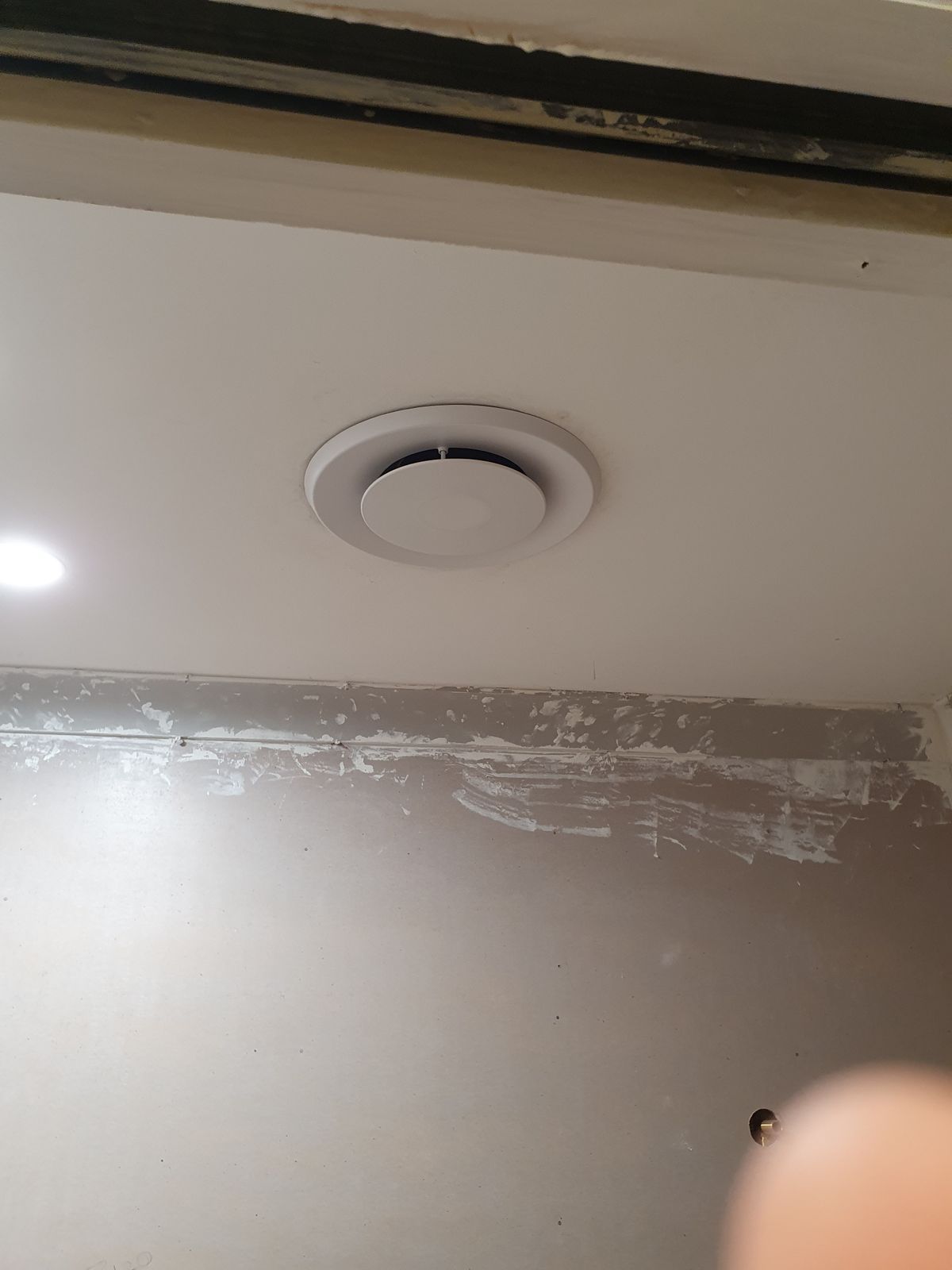

This fan was easy to install, it looks posh and inconspicuous, it is quieter than my previous fan and it works a treat.

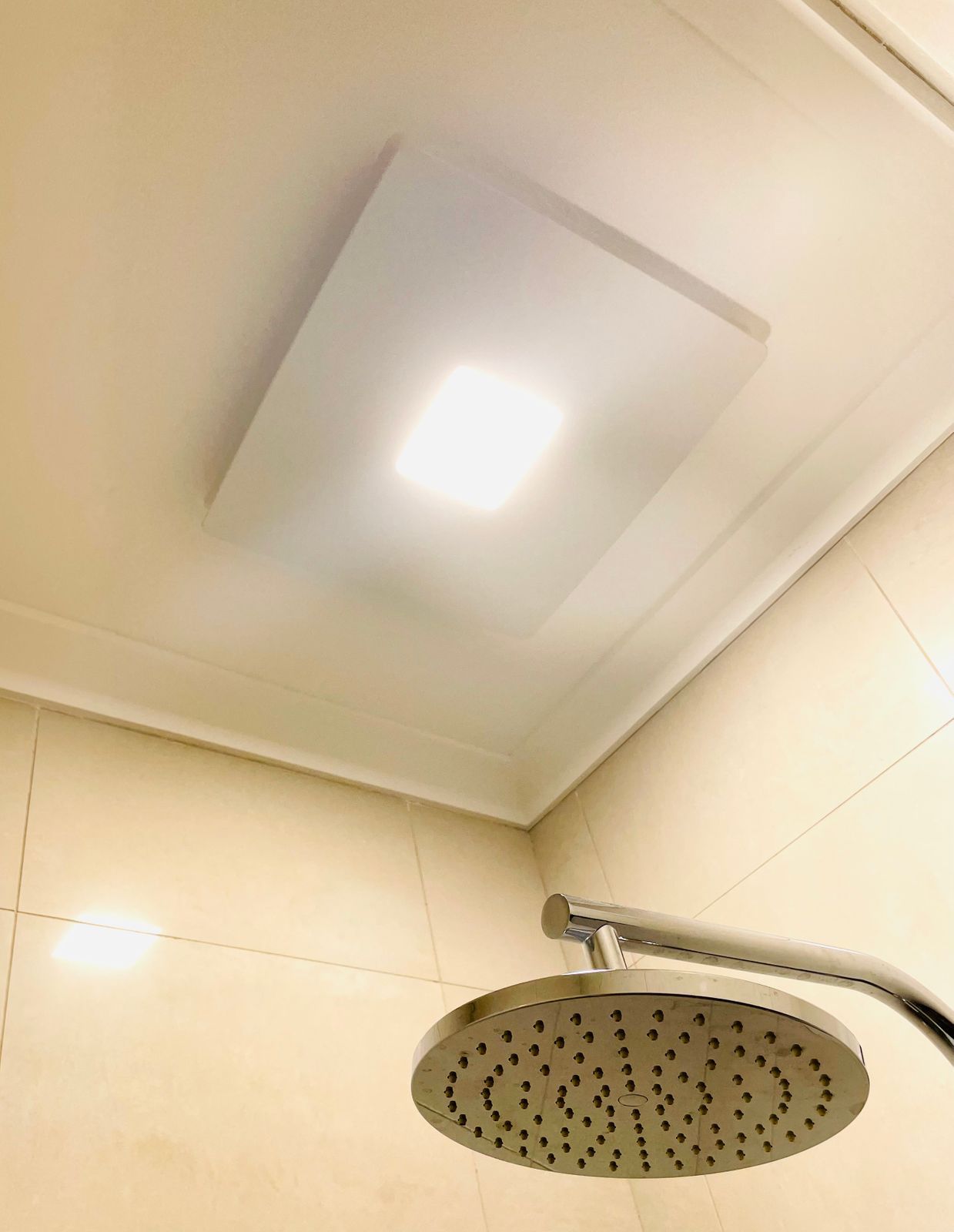

Lights up my otherwise dark shower well. I like that I have the option of three light settings.
The fan took a little longer than expected to arrive but was worth the wait. The extraction is great, its not overly noisy, lighting great and it's quite attractive being understated in design.
Good quality exhaust fan/led light combo. I'm an electrician and recommend these to my customers for toilets or bathrooms with limited ceiling space. Tri colour light is also an added bonus.
 |
