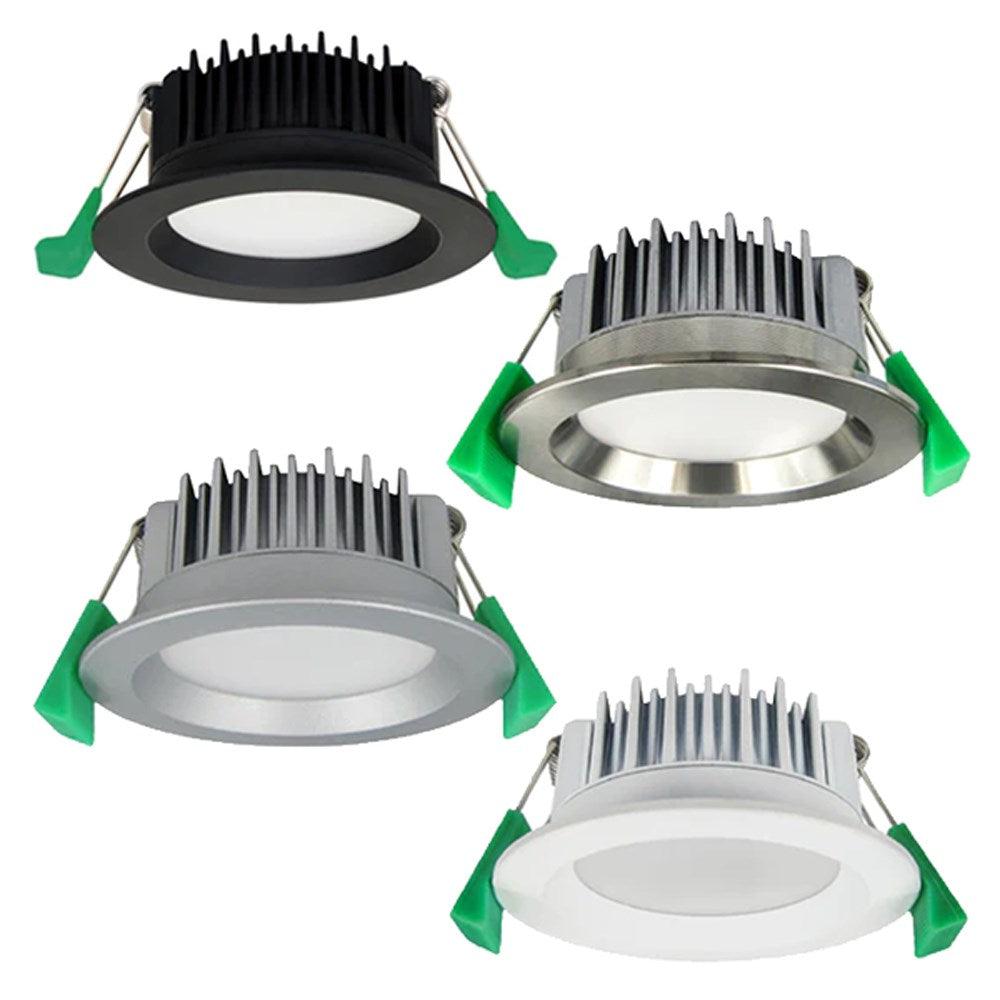

The GeoLED downlights offer a versatile and reliable lighting solution suitable for a wide range of applications. Ideal for task lighting in both residential and commercial environments, these downlights deliver efficient illumination tailored to your needs.
Whether you are working on new constructions or retrofitting existing spaces, the GeoLED range adapts seamlessly. Choose from warm, natural, or cool white colour temperatures to perfectly complement your interior design and create the desired atmosphere.
Installation and maintenance are simplified thanks to the generously sized connector block and the removable, replaceable driver, ensuring quick setup and easy servicing.
Crafted from powder-coated aluminium, the downlight housing provides a clean, modern aesthetic, while the PPMA diffuser ensures smooth, even light distribution, minimizing glare and shadows for comfortable visibility.
Key Features and Benefits:
• Application: Suitable for both residential and commercial interiors
• Durability: Backed by a 5-year warranty for long-lasting performance
• Longevity: L70 rated for 54,000 hours of reliable use
• Switching Capacity: Rated for 30,000 switching cycles
• IP44 Rating: Provides protection against splashing water, ideal for various indoor environments
Electrical Specifications:
• Voltage: 230v
• Driver: Comes complete with a coverable, replaceable driver for easy maintenance
• Power Factor: Greater than 0.9 for efficient energy usage
Light Output:
• Lamp Type: Integrated LED for optimal energy efficiency and brightness
• Wattage: 9.8W including the driver
• Lumens (CRI > 80): 736lm (3000K), 776lm (4000K), 756lm (6000K)
• Lumens (CRI > 90): 630lm (3000K), 660lm (4000K), 640lm (6000K)
• Colour Temperatures: 3K (Warm), 4K (Natural), and 6K (Cool) options
• Colour Rendering Index (CRI): Available in > 80 and > 90 for superior colour accuracy
• Beam Angle: 90° for broad and even illumination
• Dimmable: Yes, allowing customizable lighting levels
• Maximum Ambient Operating Temperature: +45°C
Design and Installation:
• Shape: Round
• Mounting: Recessed installation for a sleek, unobtrusive appearance
Dimensions:
• Diameter: ø85mm
• Height: 35mm
• Cut-out Size: Suitable for cut-outs ranging from 67-75Ømm
• Rating: IC-F/IC-4 compliant
• Clearance: *HCB: 0mm | *SCB: 0mm | Overall fitting height: 35mm
*Please note that HCB & SCB clearances of 0mm do not imply that the downlight can be installed directly in solid materials such as concrete or wood without proper heat dissipation measures. Adequate ventilation is essential to ensure safety and optimal performance.
*The replaceable driver option is available to extend the lifespan of your fitting, reducing long-term maintenance costs and downtime.
Enhance your spaces with the GeoLED downlight range , combining efficiency, flexibility, and durability in one streamlined lighting solution.
