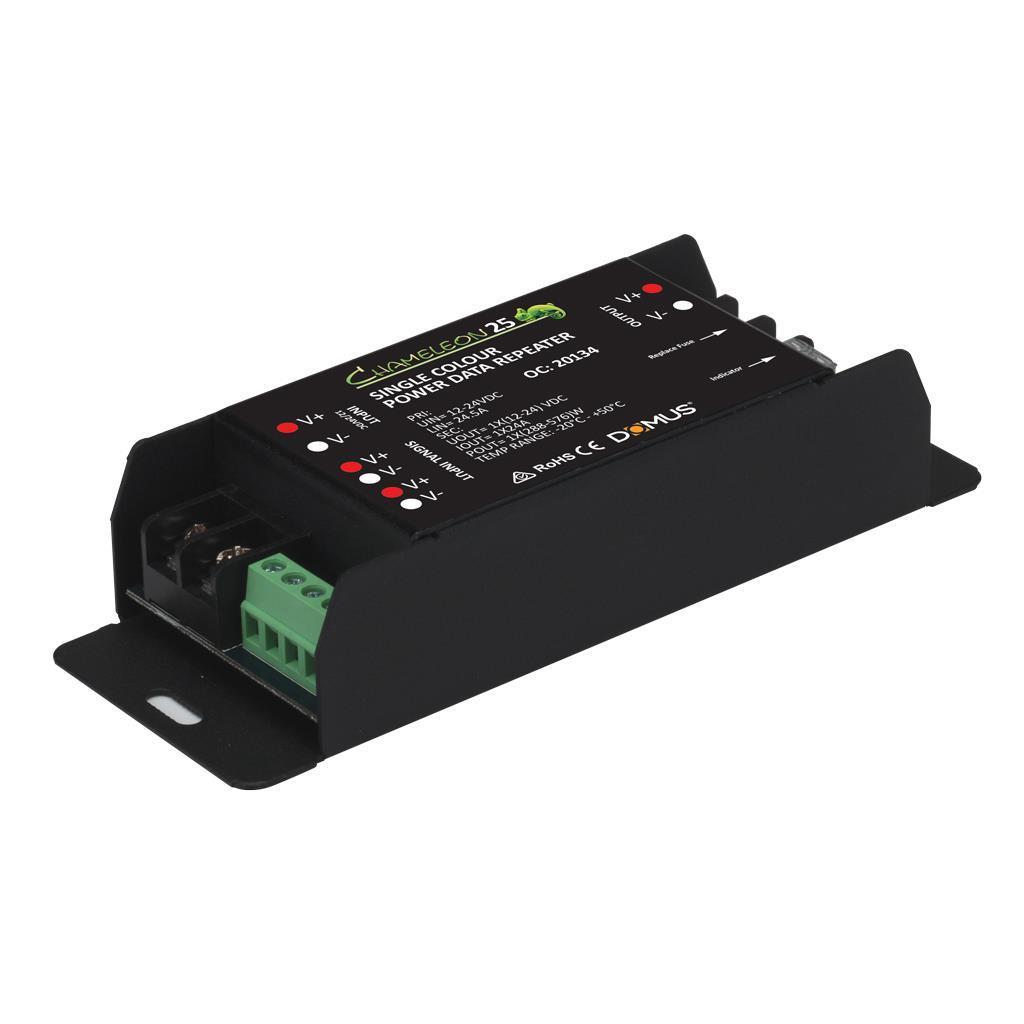

The CHAMELEON-25 is a 1 channel high power data repeater. The CHAMELEON-25 offers the ability to expand the signal strength generated by the master controller for dimming circuits. In situations where the load limit is exceeded or more that the limit set by the Master controller the CHAMELEON-25 is able to duplicate the signal without signal loss. This means whether dimming via RF, 0-10V, DALI or DMX you can be assured that the dimming signal will always be stable thus avoiding the appearance of dim light over larger areas. Particularly useful where a single master controller is used to control large areas or multiple zones.
Specifications:
- Product Family: Chameleon
- Application: Data Repeater
- Type of controller: 1CH High Power data repeater
- Method of control: PWM*
- Method of dimming: PWM (Pulse width modulation)
- Housing colour: Black plastic colour housing
- Input voltage (VDC): 12-24v DC
- Output voltage (VDC): 12-24v DC
- Output current (A): 1x24A
- Output wattage (W): 12VDC - 288w (x1) | 24VDC - 576w (x1).
- Expandable signal: Yes**
- Protection: Yes, replaceable external 25A blade fuse***
- Requires: Constant voltage 12-24VDC LED driver ***
- Warranty Period: 3Y
- Warranty Type: Replacement

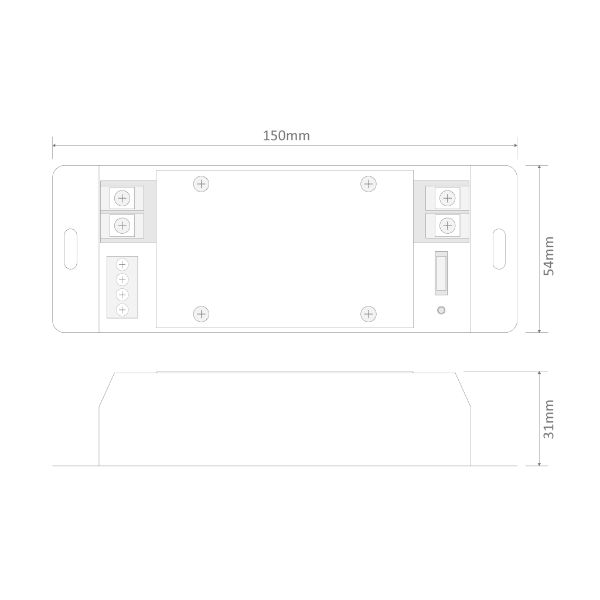

Dimension:
- Length: 150mm
- Width: 54mm
- Height: 31mm
