* If you require custom cut lengths please specify measurements in the order notes at checkout.
* Custom cut LED strip is sold per metre. Each cut is rounded up to the metre, e.g. 2 x 500mm is charged as 2 metres. To avoid delays, round each cut length up to the metre.
* All custom cut strip lighting is non refundable for change of mind.

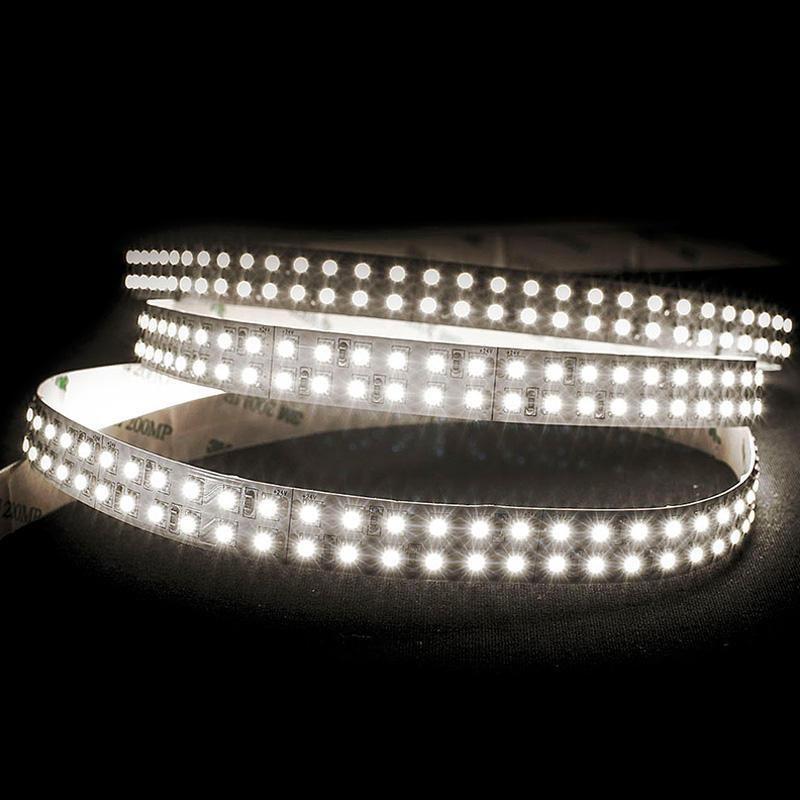

LED strip, 19.2w per metre, 4000k, IP20, 14mm wide
This 14mm strip carries 240 high density SMD 3528 LEDs per metre for crisp, consistent neutral white light. With cut points every 50mm, it is easy to tailor to cabinets, shelving and display runs.
4000k is a practical colour for kitchens, workspaces, retail displays and modern interiors, keeping surfaces clear and evenly lit.
Key features
- 19.2w per metre, 1640 lumens per metre
- 240 SMD 3528 LEDs per metre
- CRI greater than 80
- 120° beam angle
- Cut points every 50mm
- 24v DC
- Dimmable
- 14mm wide, 2mm high, 3M double sided tape backing
- Sold per metre or as a 30 metre roll
- 3 year warranty
Colour temperature and output
| Colour temperature |
Output per metre |
Best for |
| 4000k Cool White |
1640 lumens |
Kitchens, workspaces, retail displays |
Choosing a driver
No maximum run length is published for this strip, so size the driver by load: allow 19.2w for every metre and add about 20% headroom. As a worked example, a 5 metre run draws 96w and needs a 24v driver of at least 116w, which in practice means a 150w driver. Split longer installs into separate runs, each with its own feed. The 30 metre roll is supplied as one reel, so plan your runs before cutting. To dim the strip, pair it with a dimmable 24v driver and a compatible dimmer.
Mounting and heat
This strip must be installed on an aluminium heat dissipating surface to keep the warranty valid. Use an aluminium profile at least 15mm wide inside to suit the 14mm strip; it protects the strip, extends its life and takes a diffuser for a softer line.
IP20 rated for dry indoor locations only.
