* If you require custom cut lengths please specify measurements in the order notes at checkout.
* Custom cut LED strip is sold per metre. Each cut is rounded up to the metre, e.g. 2 x 500mm is charged as 2 metres. To avoid delays, round each cut length up to the metre.
* All custom cut strip lighting is non refundable for change of mind.

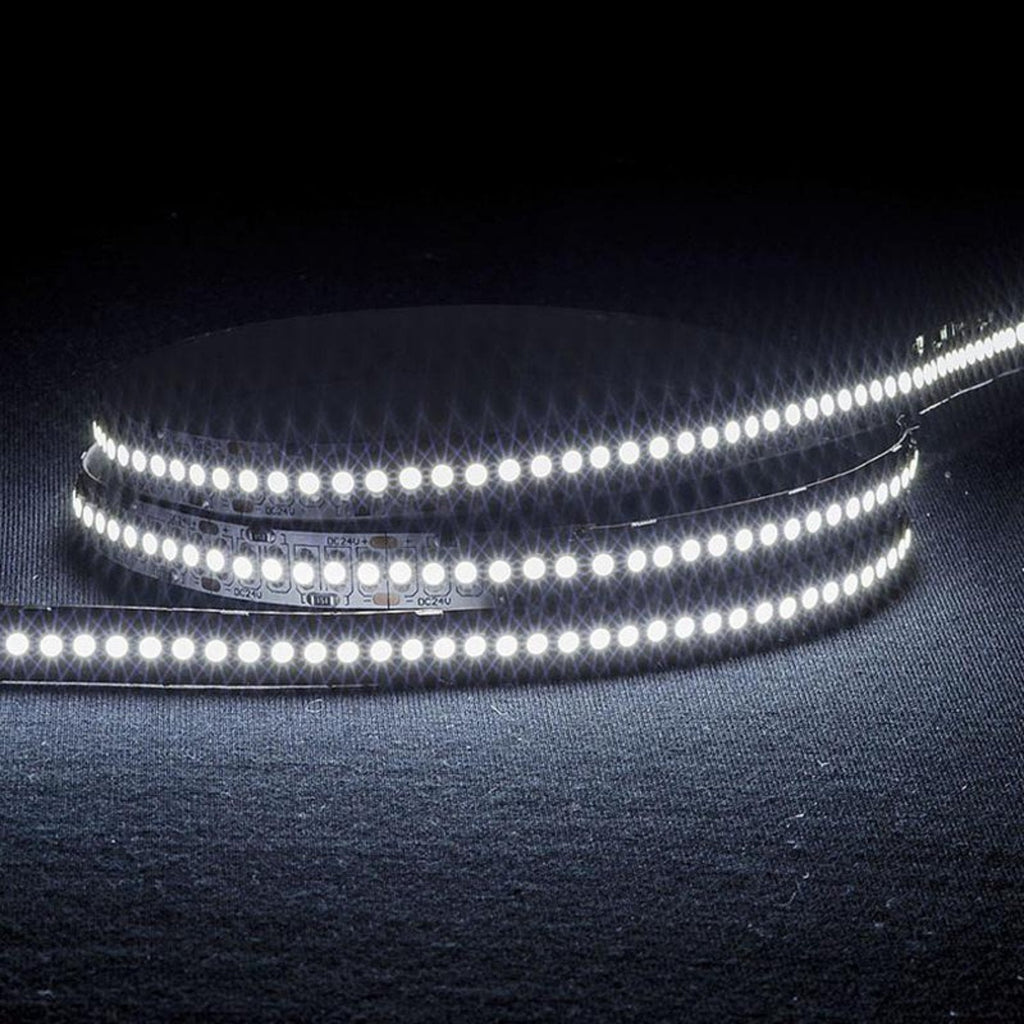

LED strip, 19.2w per metre, 5500k daylight, IP20, 10mm wide
Tightly packed with 240 SMD 3528 LEDs per metre, this 10mm strip delivers bright, continuous daylight white with minimal spotting. It trims every 25mm, so you can get very close to the exact length you need.
Use it in workspaces, commercial areas, display lighting and garages, anywhere crisp, high clarity light makes the job easier.
Key features
- 19.2w per metre, 1720 lumens per metre
- 240 SMD 3528 LEDs per metre
- CRI greater than 80
- 120° beam angle
- Cut points every 25mm
- 24v DC
- Dimmable
- 10mm wide, 2mm high, 3M double sided tape backing
- Sold per metre or as a 30 metre roll
- 3 year warranty
Colour temperature and output
| Colour temperature |
Output per metre |
Best for |
| 5500k Daylight |
1720 lumens |
Workspaces, garages, display lighting |
Choosing a driver
No maximum run length is published for this strip, so size the driver by load: allow 19.2w for every metre and add about 20% headroom. As a worked example, a 5 metre run draws 96w and needs a 24v driver of at least 116w, which in practice means a 150w driver. Split longer installs into separate runs, each with its own feed. The 30 metre roll is supplied as one reel, so plan your runs before cutting. To dim the strip, pair it with a dimmable 24v driver and a compatible dimmer.
Mounting and heat
We recommend mounting this strip in an aluminium profile. The profile draws heat away, protects the strip and extends its life, and a diffuser gives the softest line. Choose a profile at least 11mm wide inside to suit the 10mm strip.
Rated IP20, for dry indoor locations only.
