* If you require custom cut lengths please specify measurements in the order notes at checkout.
* Custom cut LED strip is sold per metre. Each cut is rounded up to the metre, e.g. 2 x 500mm is charged as 2 metres. To avoid delays, round each cut length up to the metre.
* All custom cut strip lighting is non refundable for change of mind.

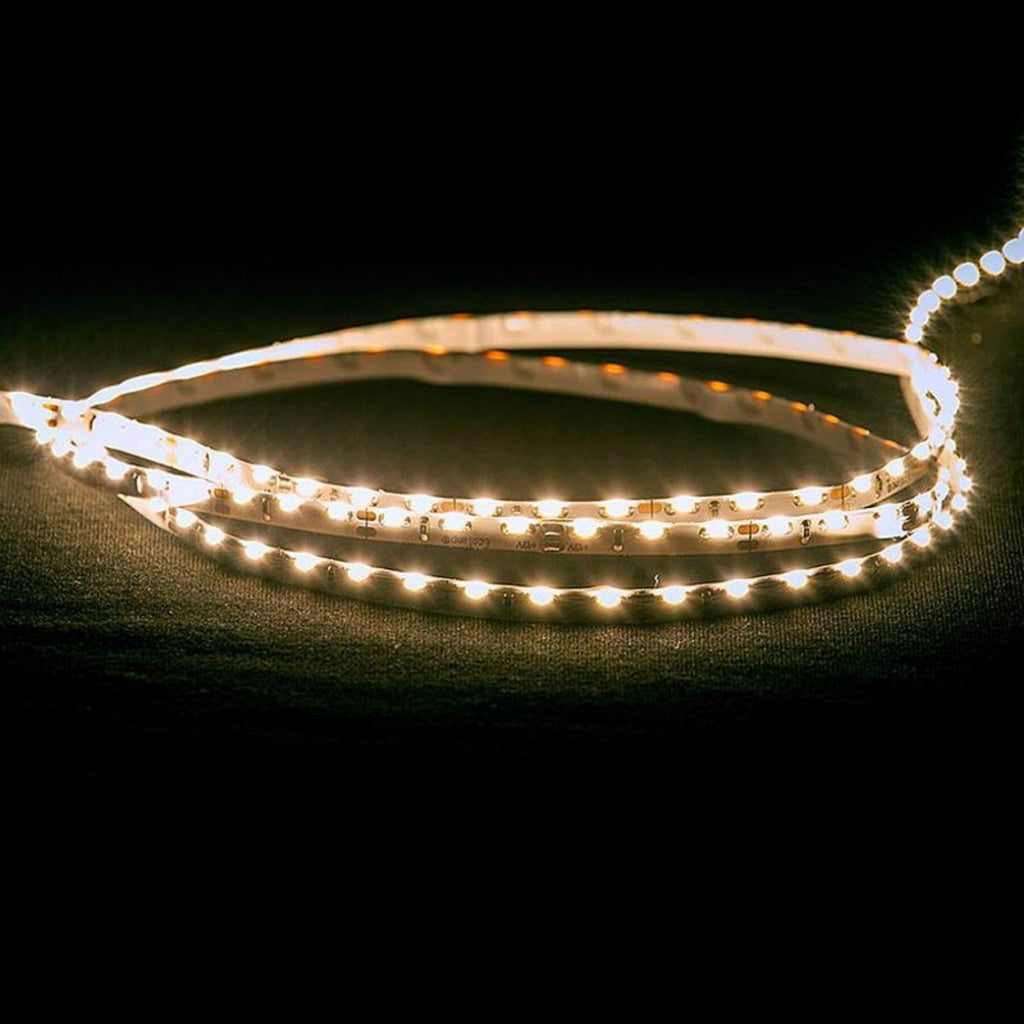

Side mounted LED strip, 7.7w per metre, 3000k warm white
Warm 3000k light from LEDs set on the edge of the tape, so the strip lights sideways rather than straight up. It is a neat answer for shelf fronts, cabinetry and architectural details where the only fixing surface faces the wrong way.
The slim 6mm tape fits tight or recessed spaces, and 96 LEDs per metre give a consistent line of light for subtle accent lighting at home or in commercial interiors. Buy it per metre or as a 20 metre roll.
Key features
- Side mounted LEDs shine out from the edge of the tape
- 7.7w per metre, 500 lumens per metre
- 96 LEDs per metre
- CRI above 80
- 120° beam angle
- 6mm wide, 2mm high
- 12v DC
- Dimmable
- 3M double sided tape backing
- 3 year warranty
Colour temperature and output
| Colour temperature |
Output per metre |
Best for |
| 3000k Warm White |
500 lumens |
Shelf fronts, cabinetry, living areas, hospitality |
Choosing a driver
Allow 7.7w for every metre of strip and add about 20% headroom. A 5 metre run draws 38.5w, so it needs a 12v driver of at least 47w, which in practice means a 60w driver. No maximum run length is published for this strip, so split longer installs into separate runs, each with its own feed. The 20 metre roll is supplied as one reel, so plan your runs before cutting. To dim the strip, pair it with a dimmable 12v driver and a compatible dimmer.
Mounting and heat
Position the strip with its LED edge pointing at the surface you want to light. An aluminium profile or aluminium mounting surface is recommended to draw heat away, protect the strip and help it last; allow at least 7mm inside the profile for the 6mm tape if it lies flat.
IP20 rated for dry indoor locations only.
