* If you require custom cut lengths please specify measurements in the order notes at checkout.
* Custom cut LED strip is sold per metre. Each cut is rounded up to the metre, e.g. 2 x 500mm is charged as 2 metres. To avoid delays, round each cut length up to the metre.
* All custom cut strip lighting is non refundable for change of mind.

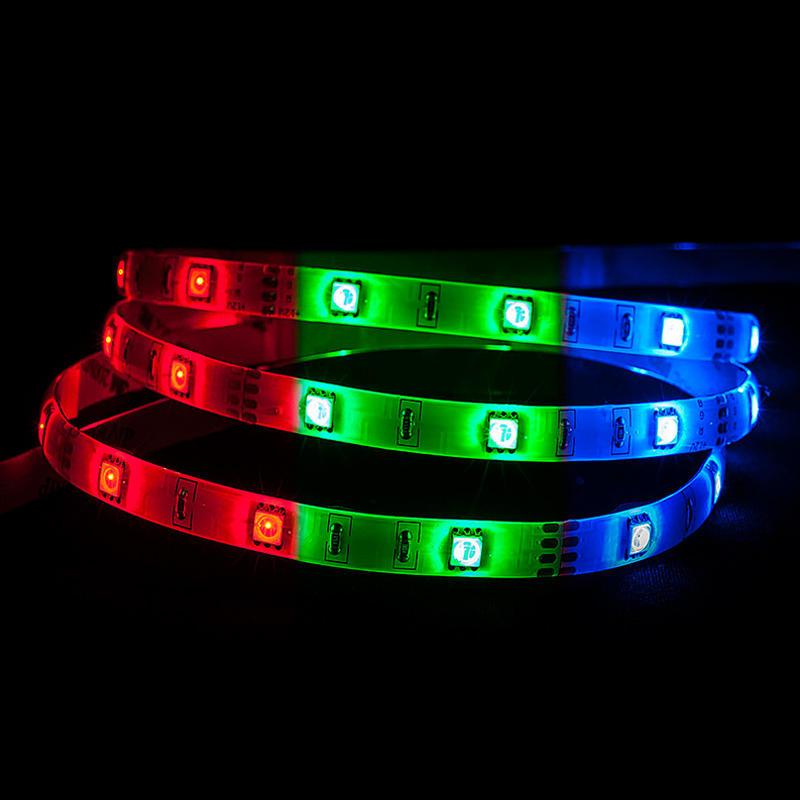

Chasing RGB LED strip, 12v, 8w per metre, IP54
This chasing multicolour strip does more than change colour. Paired with a chasing controller, it can run moving effects along its length, so colour sweeps and flows rather than sitting still. Sixty 5050 LEDs per metre deliver bright, saturated colour from a slim 10mm strip.
It is made for feature and party lighting: kickboards, bar fronts, games rooms, shelving, shop displays and entertainment areas. The IP54 rating means it also copes with damp or sheltered spots.
Key features
- Chasing RGB colour effects
- 8w per metre, 585 lumens per metre on white
- 60 x 5050 LEDs per metre
- CRI above 80
- 10mm wide, 3mm high
- Cut points every 50mm
- 12v DC, maximum 5 metre run
- IP54 rated
- 3M double sided tape for easy installation
- 3 year replacement warranty
Colour options
| How you run it |
What you need |
Best for |
| Chasing colour effects |
12v driver plus a chasing RGB controller |
Bars, games rooms, parties, displays |
| White (all channels on), 585 lumens per metre |
12v driver plus a chasing RGB controller |
General glow when colour is not needed |
Choosing a driver and controller
Allow 8w for every metre and add about 20% headroom. A full 5 metre run draws 40w, so it needs a 12v driver of at least 48w, which in practice means a 60w driver. Your controller must be made for chasing strip and rated for the full load of the run. For longer installs, split the strip into runs of 5 metres or less and feed each one separately. In damp or sheltered locations, use a weatherproof driver and controller or keep them under cover.
Mounting and heat
We recommend mounting it in an aluminium profile. The profile draws heat away from the LEDs, protects the strip and extends its life, and a diffuser gives the softest line of light. Choose a profile at least 11mm wide inside to suit the 10mm strip. The 3M backing holds the strip in place during installation.
IP54 rated, suitable for damp or sheltered locations as well as indoors.
