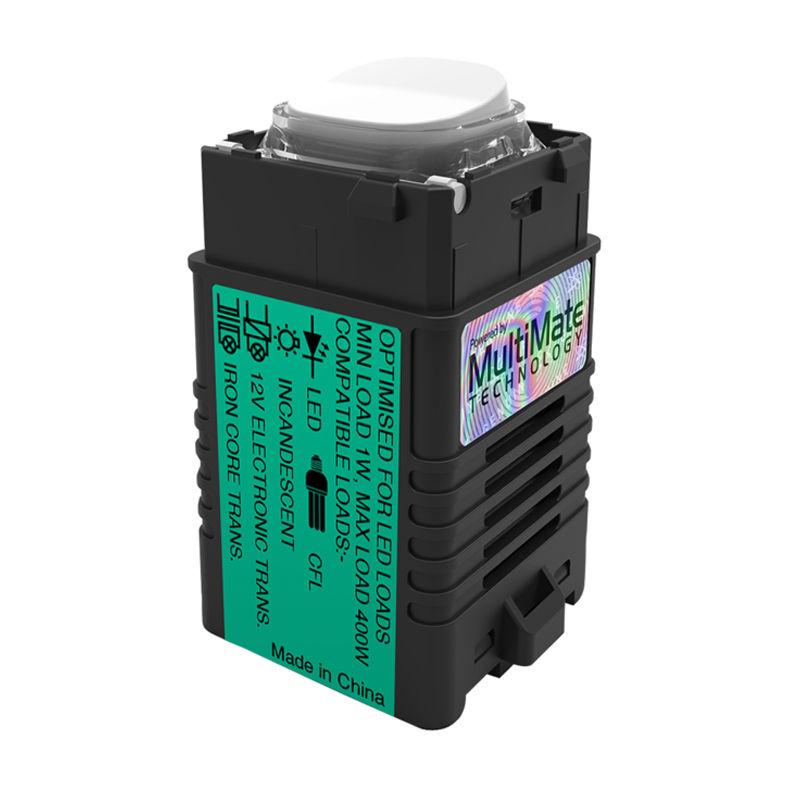

Description:The LEDsmart+ Push Button Switch features MultiMate™ technology for built-in multi-way control, perfect for LED lighting.
Features:• Built-in multiway control.
• Tap on / Tap off light switch.
• Fully programmable functions.
• Quiet, soft press button - no harsh click.
• White LED, illuminated bezel.
• Optional soft start switch on.
• Flush and rocker style button options.
• Simple 3-step programming.
Functions:• Single-way control
• Two-way control
• Multi-way control
• Indicator - white LED
• Integrated tap on /off switch
• Programmable minimum and maximum
• Programmable off-state indicator
Specifications:
Rated average life: 5000hrs
Wattage: 400W
Operating Temperature (Max): 50
Height: 45mm
Width: 24mm
Length: 24mm
IP Rating: IP20
Line Voltage Frequency: 50Hz
Nominal Line Voltage: 220V - 240V AC
Connection Type: 2-Wire Active/Load
Incompatible Load Types: Ceiling Sweep Fan Motors
Indicator Colour: Black
Integrated On/Off Switch: No
Minimum Load: 2W
Programmable: Yes
Dimmable: Yes
Order Code:
MMSW/PB
