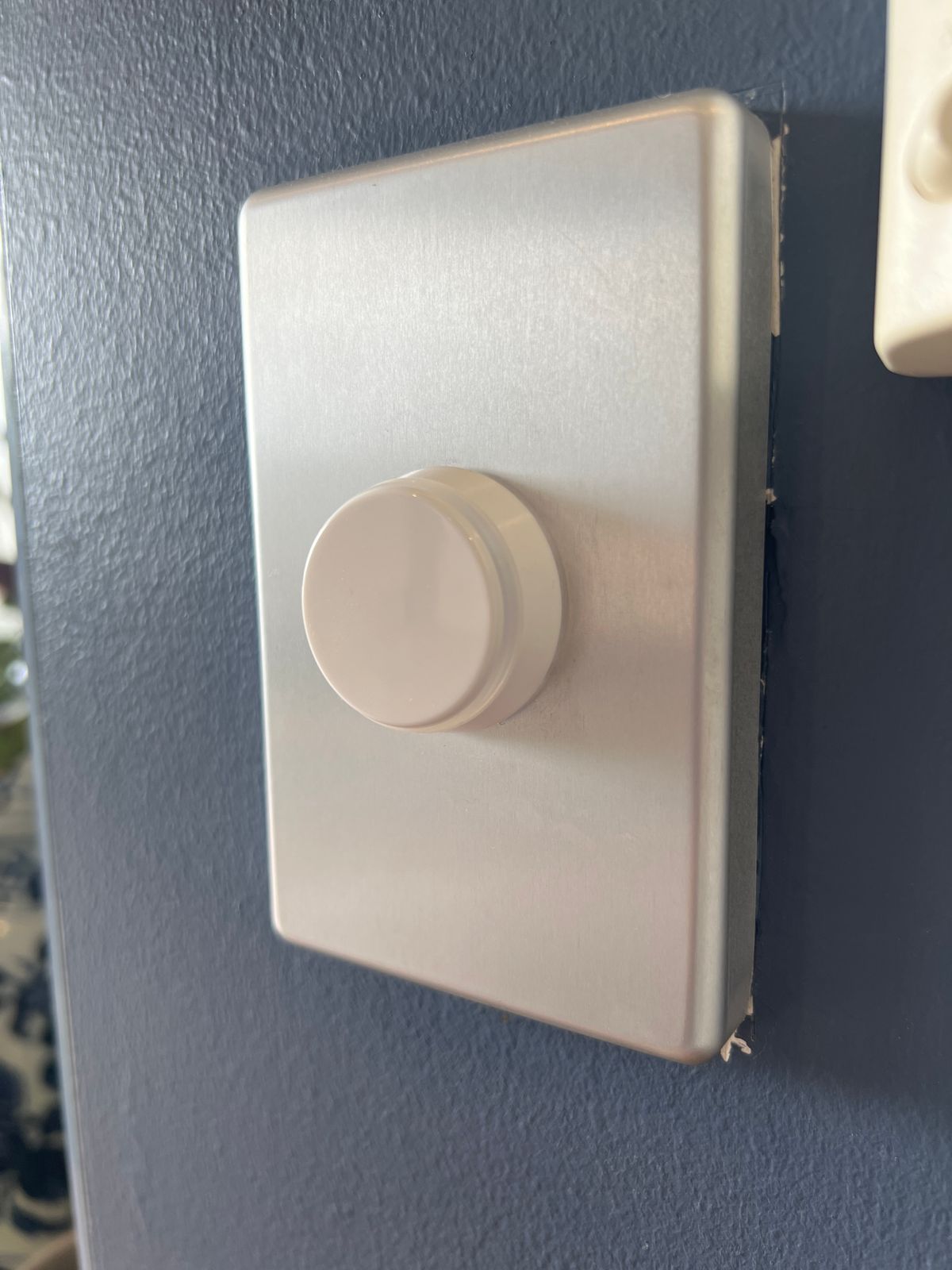

Description:Designed in Australia to provide optimised dimming of LED based lamps and drivers, this high quality, two-wire phase control dimmer can be connected in parallel to other LEDsmart+ devices to provide a simple solution to multi-way control.
Features:• Built-in multiway control.
• Rotary dimming.
• Built in Tap on / Tap off switch.
• Fully programmable functions.
• Quick flick dial feature to go to maximum or minimum lighting.
• Double tap to dim to minimum or maximum over 30 minutes.
• Illuminated bezel via white LED indicators.
Functions:• Single-way control
• Two-way control
• Multi-way control
• Indicator - white LED
• Rotary dial
• Integrated tap on /off switch
• Programmable minimum and maximum
• Programmable kick-start function
• Programmable off-state indicator
• Kids bedroom mode - double tap to dim down over 30 minutes
• Wake up mode - double tap to dim up over 30 minutes
Specifications:
Rated average life: 5000hrs
Wattage: 400W
Operating Temperature (Max): 50
Height: 50mm
Width: 24mm
Length: 24mm
IP Rating: IP20
Line Voltage Frequency: 50Hz
Nominal Line Voltage: 220v - 240v AC
Connection Type: 2-Wire Active/Load
Incompatible Load Types: Ceiling Sweep Fan Motors
Indicator Colour: White
Integrated On/Off Switch: No
Minimum Load: 2W
Programmable: Yes
Dimmable: Yes
Order Code:
MMDM/RT
