Bluetooth mesh is a many to many broadcast structure that allows you to connect devices using a Bluetooth network that can communicate with each other to form the mesh network. Discus-III LED Highbay lighting is the ideal answer for
factories, stockrooms, supermarkets, gyms, petrol stations, warehouses, and other places that may need lighting. Designed for applications of 6 metres or more. With IP65 and IK07 ratings guarantee that these lights are waterproof and can be applied both indoors and outdoors.
• Thermal management system will begin to reduce power/light output when ambient temperature increases to above 45 degrees Celsius.
• Black Diecast alloy housing with painted steel bracket.
• 304 stainless steel hook and external bolts.
• High lumen efficiency of 150lm/w LED SMD Arrays.
• Baldurs EUC driver with SAA approved 1.5m flex & plug.
• Includes 600mm stainless steel anti-drop safety cable with steel carabiner’s.
• Instant start, no re-strike delays.
• Easy-install fitting for fast, effortless retro-fitting.
• 5 Year Replacement Warranty
• Factories, warehouse, workshop, assembly lines, indoor stadium, supermarket, shopping centres, school, hospital, laboratory, airport.
• Suitable for dry, damp and wet locations.
• Operating voltage: 240v / 50Hz
• Class: Class I (1)
• Wattage: 150w Total
• Lumens: 22,500 Total lumens
• Colour temperature: 5000°k (Natural white)
• Beam angle: 120 degrees
• Colour rendering index: >80
• IP Rating: IP65
• IK Rating: IK07, IK08 (When using 60 degree or 90 degree lens kit)

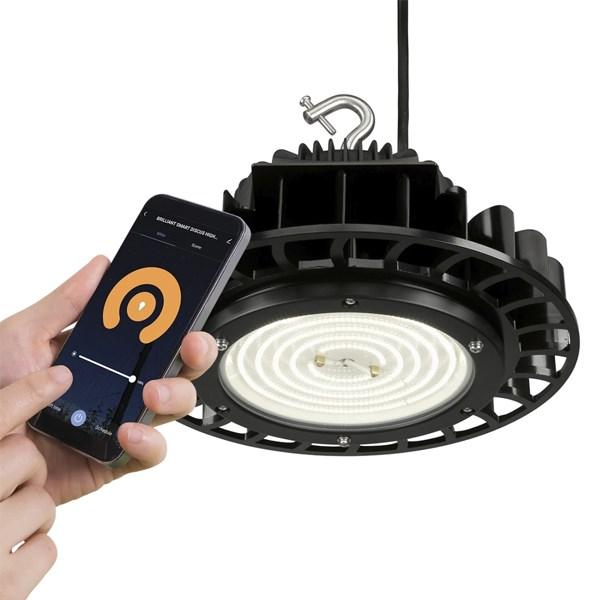

• Dimmable: Yes, via app
• Rated lifetime: 30,000 hours (Ta 25°C Ambient)
• 20,000 hours (Ta 50°C Ambient)**
• Construction: Aluminium (frame)
• Glass (diffuser)
• Operating temperature: Ta (Safety): 50° Celsius Max
• Warranty: 5 year replacement
• Connectivity: Bluetooth 4.2
• Device Requirements: iOS 8.0 or higher, Android 4.1 or higher
• Standards: AS/NZS 60598.1, AS/NZS 60598.2.1
• Approvals VEET: 8145 IPART: 17317S16-KHB2IHGD

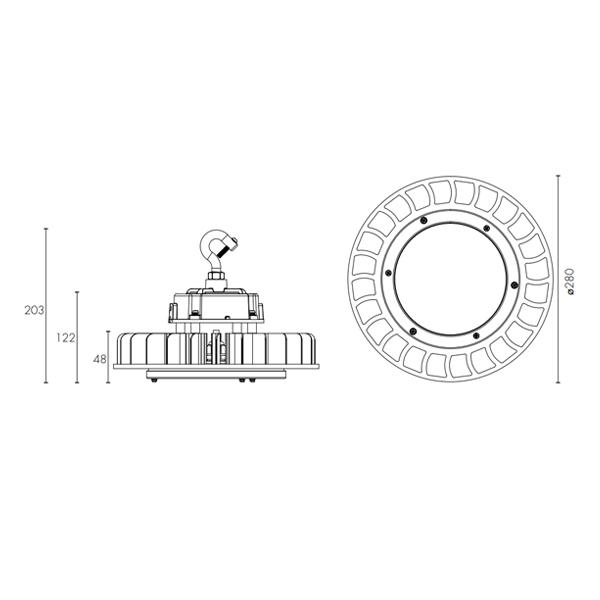

• Diameter: ø280mm
• Overall Height: 203mm
Accessories (Sold Separately):
• 60 Degree Lens (21534/07)
• 90 Degree Lens (21535/07)
• Surface Mount Kit (21536/06)
• 1 Mesh Gateway White (21439/05)
