Havit Commerical is a premium range of commercial-grade lighting. They are primarily used for larger scale and custom projects and, as such, need to be quoted. Please hit the enquire for price button with quantities and products for your project and we will email you a personalised quotation.
Description:

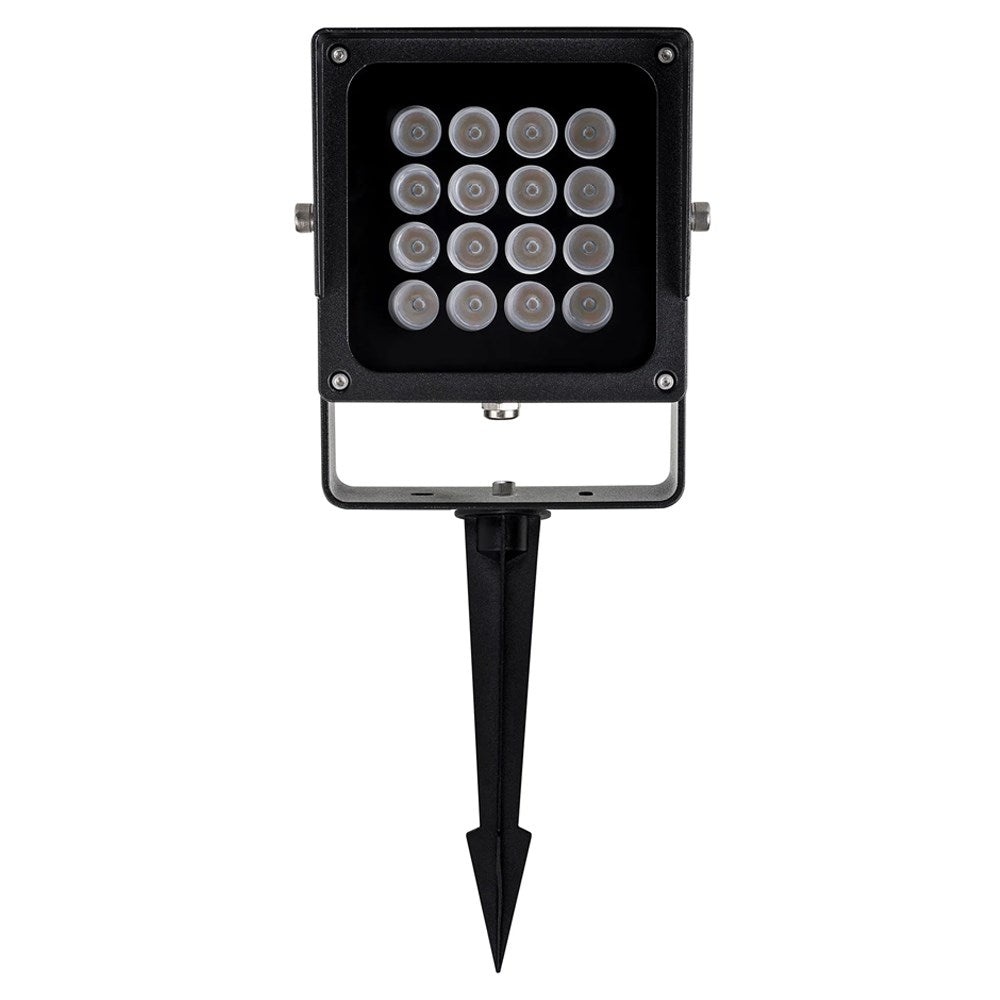

- Surface Mounted or Spike Spotlight
- Aluminium poly powder coated black
- Triac Dimmable (240V Model Only)
- Supplied with Flex & Plug (240V Model Only)
- 30° Beam angle
- IP rating: IP65
- IK Rating: IK08
- TRI Colour
- Input voltage: Available in either 240v AC or 24v DC
- Built in 36w LED
- 5 years replacement warranty

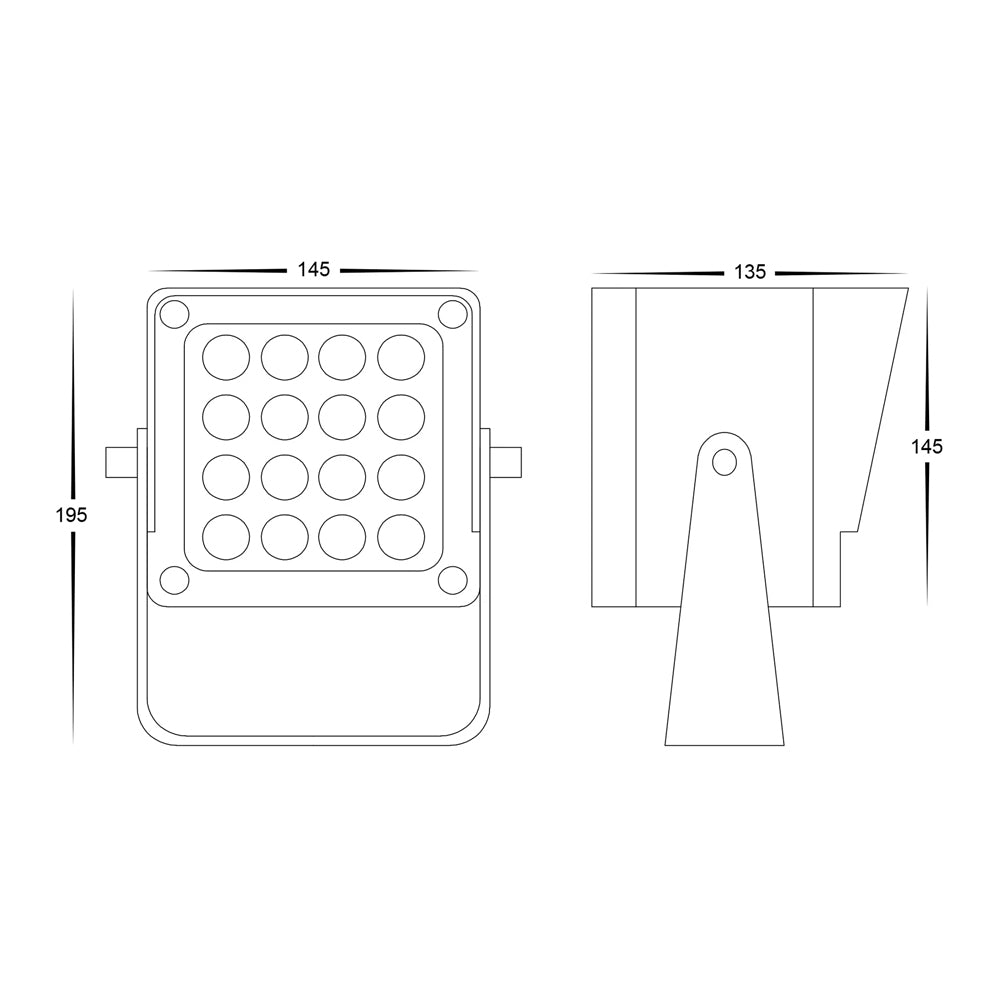

Dimension:
- Length: 145mm
- Width: 135mm
- Height: 195mm
| Part Number |
Colour Temperature |
Lumens |
Input Voltage |
| HCP-242361 |
3000K
4000K
5500K
|
1445lm
1897lm
1905lm
|
240v AC
|
| HCP-242361-24V |
3000K
4000K
5500K
|
1445lm
1897lm
1905lm
|
24v DC |
Choosing a driver
The 24v DC version runs on low voltage and needs a 24v LED driver, installed by a licensed electrician. The 240v version wires straight to mains and does not need a driver.
Allow 36w for each spike light and add about 20% headroom. 2 spike lights draw 72w, so they need a 24v driver of at least 87w, which in practice means a 100w driver.
| 24v driver size |
Maximum spike lights |
| 60w |
1 |
| 100w |
2 |
| 150w |
3 |
For bigger installs, split the lights across two or more drivers and place each driver close to its group. Long cable runs at low voltage lose brightness at the far end, so check your cable size with the voltage drop calculator below.
Outdoors, use a weatherproof IP66 24v driver and mount it above ground, clear of garden beds and pooling water.
To dim, pair it with a dimmable 24v driver and a compatible dimmer.
Planning your install? Use our voltage drop calculator to choose the right cable size for your run and keep every light at full brightness.
