Features:

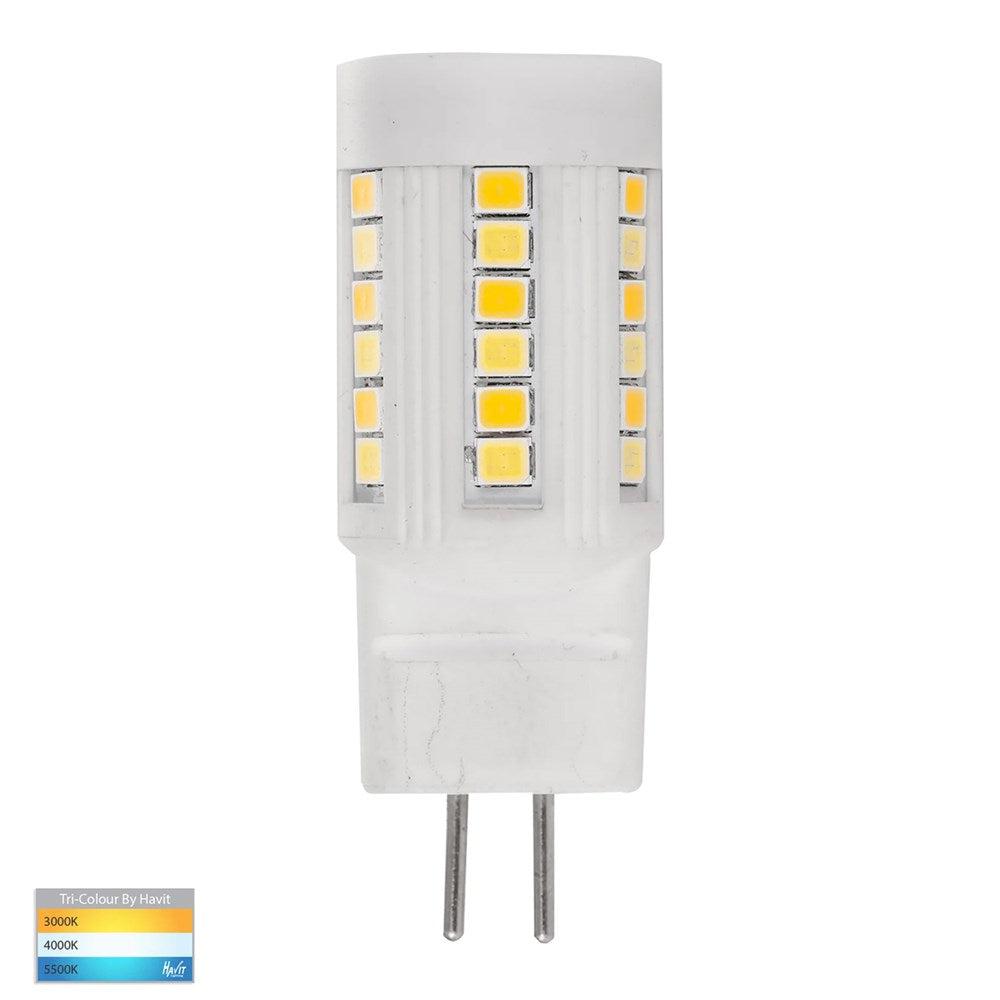

- 3w G5.3 Bi pin LED globe
- Tri Colour
- 3000k, 4000k, 5500k
- 385lm, 400lm, 395lm
- Choose colour temp with switch on top of globe
- 180° Beam angle
- 12v DC G4
- 3 years replacement warranty

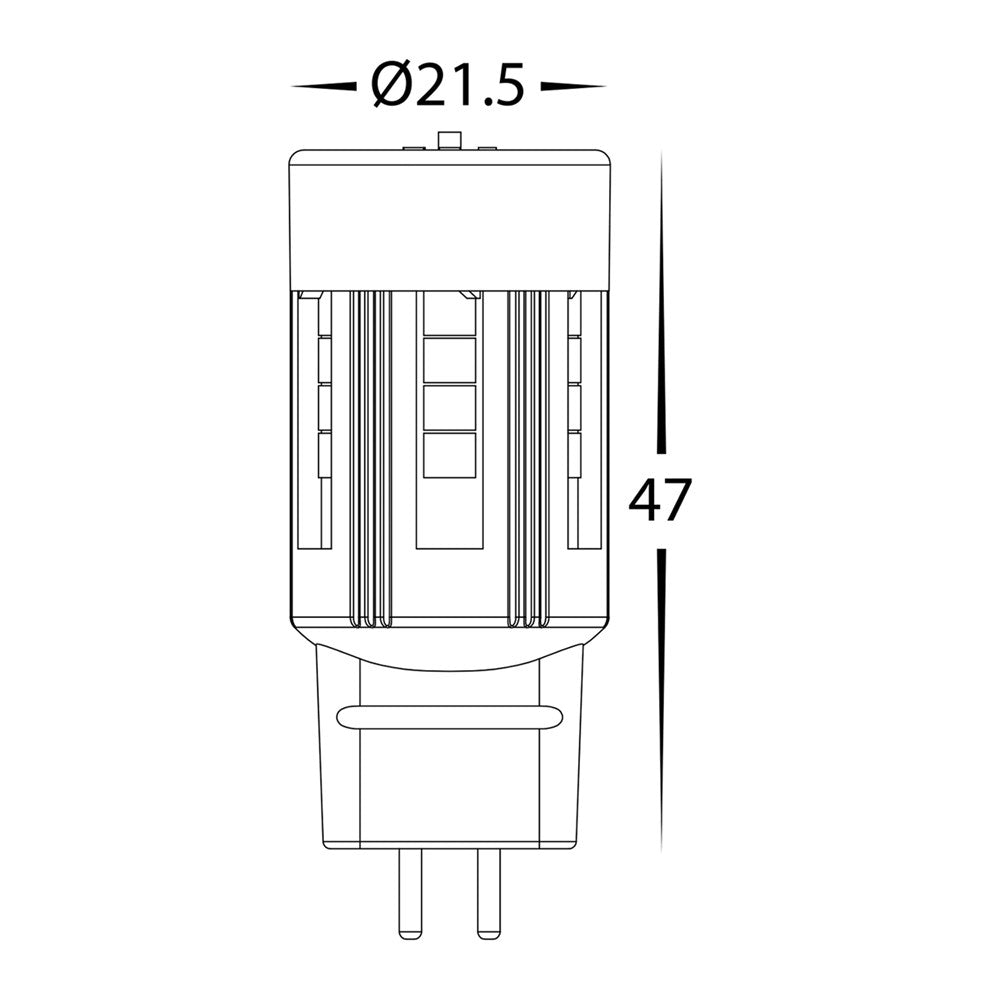

Dimensions:
- Height: 47mm
- Diameter: ø21.5mm
Must be used with suitable 12v DC LED driver
Choosing a driver
This globe runs on 12v DC, so it needs a 12v LED driver (sometimes called a transformer). It cannot connect straight to 240v mains. The driver is wired in by a licensed electrician.
Allow 3w for each globe and add about 20% headroom. 10 globes draw 30w, so they need a 12v driver of at least 36w, which in practice means a 60w driver.
| 12v driver size |
Maximum globes |
| 30w |
8 |
| 60w |
16 |
| 100w |
27 |
| 150w |
41 |
For bigger installs, split the lights across two or more drivers and place each driver close to its group. Long cable runs at low voltage lose brightness at the far end, so check your cable size with our voltage drop calculator.
Indoors, an indoor 12v driver mounted in the ceiling space works well. If the light is going outdoors or under eaves, use a weatherproof IP66 12v driver.
