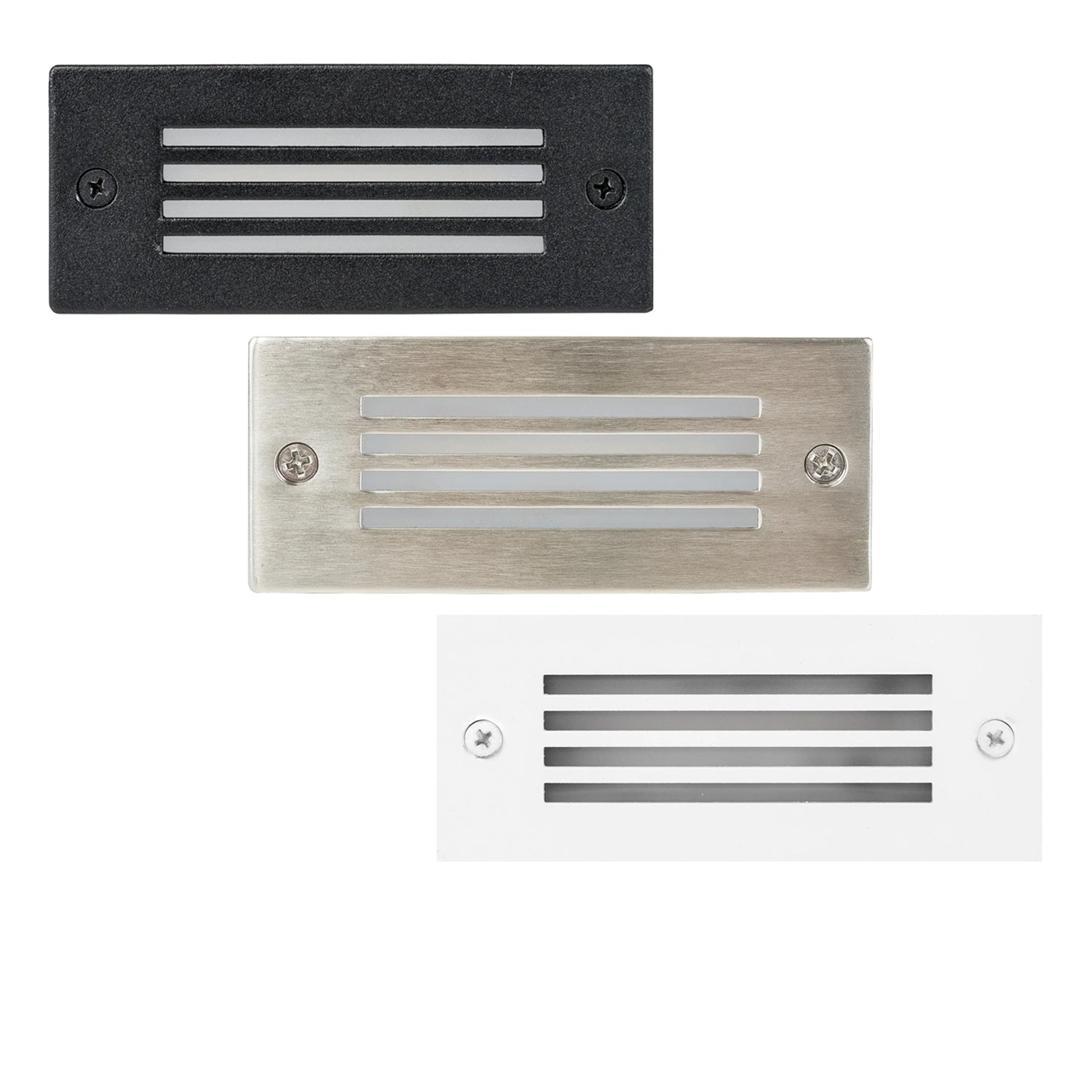

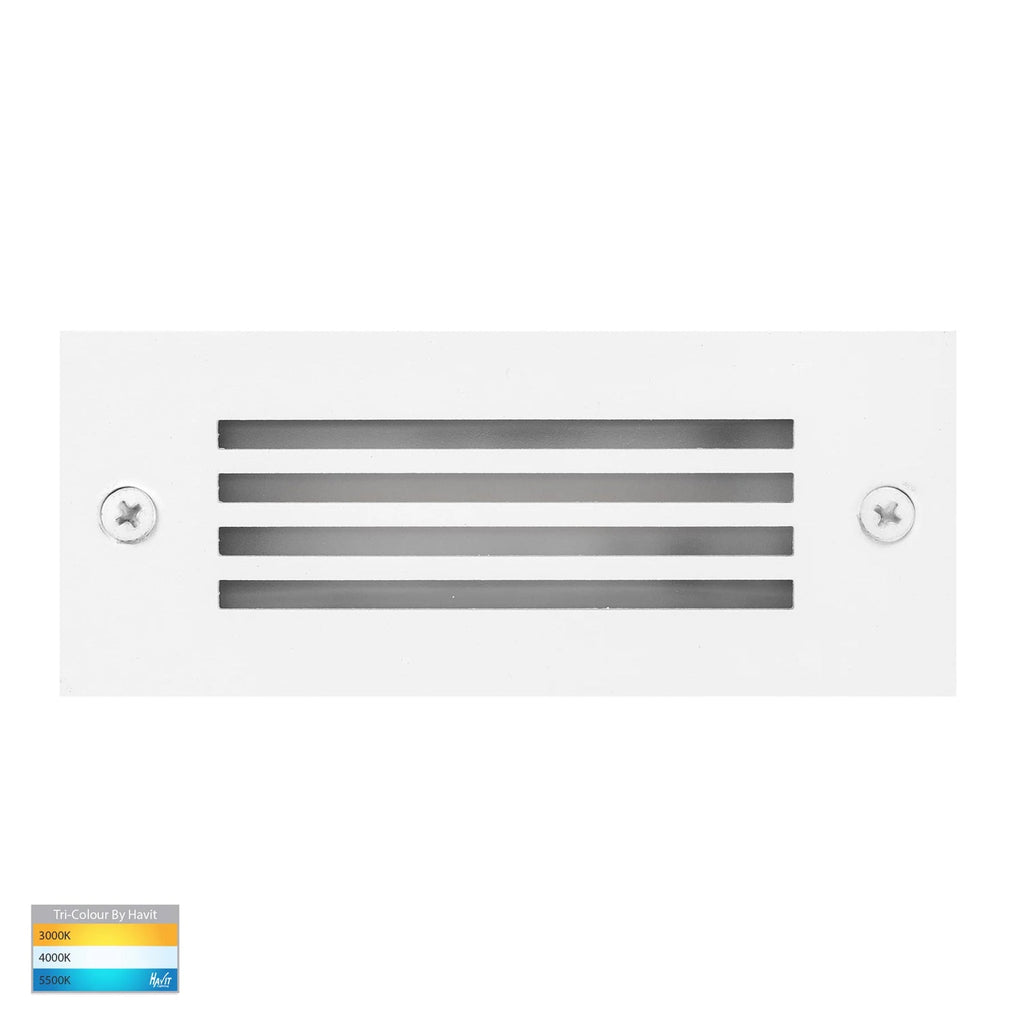

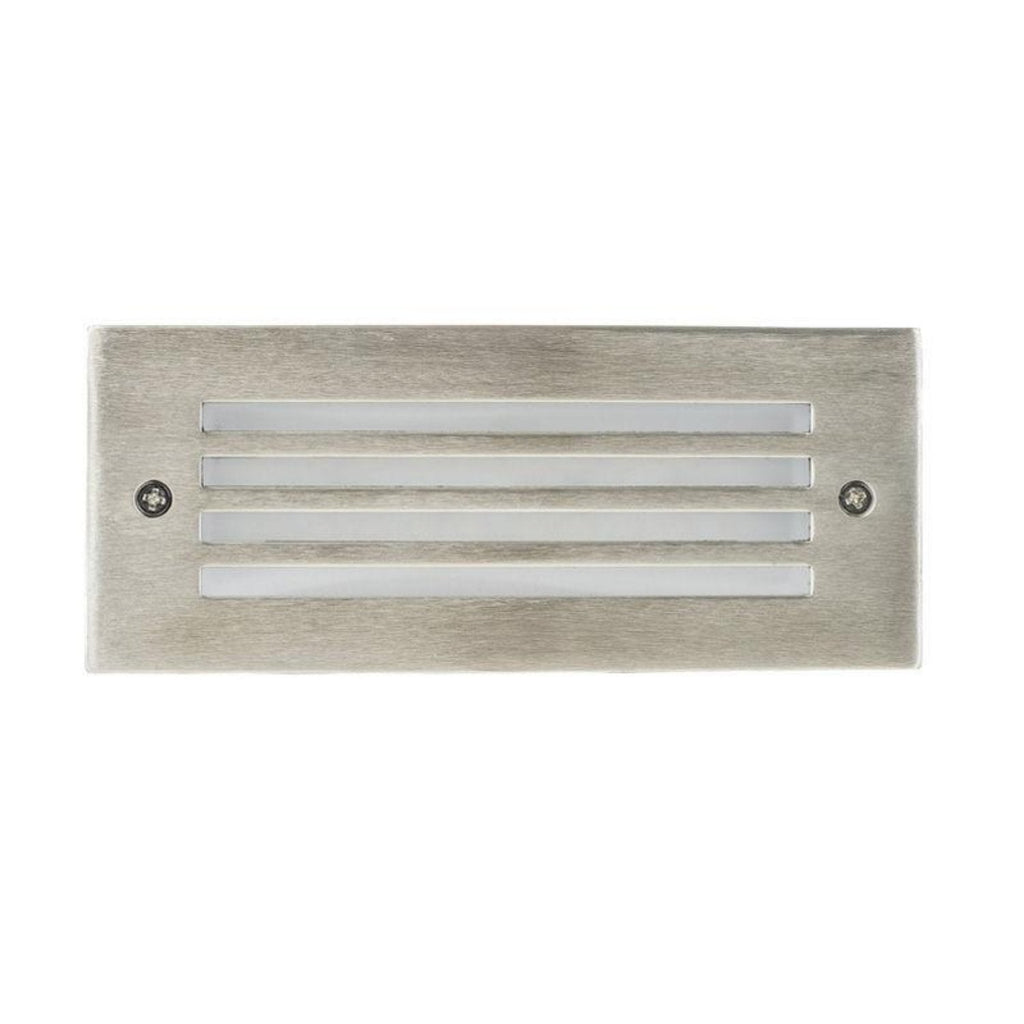

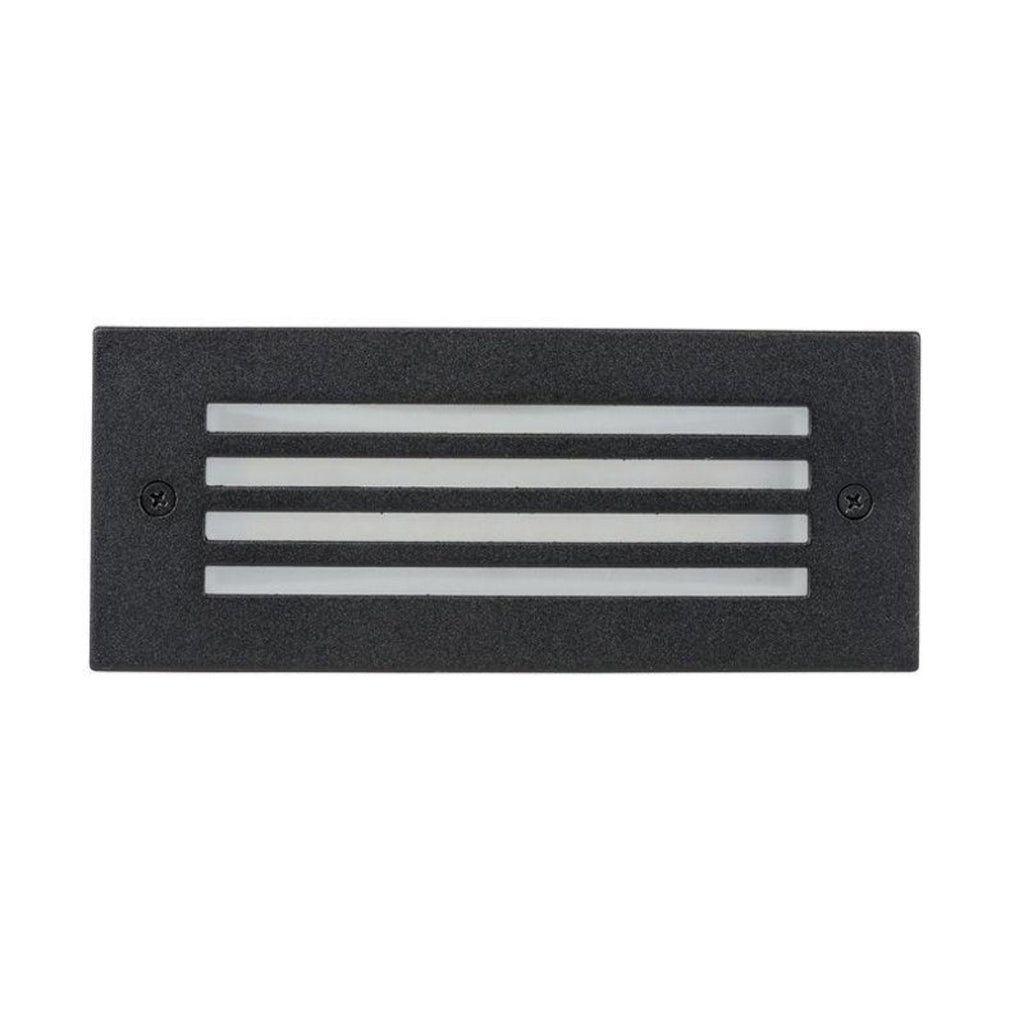

The Bata Grill LED Brick Light is a recessed lighting solution designed to provide safe and stylish illumination for walls, steps, and pathways. Its grill face design adds a subtle architectural detail while helping to diffuse light and reduce glare. Built for durability, it is suitable for both indoor and outdoor applications. Available in black, white, or marine-grade stainless steel, it offers flexibility to suit a wide range of design styles.
Choosing a driver
The 12v DC version runs on low voltage and needs a 12v LED driver, installed by a licensed electrician. The 240v version wires straight to mains and does not need a driver.
Allow 6w for each light and add about 20% headroom. 8 lights draw 48w, so they need a 12v driver of at least 58w, which in practice means a 60w driver.
| 12v driver size |
Maximum lights |
| 30w |
4 |
| 60w |
8 |
| 100w |
13 |
| 150w |
20 |
For bigger installs, split the lights across two or more drivers and place each driver close to its group. Long cable runs at low voltage lose brightness at the far end, so check your cable size with our voltage drop calculator.
Indoors, an indoor 12v driver mounted in the ceiling space works well. If the light is going outdoors or under eaves, use a weatherproof IP66 12v driver.
