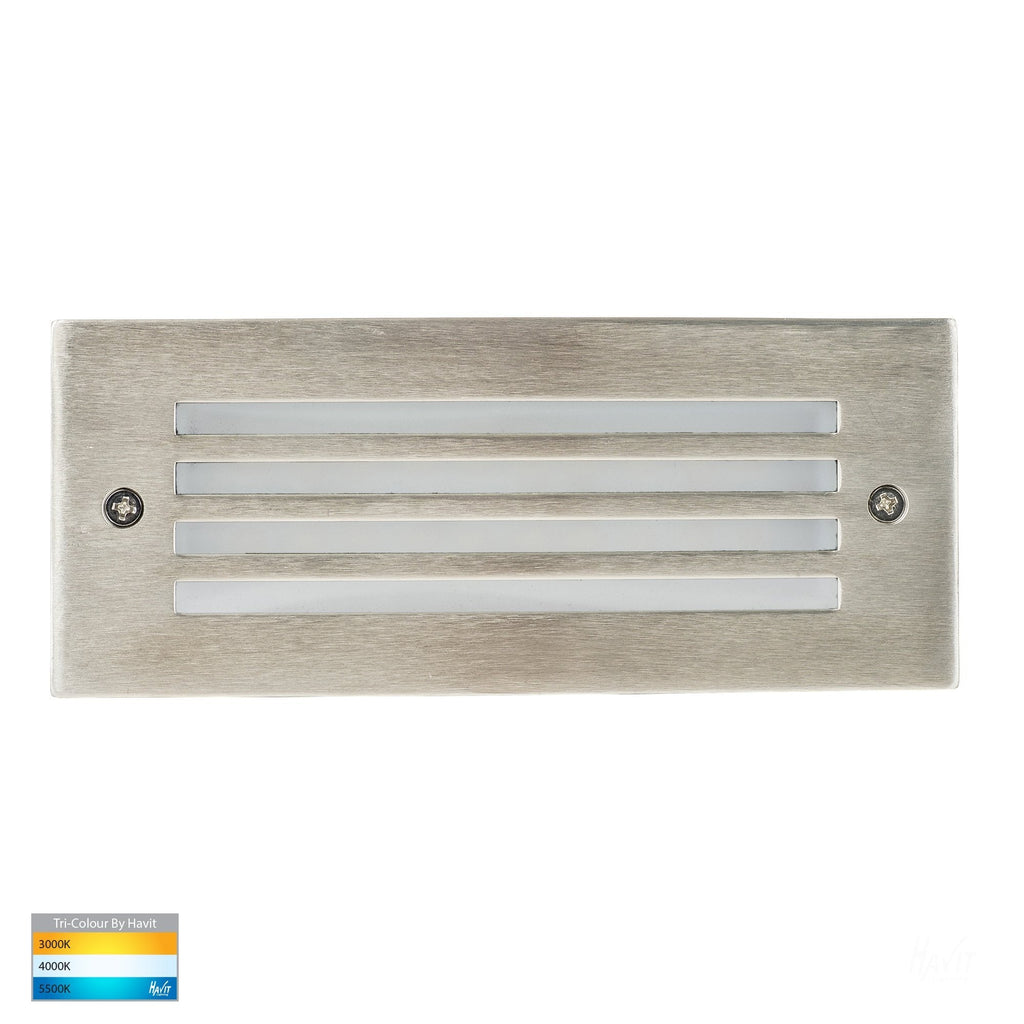

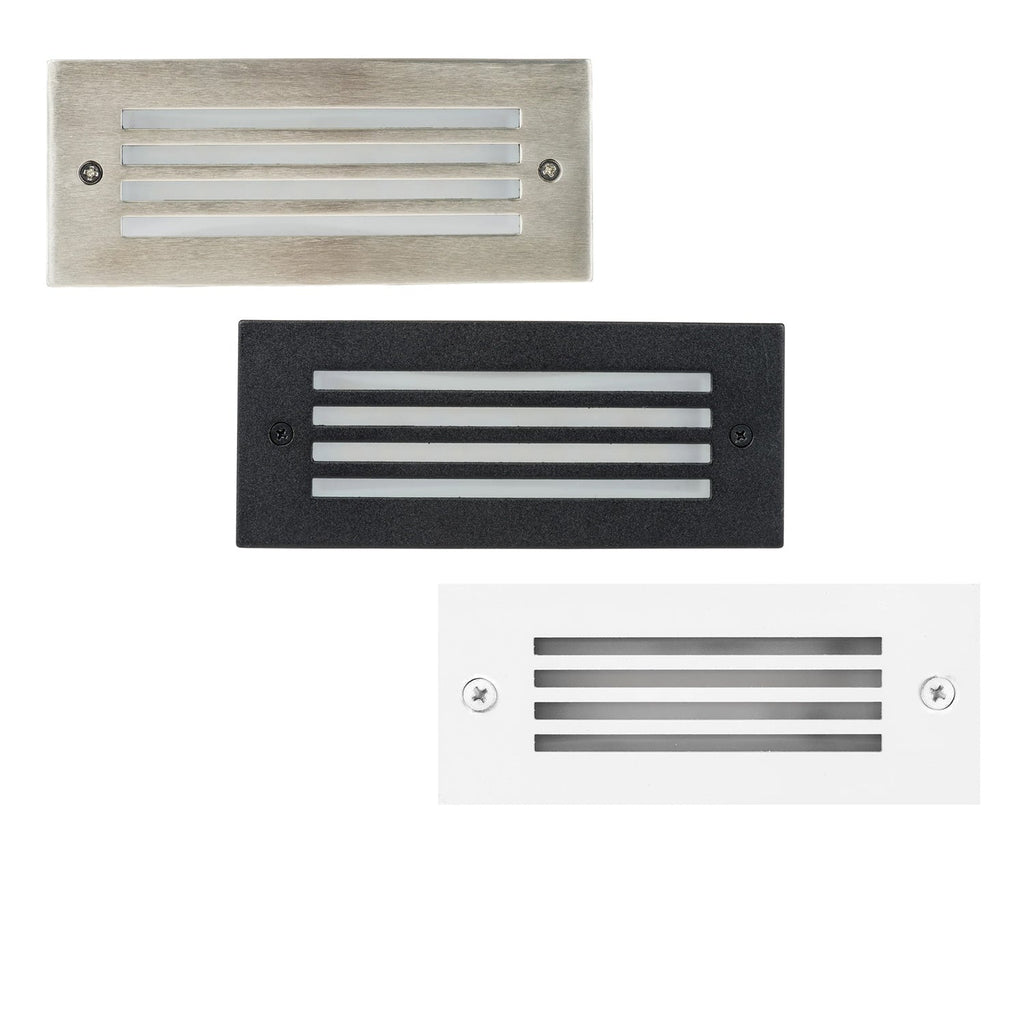

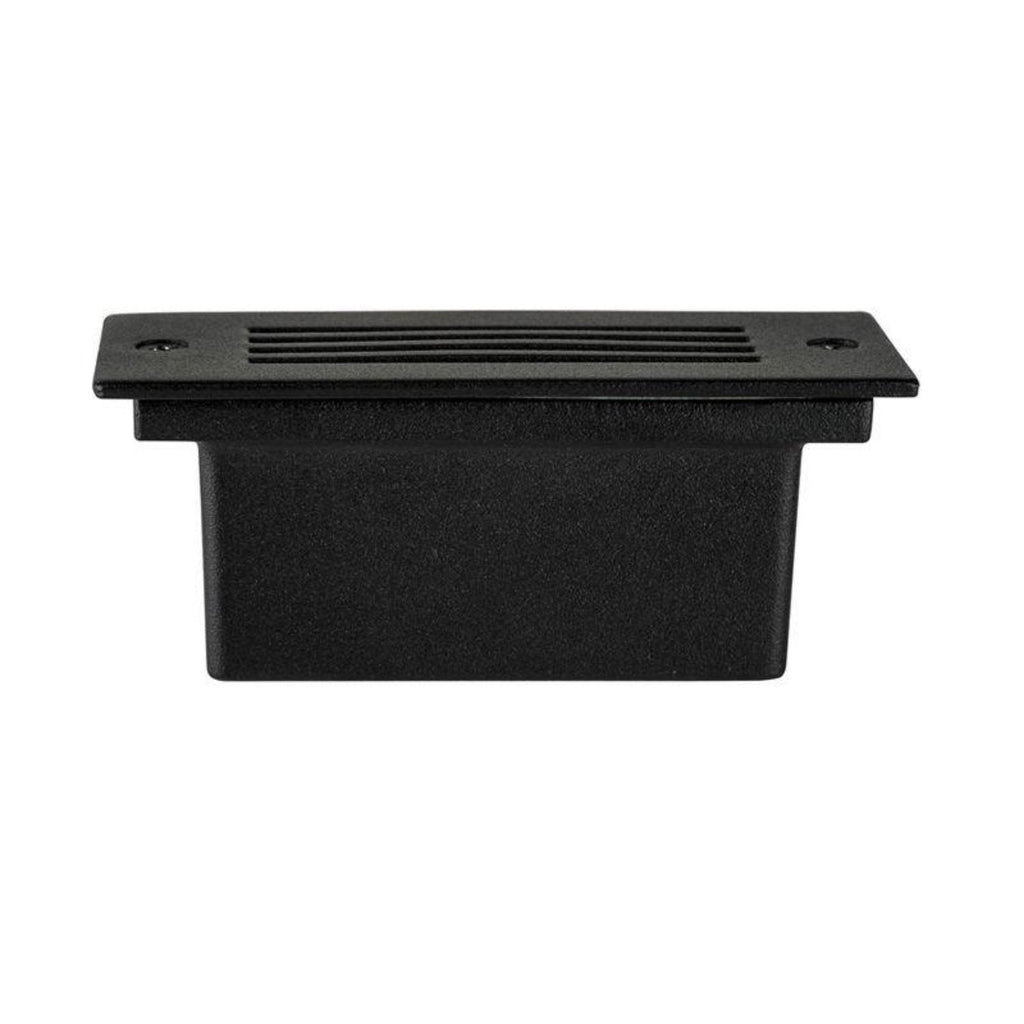

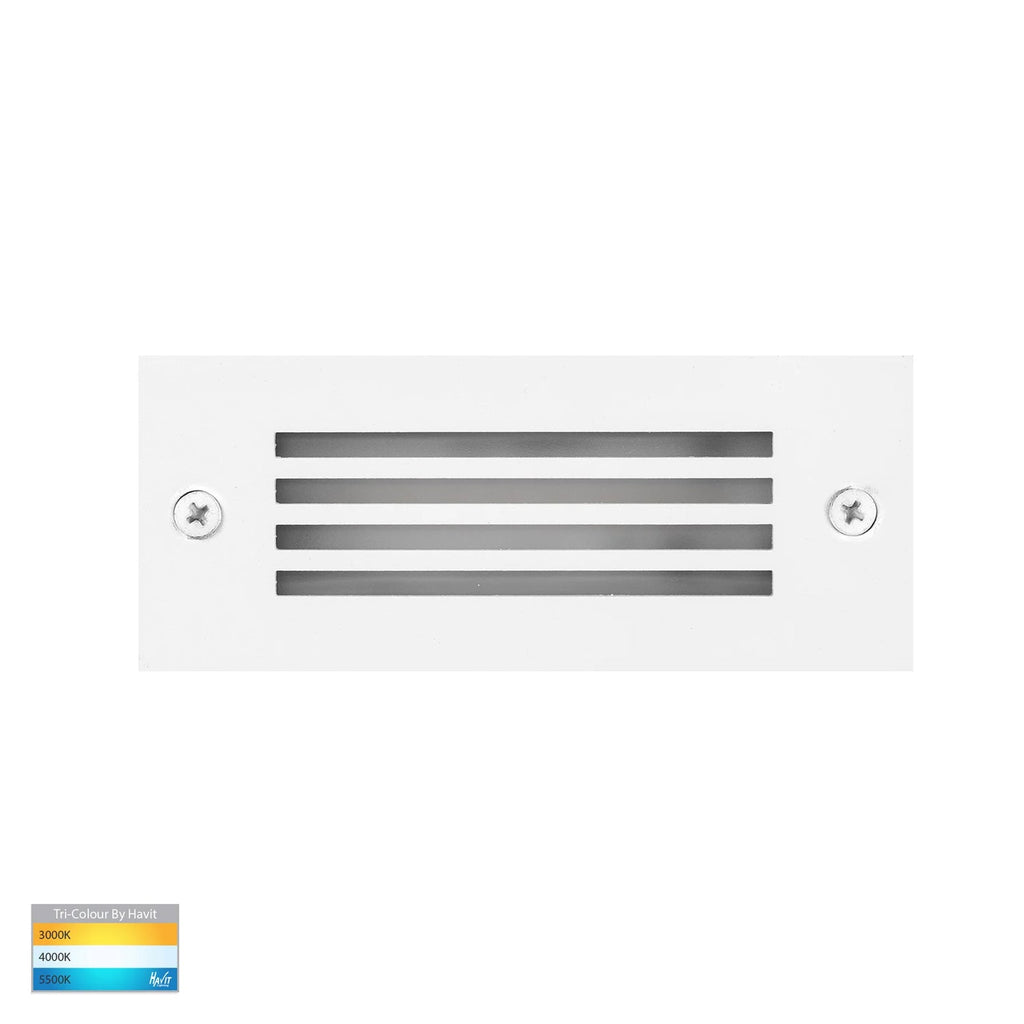

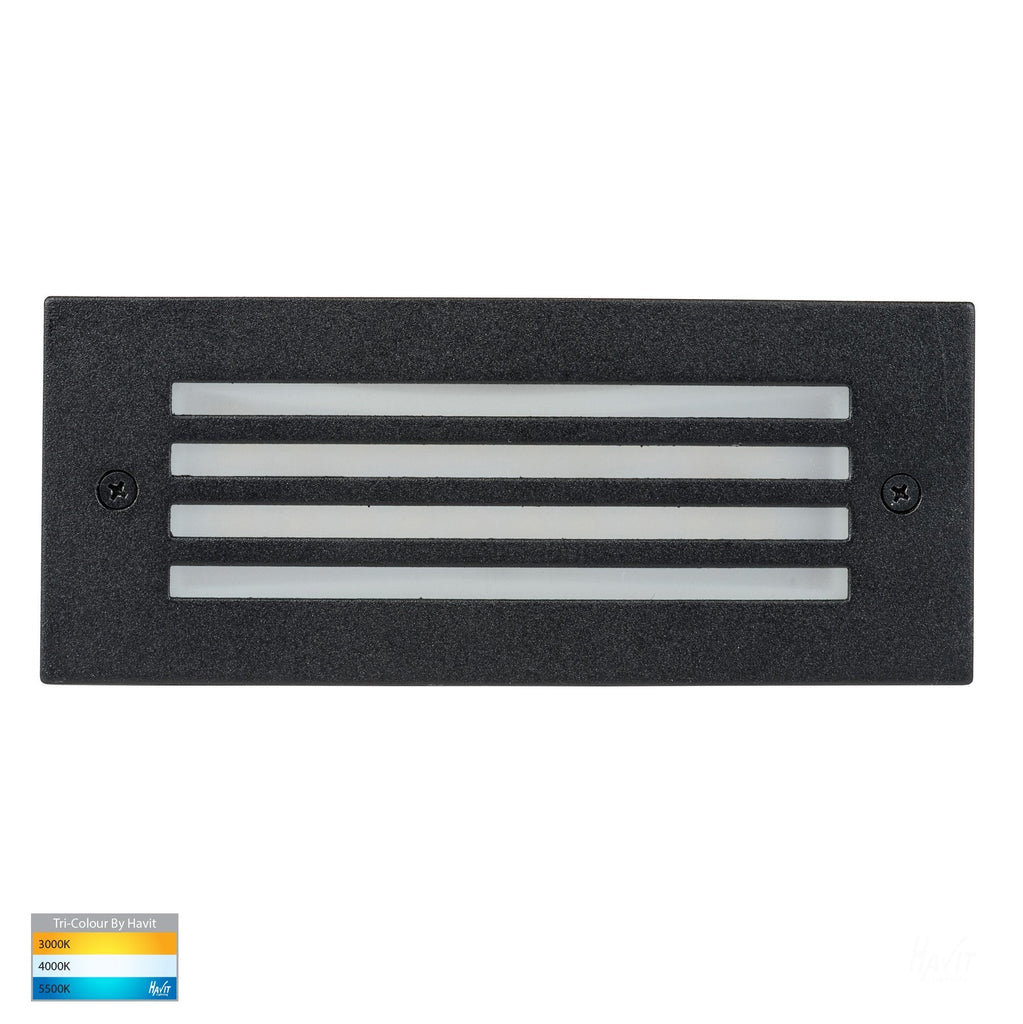

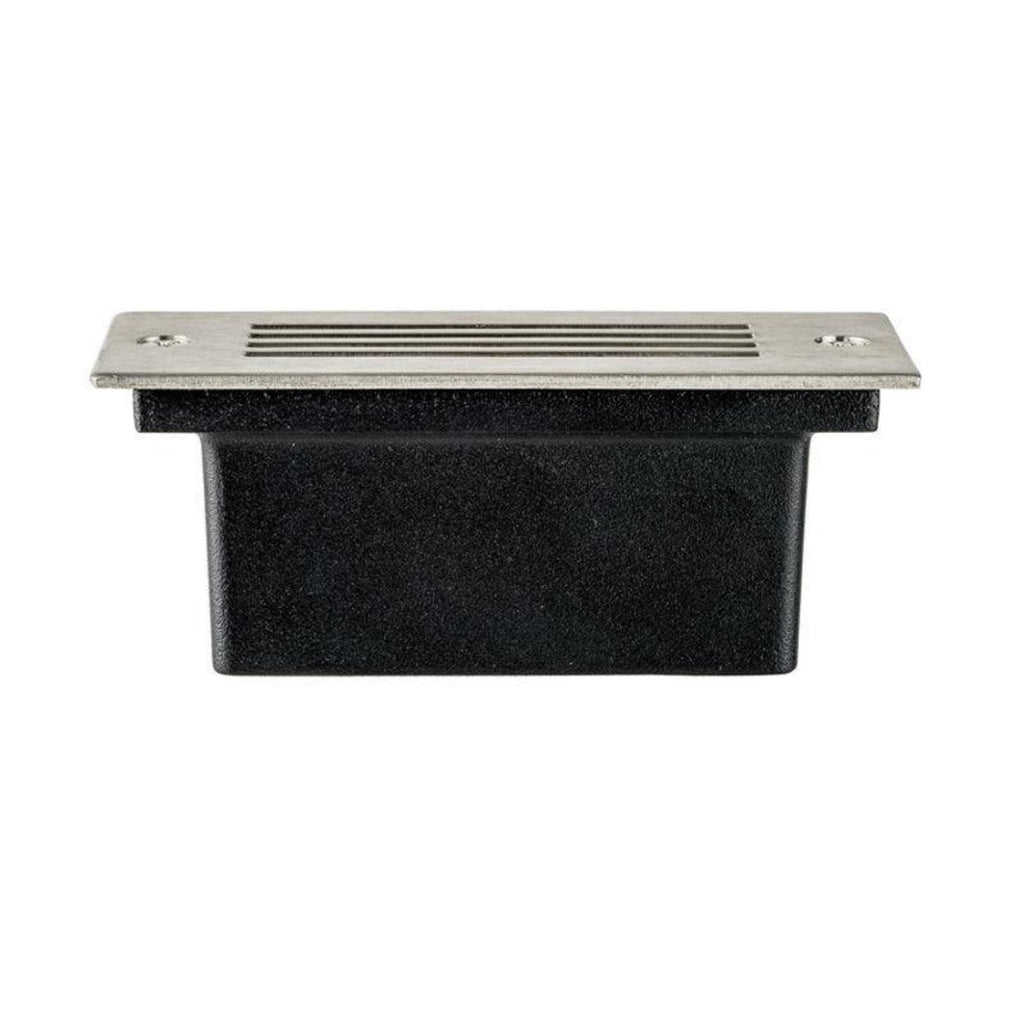

The Bata Grill LED Brick Light is a compact recessed lighting option designed to provide safe and subtle illumination for steps, walls, and pathways. Its grill face design adds a refined architectural detail while helping to diffuse light and minimise glare. The smaller form factor makes it ideal for tighter spaces without compromising performance. Suitable for both indoor and outdoor use, it offers a balance of durability and clean design.
Choosing a driver
The 12v DC version runs on low voltage and needs a 12v LED driver, installed by a licensed electrician. The 240v version wires straight to mains and does not need a driver.
Allow 3w for each light and add about 20% headroom. 10 lights draw 30w, so they need a 12v driver of at least 36w, which in practice means a 60w driver.
| 12v driver size |
Maximum lights |
| 30w |
8 |
| 60w |
16 |
| 100w |
27 |
| 150w |
41 |
For bigger installs, split the lights across two or more drivers and place each driver close to its group. Long cable runs at low voltage lose brightness at the far end, so check your cable size with our voltage drop calculator.
Indoors, an indoor 12v driver mounted in the ceiling space works well. If the light is going outdoors or under eaves, use a weatherproof IP66 12v driver.
