Features:

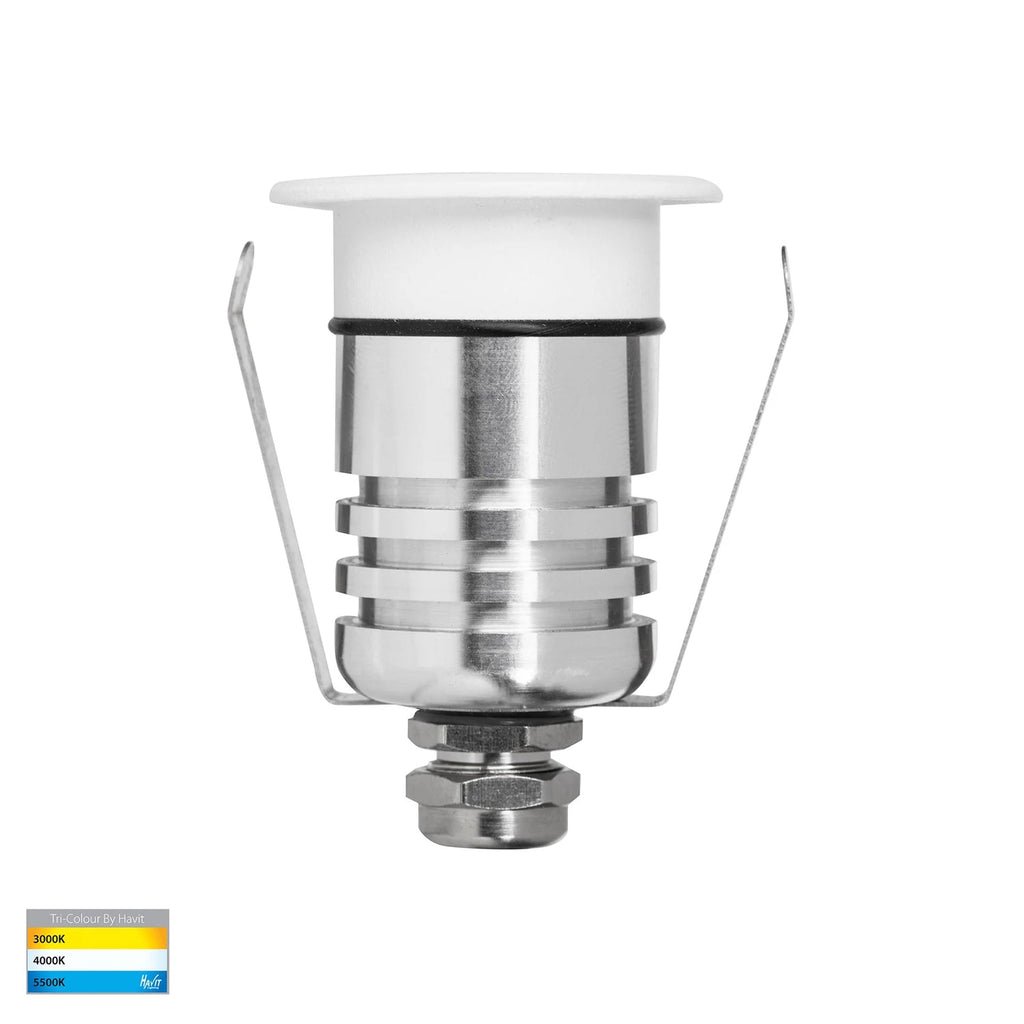

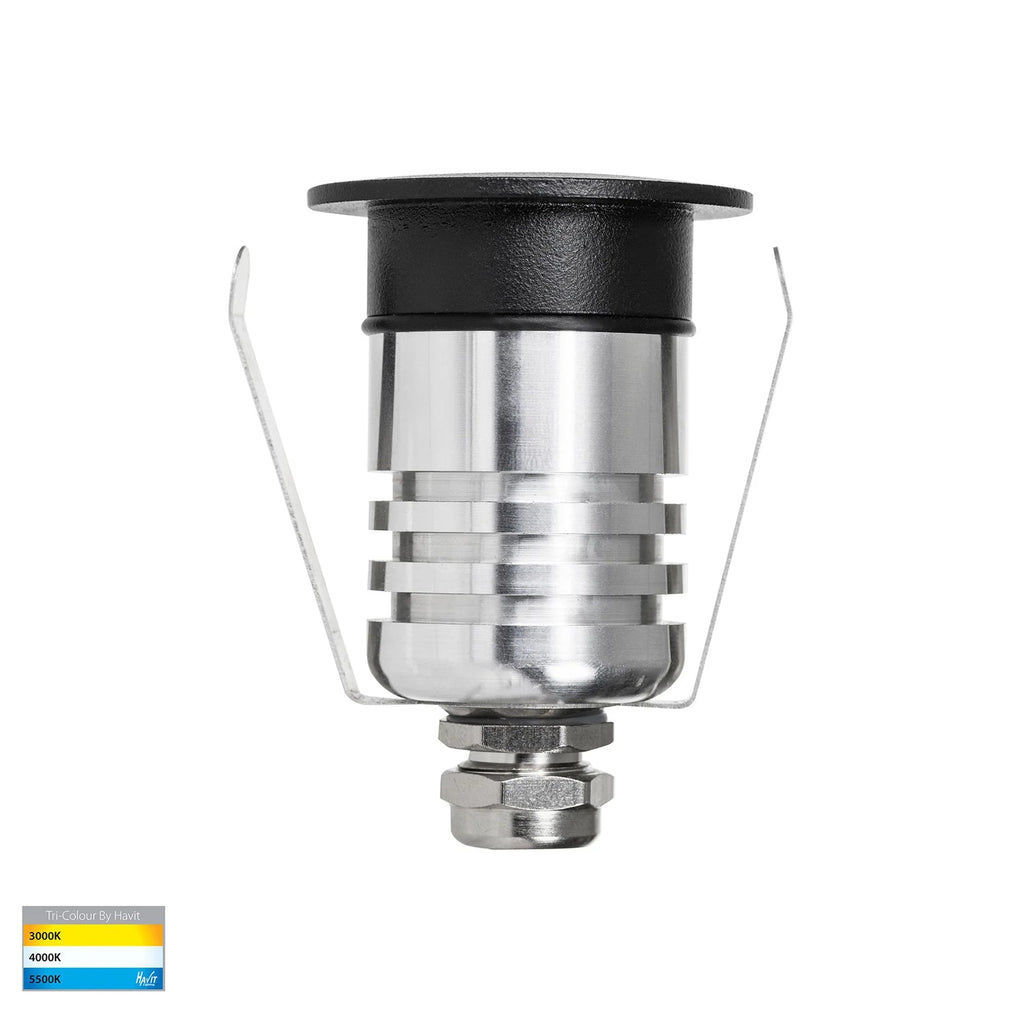

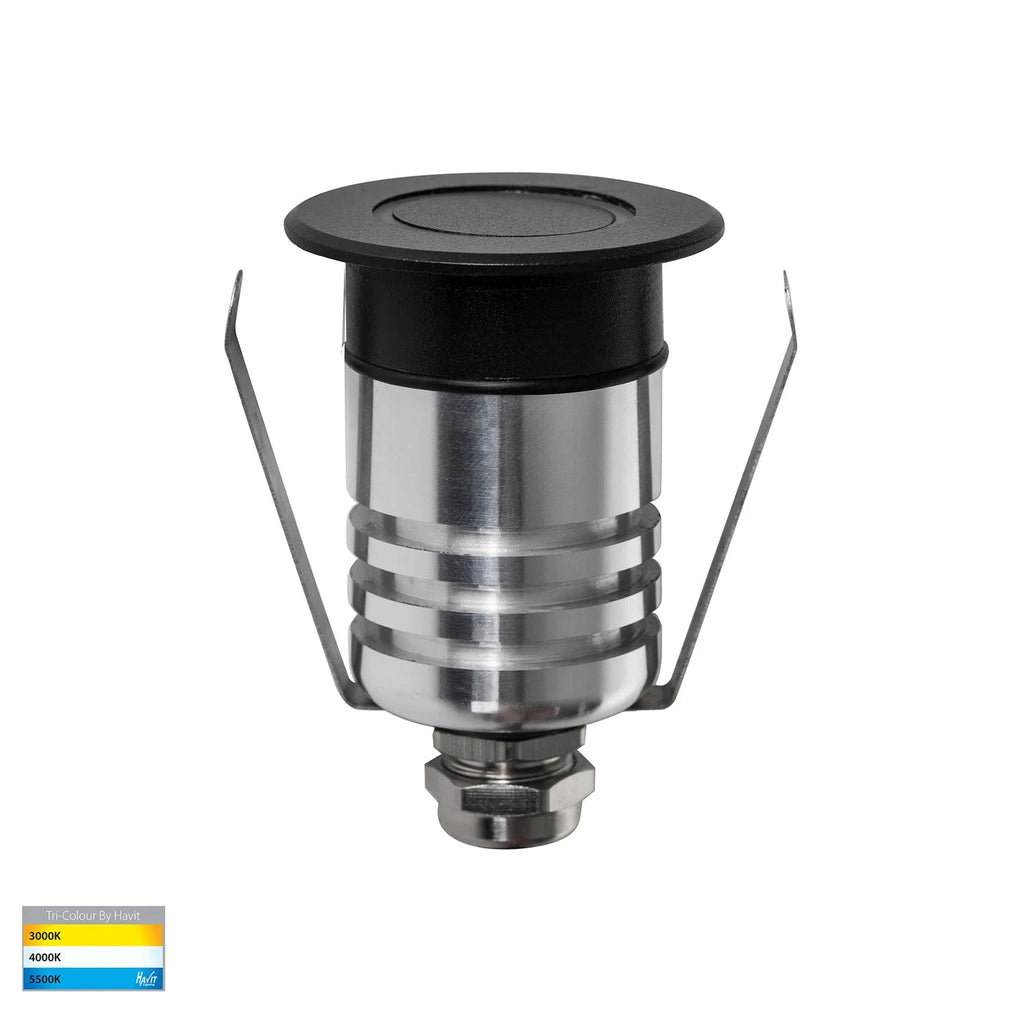

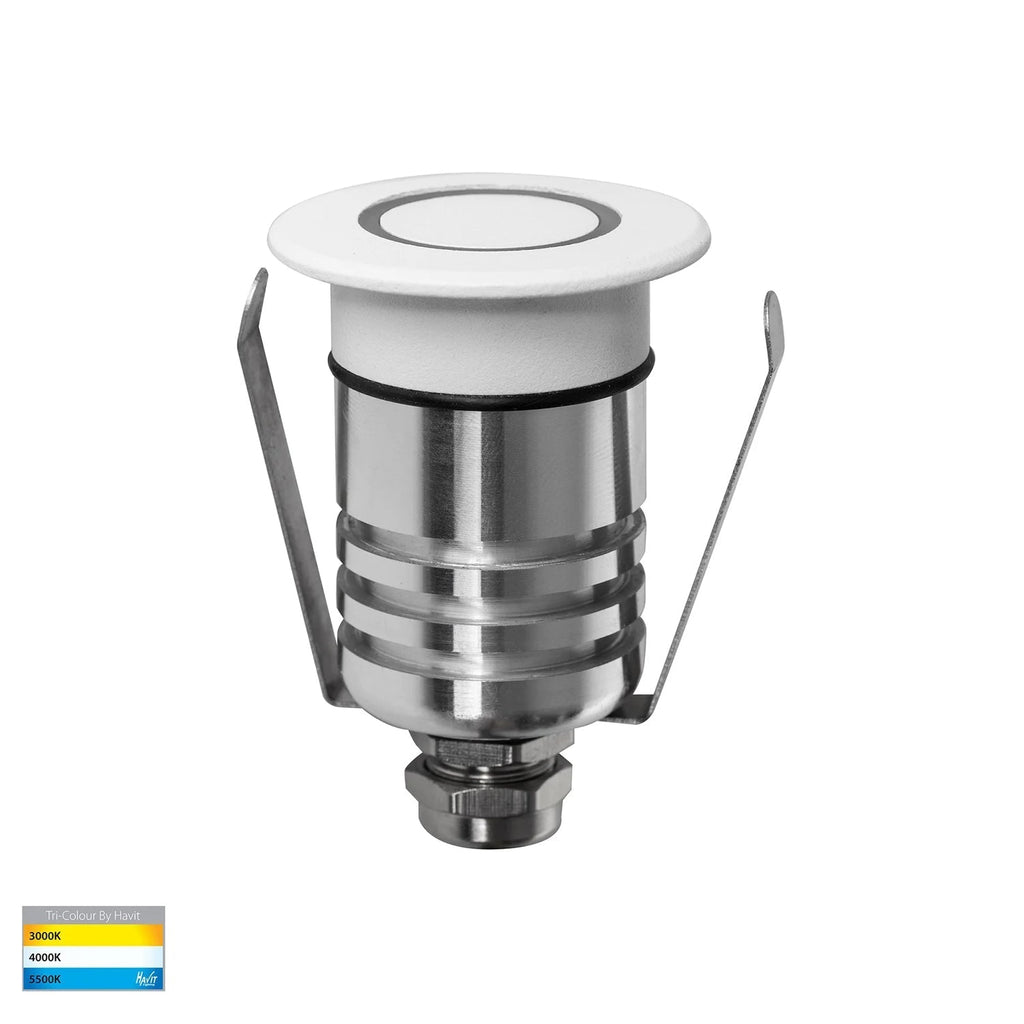

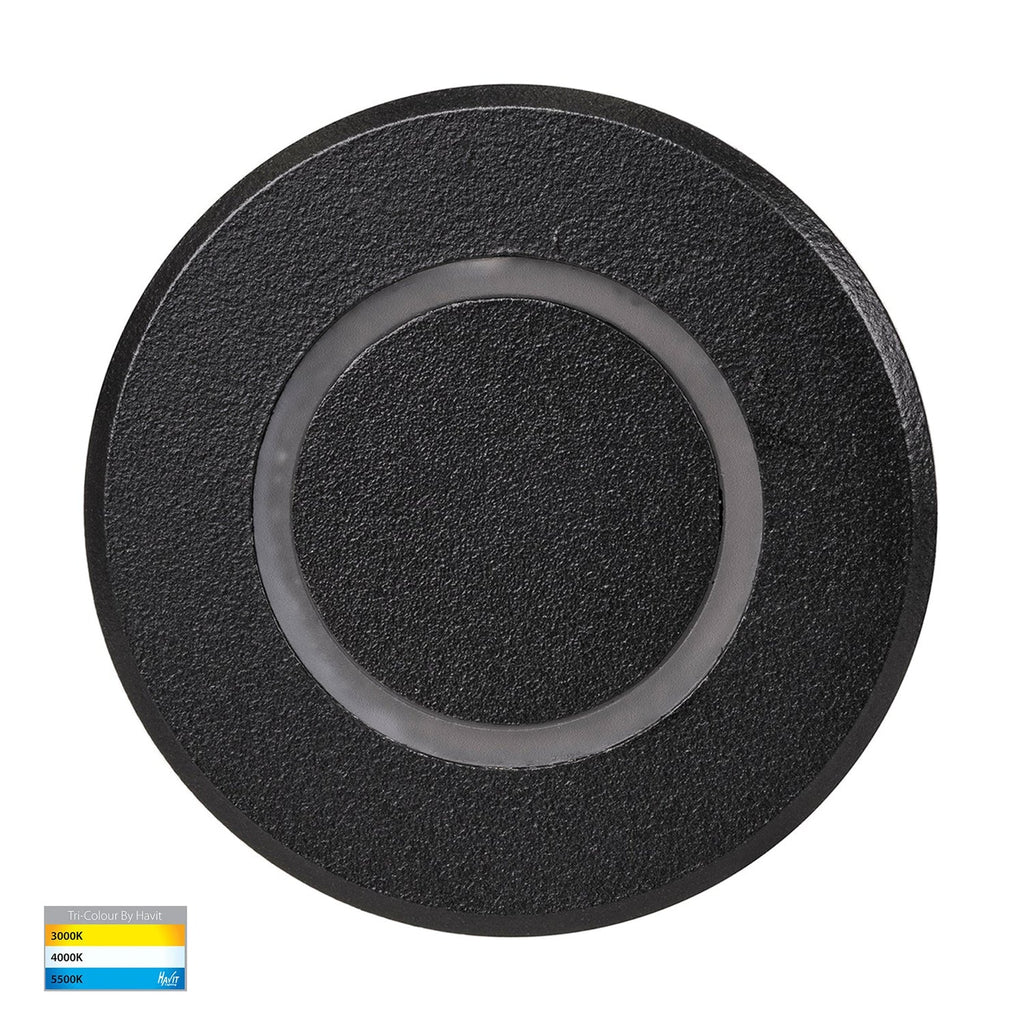

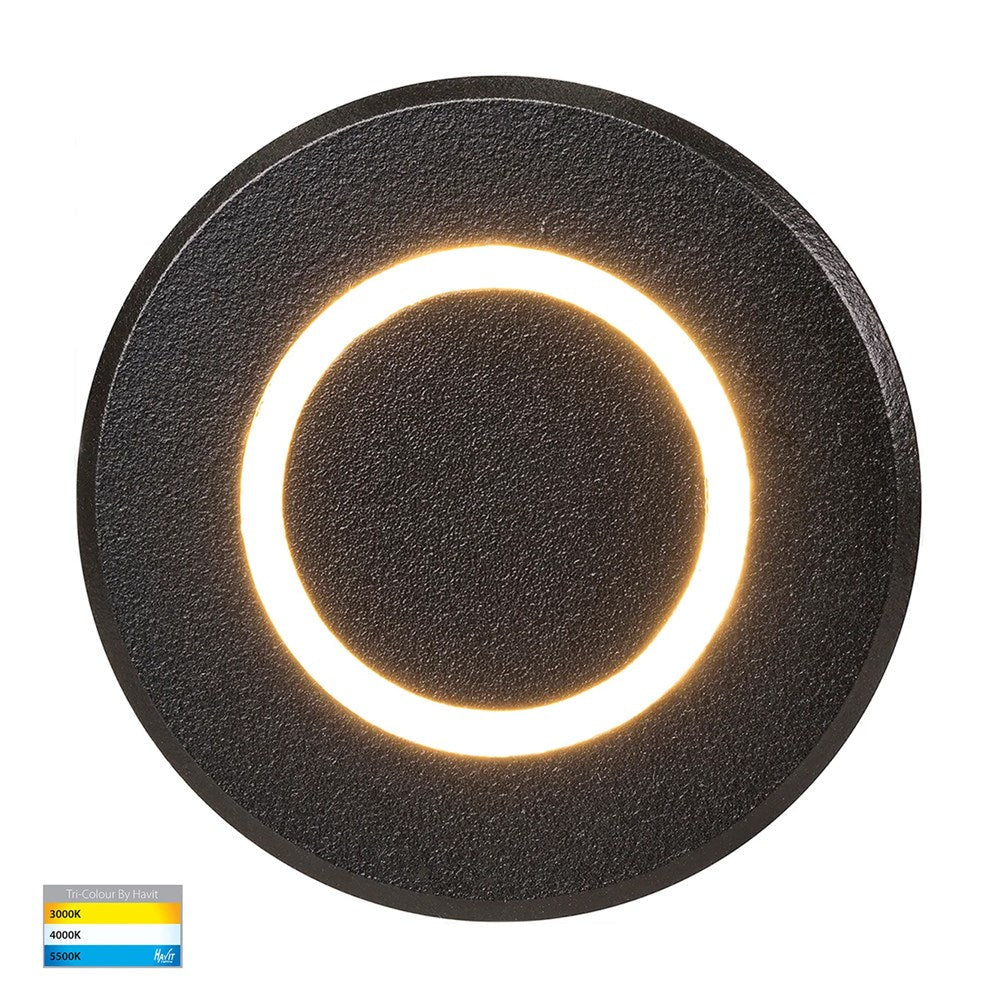

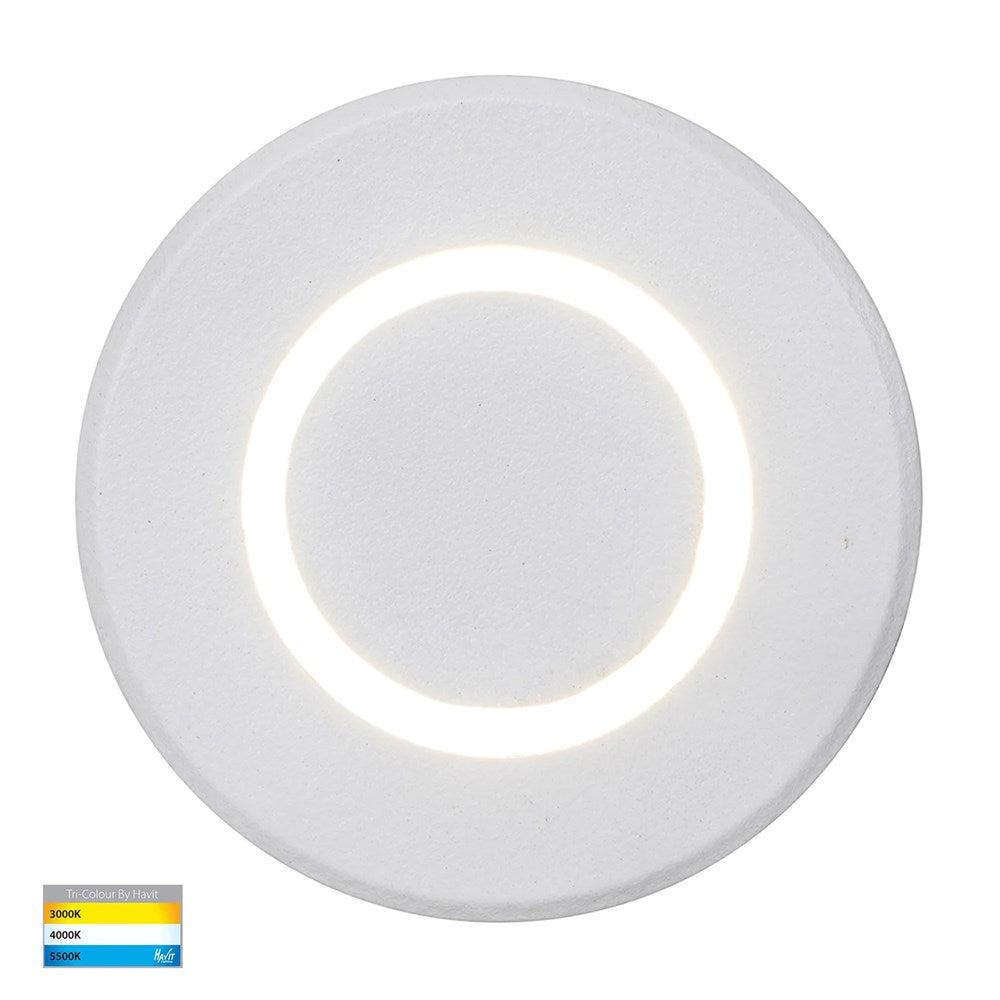

- Brillo Inground or Wall Light

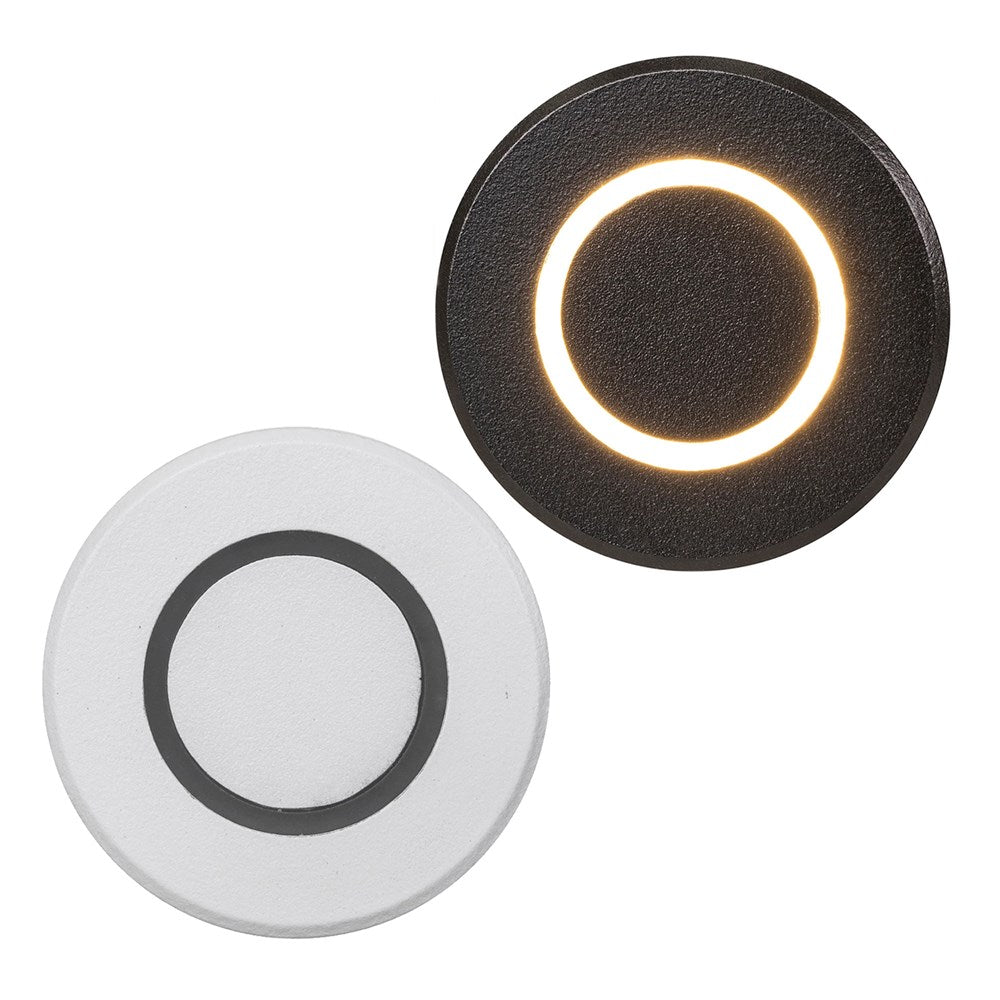

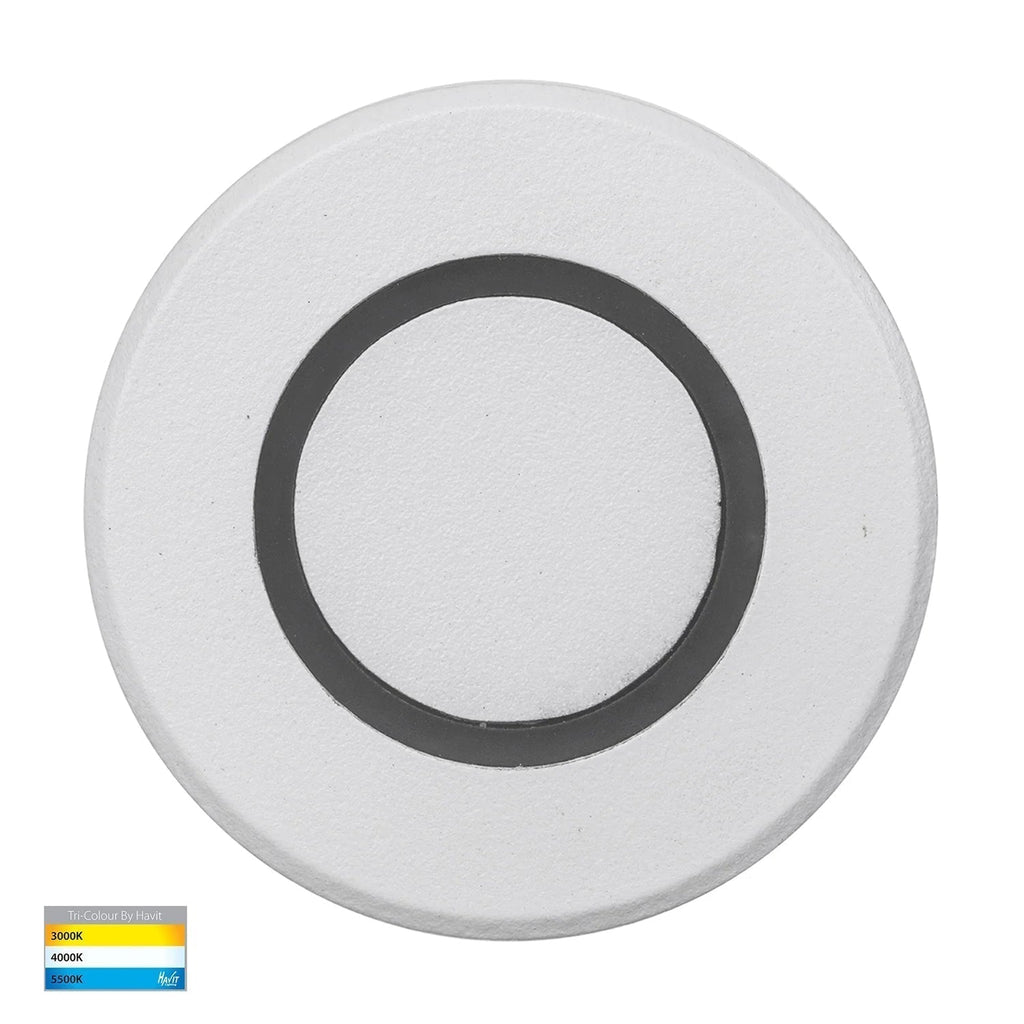

- Aluminium Poly Powder Coated Black or White Cover
- Aluminium Body
- IP rating: IP67
- Dimmable
- Tri Colour
- 3000k, 4000k, 5500k
- Input Voltage: 12v DC
- Built in 3w LED
- 36° Beam angle
- Adequate drainage must be allowed when installed
- 3 Years Replacement Warranty
Must Be Used With Suitable 12v DC LED Driver.
Specifications:
- Colour: Black, White
- Material: Aluminium
- IP Rating: IP67
- Globe Type: LED
- Wattage: 1x 3w
- CRI: >80
- Dimmable: Yes
- Beam Angle: 36°

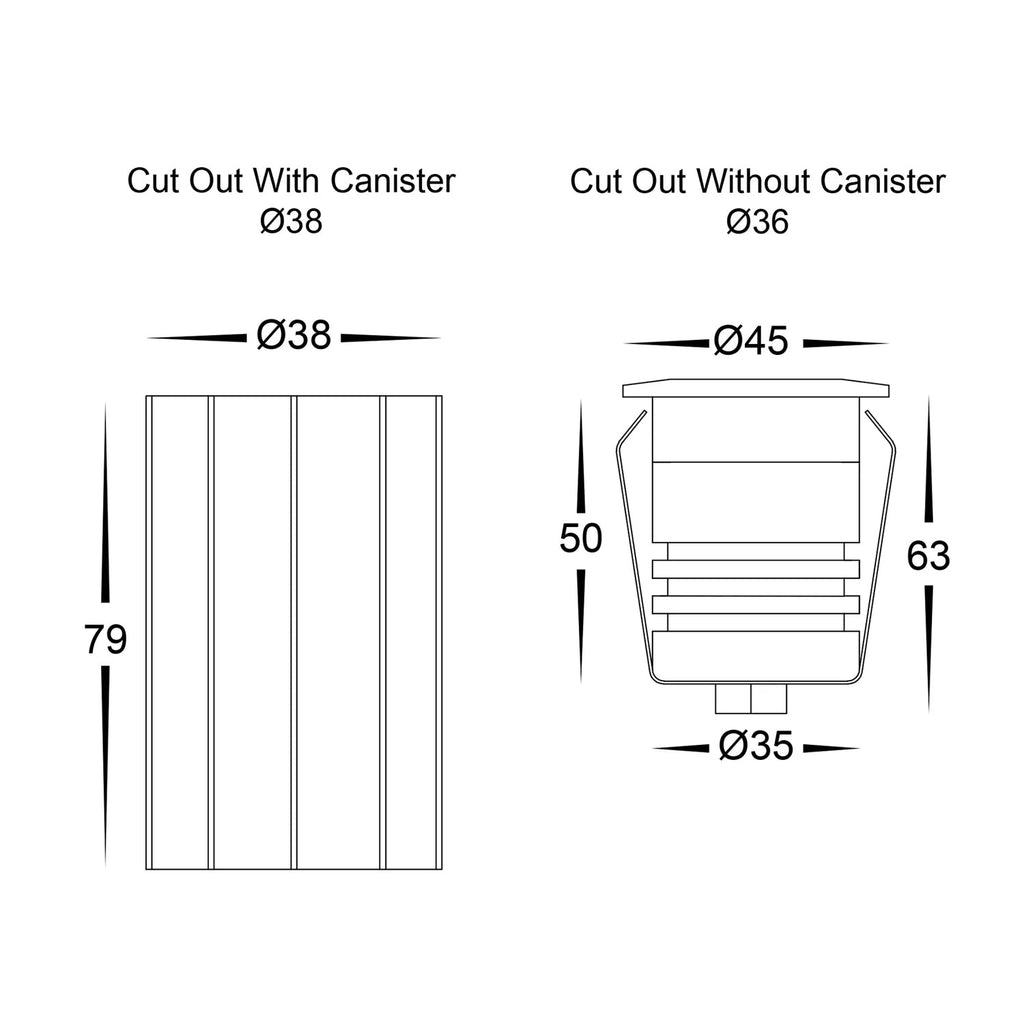

Dimension:

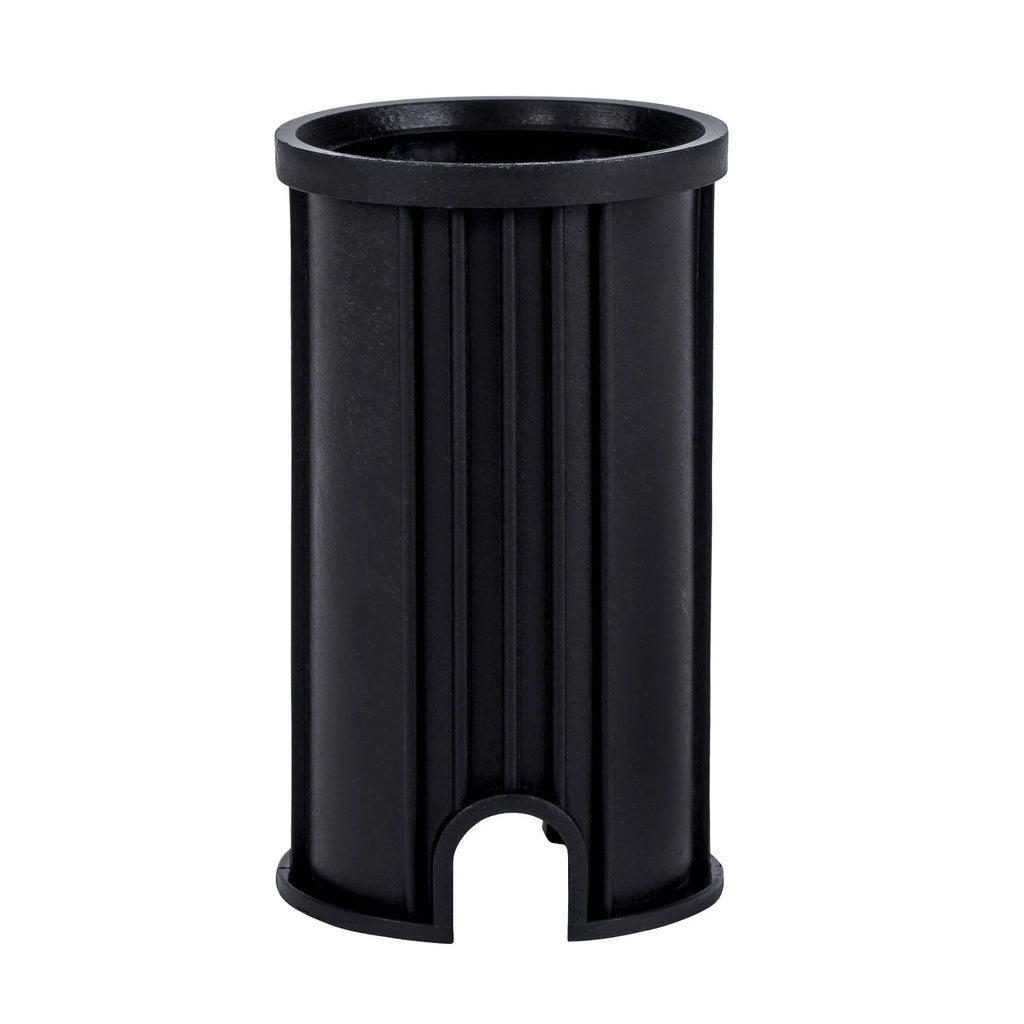

With Canister
- Cut Out: ø38mm
- Diameter: ø38mm
- Height: 79mm
Without Canister
- Cut Out: ø36mm
- Diameter: ø45mm
- Height: 63mm
| Part Number |
Colour Temp |
Lumens
|
| HV2894T-BLK-12V |
3000k
4000k
5500k
|
180lm
190lm
185lm
|
| HV2894T-WHT-12V |
3000k
4000k
5500k
|
180lm
190lm
185lm
|
Choosing a driver
This inground light runs on 12v DC, so it needs a 12v LED driver (sometimes called a transformer). It cannot connect straight to 240v mains. The driver is wired in by a licensed electrician.
Allow 3w for each inground light and add about 20% headroom. 10 inground lights draw 30w, so they need a 12v driver of at least 36w, which in practice means a 60w driver.
| 12v driver size |
Maximum inground lights |
| 30w |
8 |
| 60w |
16 |
| 100w |
27 |
| 150w |
41 |
For bigger installs, split the lights across two or more drivers and place each driver close to its group. Long cable runs at low voltage lose brightness at the far end, so check your cable size with the voltage drop calculator below.
Outdoors, use a weatherproof IP66 12v driver and mount it above ground, clear of garden beds and pooling water.
To dim, pair it with a dimmable 12v driver and a compatible dimmer.
Planning your install? Use our voltage drop calculator to choose the right cable size for your run and keep every light at full brightness.
