Specifications:
- Divad bollard Light
- Aluminium Poly Powder Coated Black
- High-Grade Glass lens

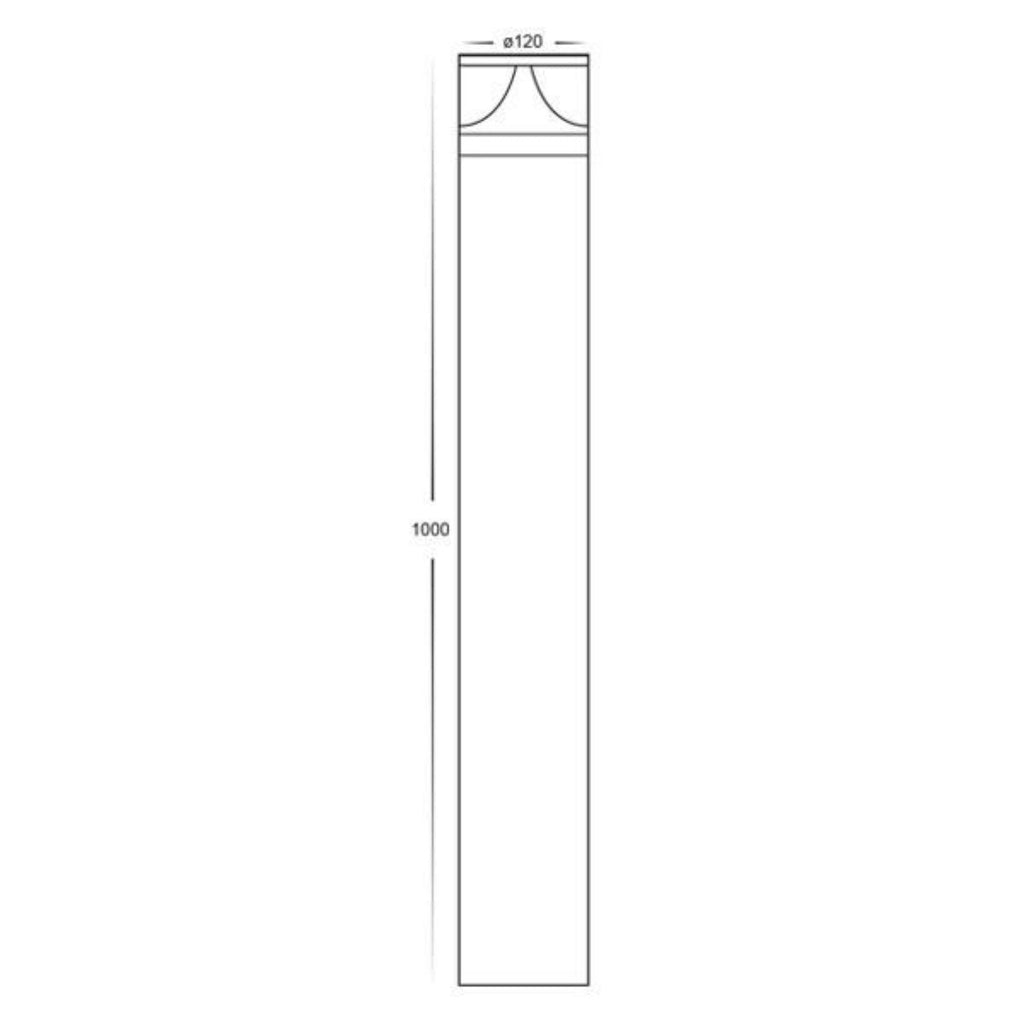

- 1000mm Height
- TRI Colour
- 3000k, 4000k + 5500k
- IP rating: IP65
- IK Rating: IK08
- Input Power: 240v AC, 24v DC
- Built-in 12w LED
- 3 Years Replacement Warranty
24v DC Model must be used with a suitable 24v DC LED Driver
| Order Code |
Colour Temp |
Lumens
|
Input Voltage |
Beam Angle |
Height |
Diameter |
HV1629T-BLK-240V-RND
|
3000k
4000k
5500k
|
960lm
1020lm
1080lm
|
240v AC |
120° |
1000mm |
ø120mm
|
| HV1629T-BLK-24V-RND |
3000k
4000k
5500k
|
960lm
1020lm
1080lm
|
24v DC |
120°
|
1000mm
|
ø120mm
|
Choosing a driver
The 24v DC version runs on low voltage and needs a 24v LED driver, installed by a licensed electrician. The 240v version wires straight to mains and does not need a driver.
Allow 12w for each bollard and add about 20% headroom. 4 bollards draw 48w, so they need a 24v driver of at least 58w, which in practice means a 60w driver.
| 24v driver size |
Maximum bollards |
| 30w |
2 |
| 60w |
4 |
| 100w |
6 |
| 150w |
10 |
For bigger installs, split the lights across two or more drivers and place each driver close to its group. Long cable runs at low voltage lose brightness at the far end, so check your cable size with our voltage drop calculator.
Outdoors, use a weatherproof IP66 24v driver and mount it above ground, clear of garden beds and pooling water.
