Features:

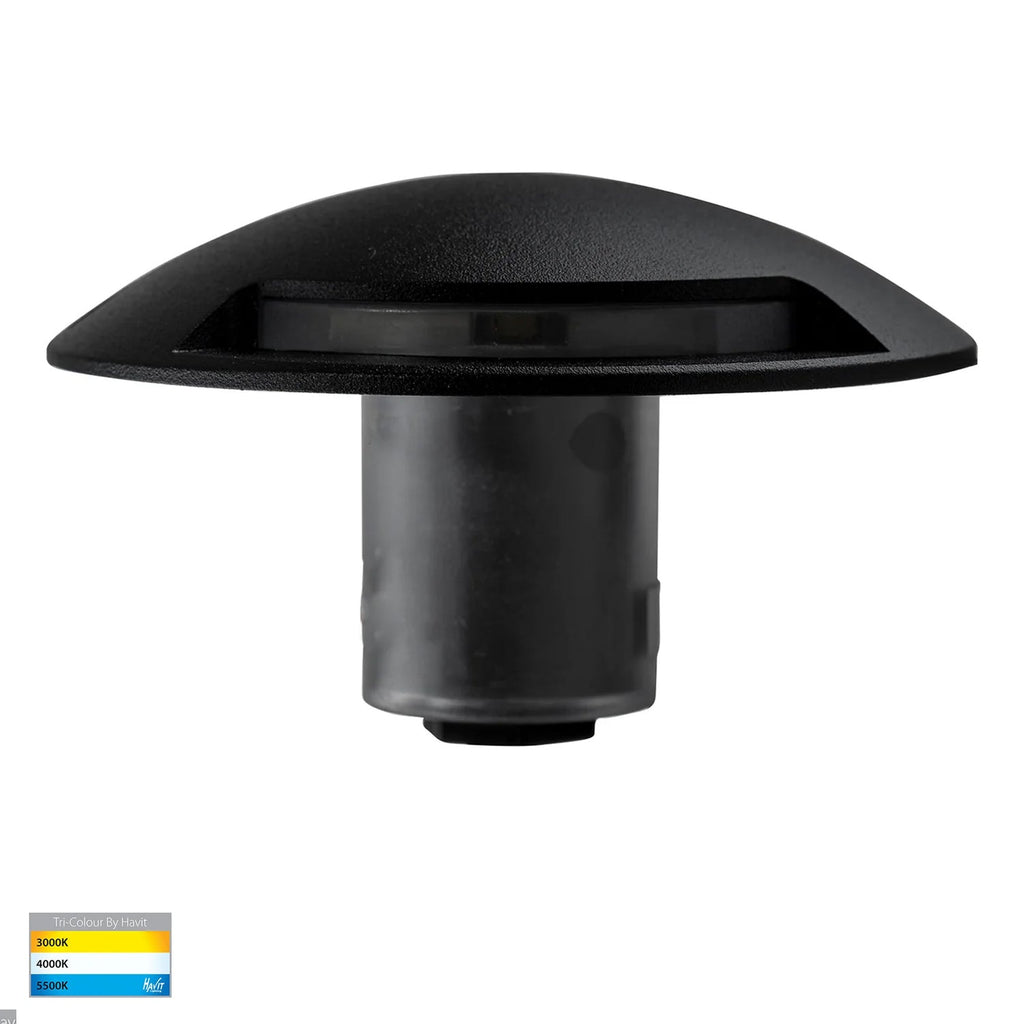

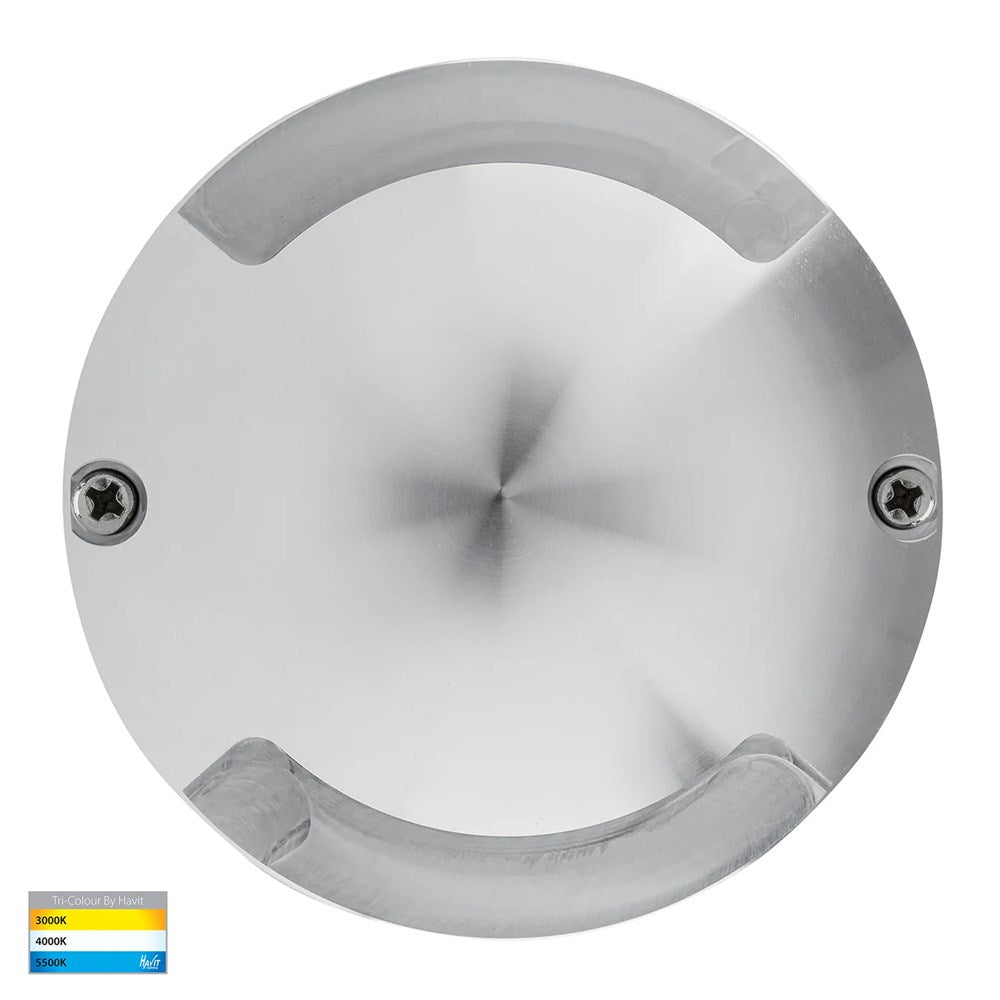

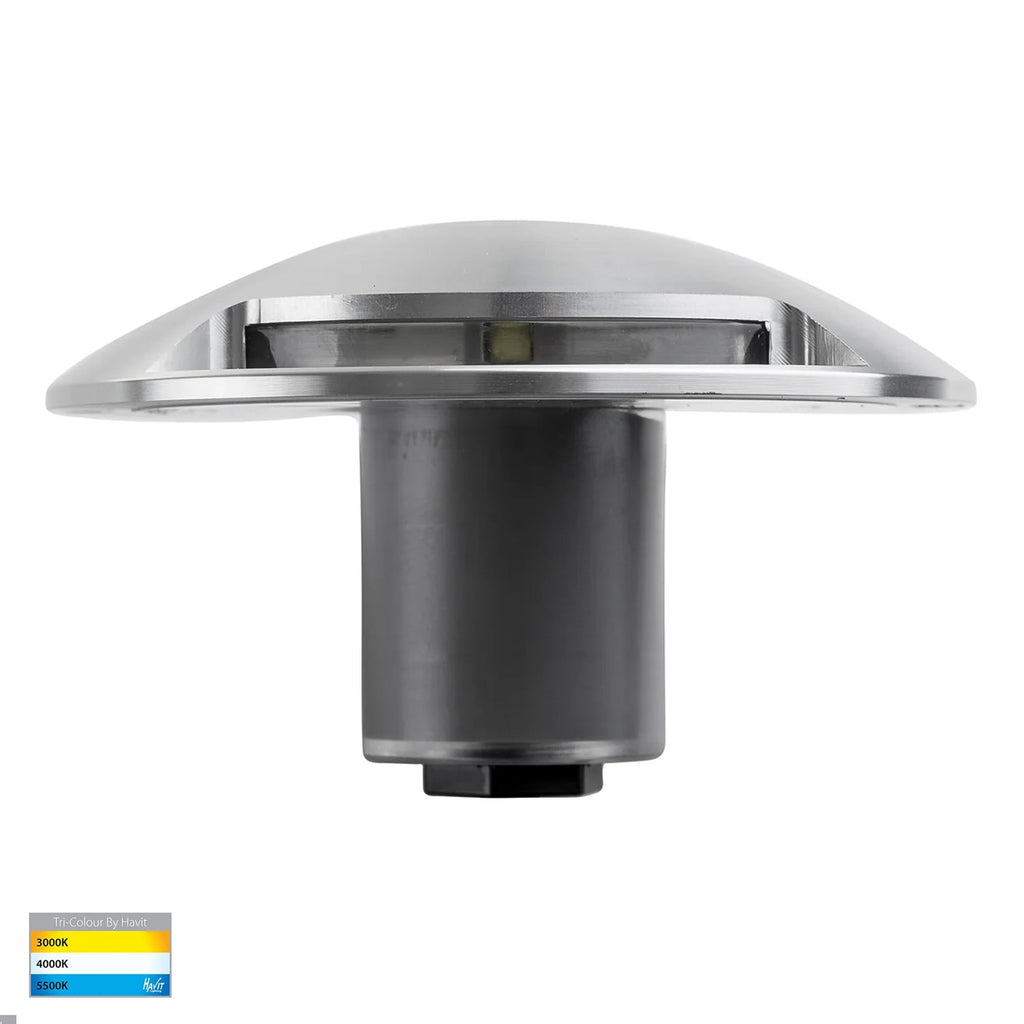

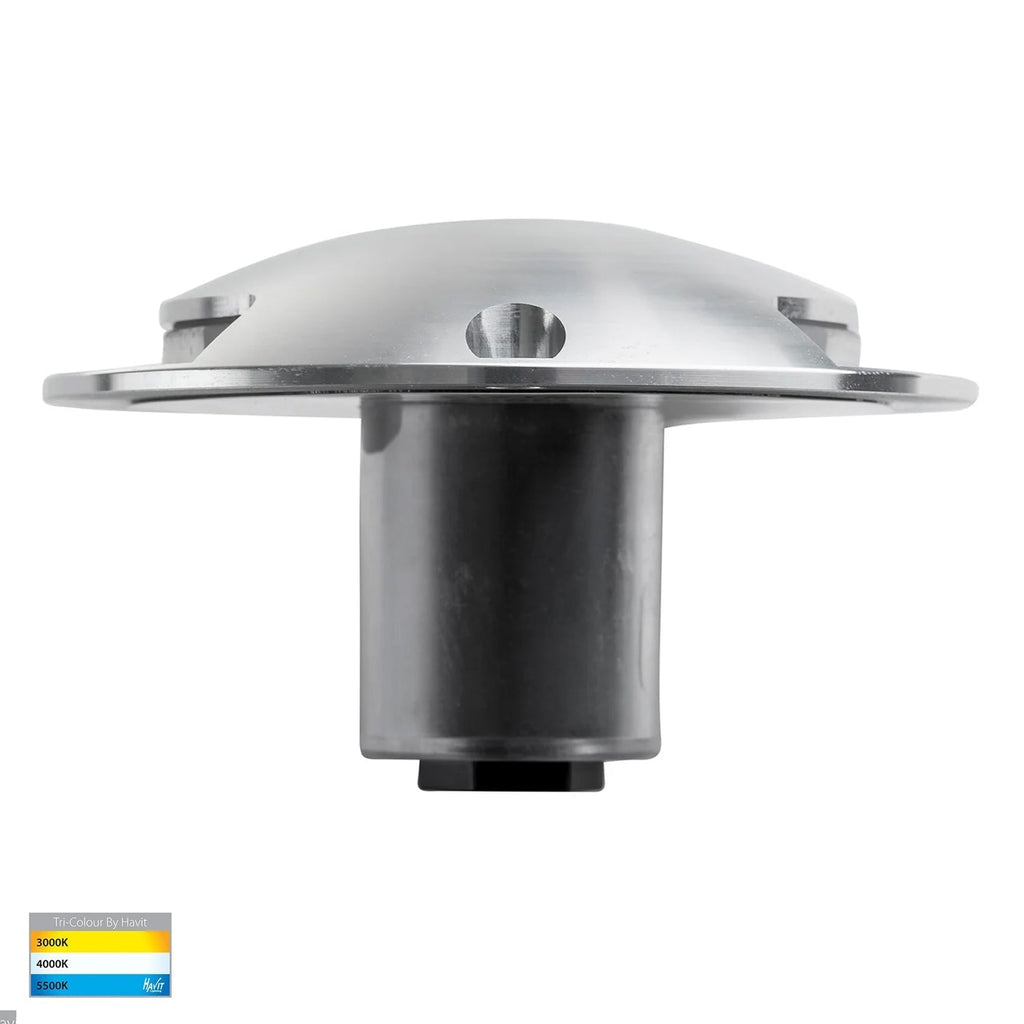

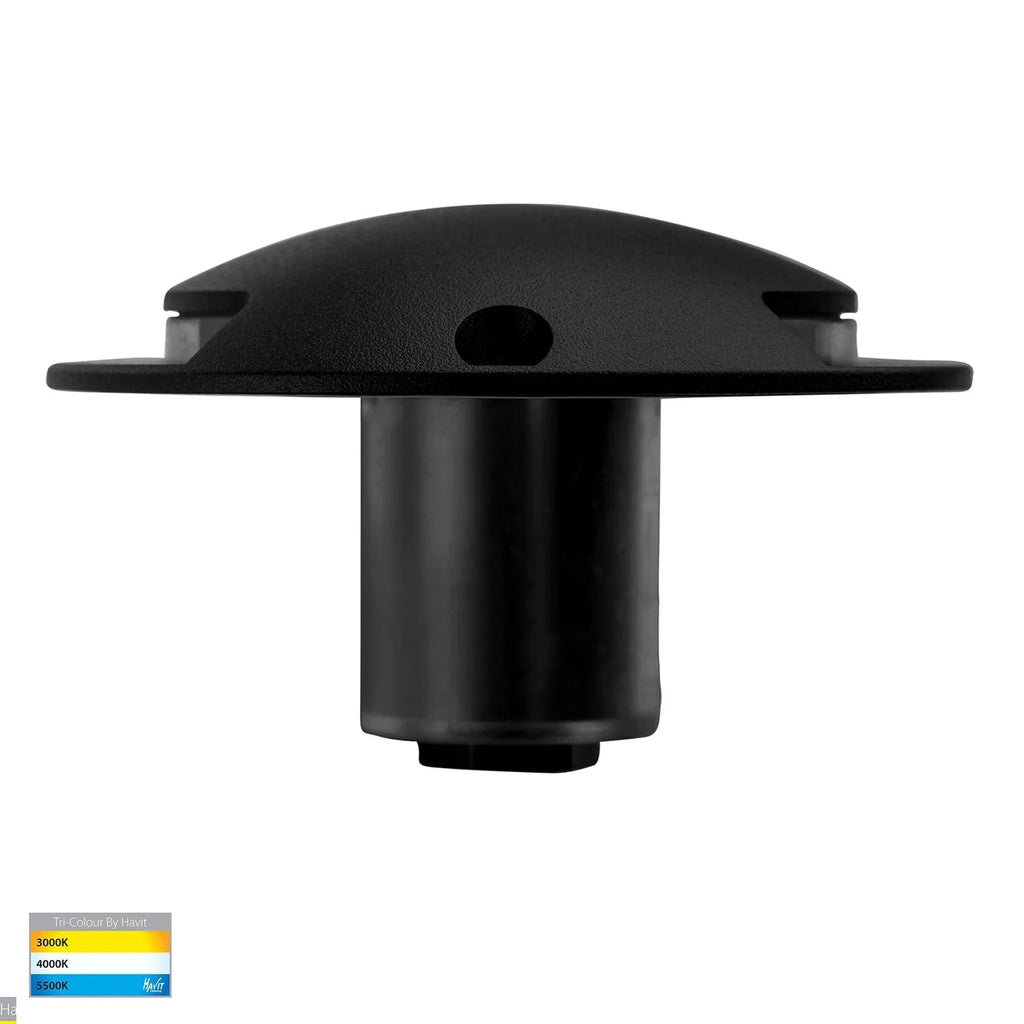

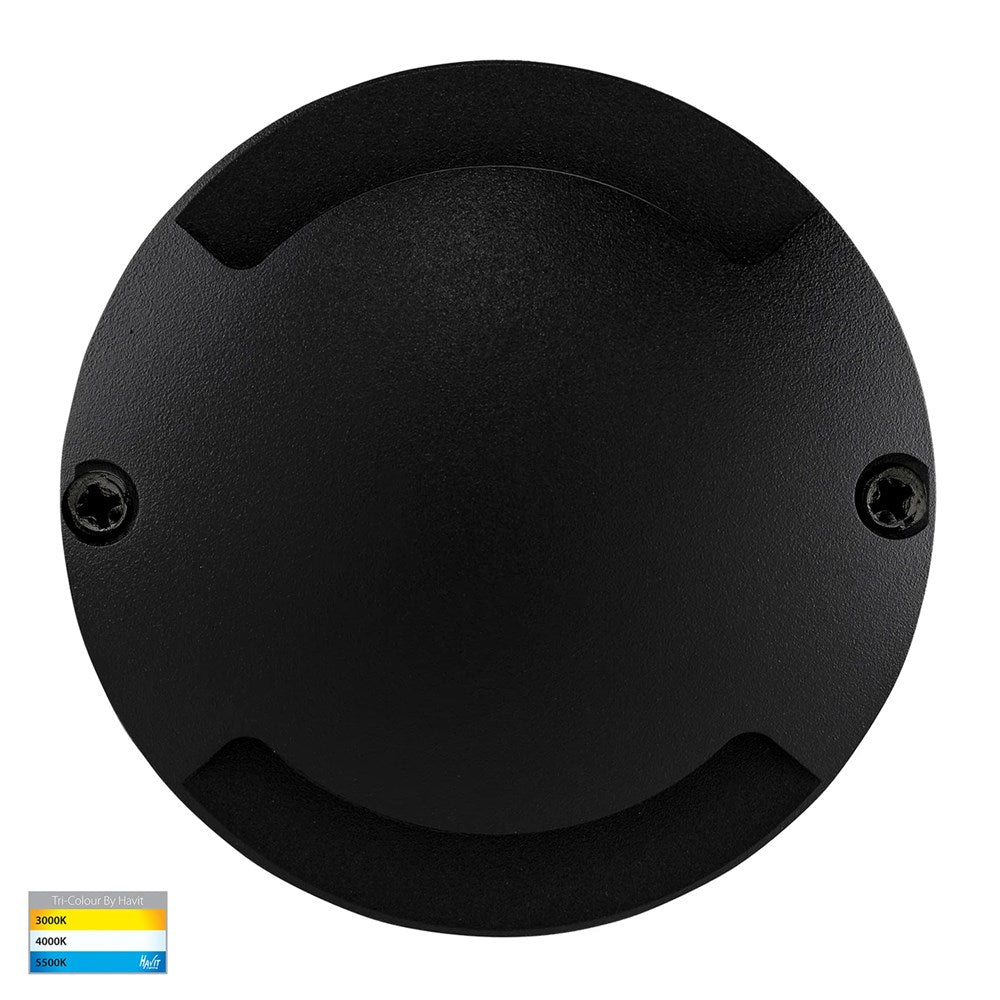

- Dome Two Way Deck Light
- Aluminium Silver, Poly Powder Coated Black Face
- PC Body
- IP rating: IP65
- Tri Colour
- 3000k, 4000k, 5500k
- Input Voltage: 12v DC
- Built-in 2x 3w LED
- 3 Years Replacement Warranty
Must Be Used With Suitable 12v DC LED Driver
Specifications:
- Colour: Black, Silver
- Material: Aluminium + Polycarbonate body
- Diffuser Type: Plastic
- Globe Type: LED
- Globe Included: Yes
- Wattage (max): 2x 3w
- IP Rating: IP65
- IK Rating: IK08
- CRI: >80
- Dimmable: No
- Protection Class: 3 (No Earth Required)
- Lamp Expectancy: <30,000hrs
- Installation Type: Ground - Recessed
- Warranty: 3 Years Replacement*

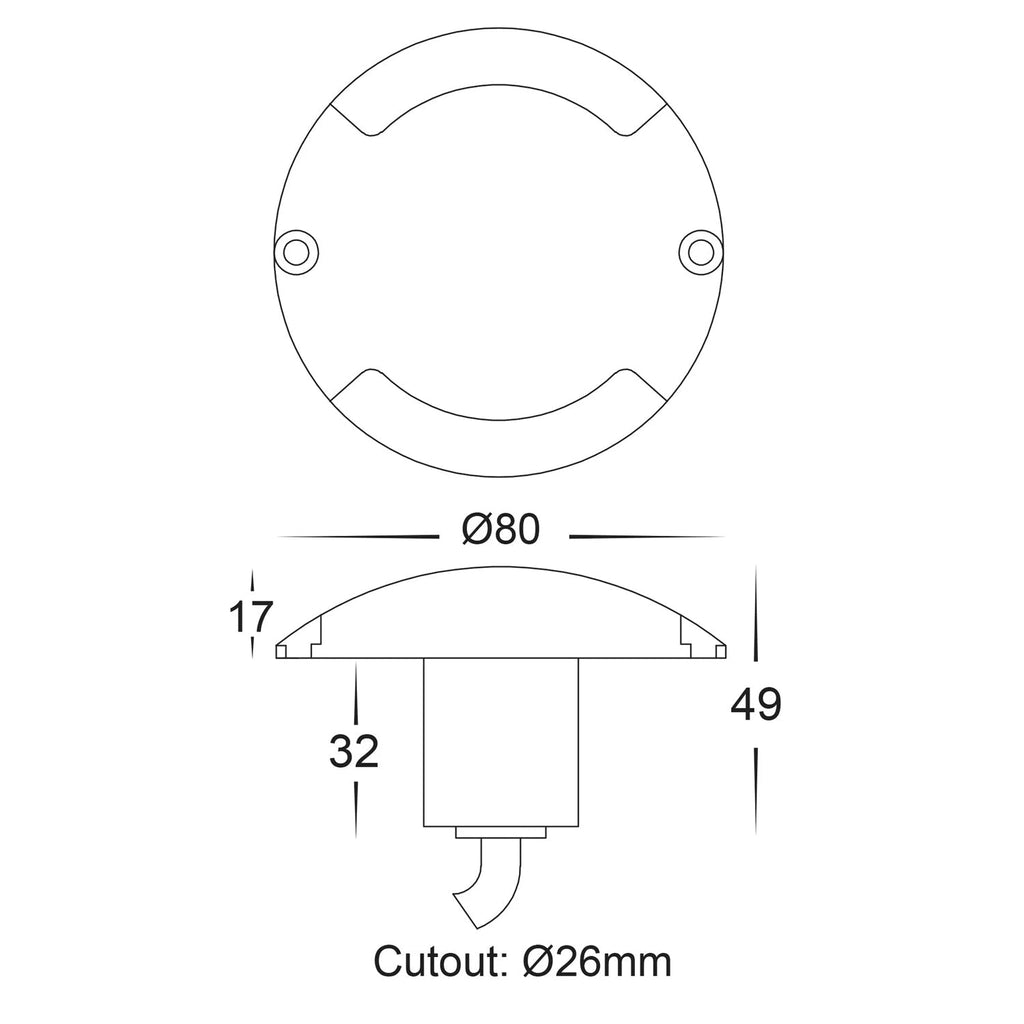

Dimensions:
- Cut Out: ø26mm
- Diameter: ø80mm
- Cable Length: 300mm
| Part Number |
Colour |
Colour Temperature
|
Lumens
|
| HV2872T-BLK-12V |
Black |
3000k
4000k
5500k |
2x 180lm
2x 185lm
2x 190lm |
| HV2872T-SLV-12V |
Silver |
3000k
4000k
5500k |
2x 180lm
2x 185lm
2x 190lm |
Choosing a driver
This deck light runs on 12v DC, so it needs a 12v LED driver (sometimes called a transformer). It cannot connect straight to 240v mains. The driver is wired in by a licensed electrician.
Each deck light draws 2 x 3w, so allow 6w per deck light and add about 20% headroom. 8 deck lights draw 48w, so they need a 12v driver of at least 58w, which in practice means a 60w driver.
| 12v driver size |
Maximum deck lights |
| 30w |
4 |
| 60w |
8 |
| 100w |
13 |
| 150w |
20 |
For bigger installs, split the lights across two or more drivers and place each driver close to its group. Long cable runs at low voltage lose brightness at the far end, so check your cable size with the voltage drop calculator below.
Outdoors, use a weatherproof IP66 12v driver and mount it above ground, clear of garden beds and pooling water.
Planning your install? Use our voltage drop calculator to choose the right cable size for your run and keep every light at full brightness.
