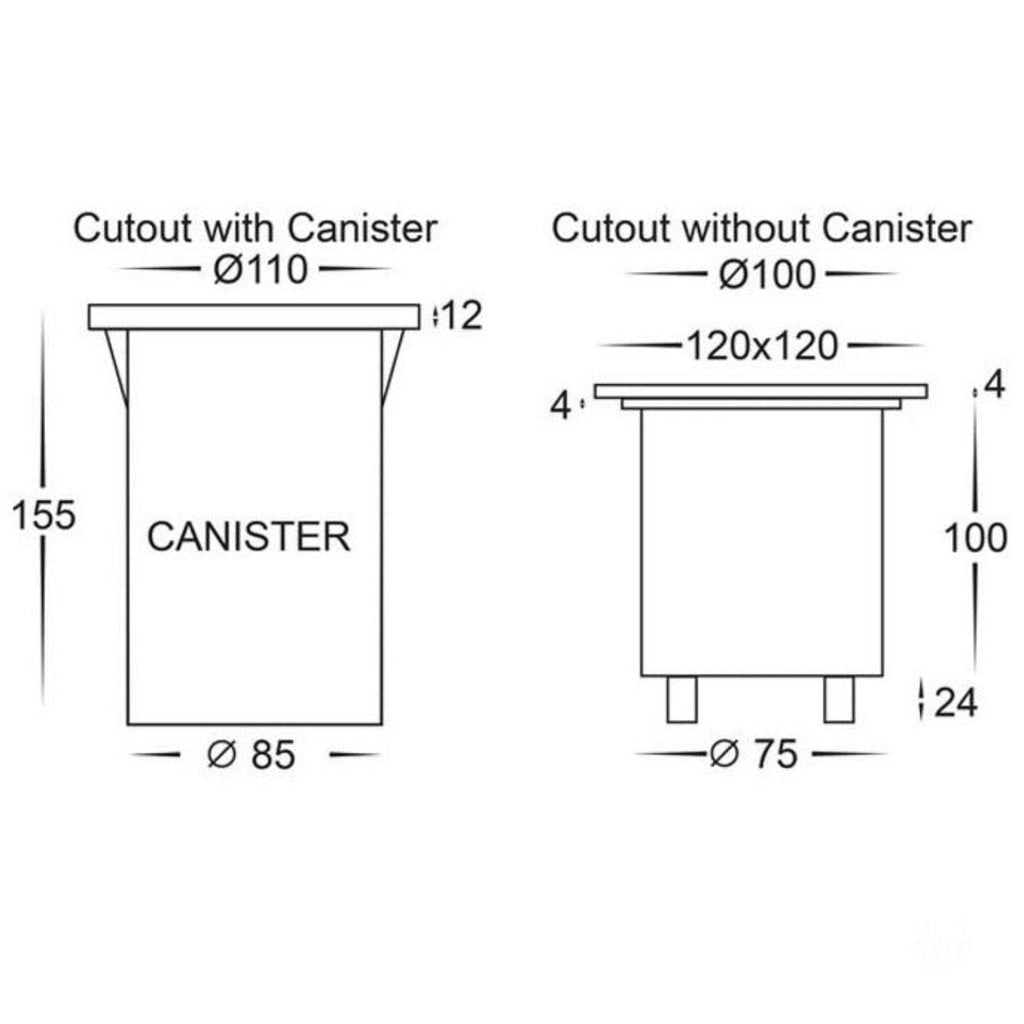

Dimension:

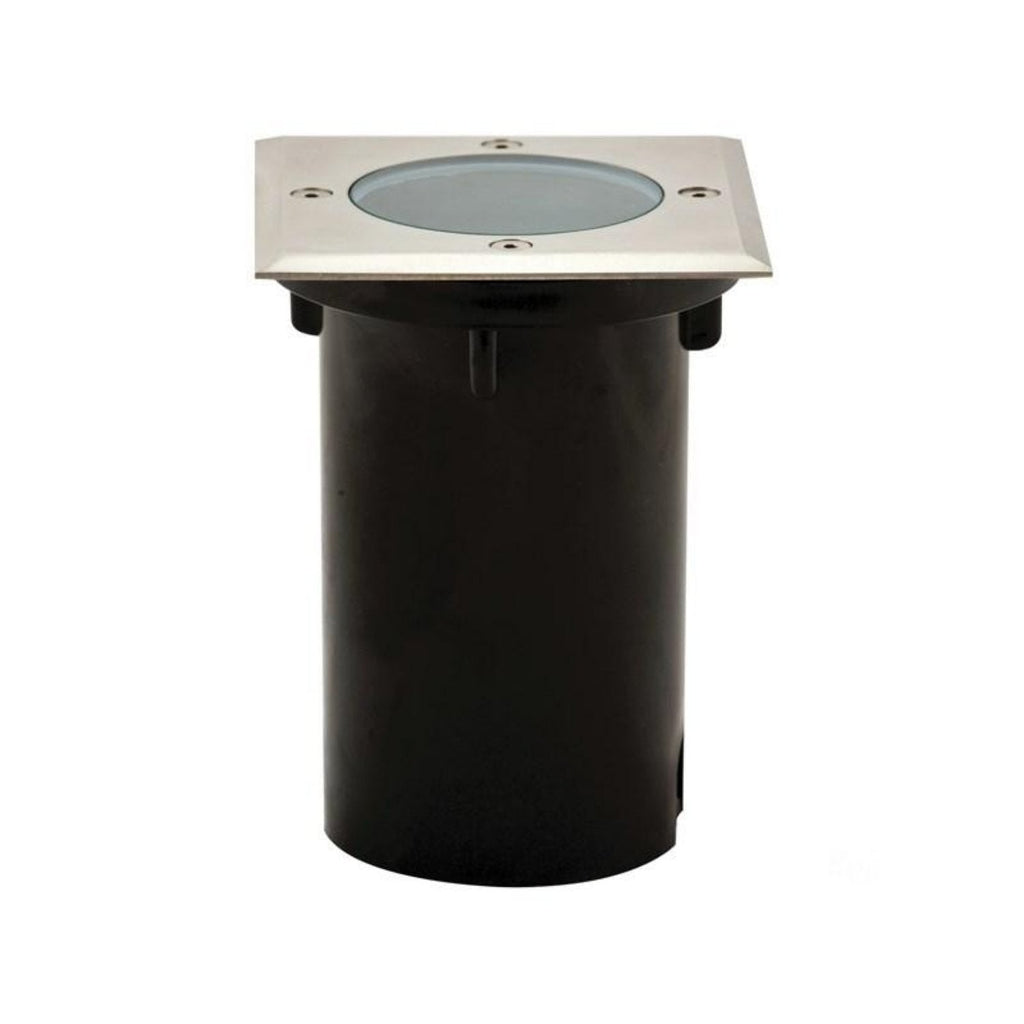

- Inground Uplighter Square

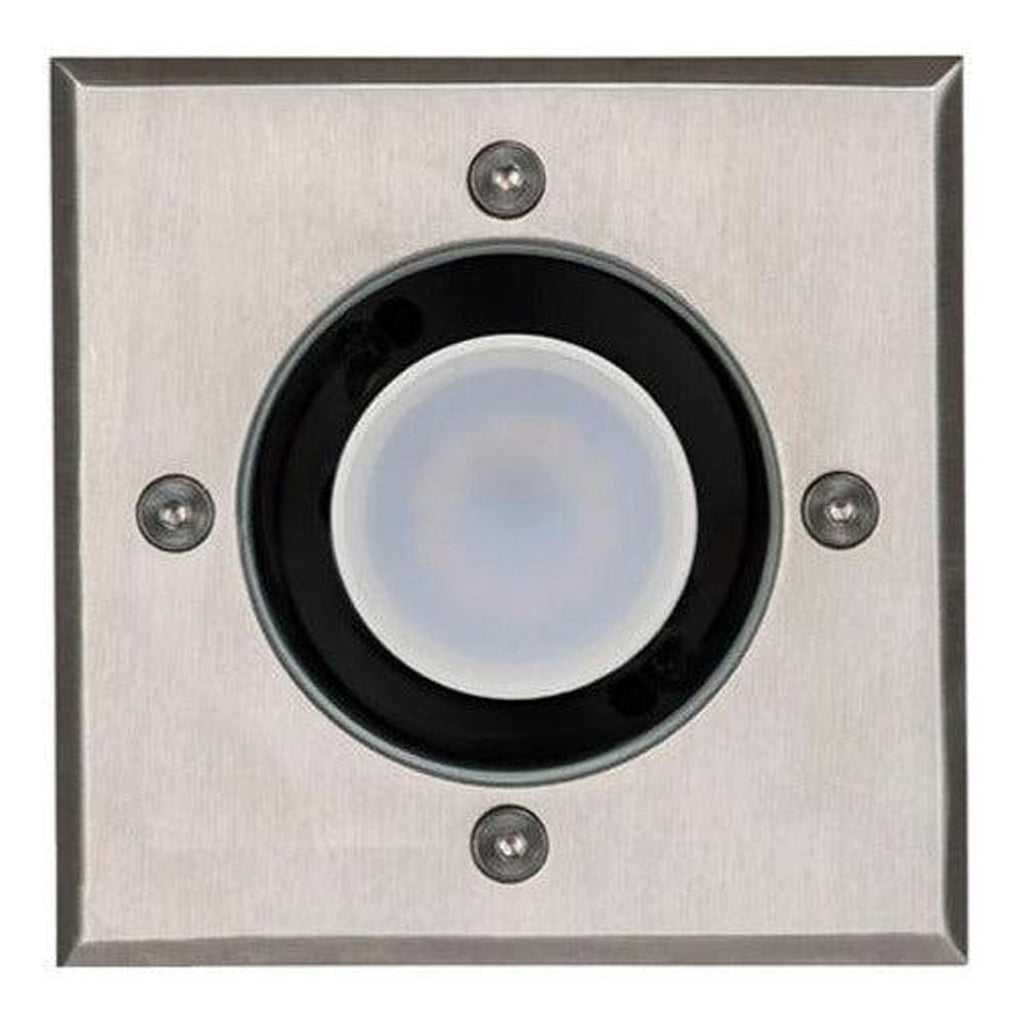

- Stainless Steel 316 Marine Grade Cover

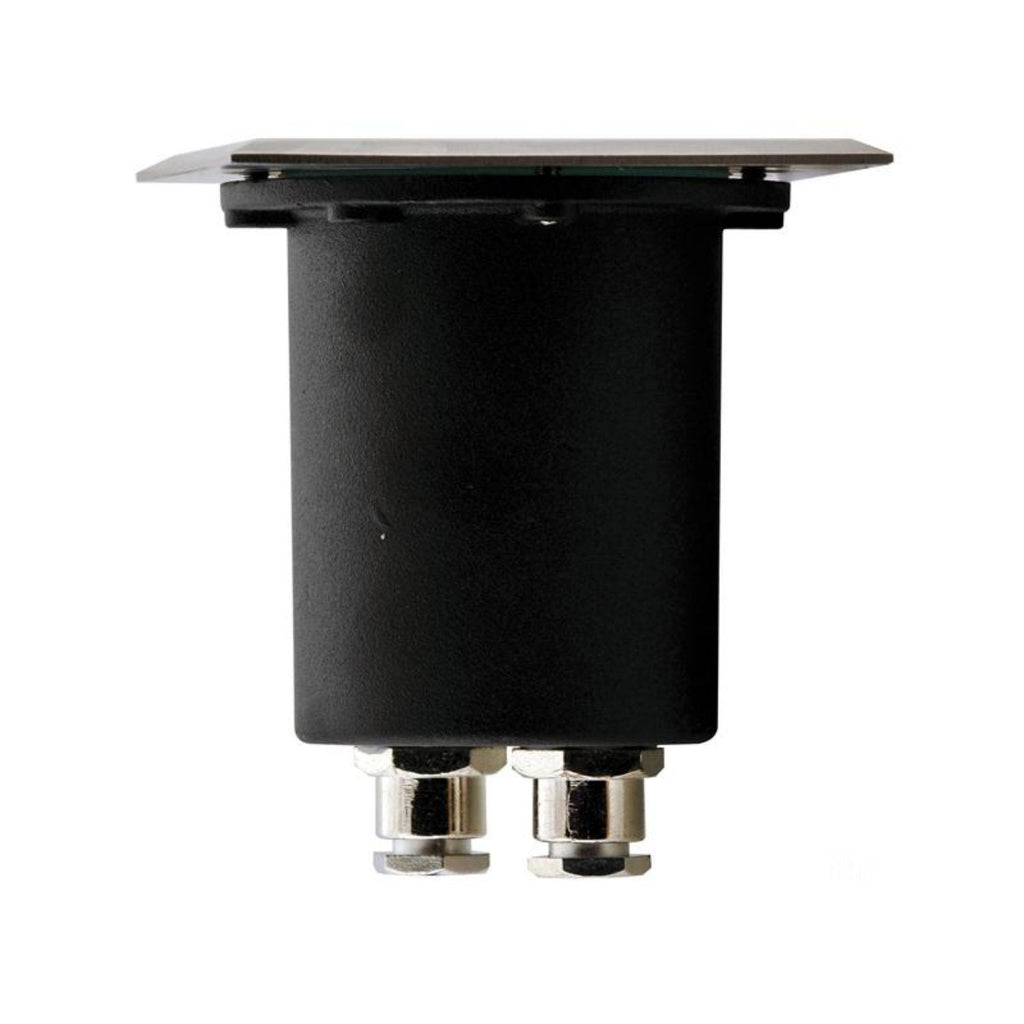

- Aluminium Body
- Flush Tempered Glass
- Beam Angle: 120°
- Trafficable to 600kgs
- TRI Colour
- IP rating: IP65
- IK Rating: IK10
- Input Power: 240v AC or 12v DC
- Adequate drainage must be allowed when installed
- 3 Years Replacement Warranty
12v model must be used with suitable 12v DC LED driver
| Order Code |
Colour Temp |
Lumens |
Included LED |
| HV1701T |
3000k
4000k
5500k
|
270lm
285lm
300lm
|
5w 12v DC
MR16
|
| HV1706T |
3000k
4000k
5500k
|
270lm
285lm
300lm
|
5w 240v
GU10
|
Superseded form codes: HV1701C,HV1701W,HV1706C,HV1706W
Choosing a driver
The 12v MR16 version runs on low voltage and needs a 12v LED driver, installed by a licensed electrician. The 240v version wires straight to mains and does not need a driver.
Allow 5w for each inground light and add about 20% headroom. 10 inground lights draw 50w, so they need a 60w 12v driver.
| 12v driver size |
Maximum inground lights |
| 30w |
5 |
| 60w |
10 |
| 100w |
16 |
| 150w |
25 |
For bigger installs, split the lights across two or more drivers and place each driver close to its group. Long cable runs at low voltage lose brightness at the far end, so check your cable size with the voltage drop calculator below.
Outdoors, use a weatherproof IP66 12v driver and mount it above ground, clear of garden beds and pooling water.
Planning your install? Use our voltage drop calculator to choose the right cable size for your run and keep every light at full brightness.
