Add a new touch to your outdoor decor with this sleek mini Bollard Light. This louvred LED light will brighten up the darkest corners of the patio, garden, or walkways with its 700 lumens on full brightness!
Description:

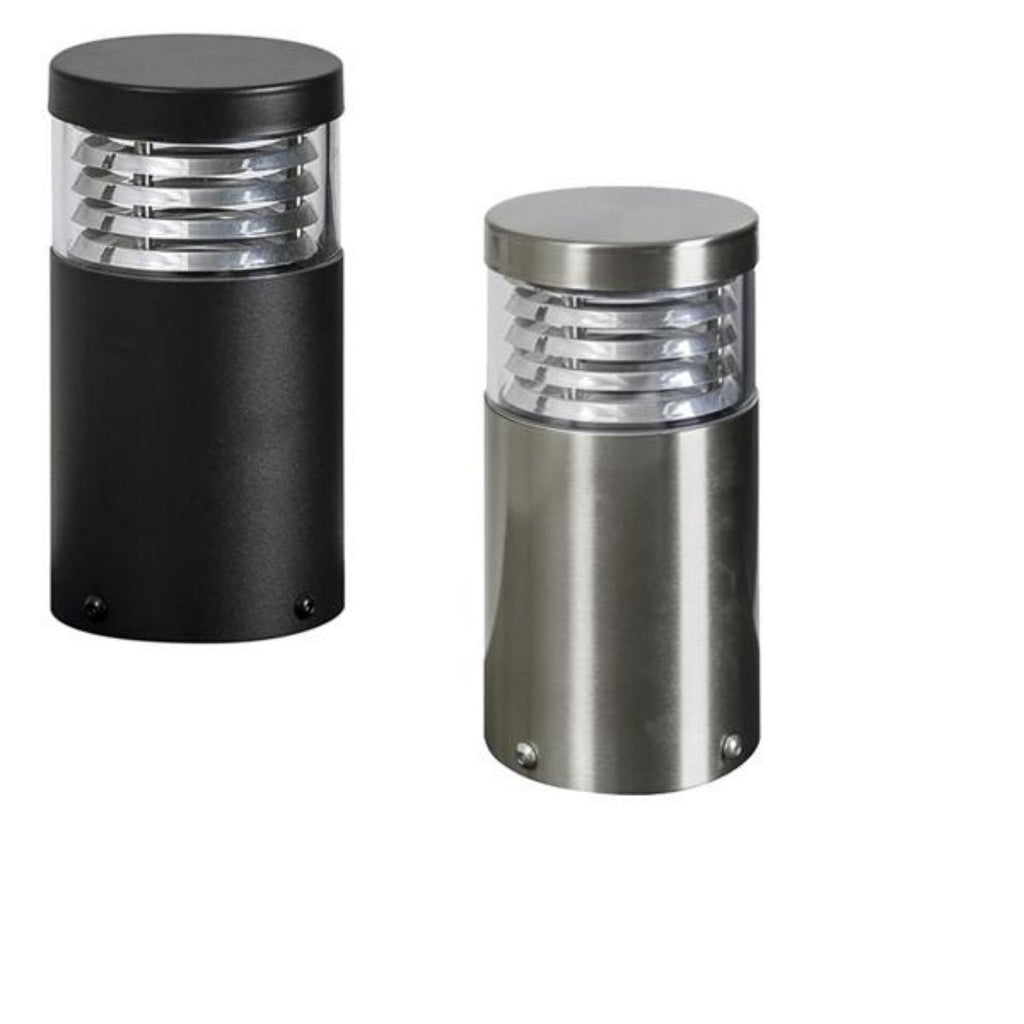

- Mini Bollard Light
- Stainless Steel Poly Powder Coated Black or 316 Stainless Steel

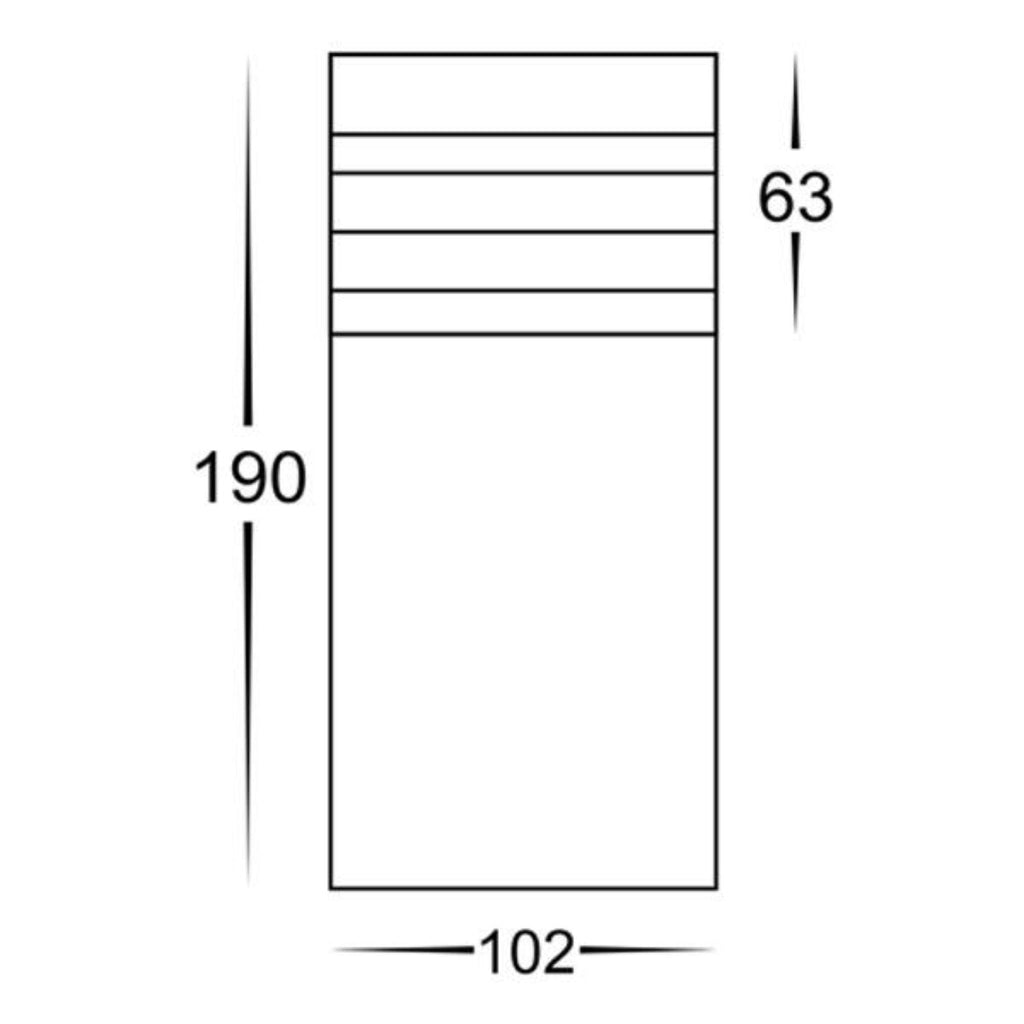

- 190mm Height
- Clear diffuser with louvres
- TRI Colour
- IP rating: IP54
- Input Voltage: 240v AC or 12v DC
- 3 Years Replacement Warranty
12v Model Must Be Used With Suitable 12v DC LED Driver
|
Order Code
|
Colour
|
Colour Temperature
|
Lumens
|
Included LED
|
|

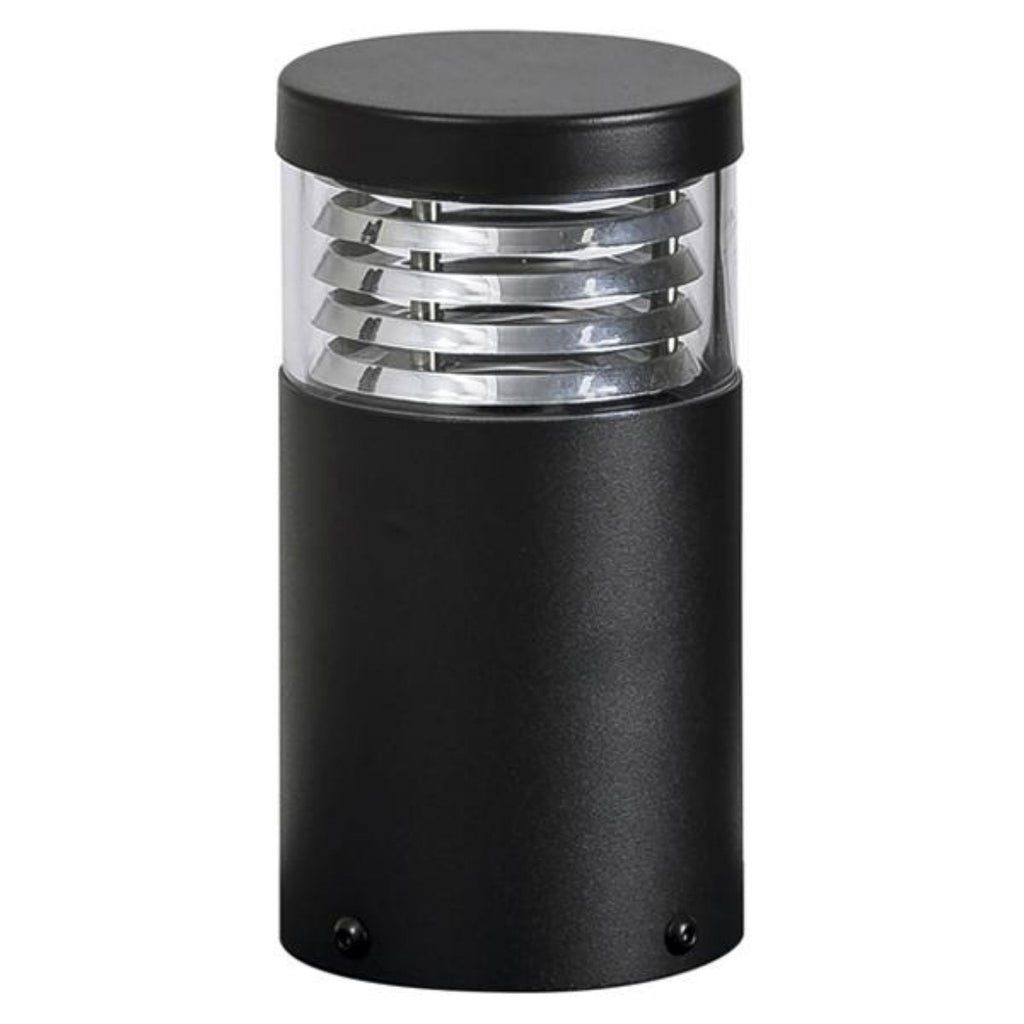

HV1615T-BLK-240V
|
Black |
3000k
4000k
5500k
|
700lm
720lm
740lm
|
9w E27 240v
|
| HV1615T-BLK-12V |
Black |
3000k
4000k
5500k
|
270lm
285lm
300lm
|
5w MR16 12v DC |

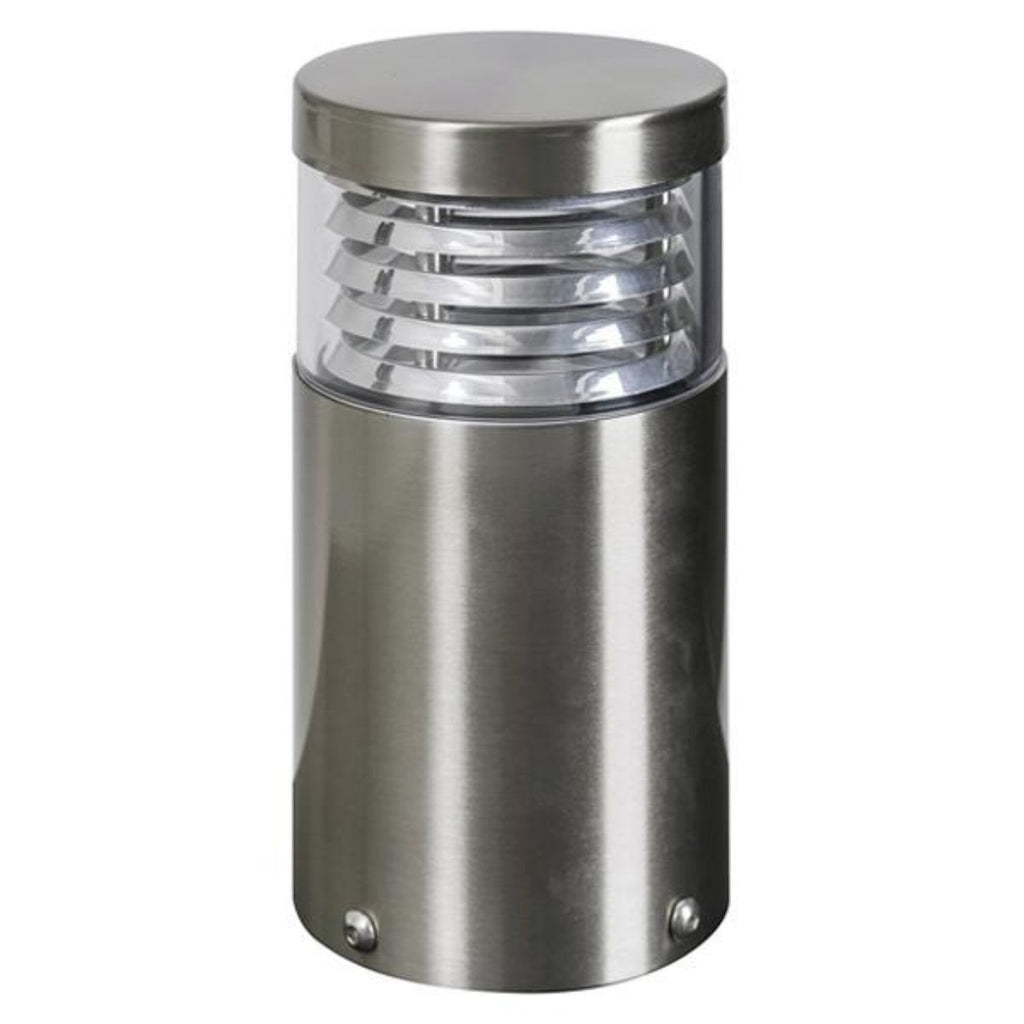

HV1615T-SS316-240V
|
316 Stainless Steel |
3000k
4000k
5500k
|
700lm
720lm
740lm
|
9w E27 240v
|
HV1615T-SS316-12V
|
316 Stainless Steel |
3000k
4000k
5500k
|
270lm
285lm
300lm
|
5w MR16 12v DC
|
Choosing a driver
The 12v MR16 version runs on low voltage and needs a 12v LED driver, installed by a licensed electrician. The 240v version wires straight to mains and does not need a driver.
Allow 5w for each bollard and add about 20% headroom. 10 bollards draw 50w, so they need a 60w 12v driver.
| 12v driver size |
Maximum bollards |
| 30w |
5 |
| 60w |
10 |
| 100w |
16 |
| 150w |
25 |
For bigger installs, split the lights across two or more drivers and place each driver close to its group. Long cable runs at low voltage lose brightness at the far end, so check your cable size with our voltage drop calculator.
Outdoors, use a weatherproof IP66 12v driver and mount it above ground, clear of garden beds and pooling water.
