Features:

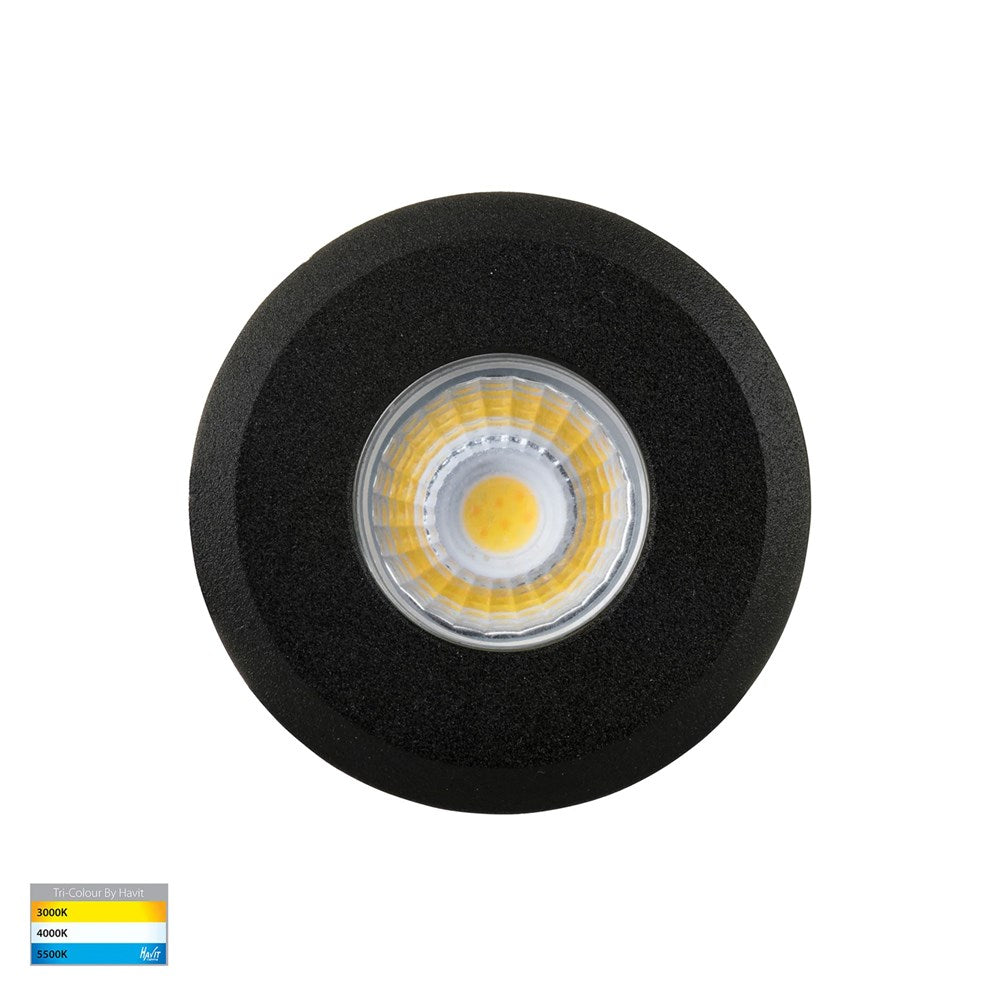

- Recessed Mini Step or Inground Light

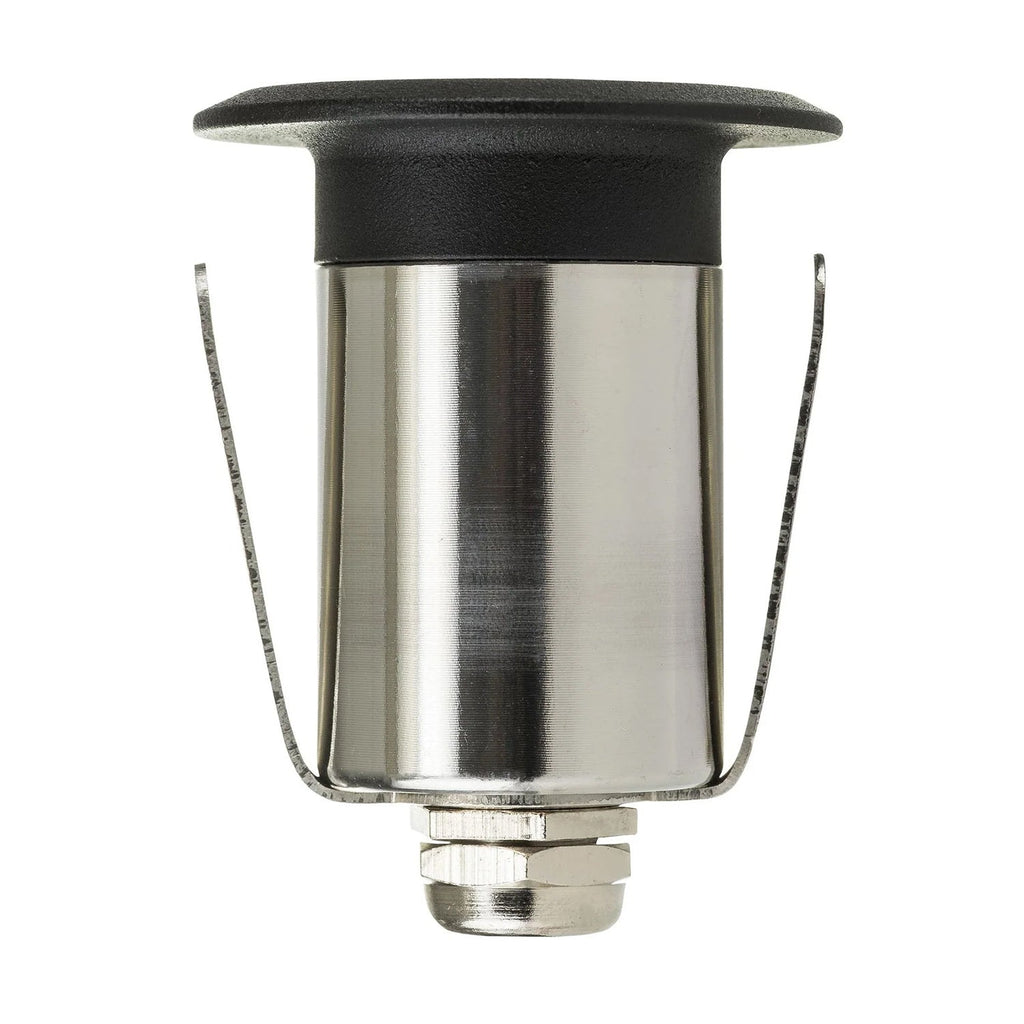

- Stainless steel poly powder coated black face

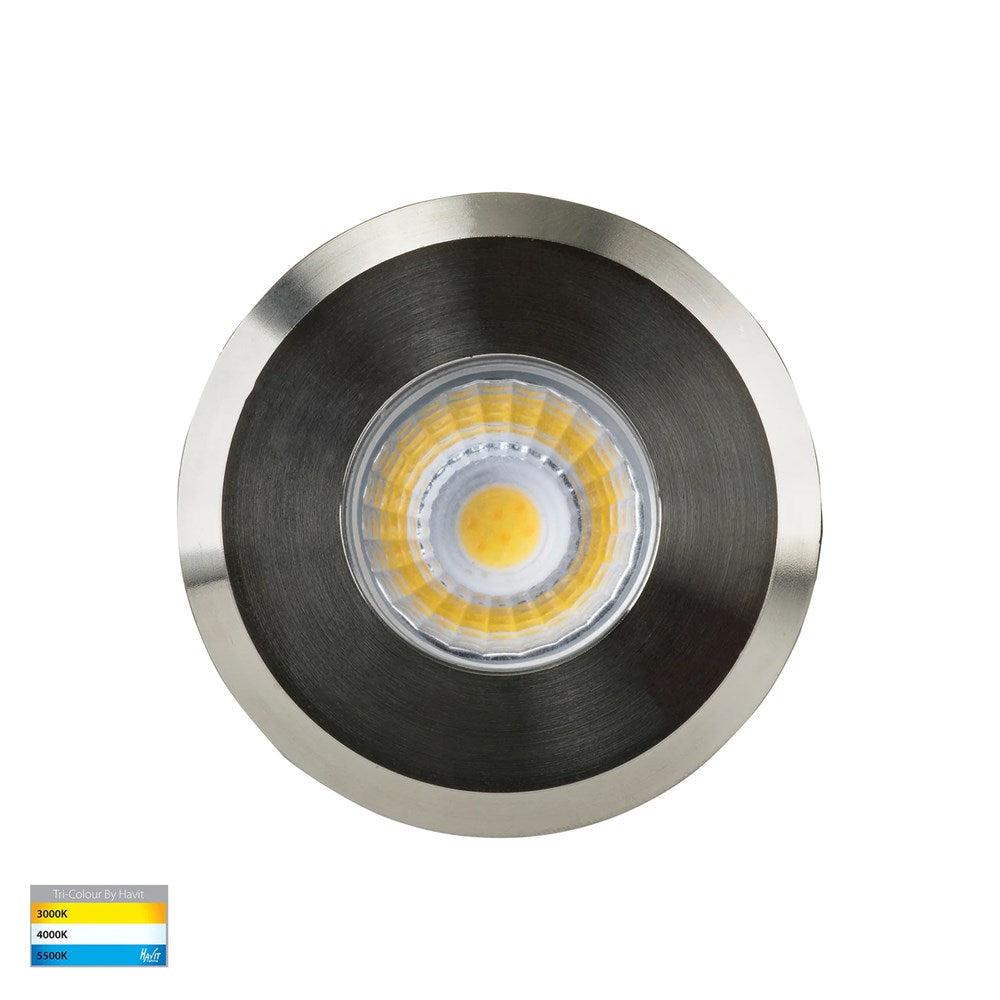

- Full 316 Stainless Steel

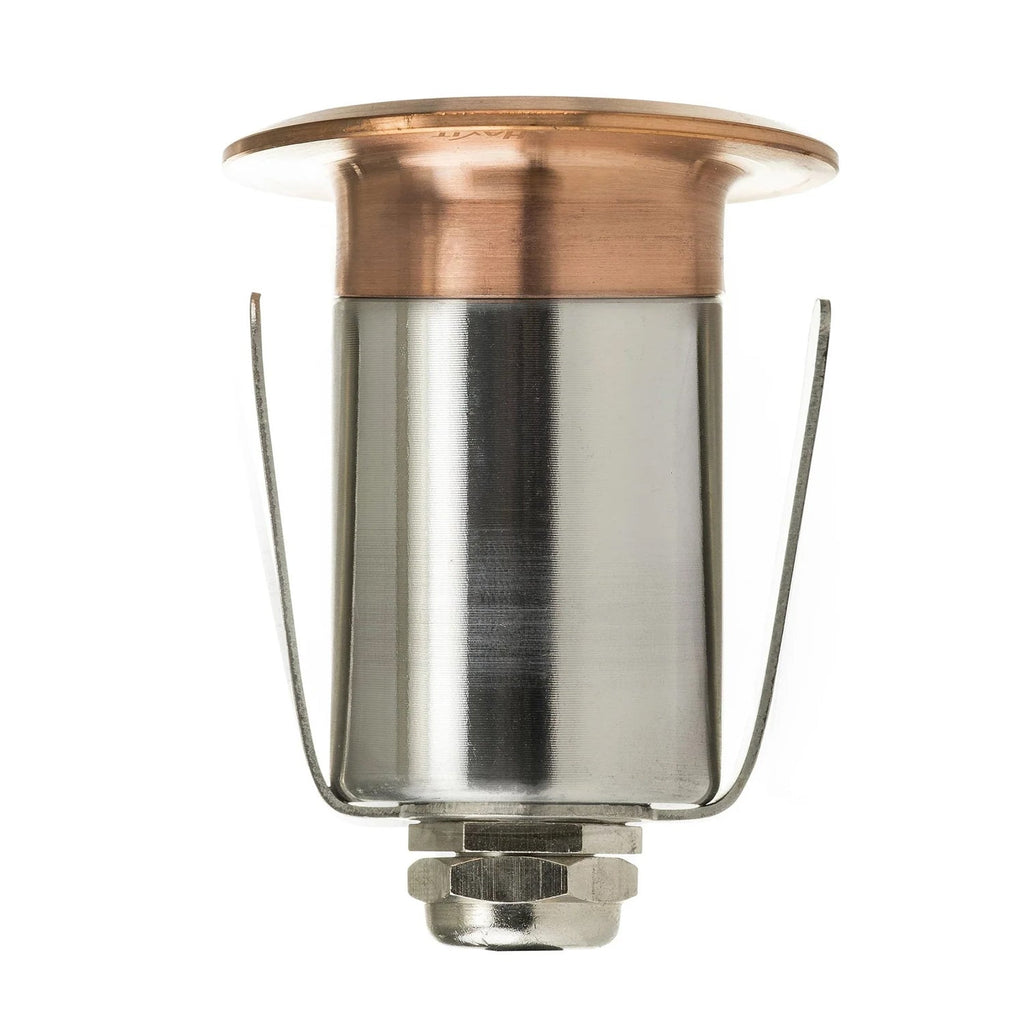

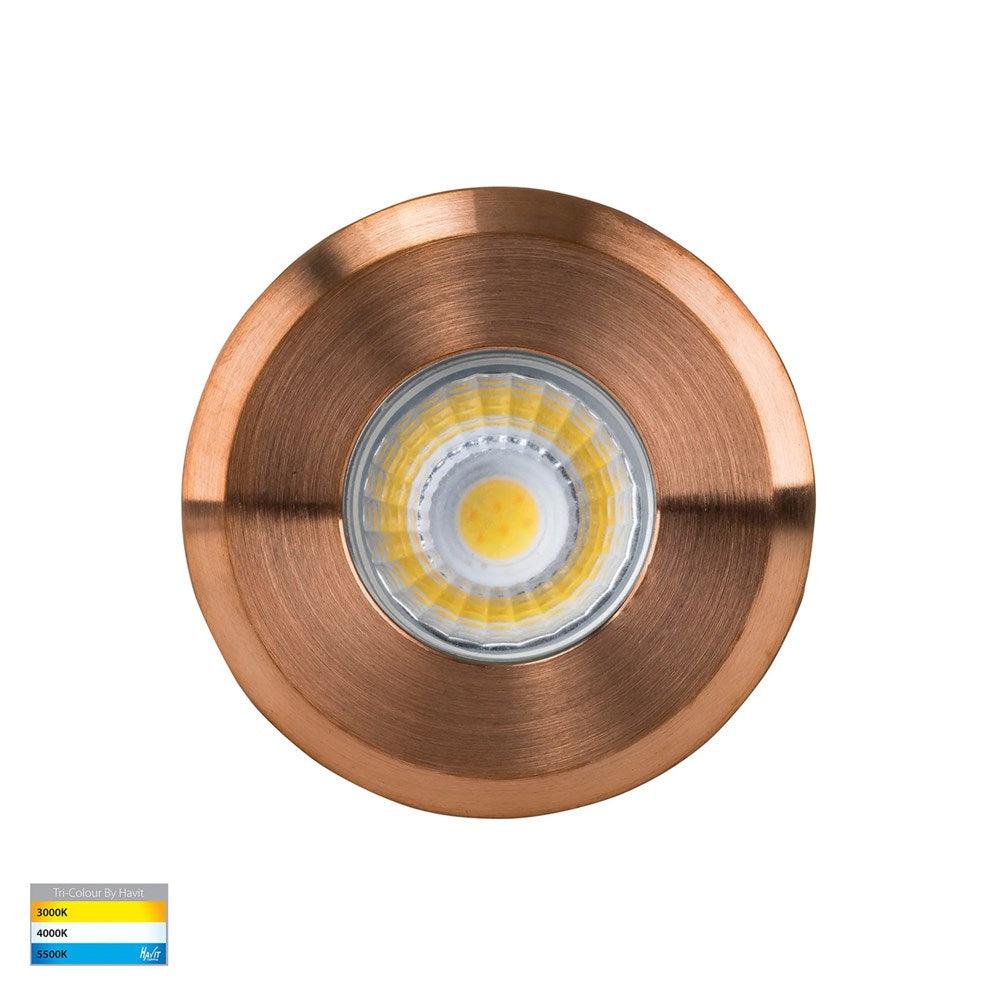

- Solid Copper Face

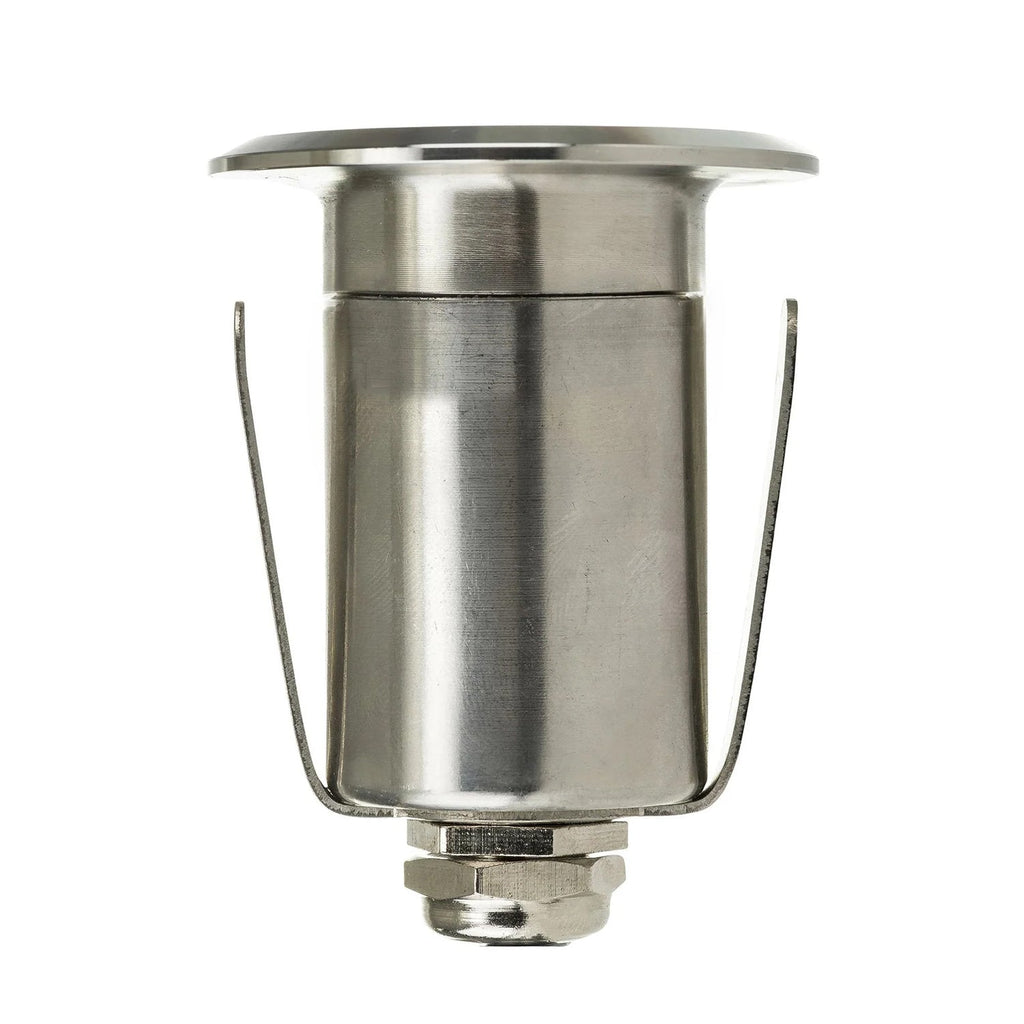

- 316 Stainless steel body
- Trafficable: 600kg
- Tempered Glass
- Dimmable
- Tri Colour
- 3000k, 4000k, 5500k
- IP rating: IP67
- Input Voltage: 12V DC
- Built in 1w LED
- Adequate drainage must be allowed when installed
- 3 Years Replacement Warranty
Specifications:

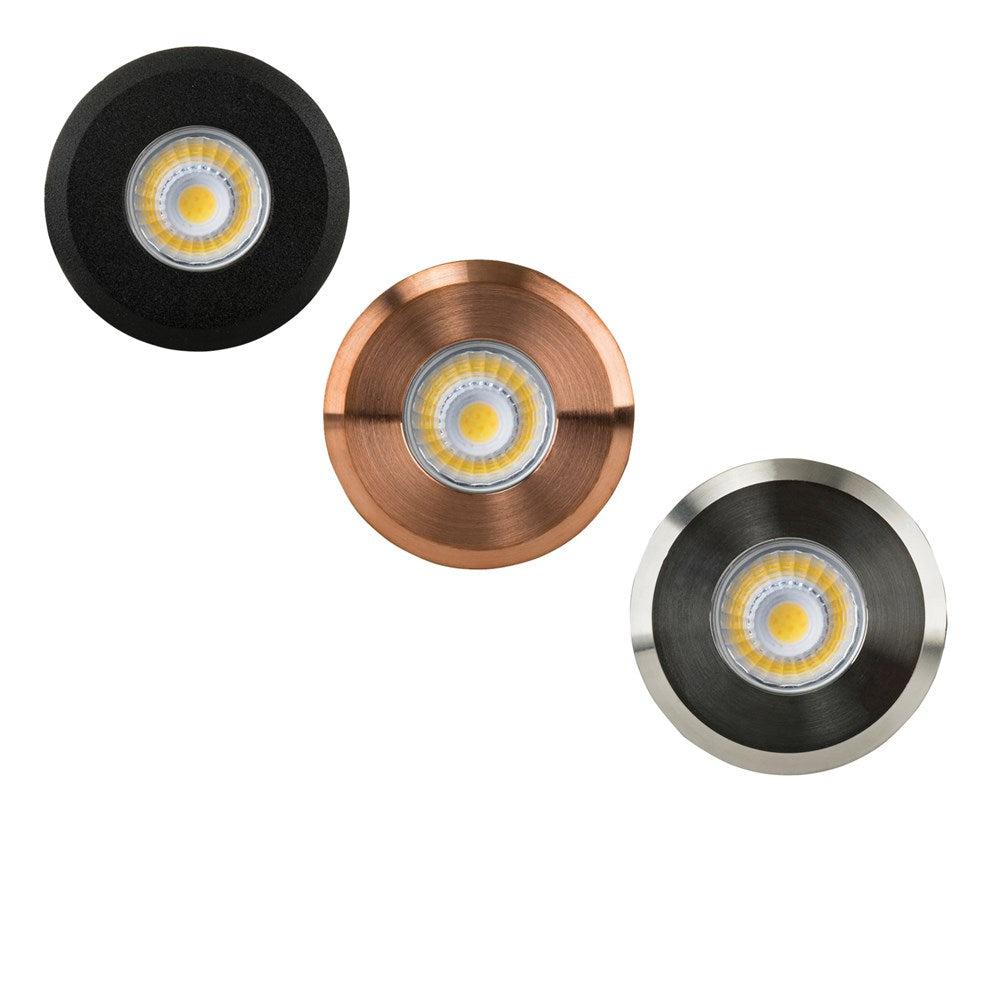

- Colour: Black, Copper, Stainless Steel
- Material: 316 Stainless Steel, Copper
- Globe Type: Built in LED
- Wattage: 1w
- Colour Temperature: 3000k, 4000k, 5500k
- Lumens: 80lm, 90lm, 85lm
- IP Rating: IP67
- CRI: >80
- Dimmable: Yes
- input Voltage: 12v DC
- Beam Angle: 30°

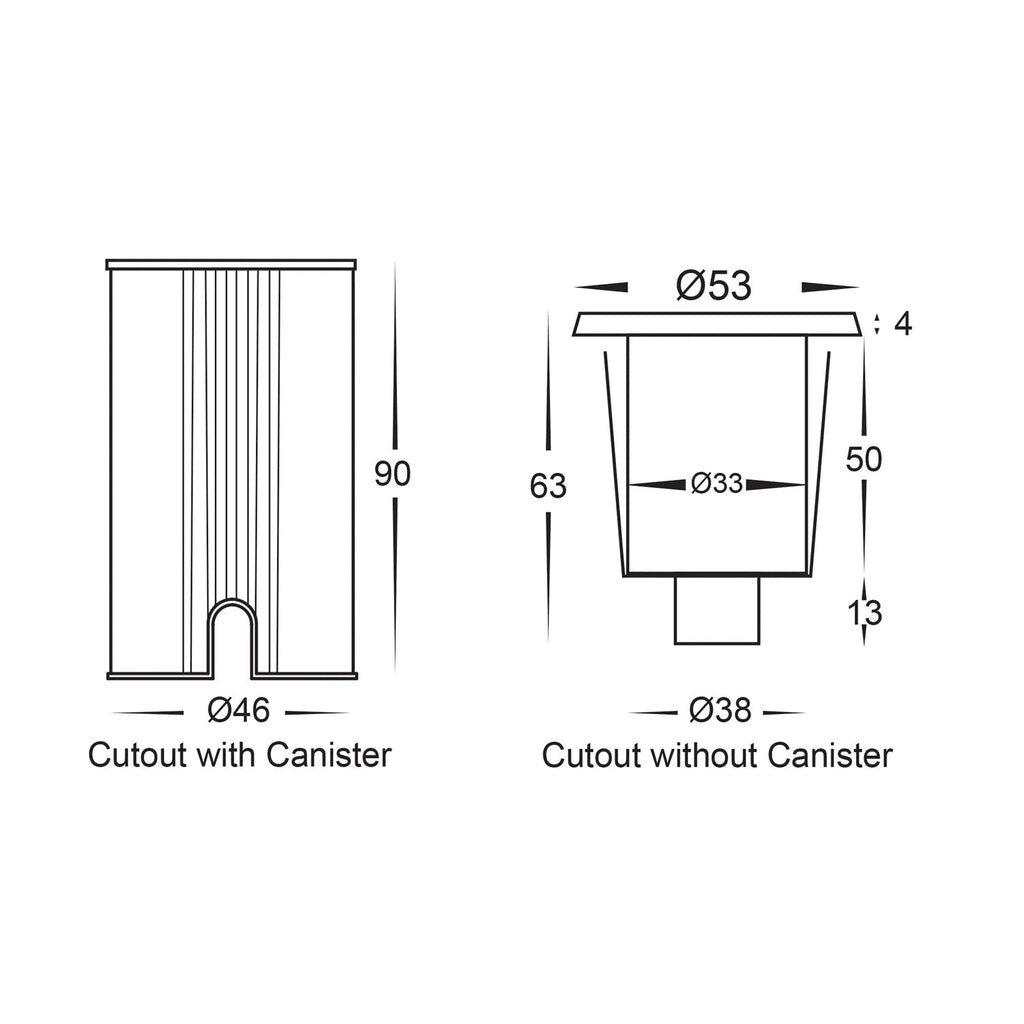

Dimensions:
- Diameter: ø53mm
- Height: 63mm
- Cut out w/o Canister: ø38mm

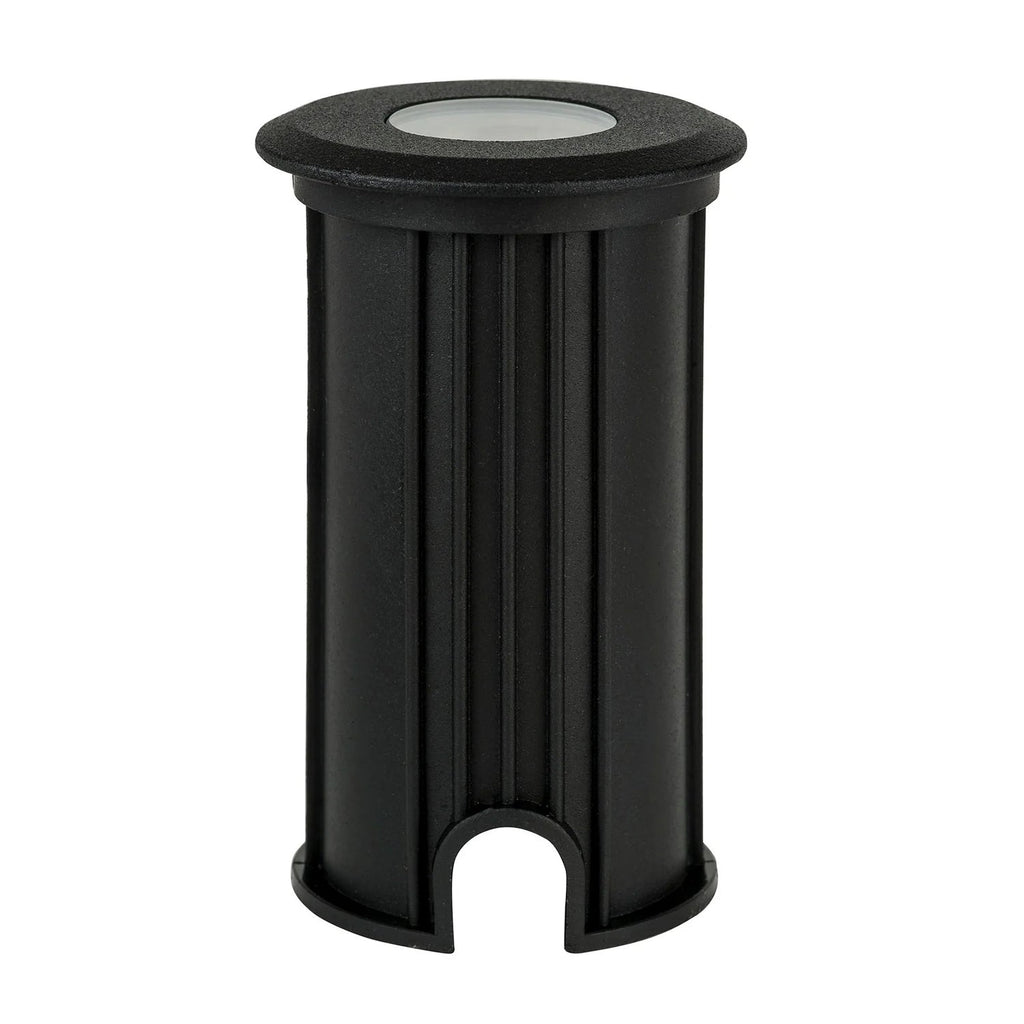

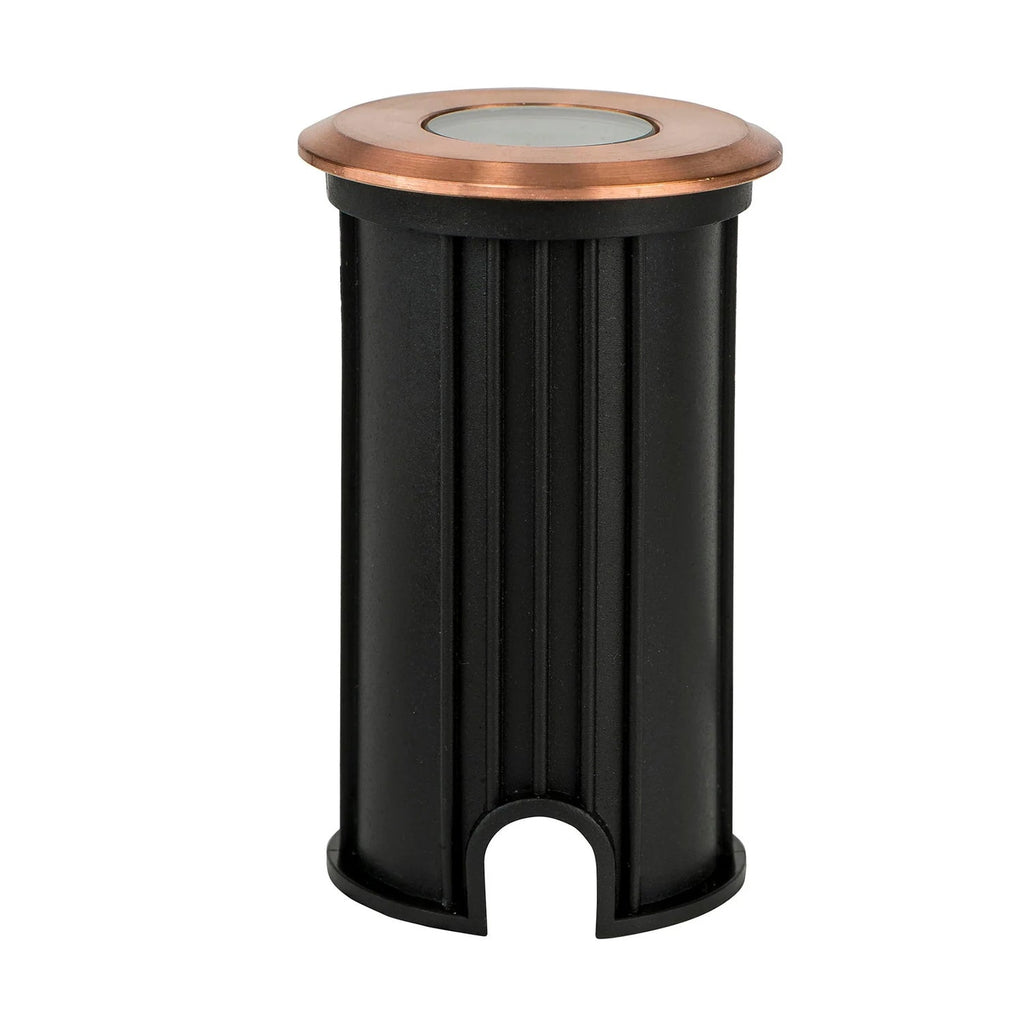

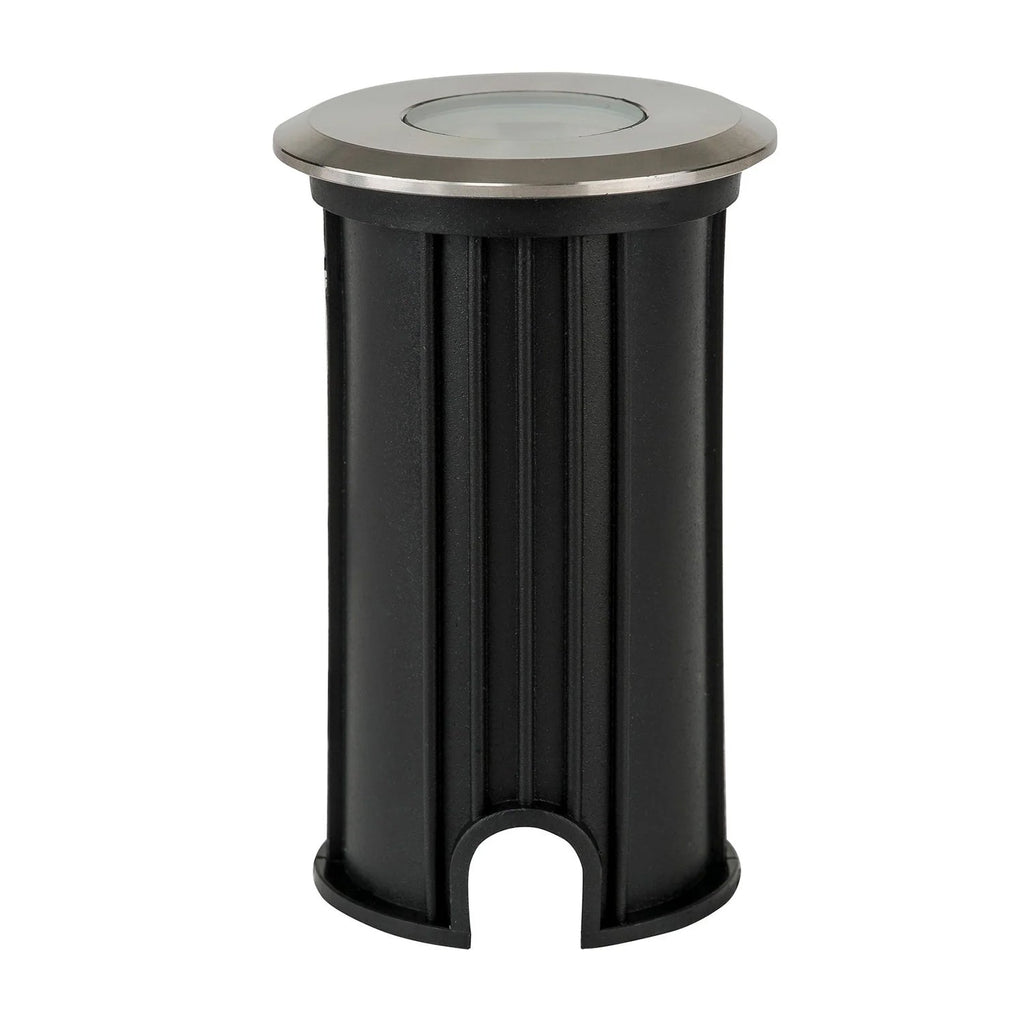

- Cut out w/ Canister: ø46mm
Must Be Used With Suitable 12v DC LED Driver
Choosing a driver
This inground light runs on 12v DC, so it needs a 12v LED driver (sometimes called a transformer). It cannot connect straight to 240v mains. The driver is wired in by a licensed electrician.
Allow 1w for each inground light and add about 20% headroom. 10 inground lights draw 10w, so they need a 12v driver of at least 12w, which in practice means a 30w driver.
| 12v driver size |
Maximum inground lights |
| 30w |
25 |
| 60w |
50 |
| 100w |
83 |
| 150w |
125 |
For bigger installs, split the lights across two or more drivers and place each driver close to its group. Long cable runs at low voltage lose brightness at the far end, so check your cable size with the voltage drop calculator below.
Outdoors, use a weatherproof IP66 12v driver and mount it above ground, clear of garden beds and pooling water.
To dim, pair it with a dimmable 12v driver and a compatible dimmer.
