Description:
- Recessed Step or Inground Light
- Full Body Stainless Steel 316 Marine Grade
- Tempered Glass
- TRI Colour
- IP rating: IP65
- IK Rating: IK10

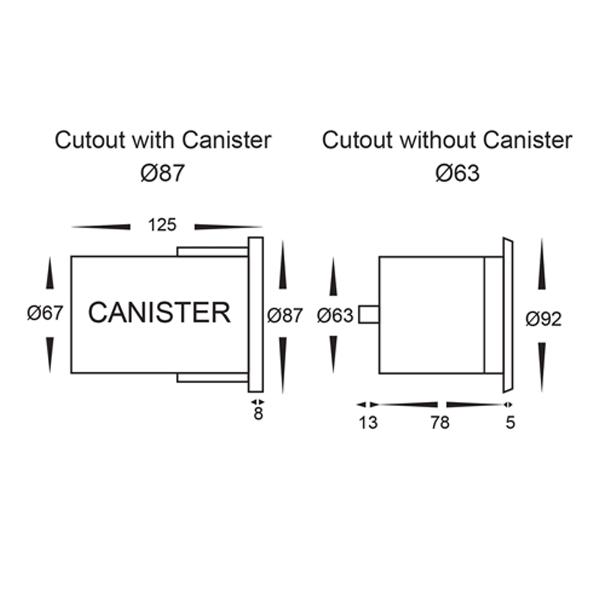

- Installation Depth needed: 125mm
- Input voltage: 12v DC
- 5w LED Globe
- 3 Years Replacement Warranty

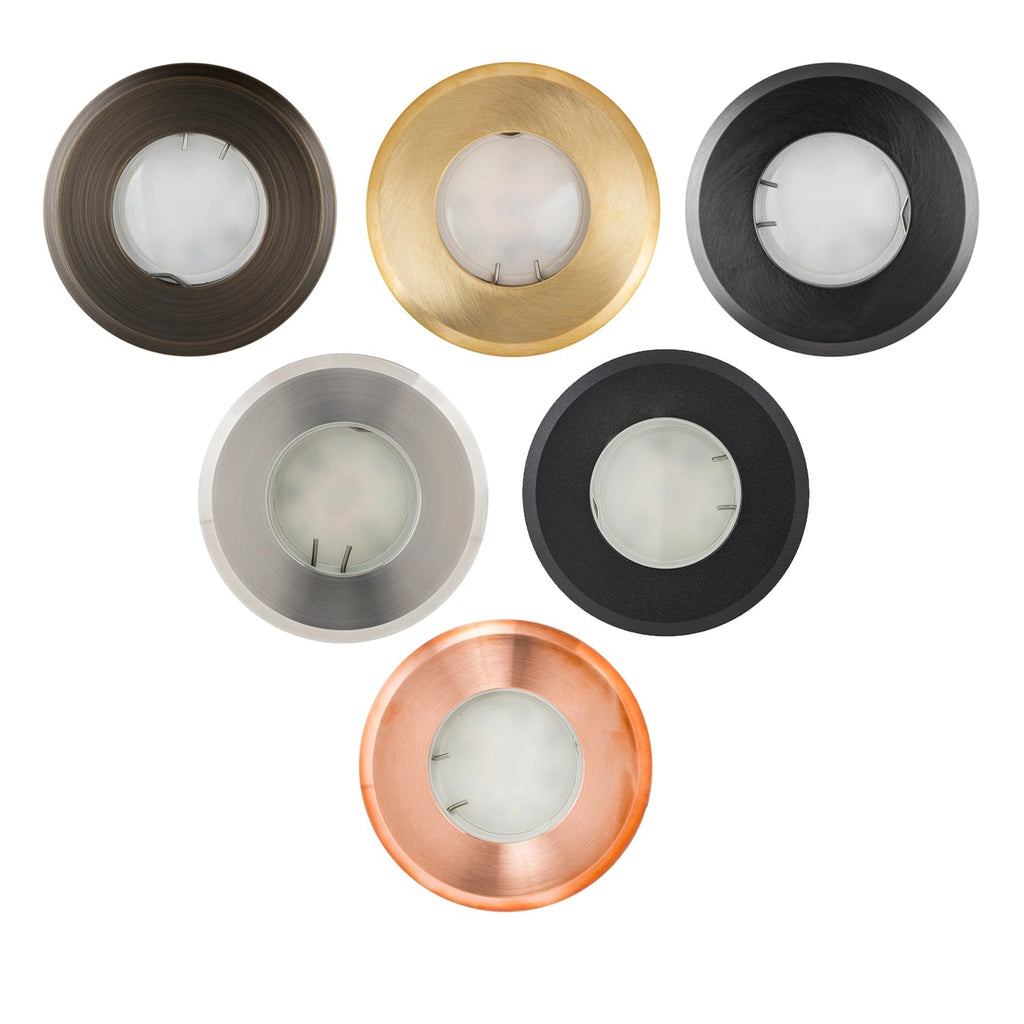

| Order Code |
Description |
Colour Temperature |
Lumens |
|

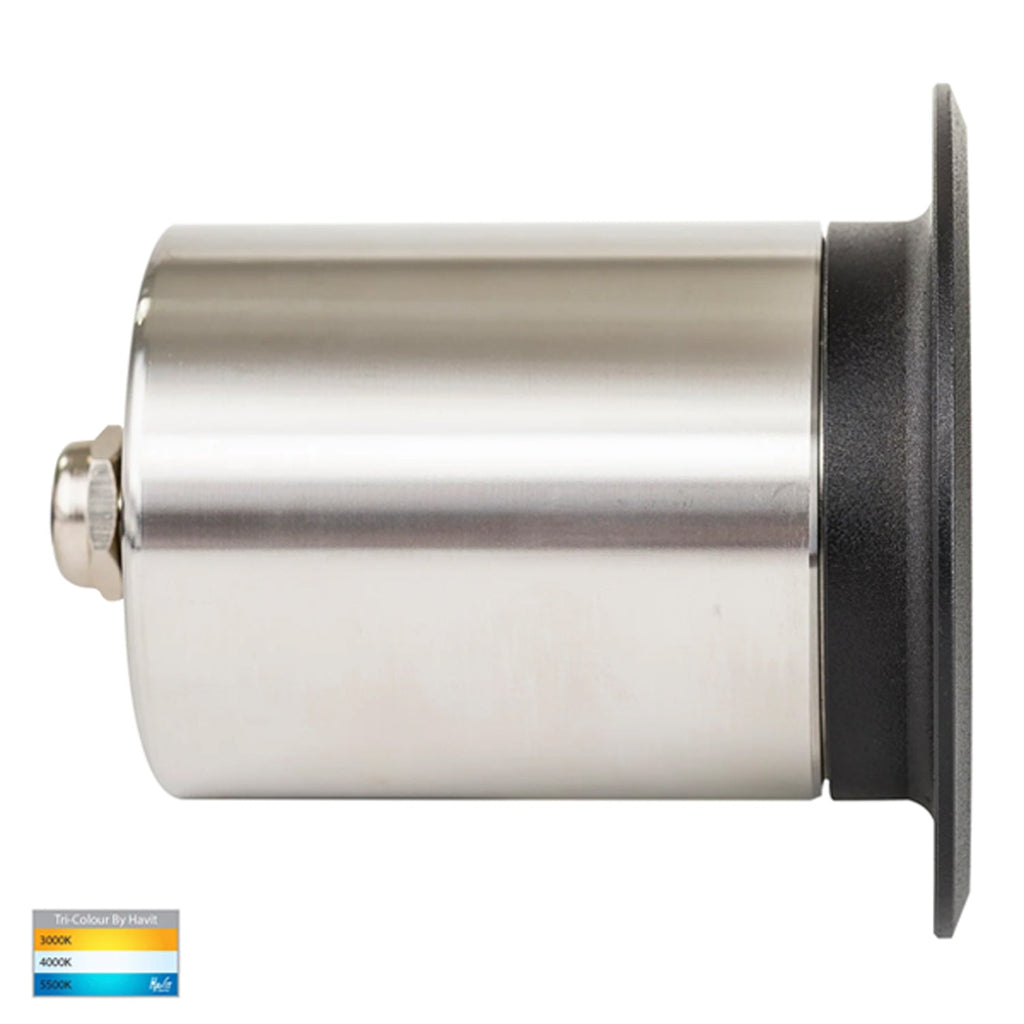

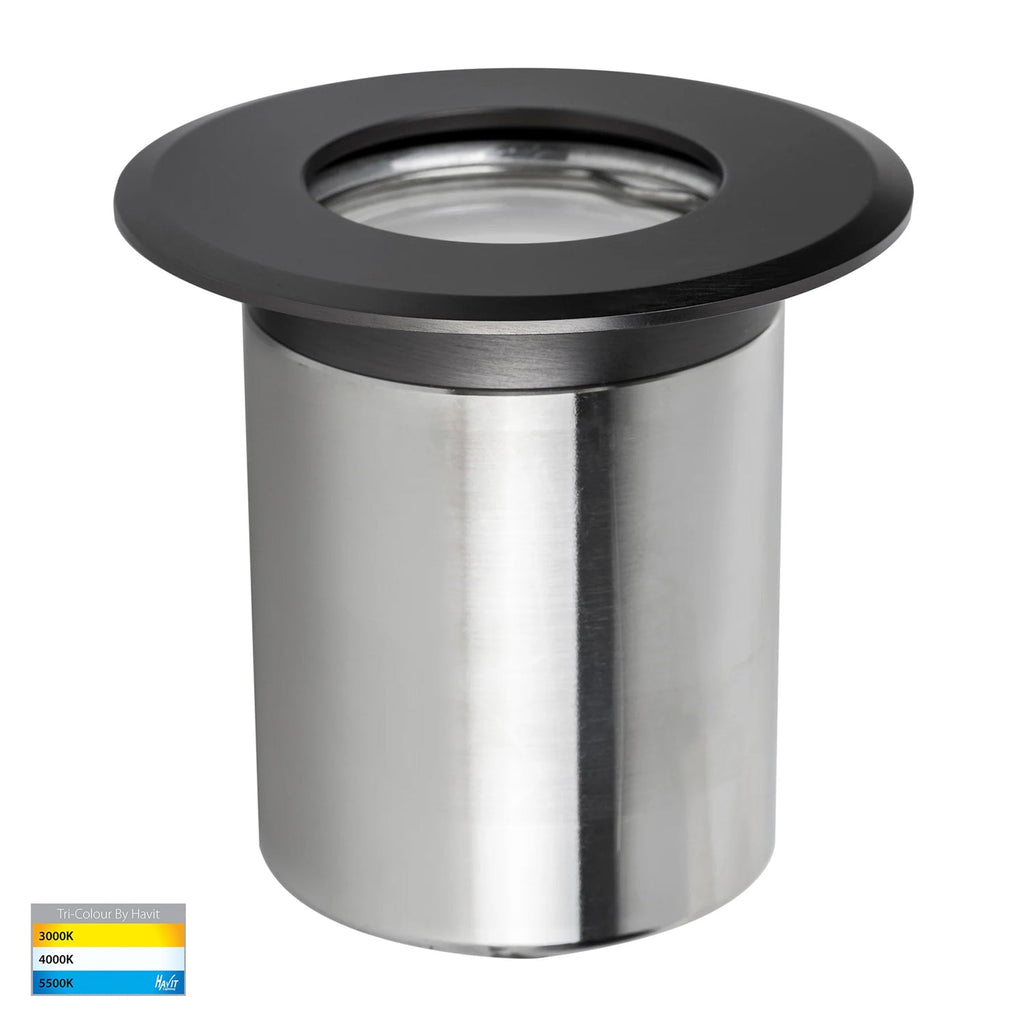

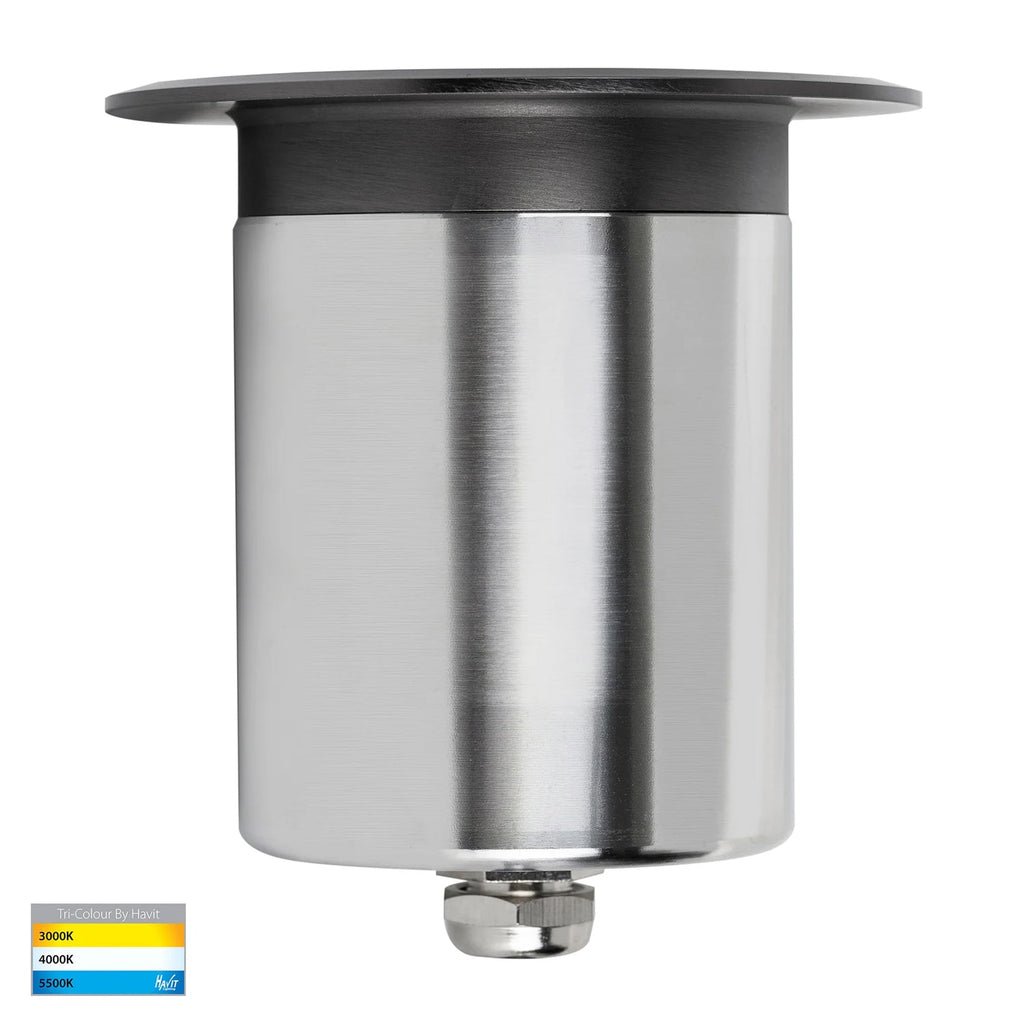

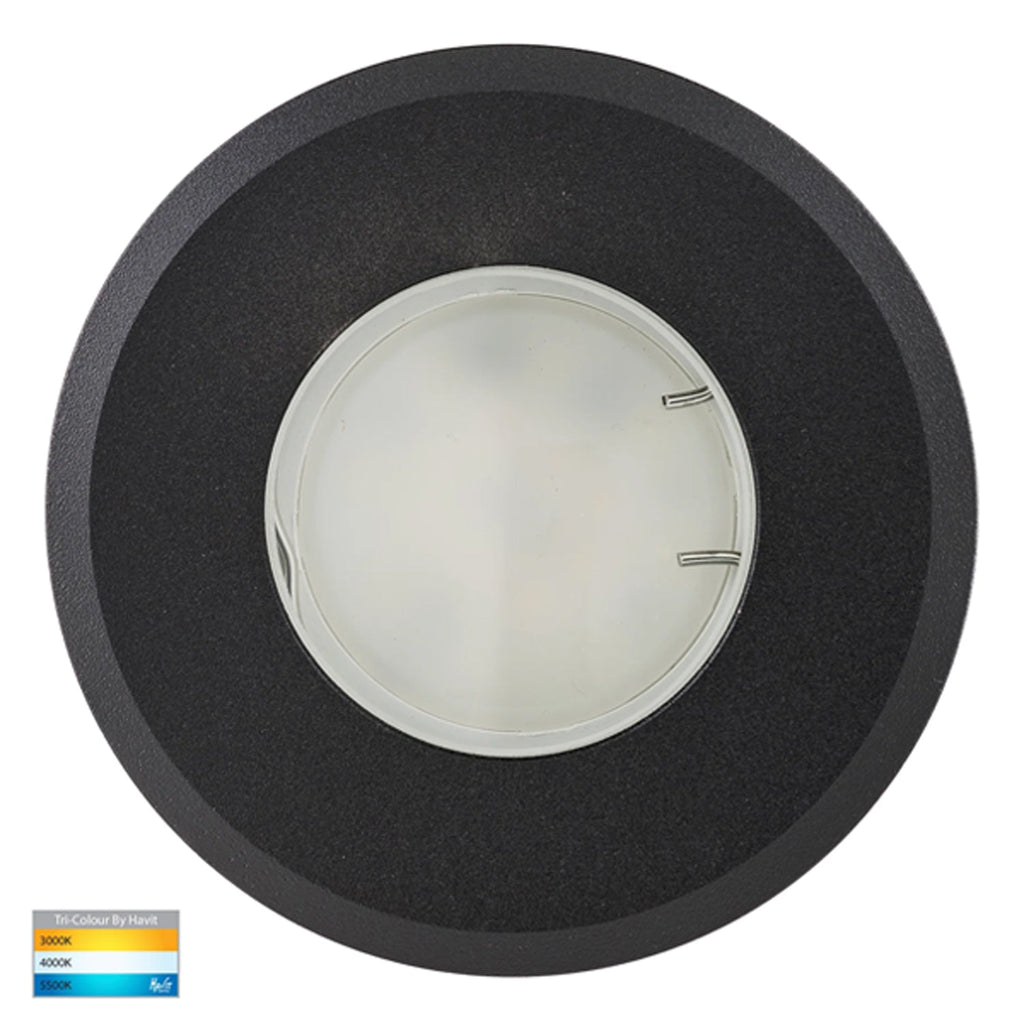

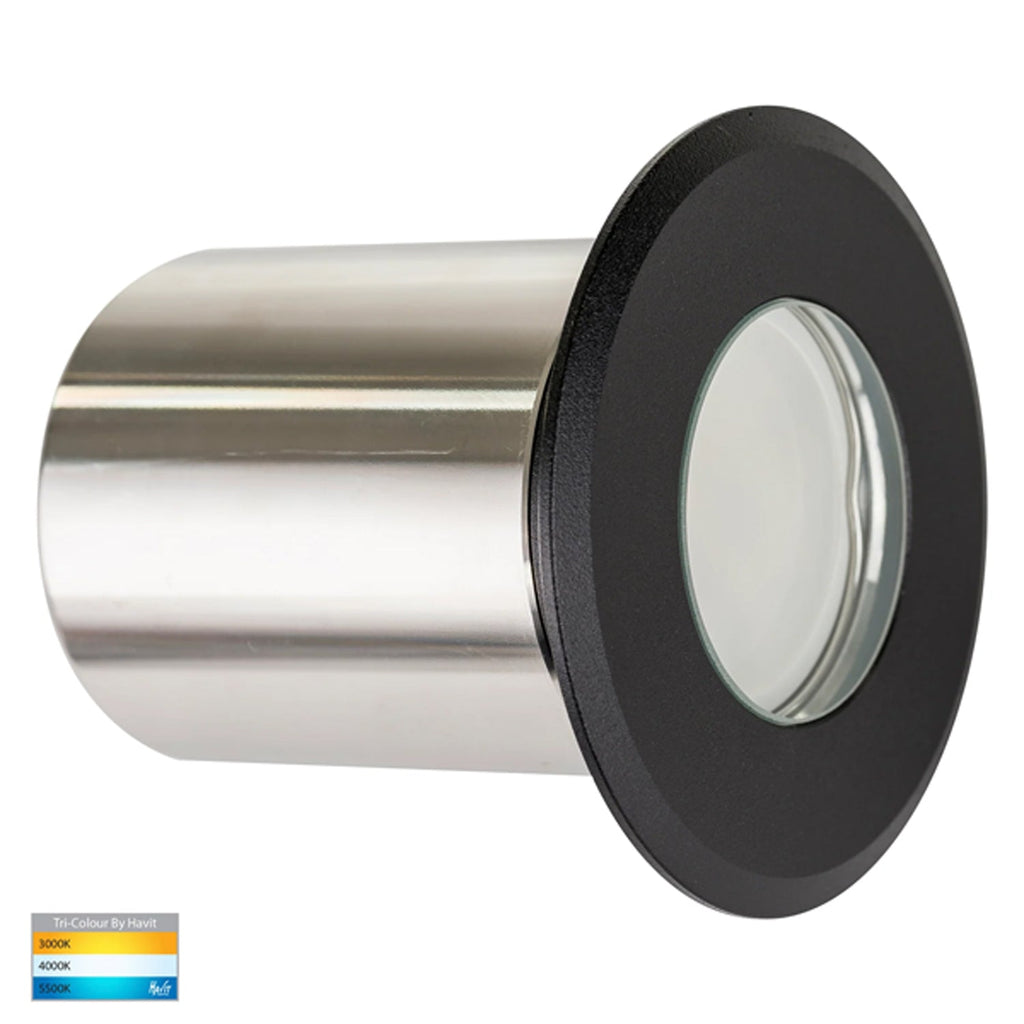

HV19022T-BLK
|
Poly Powder Coated Black Face
|
3000k
4000k
5500K
|
270lm
285lm
300lm
|
|

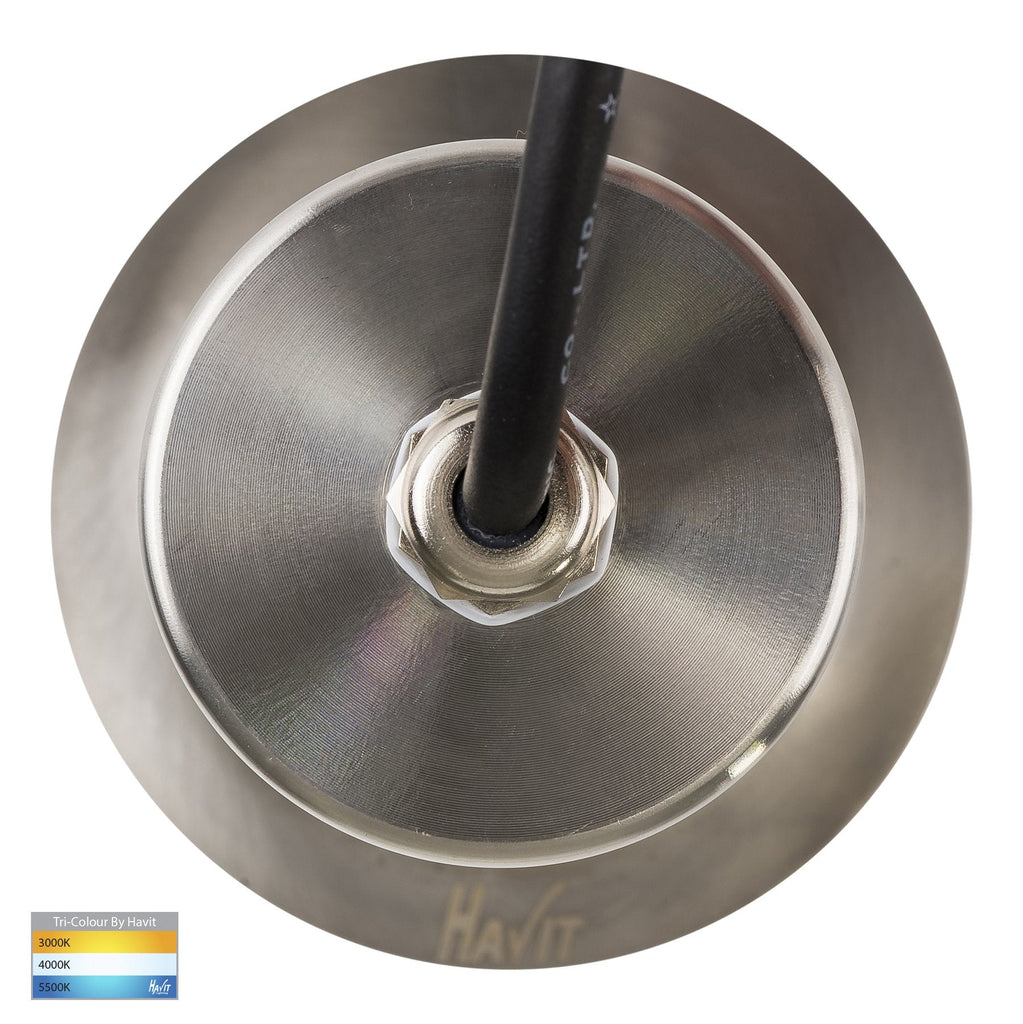

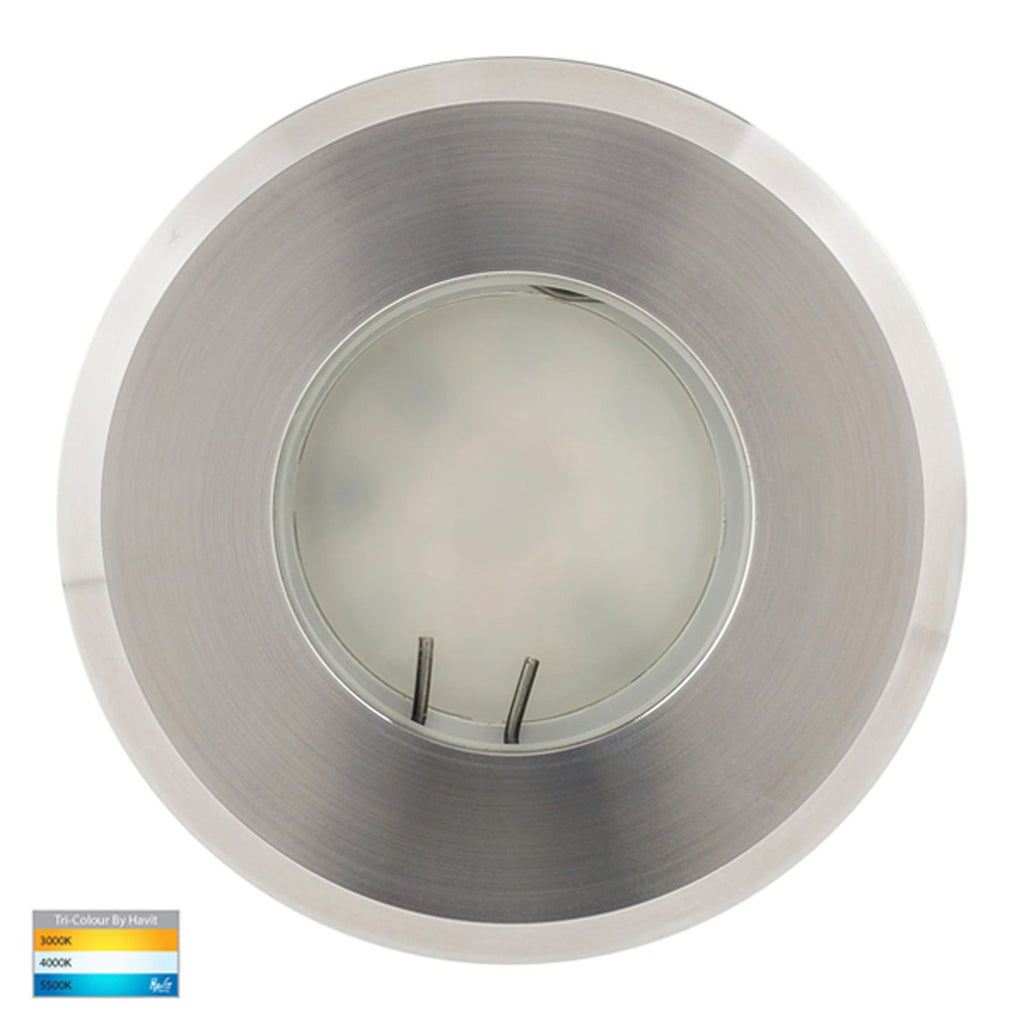

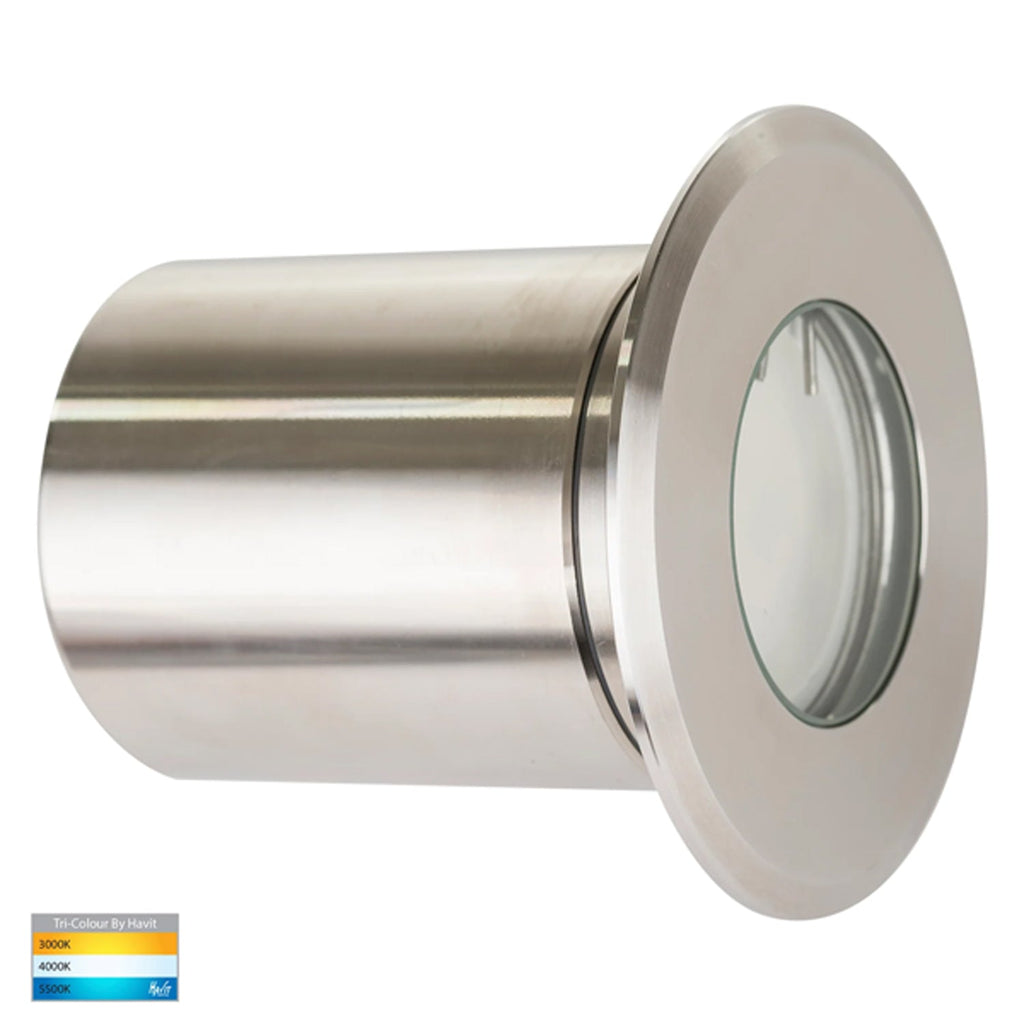

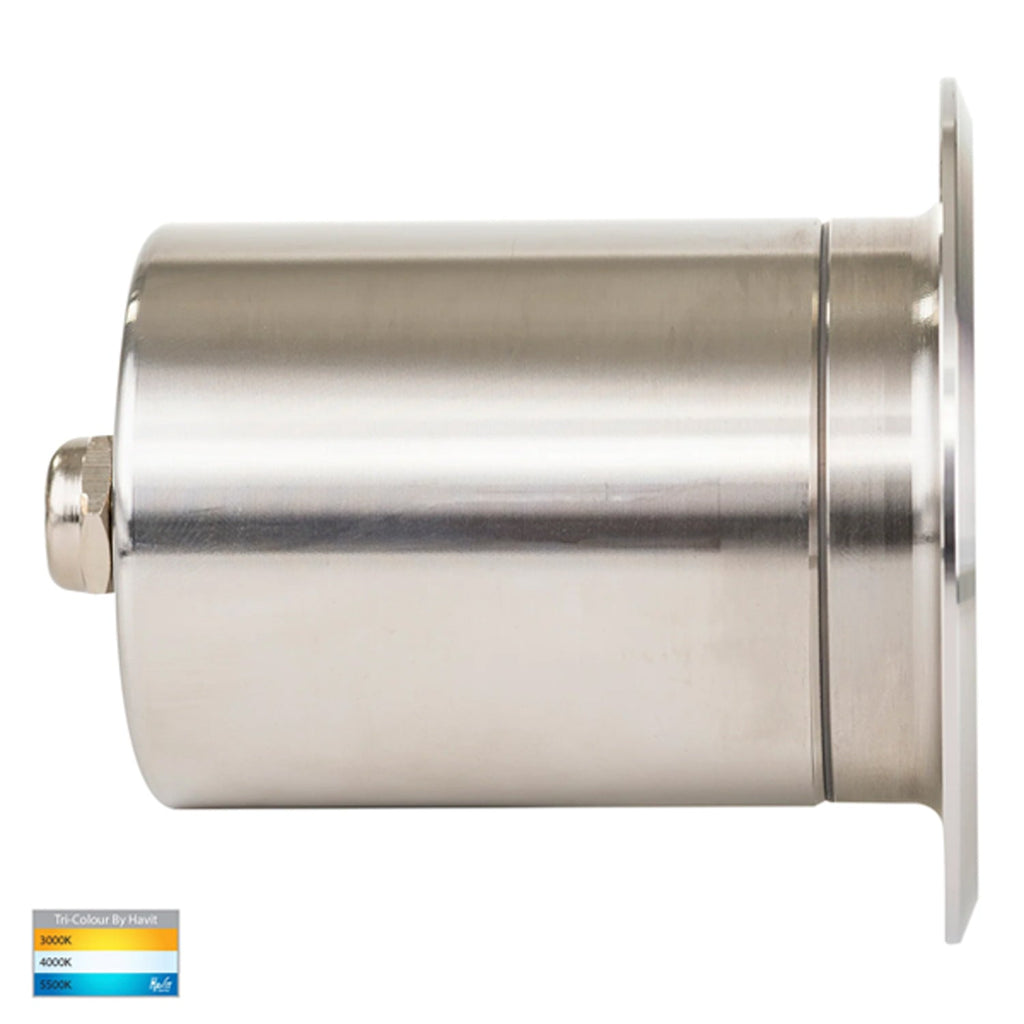

HV19022T-SS316
|
316 Stainless Steel Face
|
3000k
4000k
5500K
|
270lm
285lm
300lm
|
|

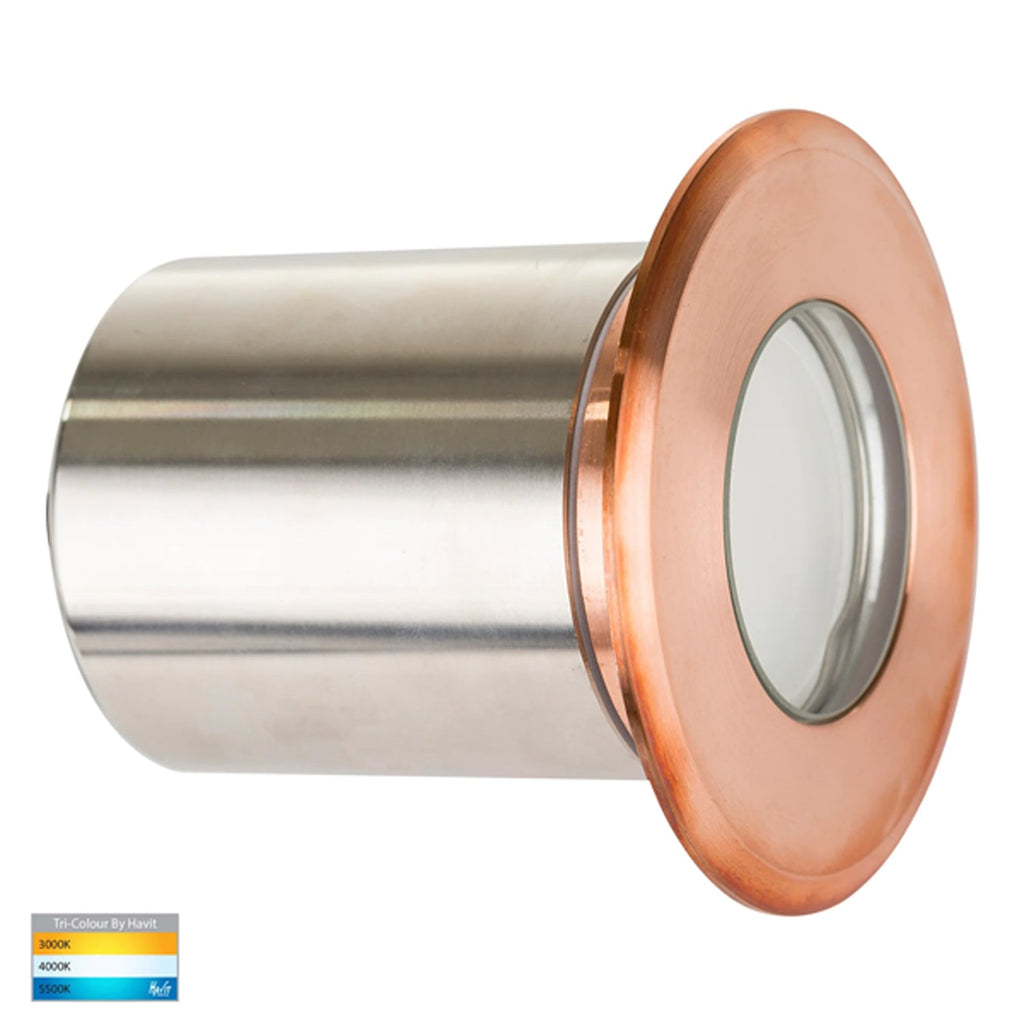

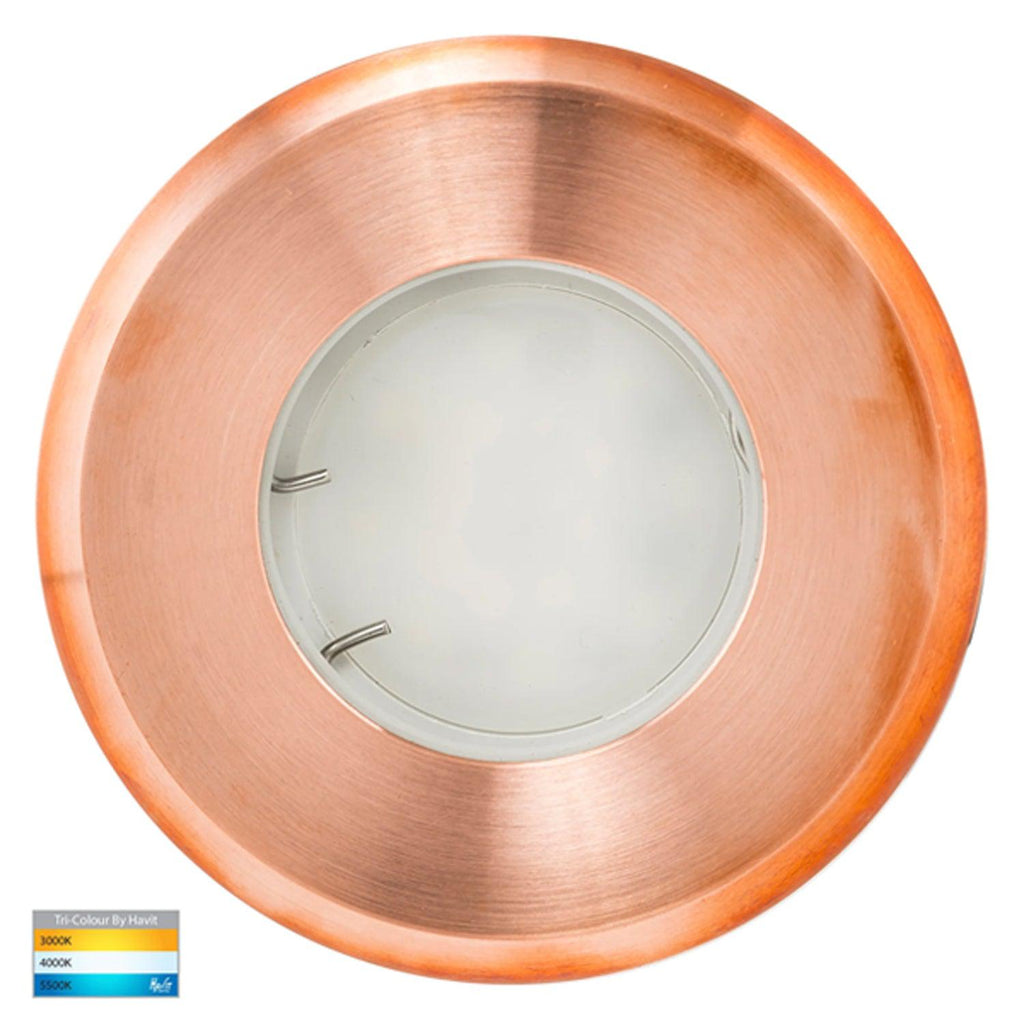

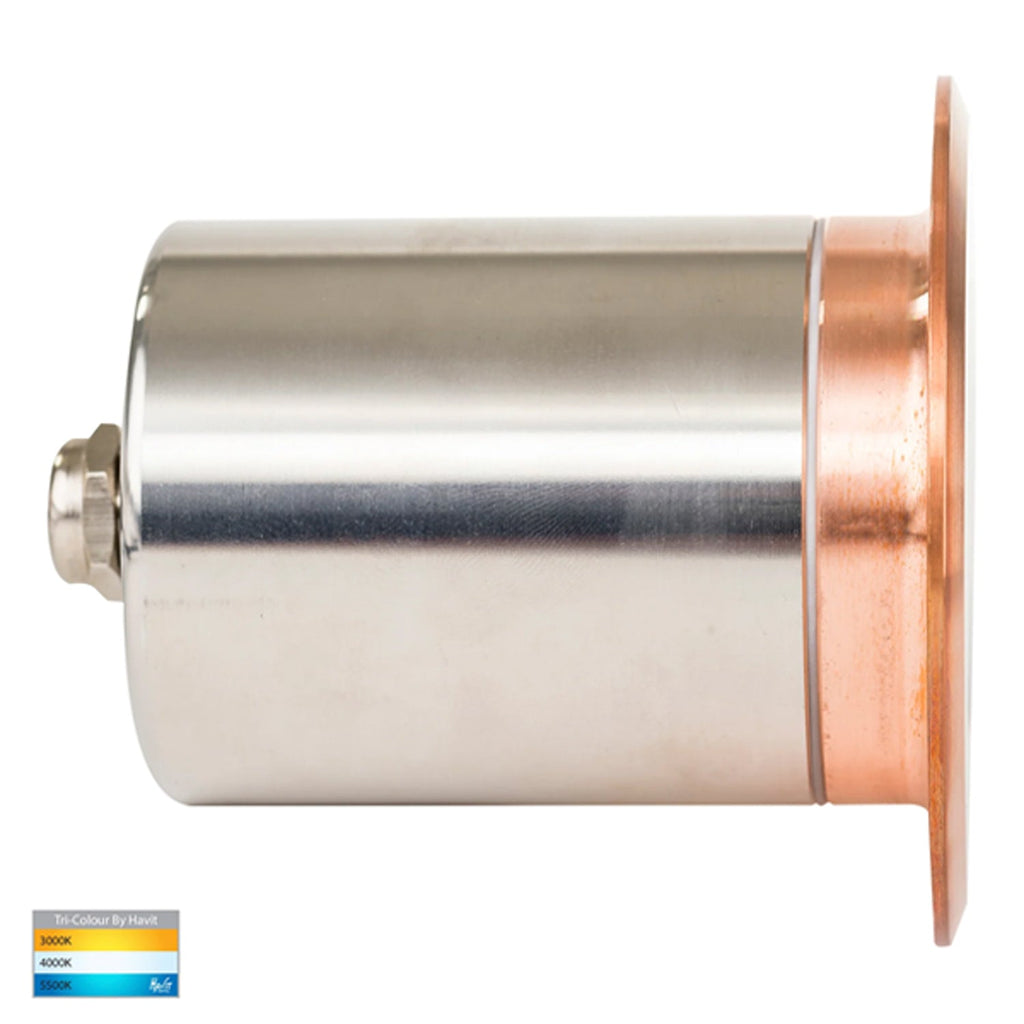

HV19022T-CP
|
Solid Copper Face
|
3000k
4000k
5500K
|
270lm
285lm
300lm
|
|

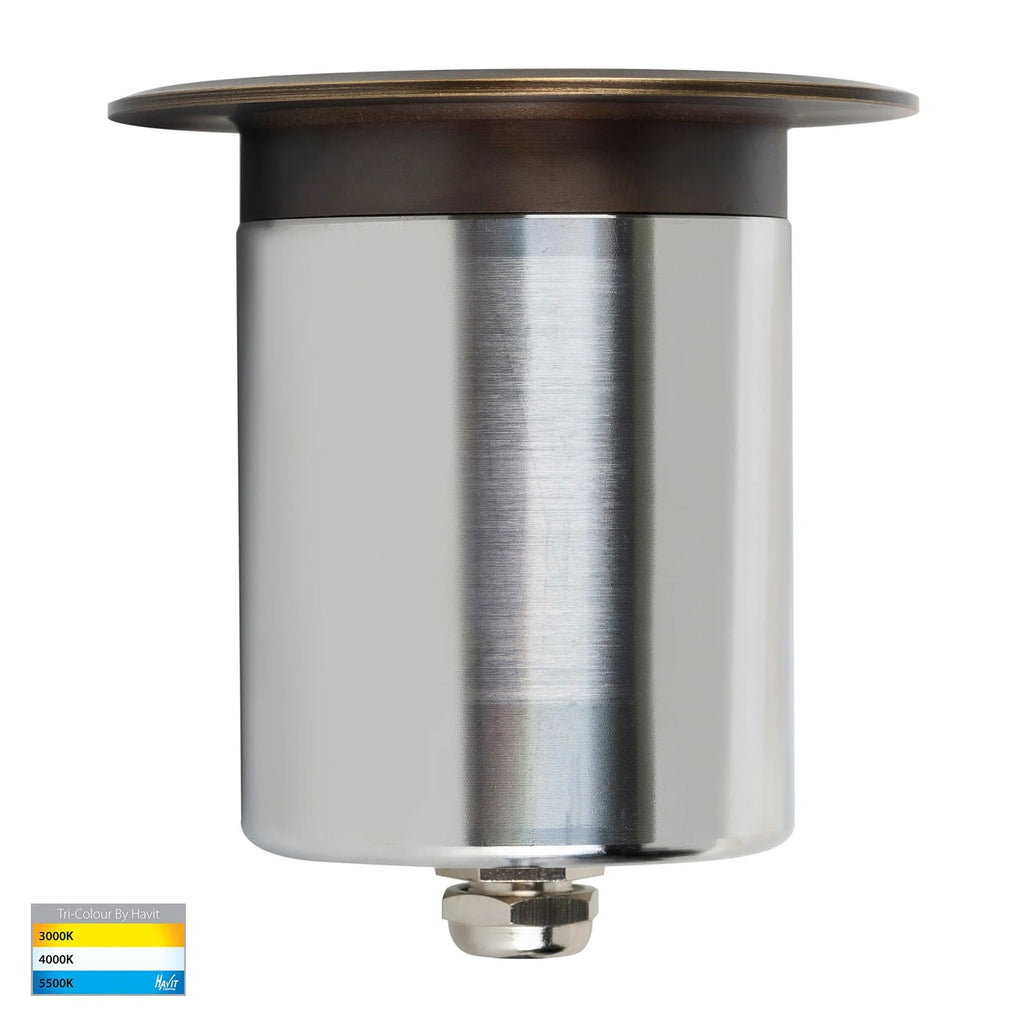

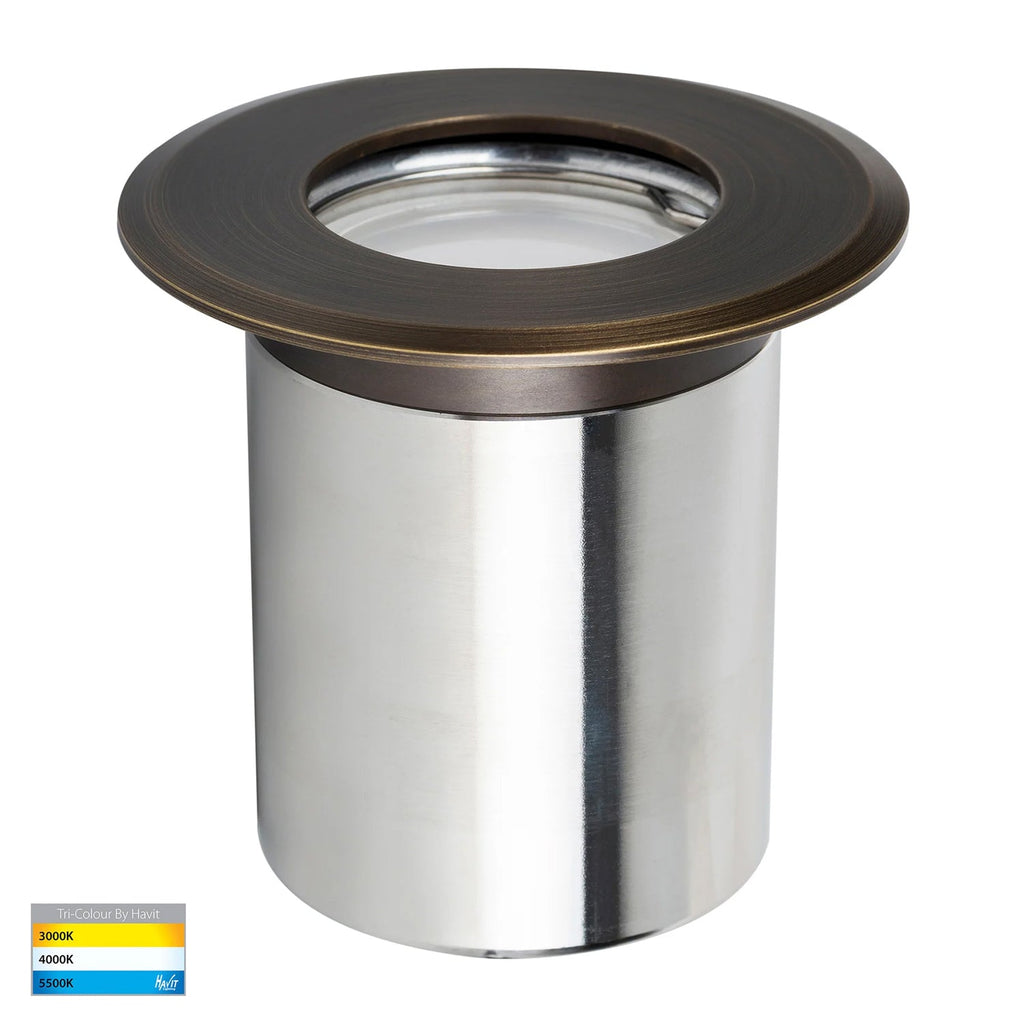

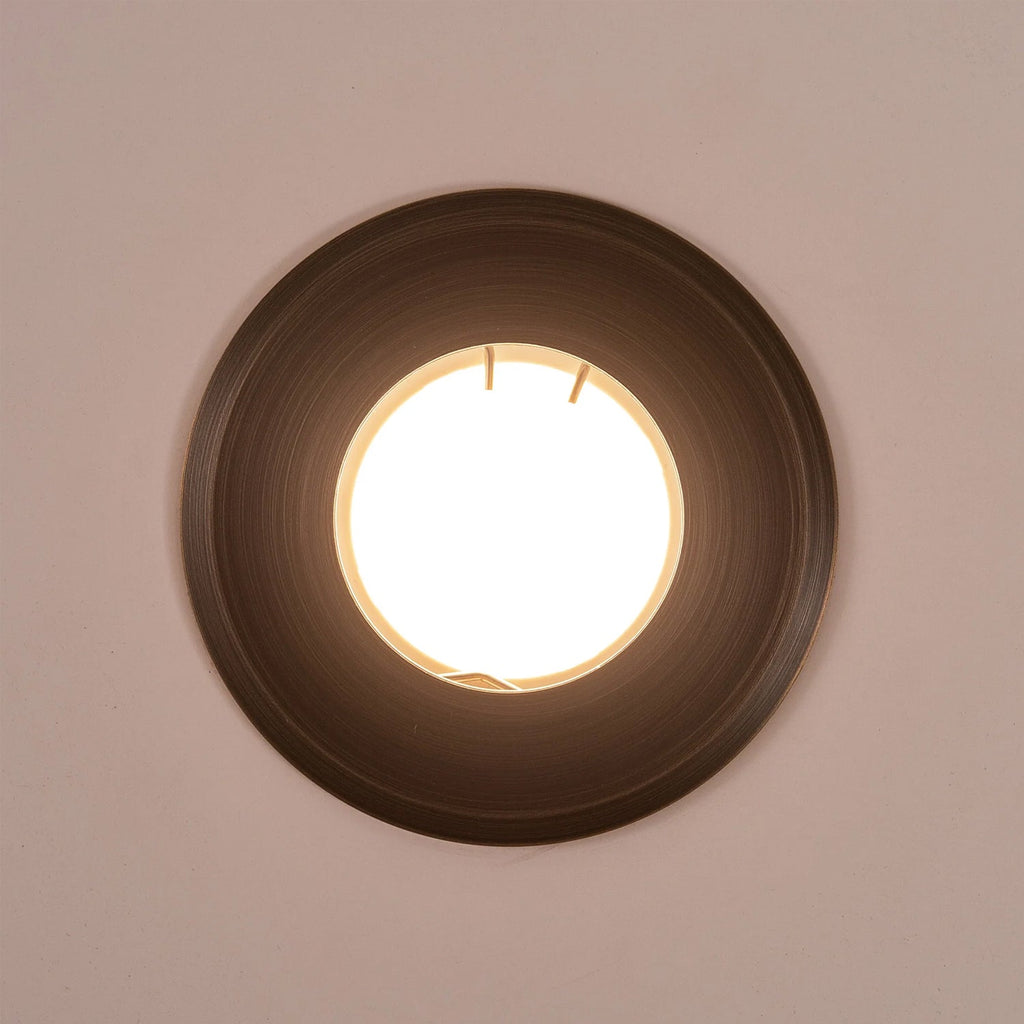

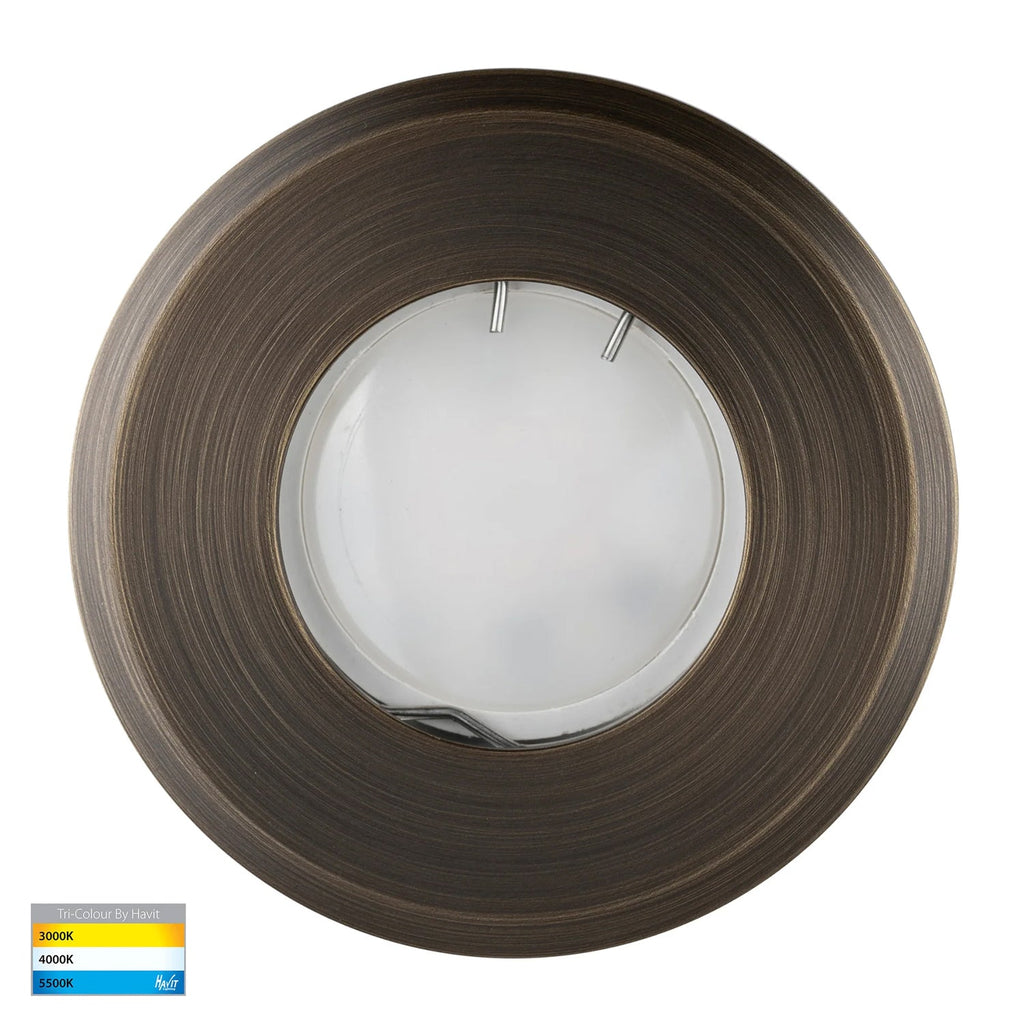

HV19022T-AB
|
Brass Face with Antique Brass Finish
|
3000k
4000k
5500K
|
270lm
285lm
300lm
|
|

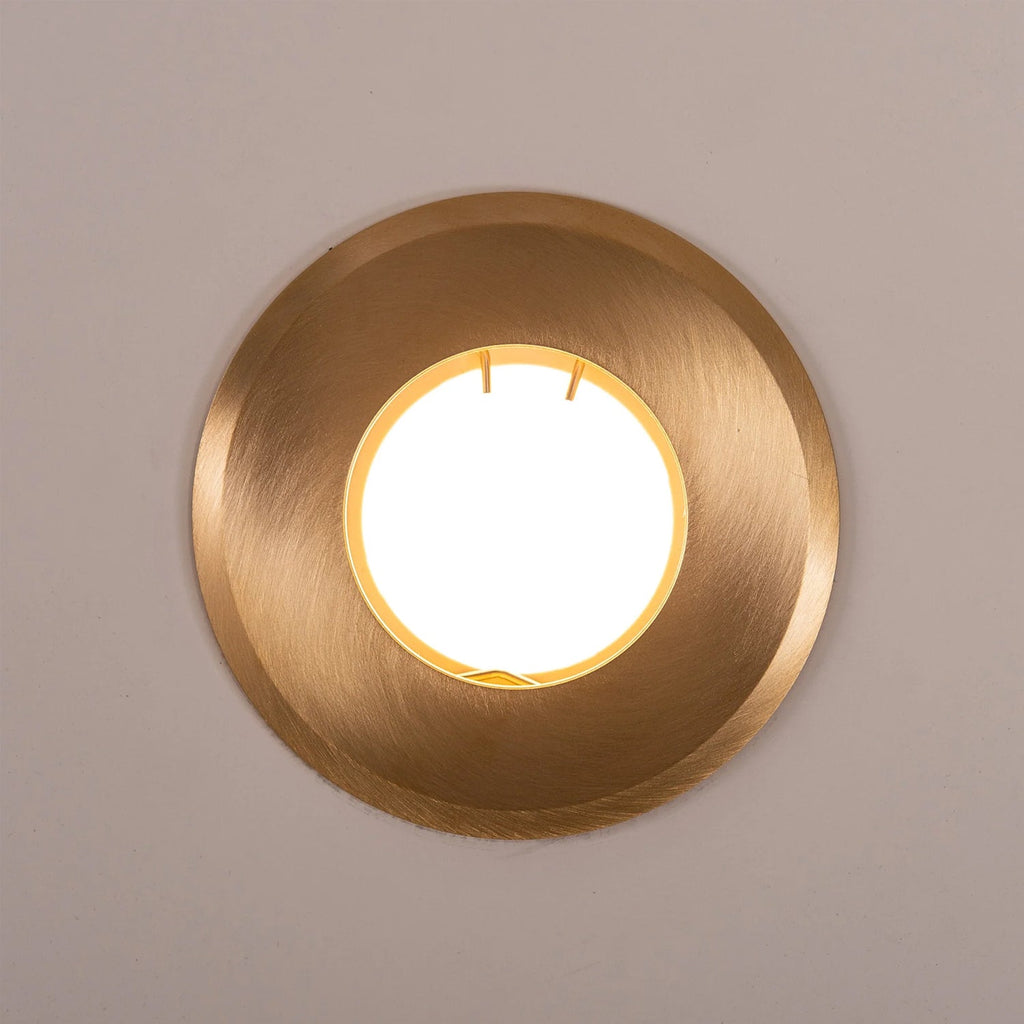

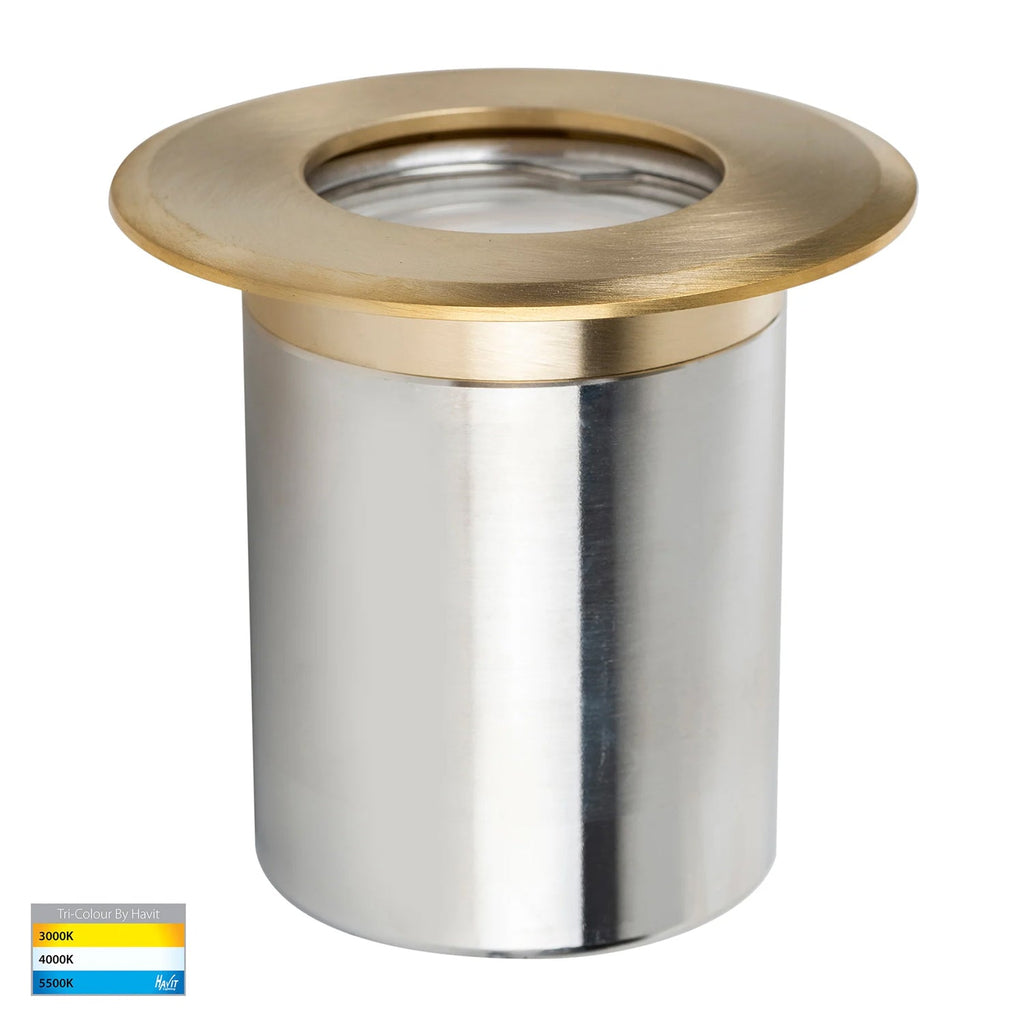

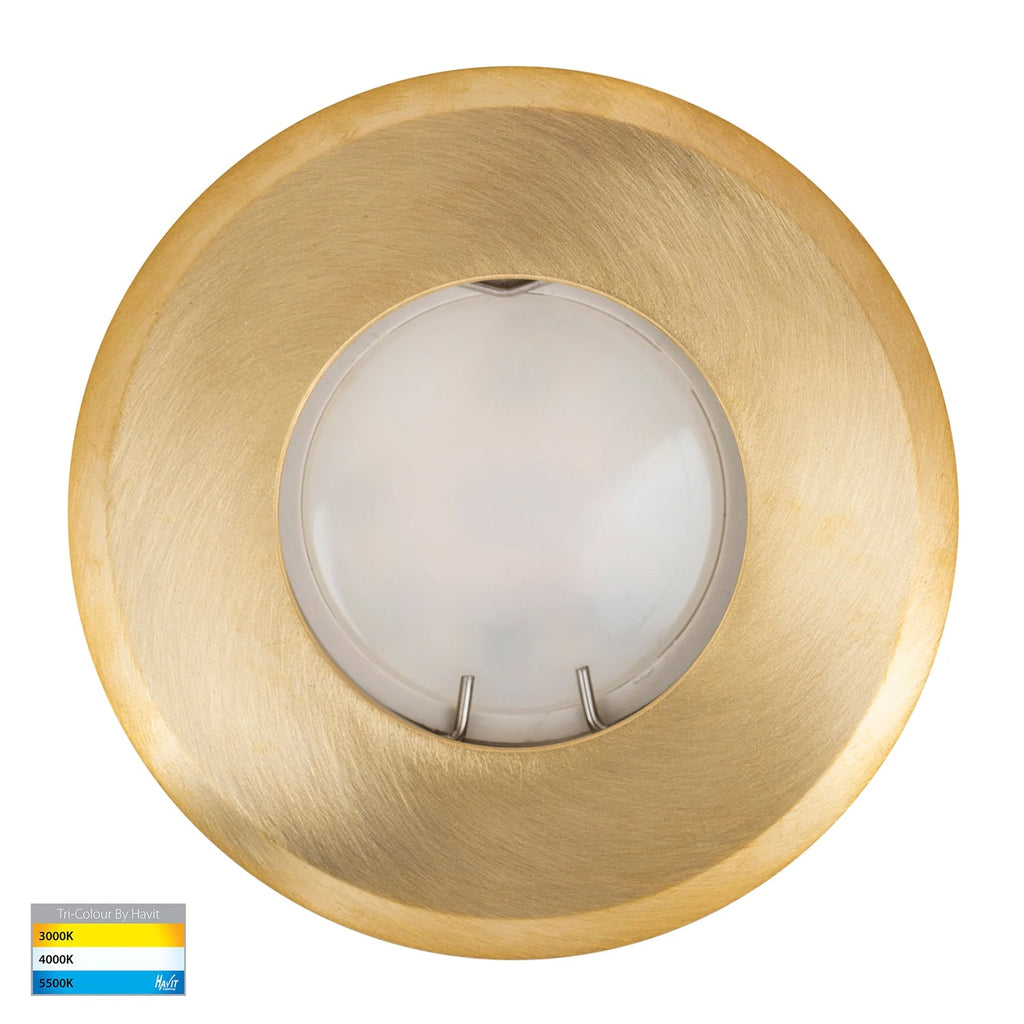

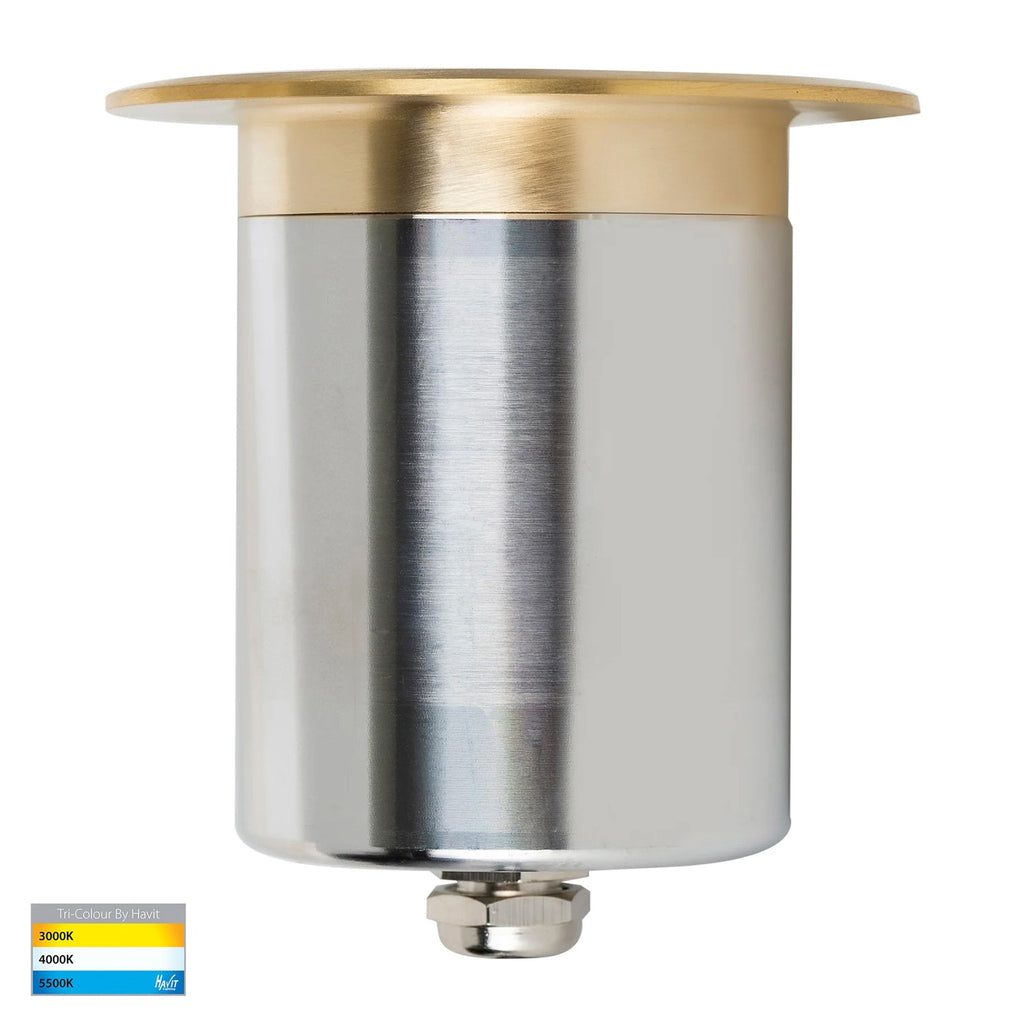

HV19022T-BR
|
Solid Brass Face
|
3000k
4000k
5500K
|
270lm
285lm
300lm
|
|

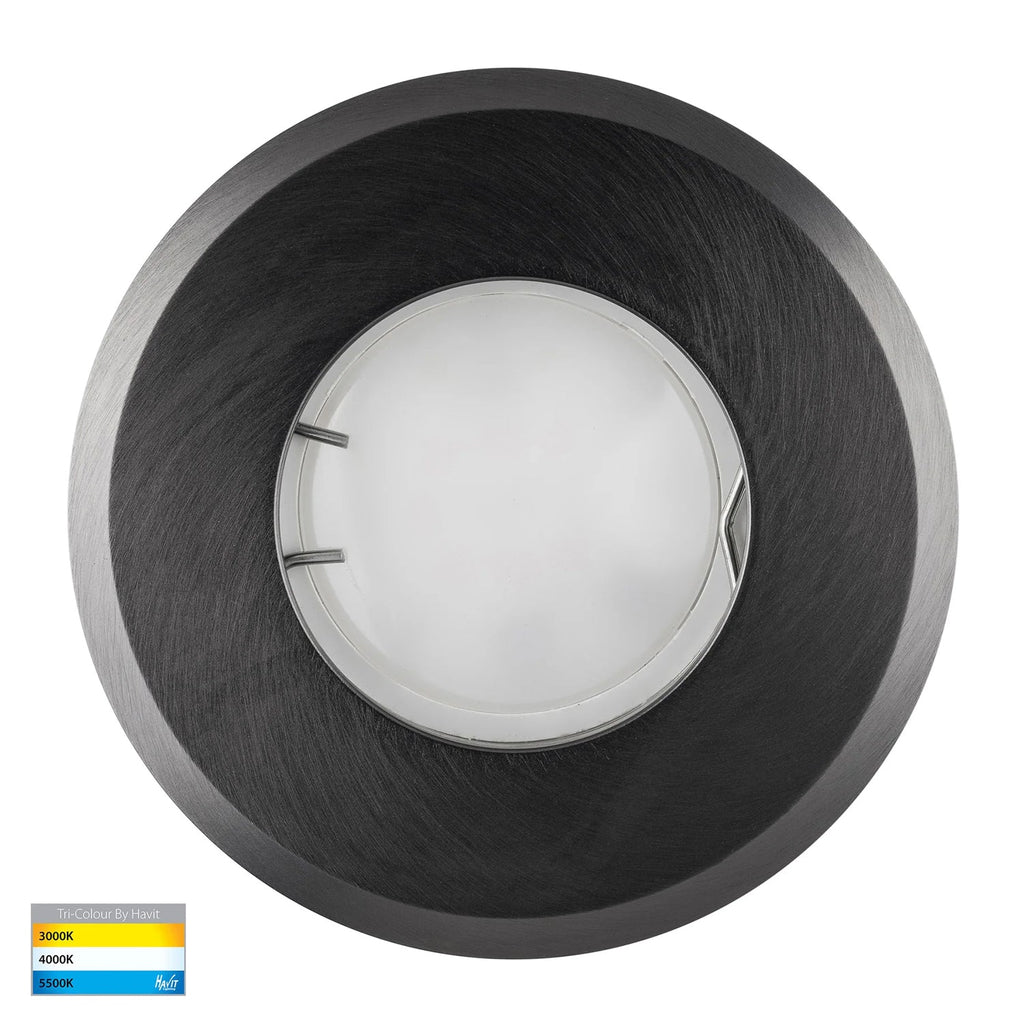

HV19022T-GPH
|
Brass face with Grpahite Coloured Finish
|
3000k
4000k
5500K
|
270lm
285lm
300lm
|
|
|
|
|
Superseded from codes: HV19022C-CP, HV19022W-CP, HV19022C-SS316, HV19022W-SS316, HV19022C-BLK, HV19022W-BLK
Choosing a driver
This inground light runs on 12v DC, so it needs a 12v LED driver (sometimes called a transformer). It cannot connect straight to 240v mains. The driver is wired in by a licensed electrician.
Allow 5w for each inground light and add about 20% headroom. 10 inground lights draw 50w, so they need a 60w 12v driver.
| 12v driver size |
Maximum inground lights |
| 30w |
5 |
| 60w |
10 |
| 100w |
16 |
| 150w |
25 |
For bigger installs, split the lights across two or more drivers and place each driver close to its group. Long cable runs at low voltage lose brightness at the far end, so check your cable size with the voltage drop calculator below.
Outdoors, use a weatherproof IP66 12v driver and mount it above ground, clear of garden beds and pooling water.
Planning your install? Use our voltage drop calculator to choose the right cable size for your run and keep every light at full brightness.
