Features:

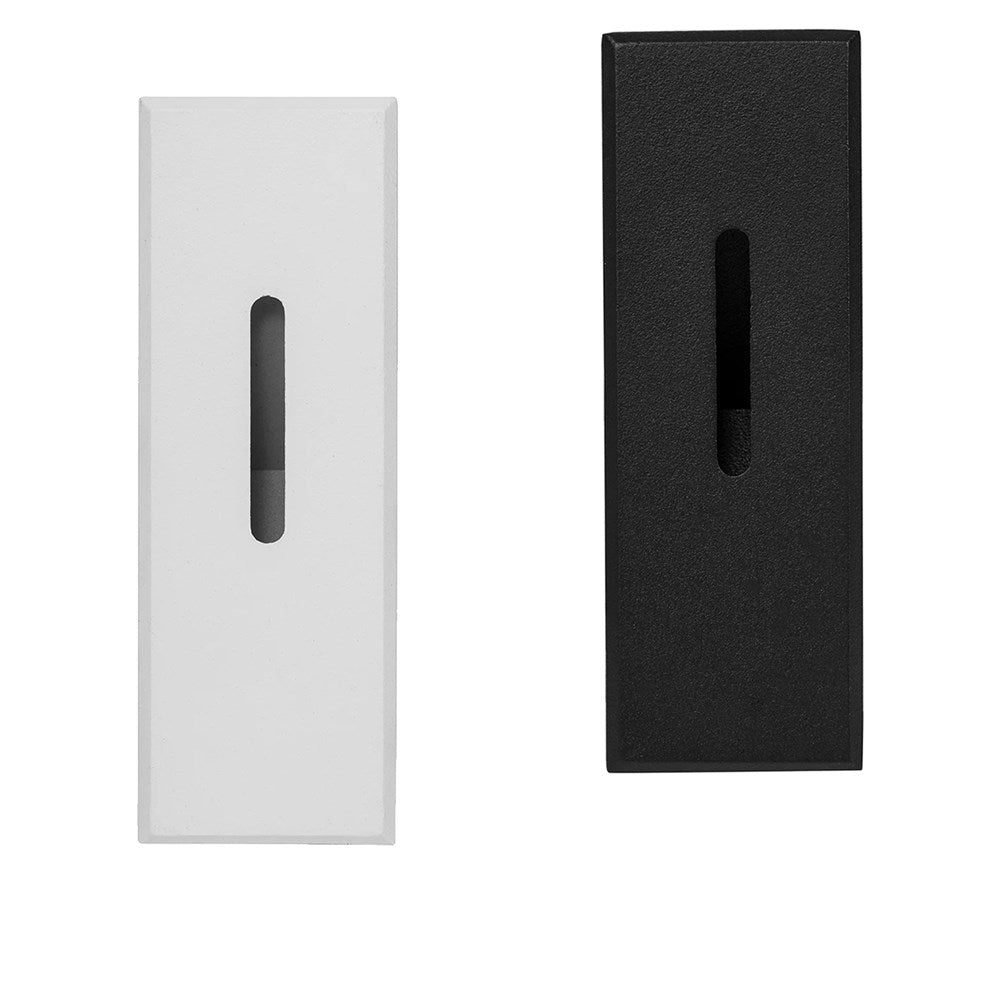

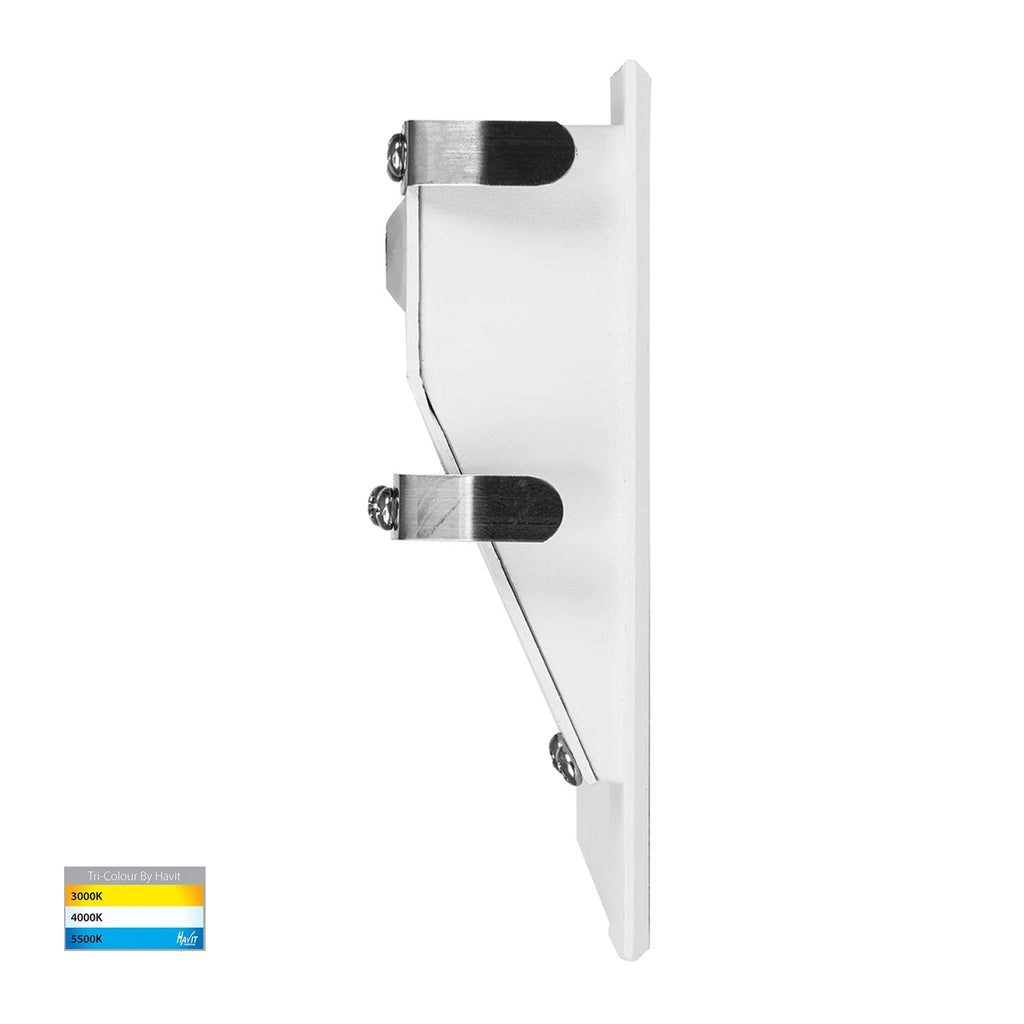

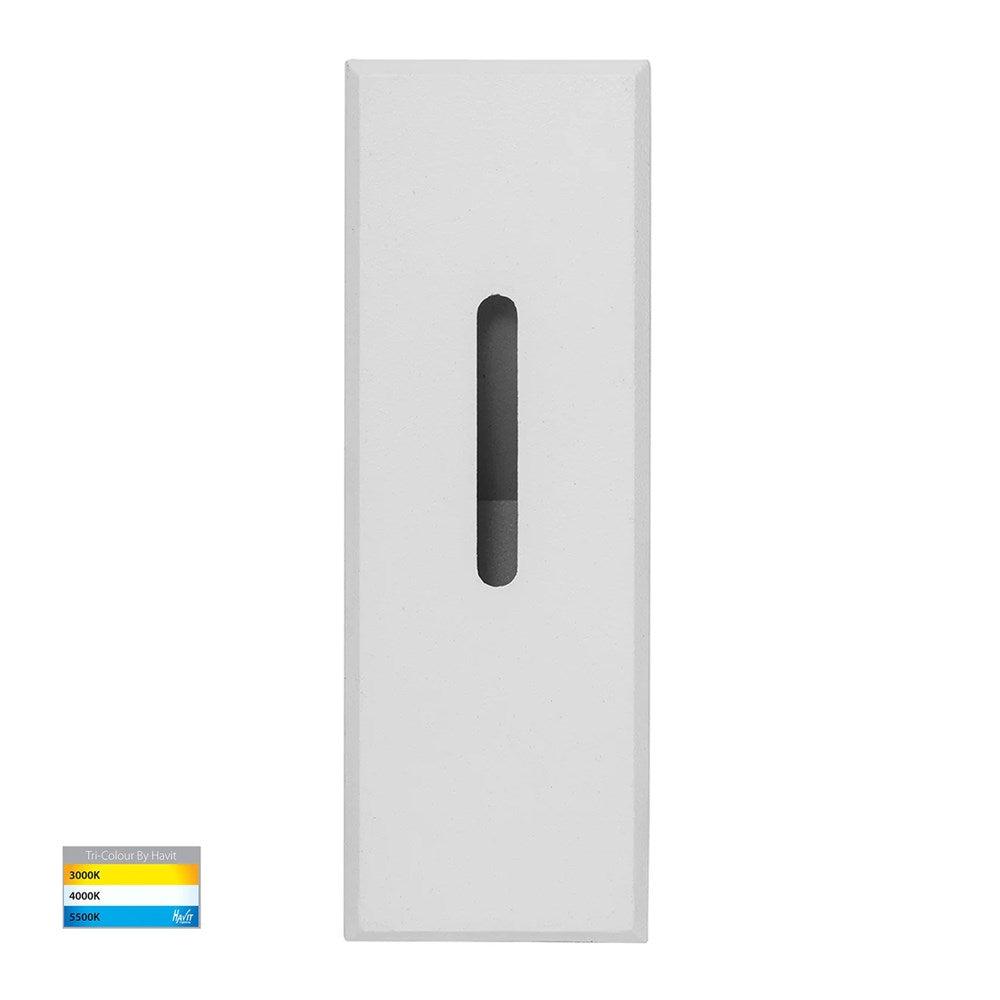

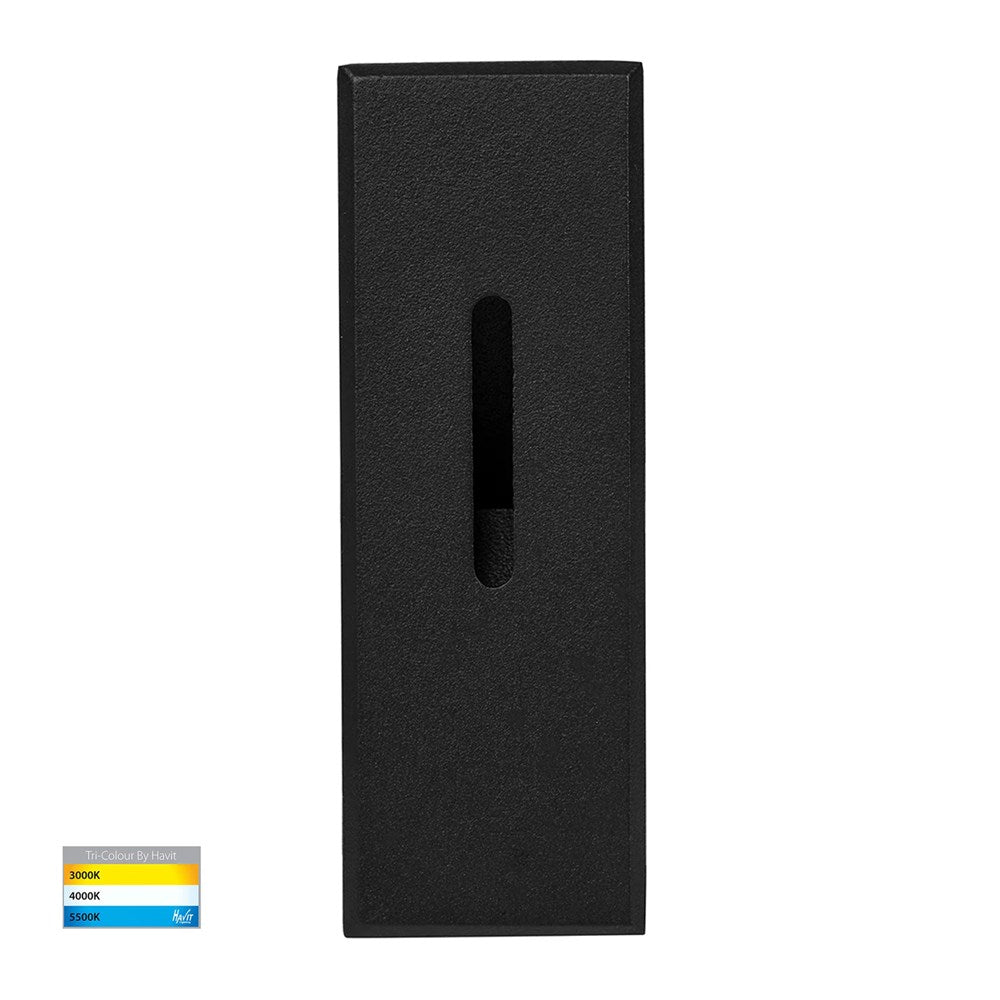

- Recessed step light
- Aluminium powder coated black, white
- Supplied with dedicated LED driver (240v Model)
- Dimmable
- IP rating: IP20
- Input voltage: Available in either 240v AC or 12v DC
- Tri Colour
- 3000k, 4000k, 5500k
- Built-in 3w LED
- Canister available for 12v DC Models
- 3 Years replacement warranty
Must Be Used With Suitable 12v DC LED Driver.
Specifications:
- Colour: Black, White
- Material: Aluminium
- IP Rating: IP20
- Globe Type: LED
- Wattage: 3w
- CRI: >80
- Dimmable: Yes
- Beam Angle: 36°

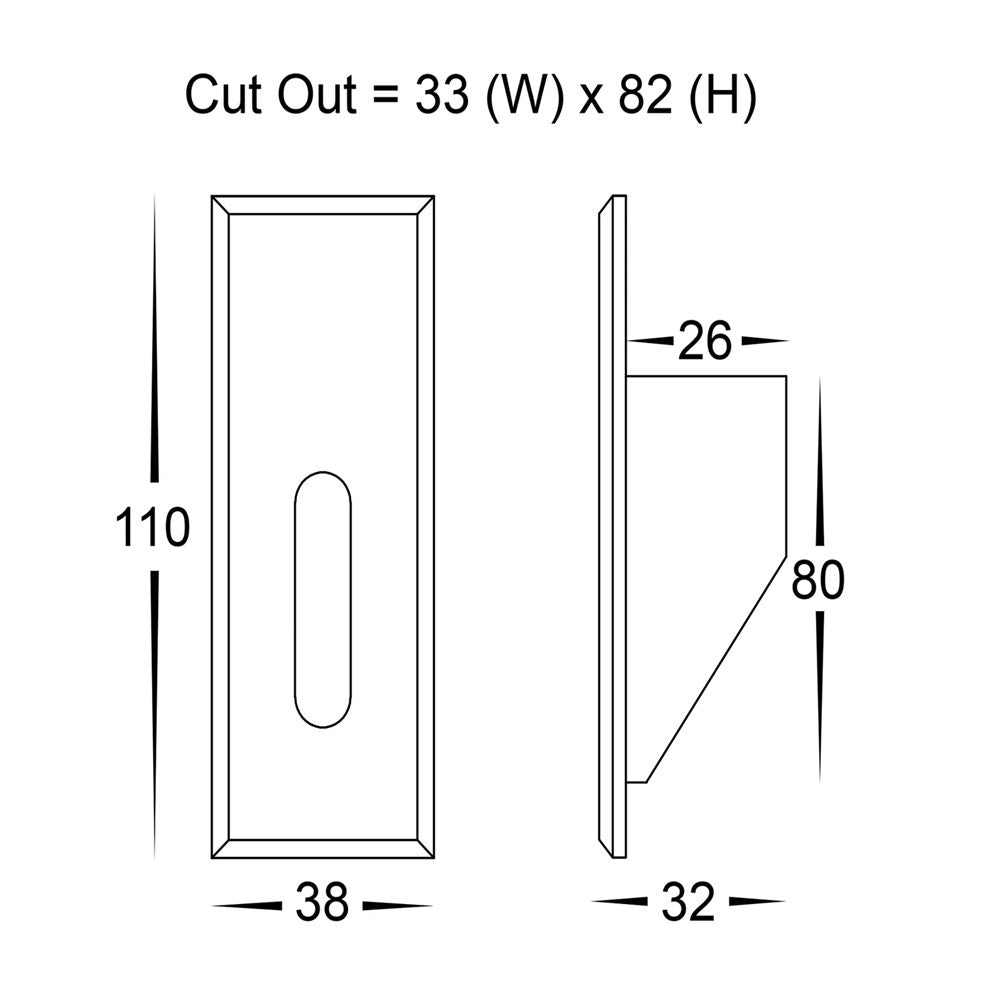

Dimension:
- Cut Out: 33mm x 82mm
- Height: 110mm
- Width: 38mm
| Part Number |
Colour |
Colour Temp
|
Lumens
|
Input Voltage |
| HV3105T-BLK,240V |
Black |
3000k
4000k
5500k |
45lm
55lm
49lm |
240v |
| HV3105T-BLK,12V |
Black |
3000k
4000k
5500k
|
45lm
55lm
49lm
|
12v DC |
| HV3105T-BLK,240V |
White |
3000k
4000k
5500k |
45lm
55lm
49lm |
240v |
| HV3105T-BLK,12V |
White |
3000k
4000k
5500k
|
45lm
55lm
49lm
|
12v DC |
Choosing a driver
The 12v DC version runs on low voltage and needs a 12v LED driver, installed by a licensed electrician. The 240v version wires straight to mains and does not need a driver.
Allow 3w for each light and add about 20% headroom. 10 lights draw 30w, so they need a 12v driver of at least 36w, which in practice means a 60w driver.
| 12v driver size |
Maximum lights |
| 30w |
8 |
| 60w |
16 |
| 100w |
27 |
| 150w |
41 |
For bigger installs, split the lights across two or more drivers and place each driver close to its group. Long cable runs at low voltage lose brightness at the far end, so check your cable size with our voltage drop calculator.
Indoors, an indoor 12v driver mounted in the ceiling space works well. If the light is going outdoors or under eaves, use a weatherproof IP66 12v driver.
To dim, pair it with a dimmable 12v driver and a compatible dimmer.
