Description:
- SHIM Surface mounted step light
- Aluminium poly powder coated black or white
- Opal PC diffuser
- IP rating: IP54
- Input voltage: 240v AC or 12v DC
- TRI Colour
- Built-in 12w LED
- 3 Years replacement warranty
12v model must be used with suitable 12v DC LED driver
| Colour |
Colour Temp
|
Lumens
|
Input Voltage |

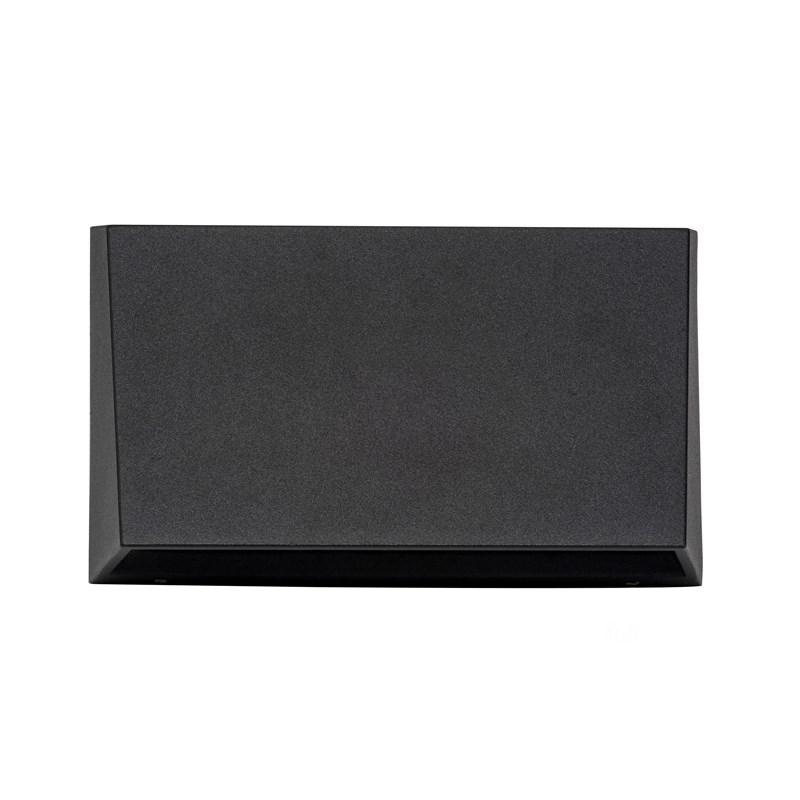

| Black - HV3278T-BLK-240V |
3000k
4000k
5500k |
960lm
1020lm
1080lm |
240v AC |
| Black - HV3278T-BLK-12V |
3000k
4000k
5500k |
960lm
1020lm
1080lm |
12v DC |

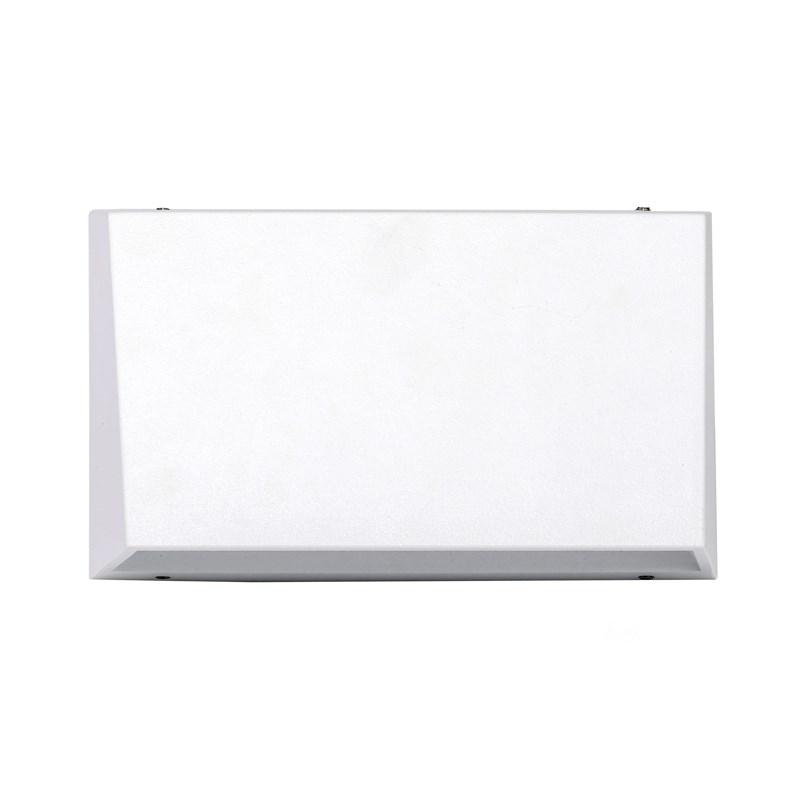

| White - HV3278T-WHT-240V |
3000k
4000k
5500k |
960lm
1020lm
1080lm |
240v AC |
| White - HV3278T-WHT-12v |
3000k
4000k
5500k |
960lm
1020lm
1080lm |
12v DC |
Superseded from codes: HV3278C-BLK, HV3278W-BLK, HV3278C-WHT, HV3278W-WHT
Choosing a driver
The 12v DC version runs on low voltage and needs a 12v LED driver, installed by a licensed electrician. The 240v version wires straight to mains and does not need a driver.
Allow 12w for each light and add about 20% headroom. 4 lights draw 48w, so they need a 12v driver of at least 58w, which in practice means a 60w driver.
| 12v driver size |
Maximum lights |
| 30w |
2 |
| 60w |
4 |
| 100w |
6 |
| 150w |
10 |
For bigger installs, split the lights across two or more drivers and place each driver close to its group. Long cable runs at low voltage lose brightness at the far end, so check your cable size with our voltage drop calculator.
Indoors, an indoor 12v driver mounted in the ceiling space works well. If the light is going outdoors or under eaves, use a weatherproof IP66 12v driver.
