Features:
- Surface mounted rectangular steplight
- IP rating: IP65
- Dimmable
- Tri Colour
- 3000k, 4000k, 5500k
- Input Voltage: 12v DC
- Built in 3w SMD LED
- 3 years replacement warranty
Must be used with suitable 12v DC LED driver.
Specifications:

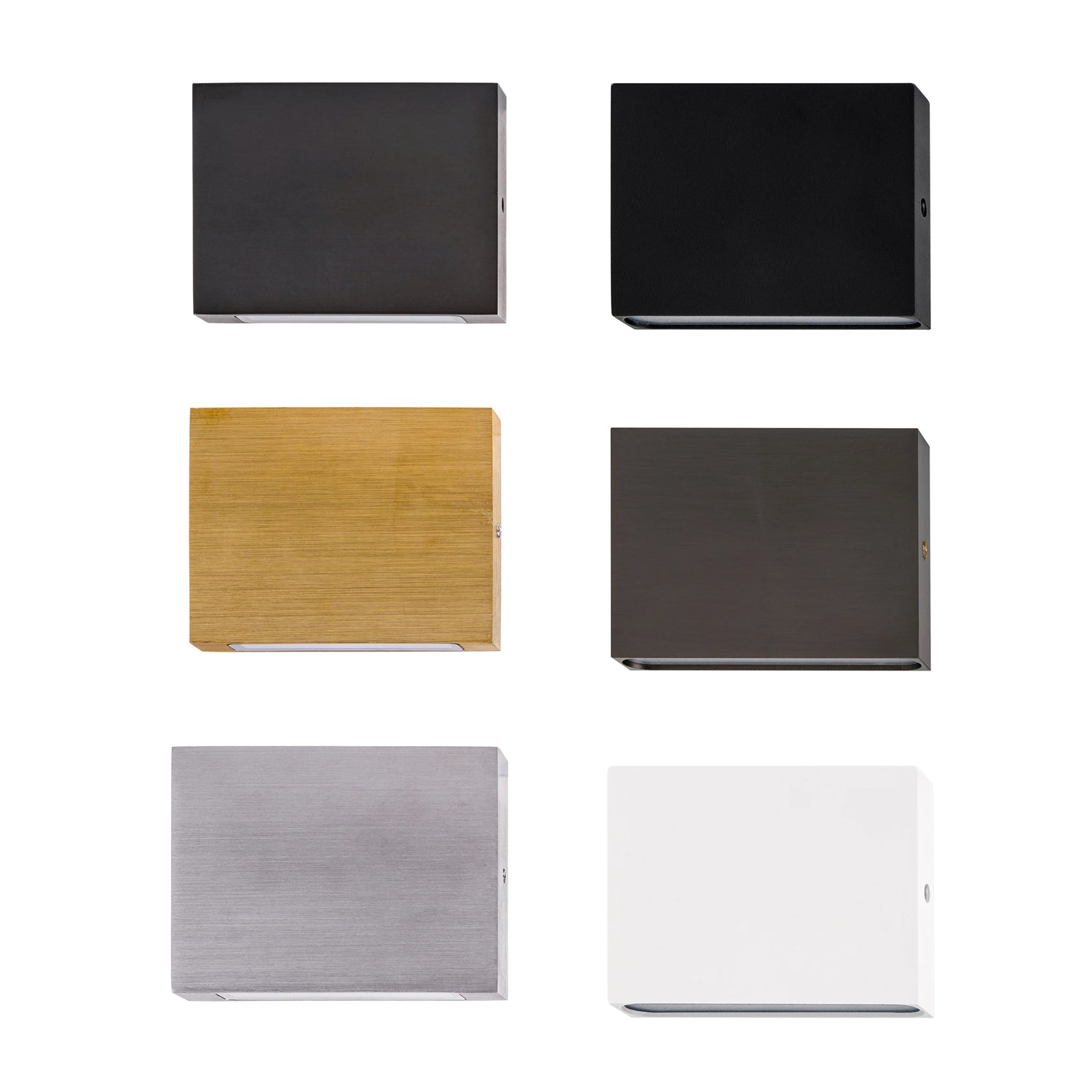

- Colour: Antique Brass, Black, Solid Brass, Graphite, Stainless Steel or White
- Material: Solid Brass, 316 Stainless Steel
- Globe Type: LED
- Globe Included: Yes
- Wattage: 3w
- IP Rating: IP65
- IK Rating: IK10
- Beam Angle: 120°
- CRI: >80
- Diffuser Type: Glass
- Dimmable: Yes
- Lamp Expectancy: <30,000hrs
- Warranty: 3 Years Replacement*

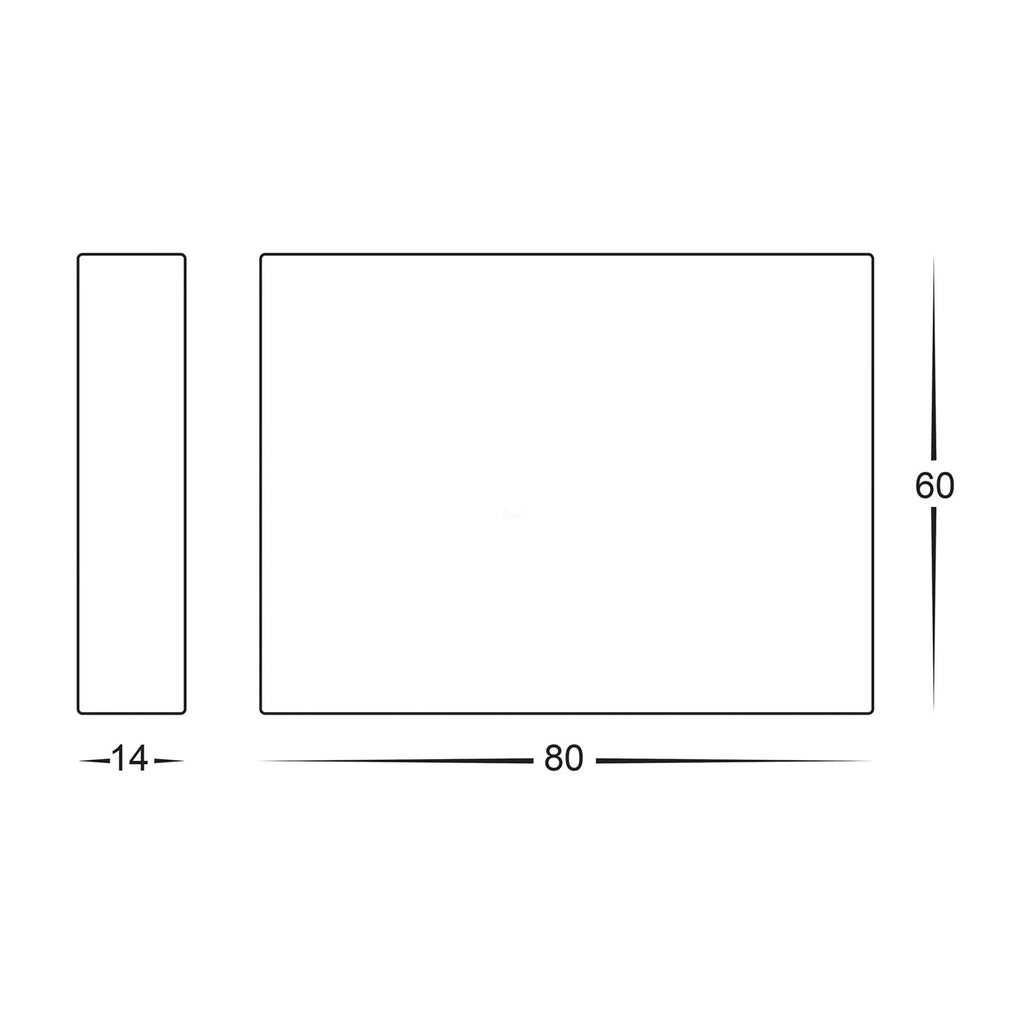

Dimension:
- Length: 80mm
- Width: 14mm
- Height: 60mm
- Cable Length: 300mm
| Part Number |
Colour Temperature
|
Lumens
|
|

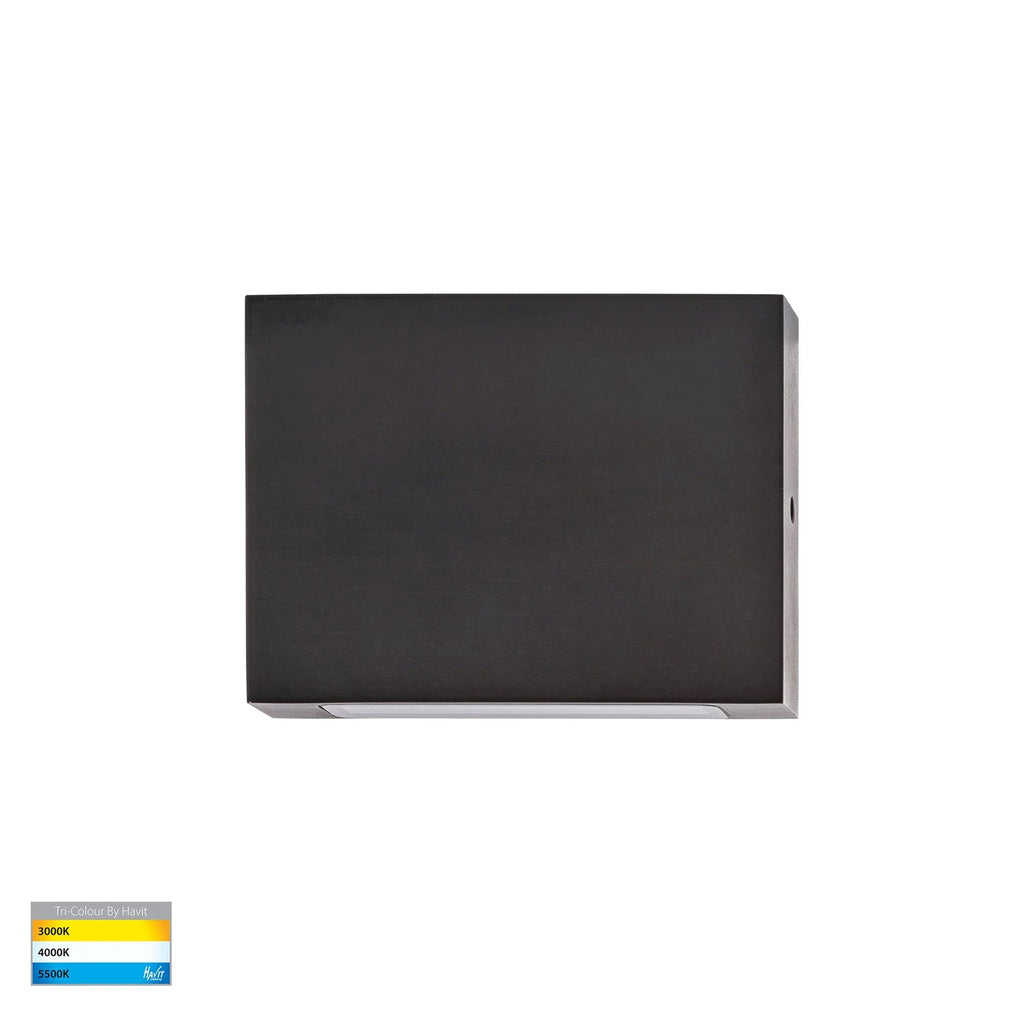

HV3288T-AB-12V - Antique Brass

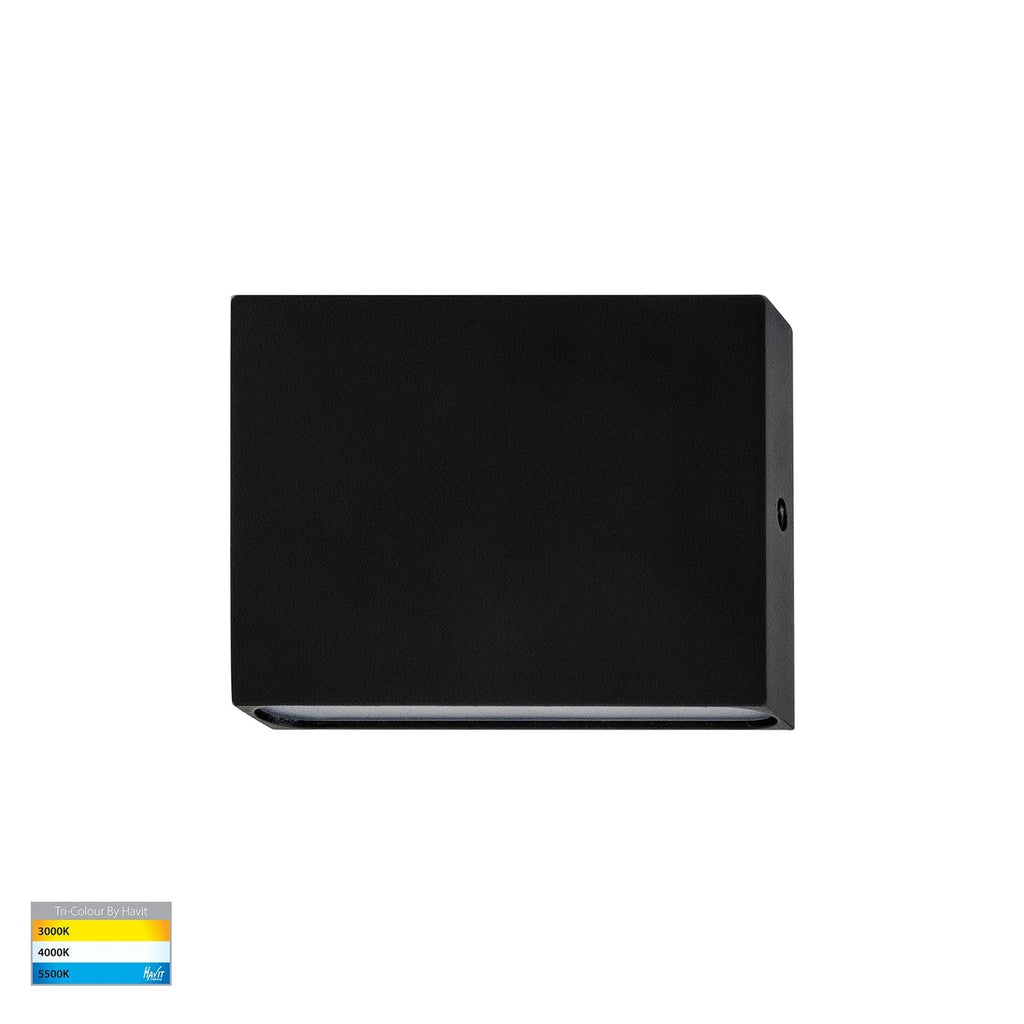

HV3288T-BLK-12V - Black

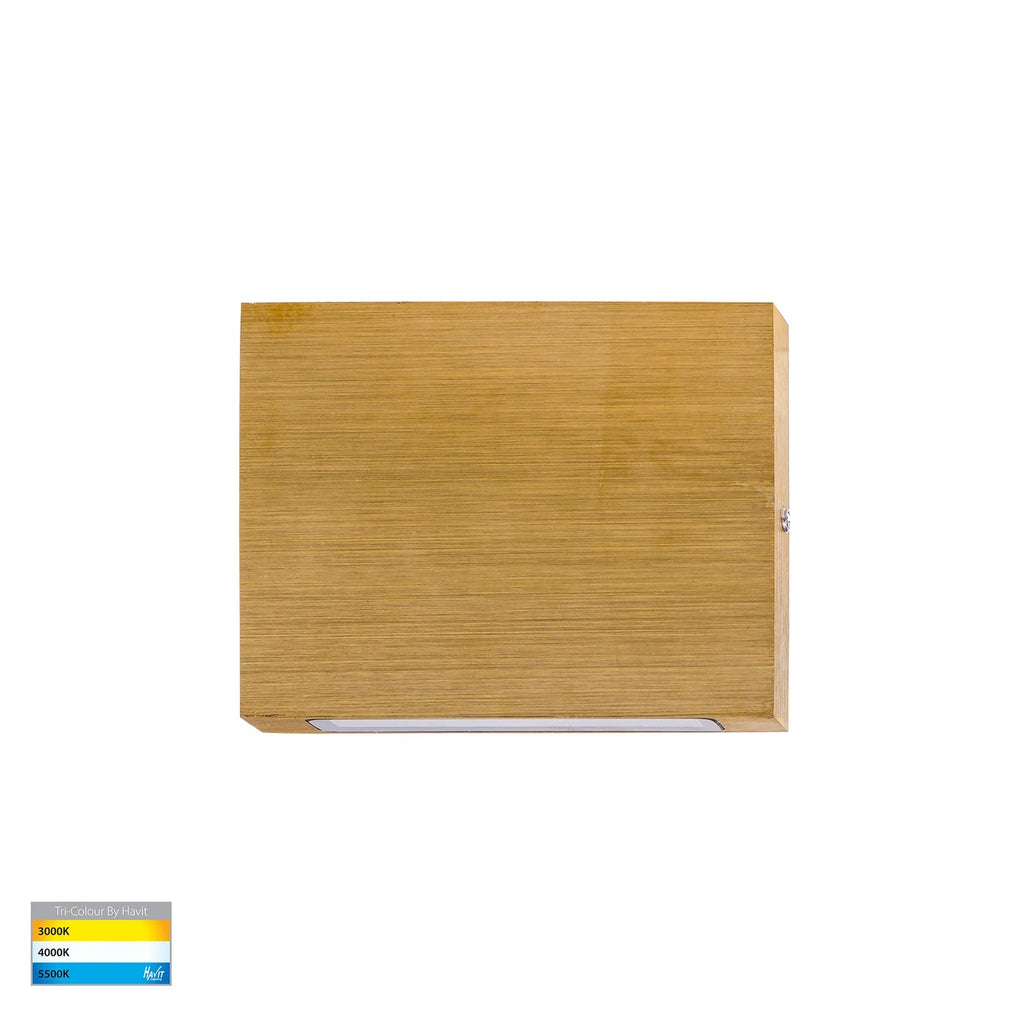

HV3288T-BR-12V - Solid Brass

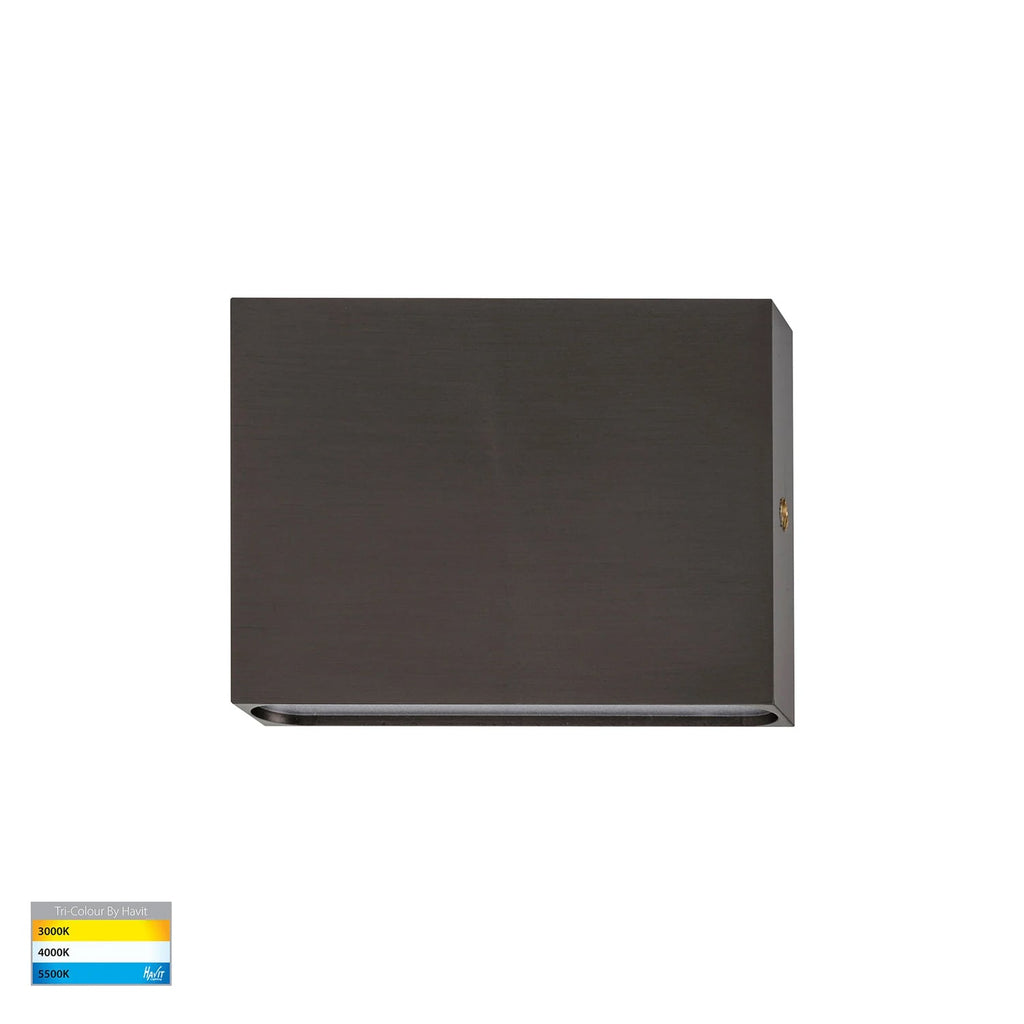

HV3288T-GPH-12V - Graphite

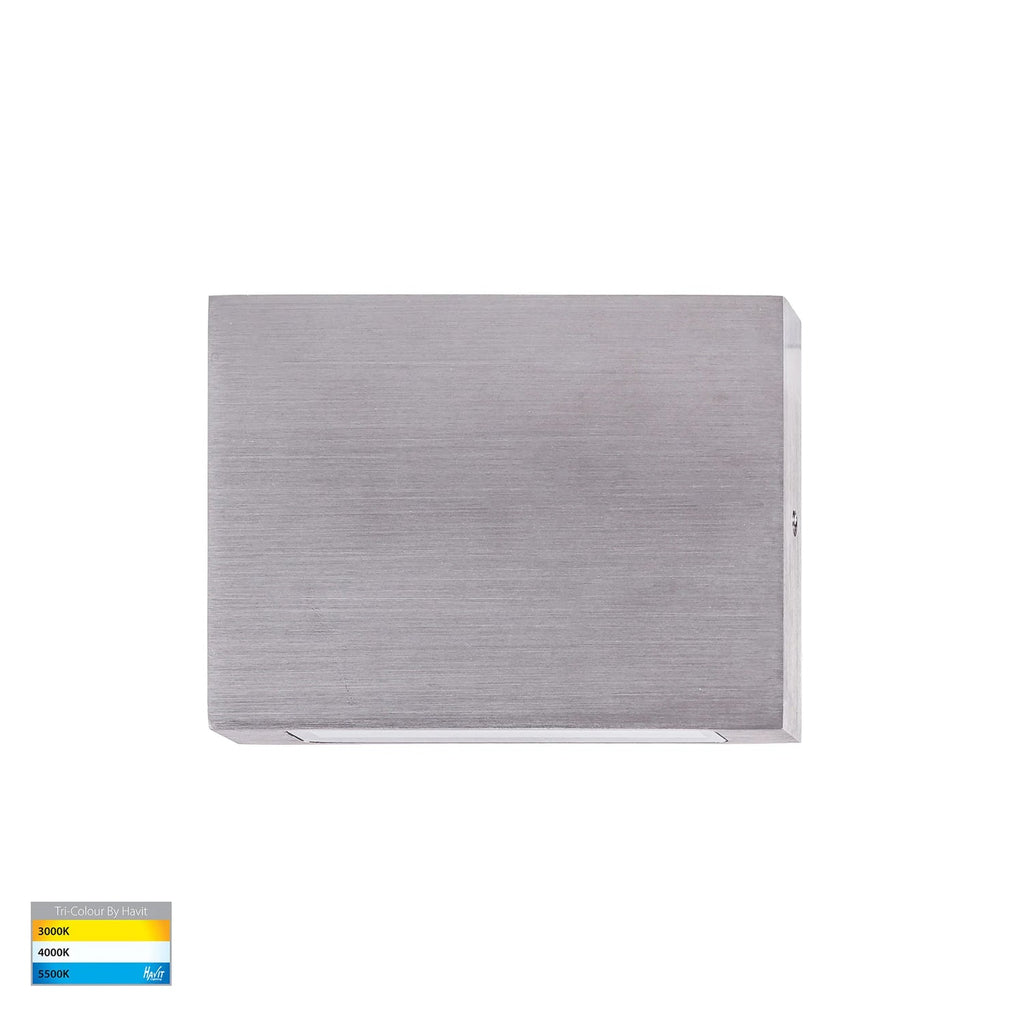

HV3288T-SS316-12V - 316 Stainless Steel

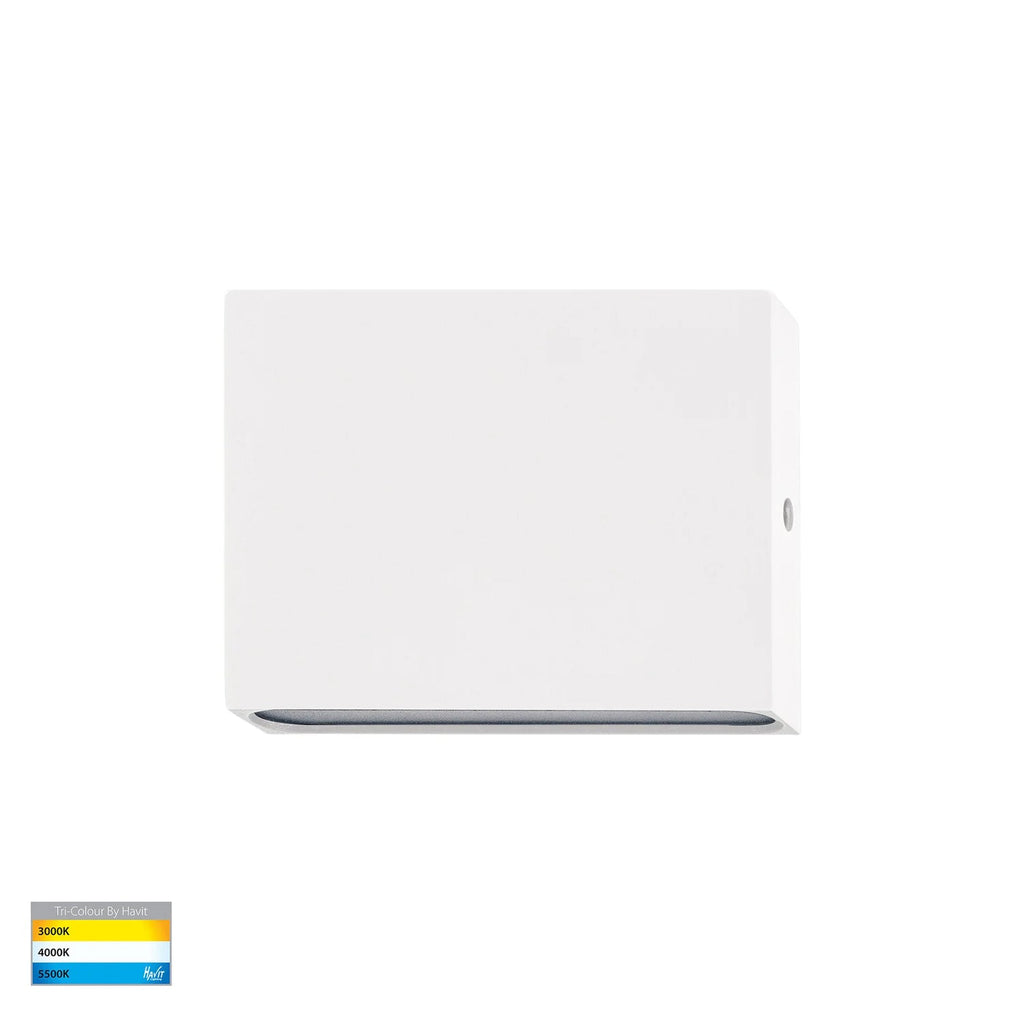

HV3288T-WHT-12V - White
|
3000k
4000k
5500k
|
240lm
245lm
250lm
|
Choosing a driver
This light runs on 12v DC, so it needs a 12v LED driver (sometimes called a transformer). It cannot connect straight to 240v mains. The driver is wired in by a licensed electrician.
Allow 3w for each light and add about 20% headroom. 10 lights draw 30w, so they need a 12v driver of at least 36w, which in practice means a 60w driver.
| 12v driver size |
Maximum lights |
| 30w |
8 |
| 60w |
16 |
| 100w |
27 |
| 150w |
41 |
For bigger installs, split the lights across two or more drivers and place each driver close to its group. Long cable runs at low voltage lose brightness at the far end, so check your cable size with our voltage drop calculator.
Outdoors, use a weatherproof IP66 12v driver and mount it above ground, clear of garden beds and pooling water.
To dim, pair it with a dimmable 12v driver and a compatible dimmer.
