Description:

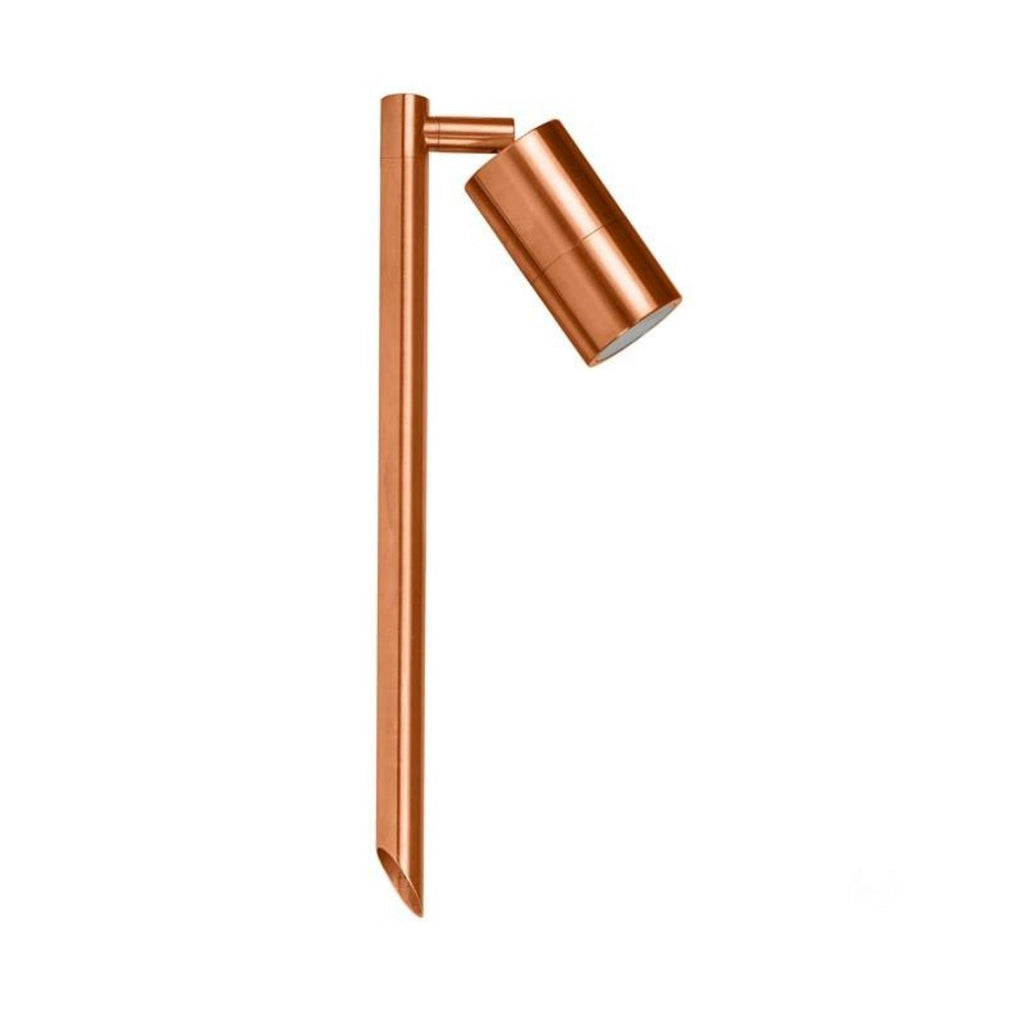

- Single Adjustable Spike Spotlight
- Solid Copper

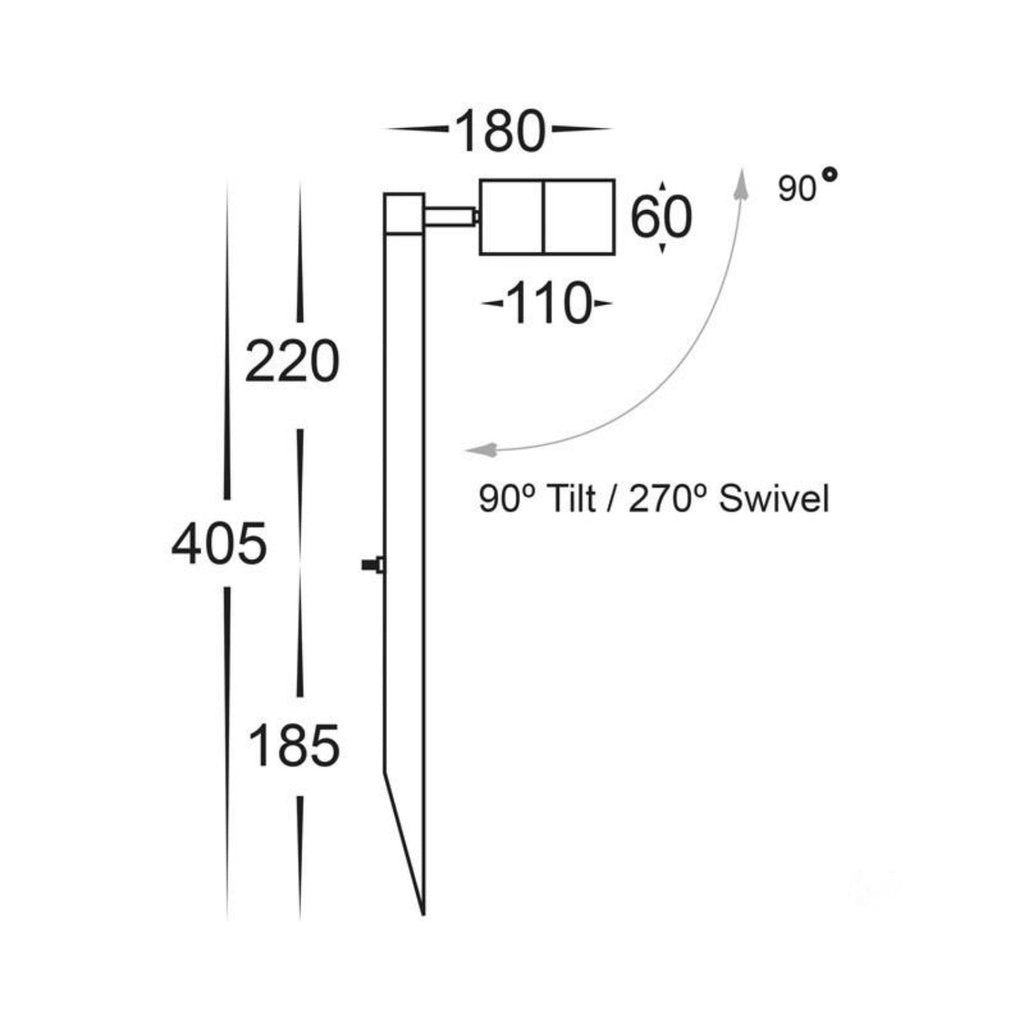

- 90° Tilt & 270° Swivel
- 405mm Spike Length
- 2m Reinforced Cable
- TRI Colour
- IP Rating: IP65
- Input Voltage: 12v DC
- 5w MR16 LED Globe
- 3 Years Replacement Warranty
Must Be Used With Suitable 12v DC LED Driver
| Order Code |
Colour Temperature
|
Lumens
|
| HV1413T |
3000k
4000k
5500k
|
250lm
275lm
300lm
|
Superseded from codes: HV1413C, HV1413W
Planning your garden lighting? Read our Best Garden Lights guide to compare spike, step, bollard and inground options.
Choosing a driver
This spike light runs on 12v DC, so it needs a 12v LED driver (sometimes called a transformer). It cannot connect straight to 240v mains. The driver is wired in by a licensed electrician.
Allow 5w for each spike light and add about 20% headroom. 10 spike lights draw 50w, so they need a 60w 12v driver.
| 12v driver size |
Maximum spike lights |
| 30w |
5 |
| 60w |
10 |
| 100w |
16 |
| 150w |
25 |
For bigger installs, split the lights across two or more drivers and place each driver close to its group. Long cable runs at low voltage lose brightness at the far end, so check your cable size with the voltage drop calculator below.
Outdoors, use a weatherproof IP66 12v driver and mount it above ground, clear of garden beds and pooling water.
Planning your install? Use our voltage drop calculator to choose the right cable size for your run and keep every light at full brightness.
