Features:

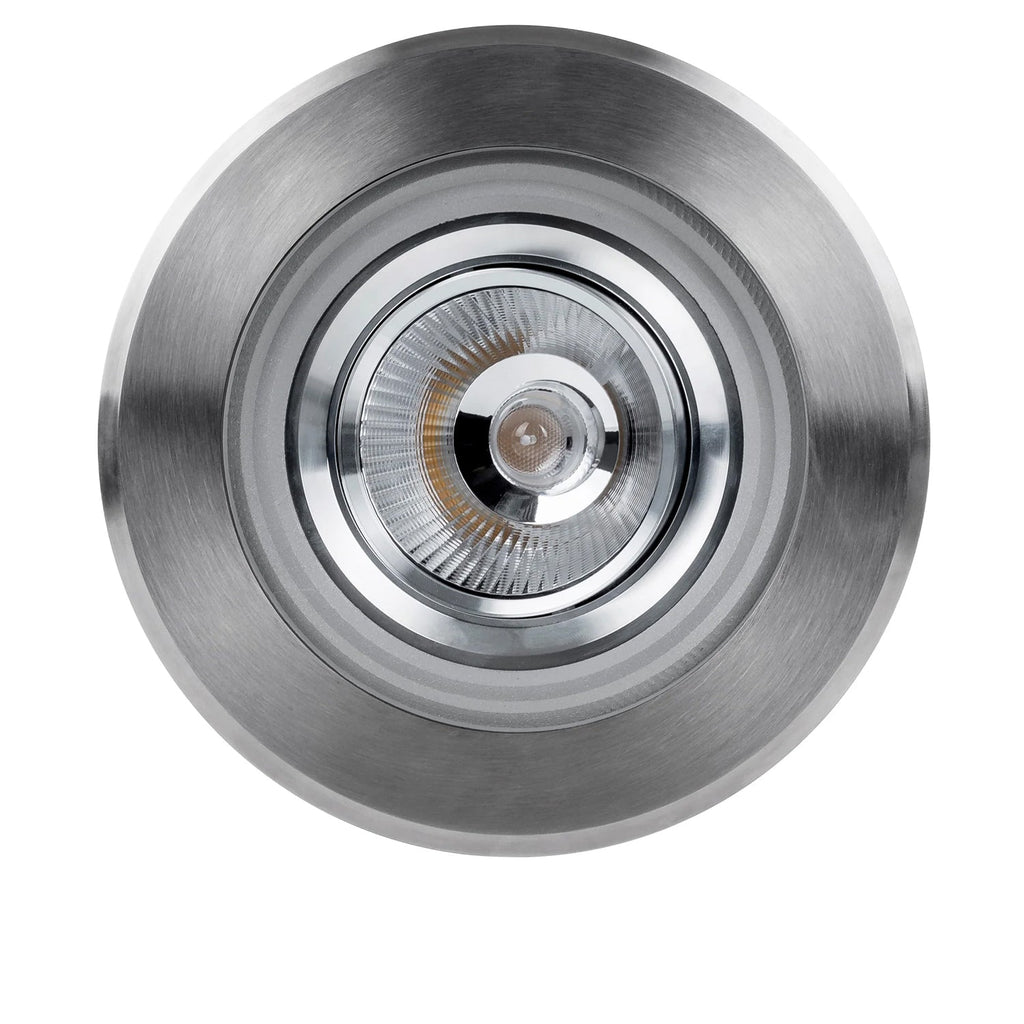

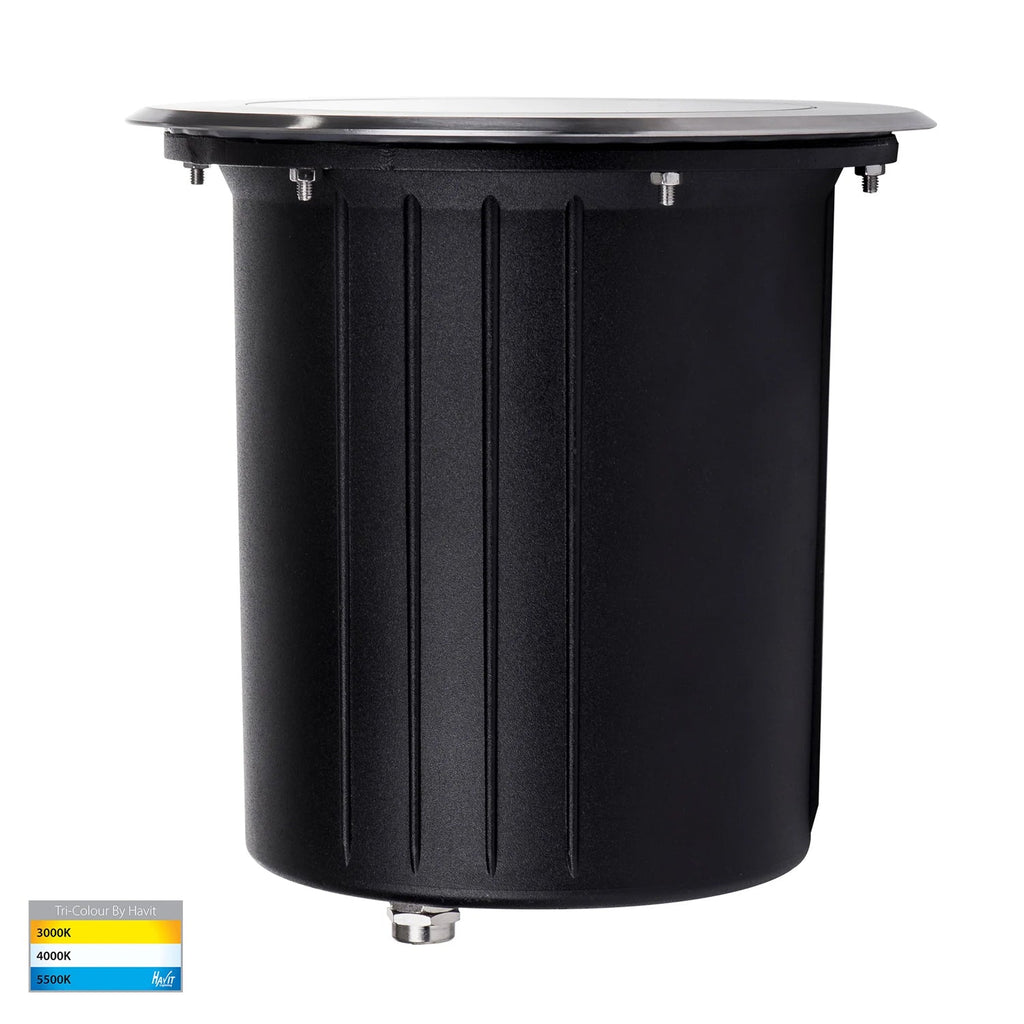

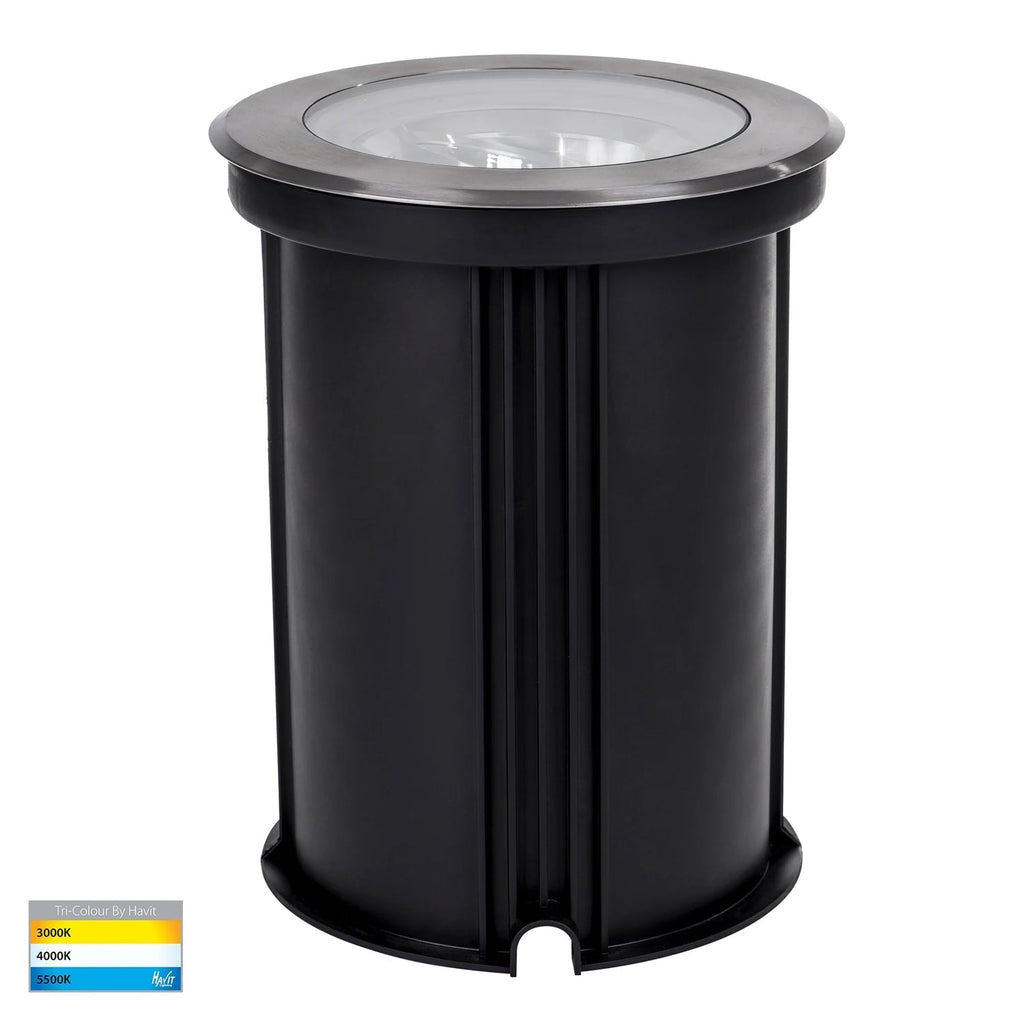

- Adjustable Inground Uplighter Round
- Stainless Steel 316 Marine Grade Cover
- Aluminium Black Body
- Flush Tempered Glass
- Trafficable to 1000kg
- IK Rating: IK10
- Tri Colour
- 3000k, 4000k, 5500k
- 15° Tilt
- Built-In 20w LED
Specifications:
- Colour: Stainless Steel/Black
- Material: 316 Stainless Steel, Aluminium
- Input Voltage: 24v DC
- Wattage: 20w
- Globe Type: LED
- Globe Included: Yes
- Colour Temperature: CCT (3000k, 4000k, 5500k)
- Lumens: 1600lm, 1700lm, 1800lm
- IP Rating: IP67
- Tilt Angle: 15°
- Beam Angle: 30°
- CRI: >80
- Dimmable: No
- Warranty: 3 Years Replacement
Must be used with suitable 24v DC LED driver
Choosing a driver
This inground light runs on 24v DC, so it needs a 24v LED driver (sometimes called a transformer). It cannot connect straight to 240v mains. The driver is wired in by a licensed electrician.
Allow 20w for each inground light and add about 20% headroom. 2 inground lights draw 40w, so they need a 24v driver of at least 48w, which in practice means a 60w driver.
| 24v driver size |
Maximum inground lights |
| 30w |
1 |
| 60w |
2 |
| 100w |
4 |
| 150w |
6 |
For bigger installs, split the lights across two or more drivers and place each driver close to its group. Long cable runs at low voltage lose brightness at the far end, so check your cable size with the voltage drop calculator below.
Outdoors, use a weatherproof IP66 24v driver and mount it above ground, clear of garden beds and pooling water.
Planning your install? Use our voltage drop calculator to choose the right cable size for your run and keep every light at full brightness.
