Features:

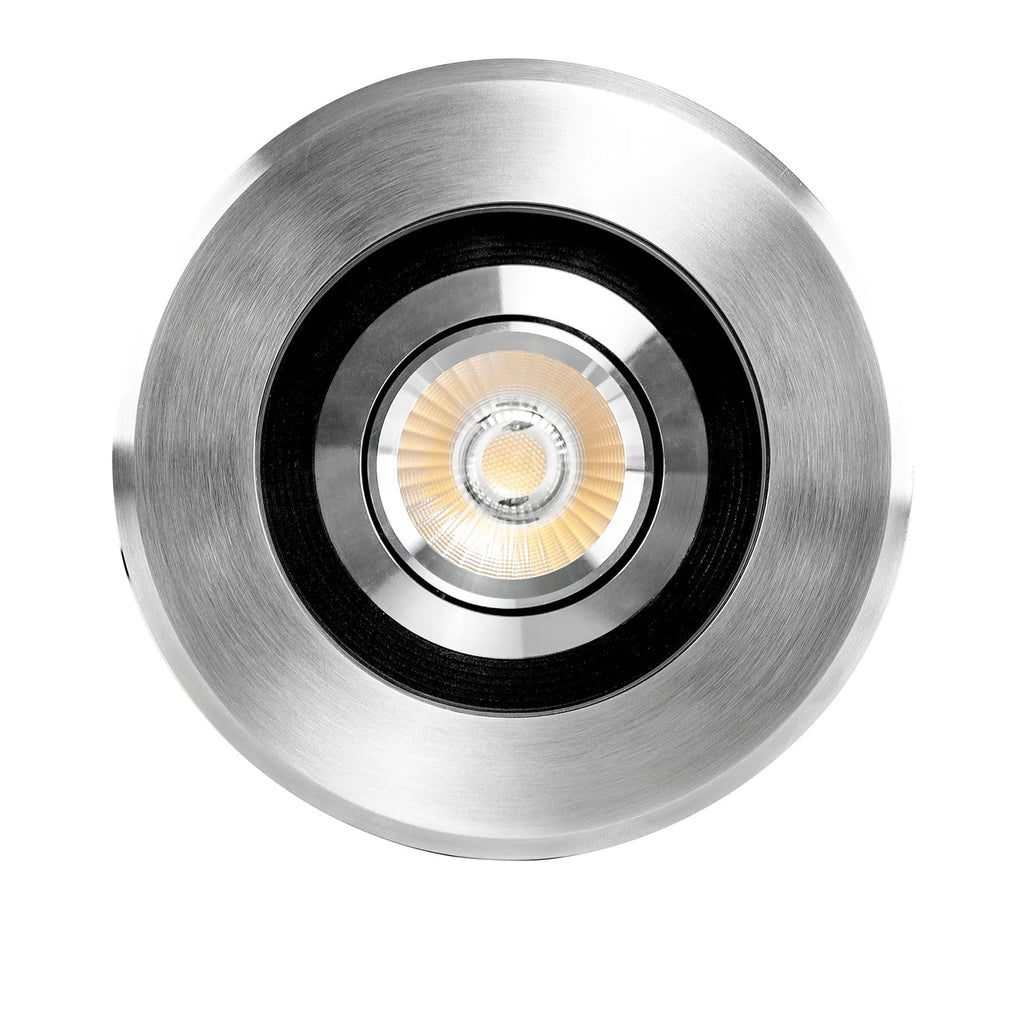

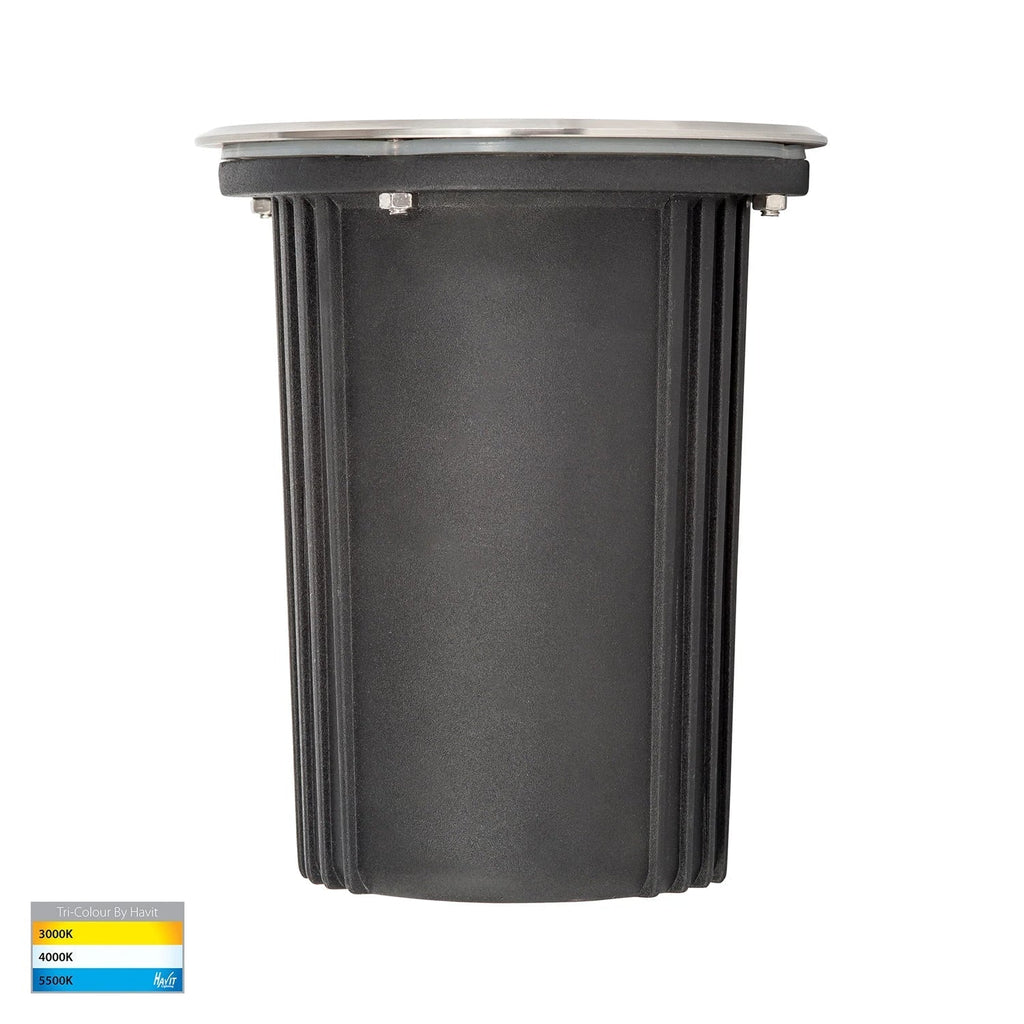

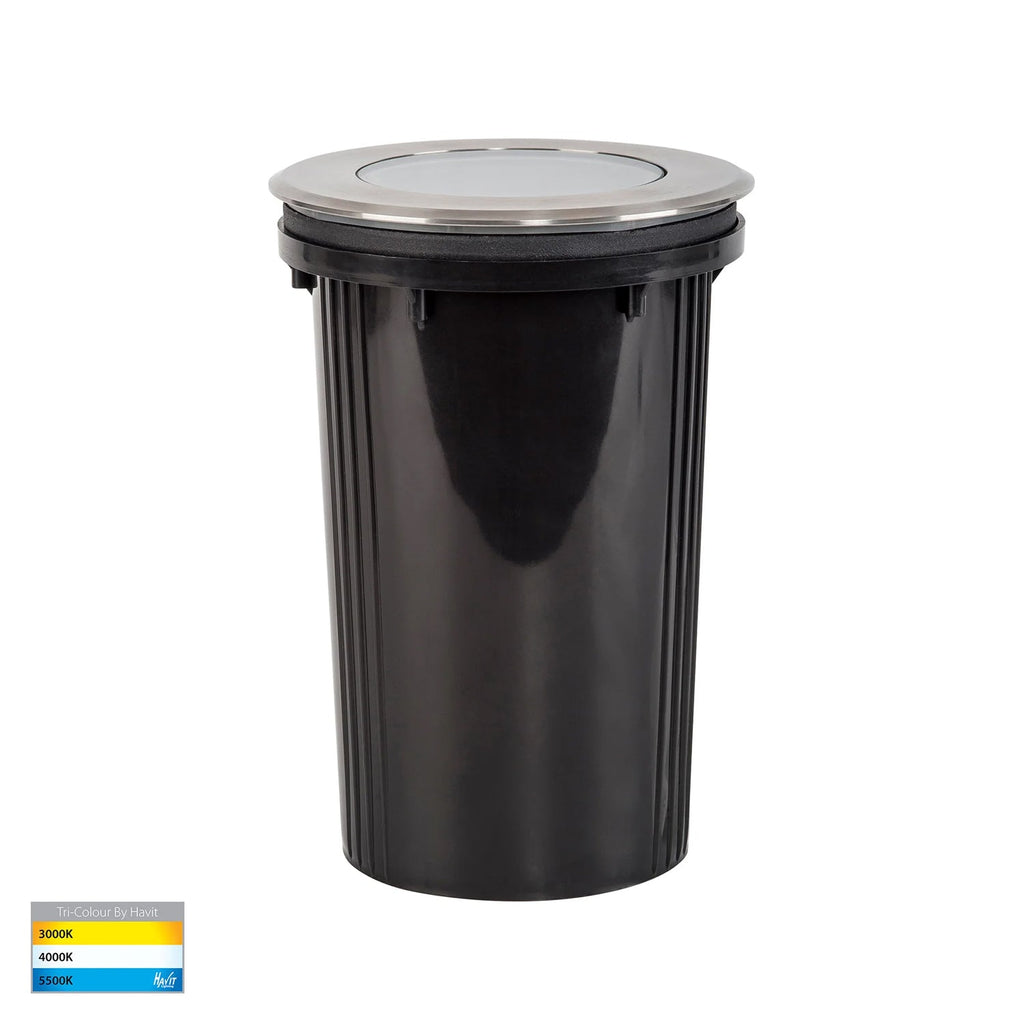

- Adjustable Inground Up Lighter Round
- Stainless Steel 316 Marine Grade Cover
- Aluminium Black Body
- Flush Tempered Glass
- Trafficable to 1000kg
- 30° Tilt
- Beam Angle: 30°
- IP rating: IP67
- IK Rating: IK10
- Tri Colour
- 3000k, 4000k, 5500k
- Input Voltage: 12v DC
- Built-In 5w LED
- 3 Years Replacement Warranty
Specifications:
- Colour: Stainless Steel Face + Black Body
- Material: 316 Stainless Steel + Aluminium

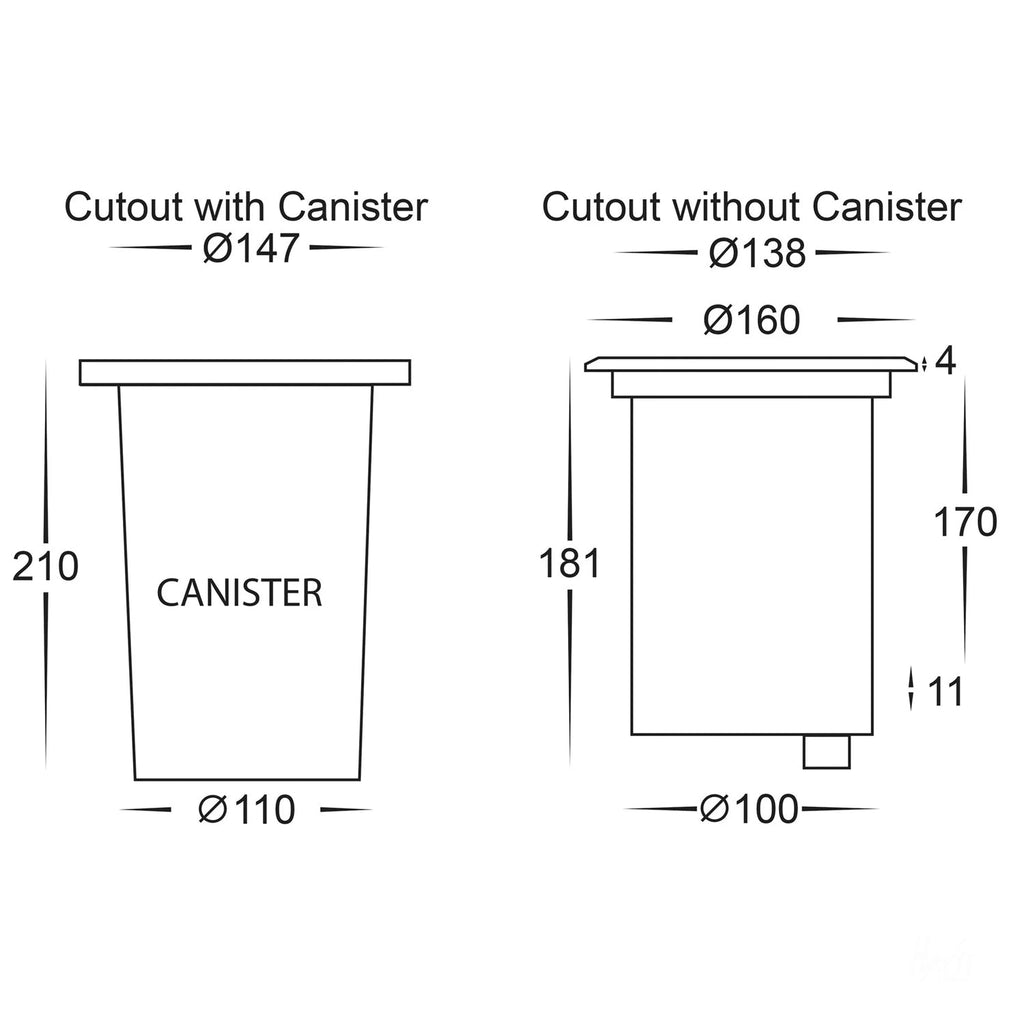

- Installation Type: Inground - Recessed
- Input Voltage: 12v
- Globe base: Built in LED
- Max Wattage: 5w
- Colour Temperature: 3000k, 4000k, 5500k
- Lumens: 450lm, 475lm, 500lm
- IP Rating: IP67
- Tilt: 30°
- CRI: >80
- Dimmable: No
- Warranty: 3 Years
Must be used with suitable 12v DC LED driver
Choosing a driver
This inground light runs on 12v DC, so it needs a 12v LED driver (sometimes called a transformer). It cannot connect straight to 240v mains. The driver is wired in by a licensed electrician.
Allow 5w for each inground light and add about 20% headroom. 10 inground lights draw 50w, so they need a 60w 12v driver.
| 12v driver size |
Maximum inground lights |
| 30w |
5 |
| 60w |
10 |
| 100w |
16 |
| 150w |
25 |
For bigger installs, split the lights across two or more drivers and place each driver close to its group. Long cable runs at low voltage lose brightness at the far end, so check your cable size with the voltage drop calculator below.
Outdoors, use a weatherproof IP66 12v driver and mount it above ground, clear of garden beds and pooling water.
Planning your install? Use our voltage drop calculator to choose the right cable size for your run and keep every light at full brightness.
