Description:

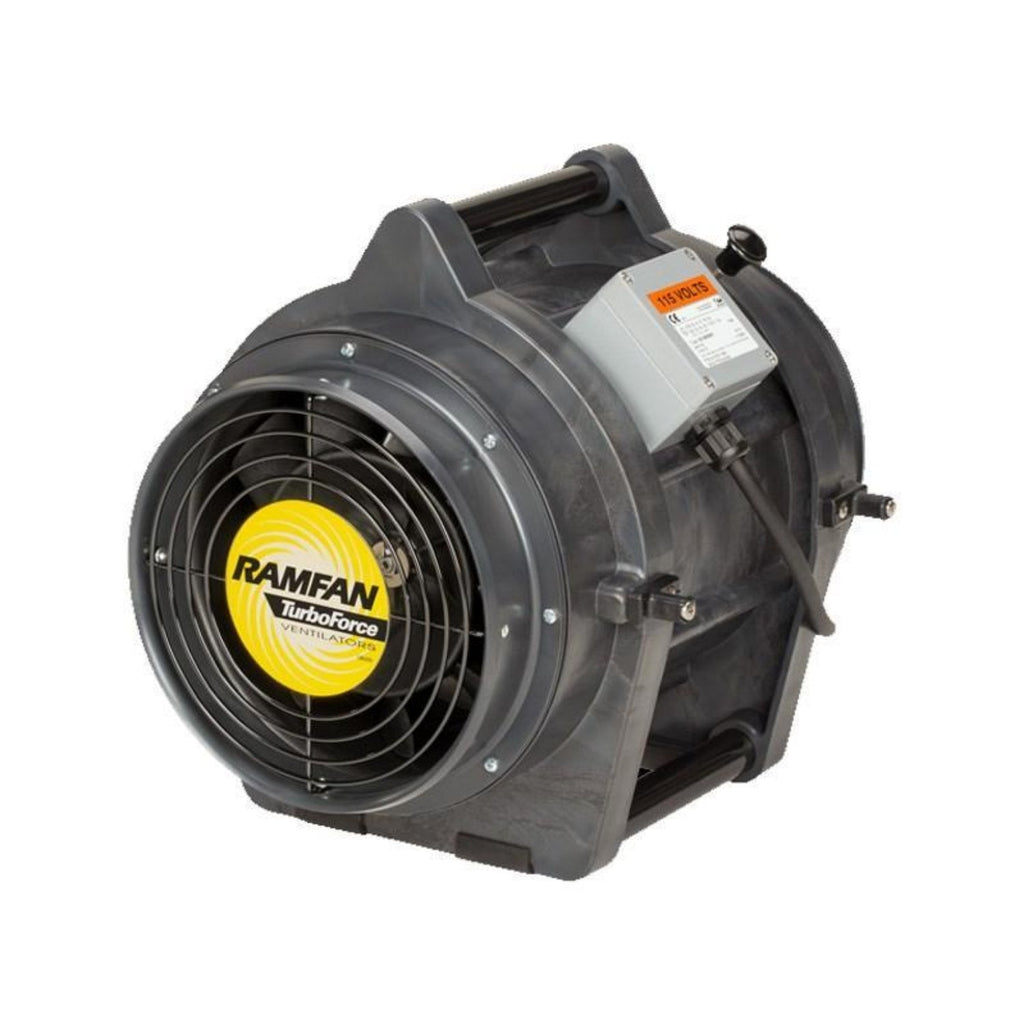

The UB20XX (8”/200mm) is a flame proof (Ex d) ventilator that is compact and easy to use. It features a totally enclosed motor, and an ABS anti-static chemical resistant casing.

Features:

• Certified for use in Group IIB, Zone 1, T6, hazardous atmospheres.
• Flame retardant and chemical resistant ABS anti-static casing.
• Comes with integral thermal overload protection to prevent damage from overheating.
• Designed to be compact and light, making storage and transportation simple.
• Includes two integrated duct adapters and a handy 7.6m long power cable for convenience.
• IECEx UL certificate number 13.0062X.

Optional Accessories:

Quick-Couple™ Canister, M.E.DTM (manhole Entry Device), Anti-Static Duct, Duct Carry Bags.

Specification:

• Model: UB20XX
• Order Code: FANEF8002
• Free air: 1,392m³/hr
• Motor: 0.33hp (0.25 kW)
• Unit rating: IP55
• Power Supply: 230V/50Hz
• Amps: 1.2A
• Weight: 12kg
• Equipment protection level: Ex d e
