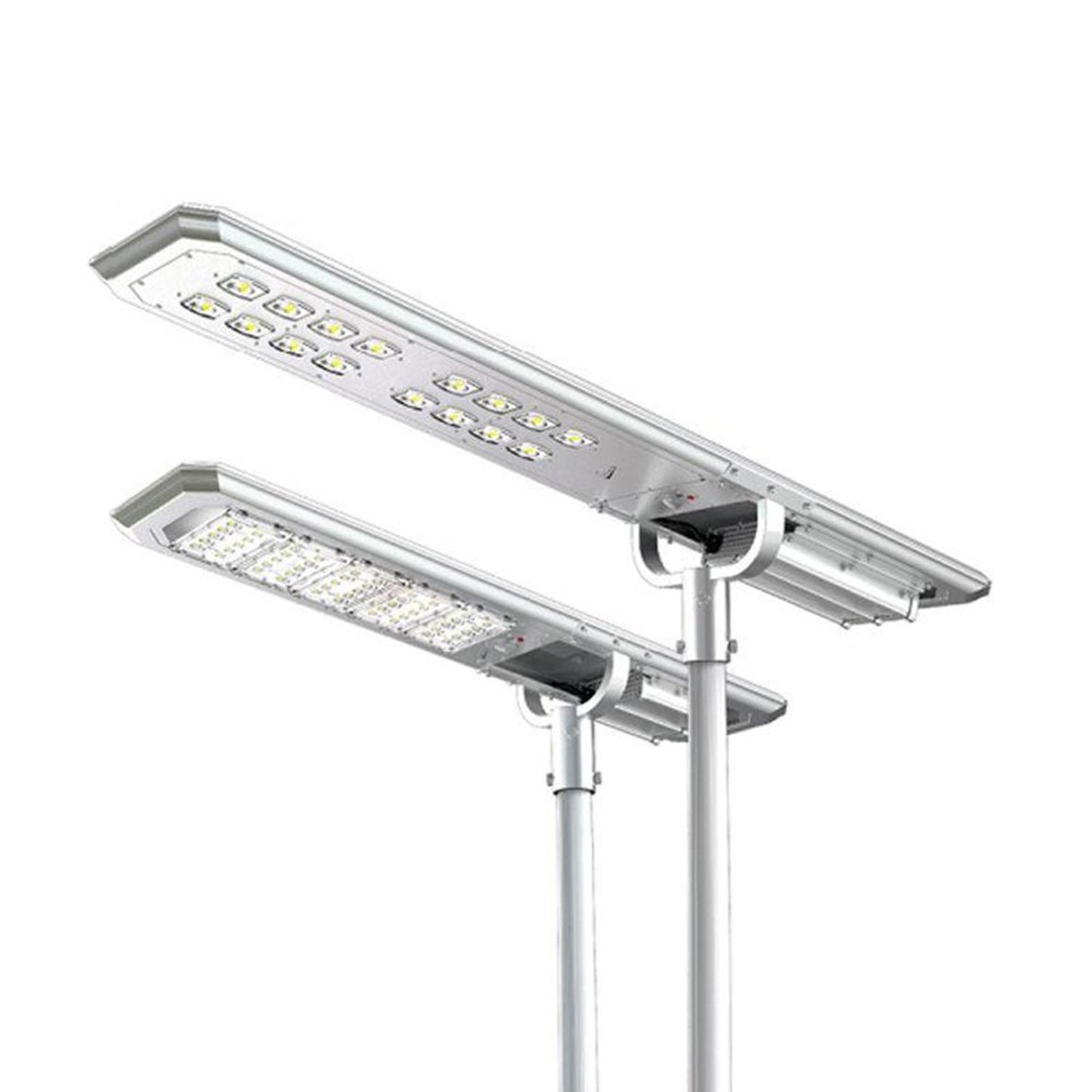

The Atlas Series Solar Light combines beautiful aesthetics with outstanding performance and robust construction. It is reliable, has a long battery life and is simple to install. No cabling required. The three modes of lighting combined with the PIR motion sensor creates flexible lighting solutions.
Star 8 solar lights maximise battery life and battery charge life because they incorporate Adaptive Lighting, Variable Frequency and Temperature Control patented technologies.
Note: Pole not included with light
Features:
- 7+ nights of continual lighting
- 3 years warranty (including battery)
- 8+ years battery lifespan (1500 cycles)
- PIR motion sensor
- 3 lighting modes
- Detachable battery pack and LED panel for easy maintenance
- Available in 5 models
Specifications:
- Wattage: 20w, 40w, 60w, 80w, 100w
- Battery: Li-ion 14.8V 153.92WH 2.6AH/PCS
- Charge life: 7+ nights
- Material Aluminium: Alloy + PC
- IP Rating: IP65
- IK Rating: IK10
- PIR sensor range 8m
- Remote control Optional
- Suitable pole spigot diameter: 60mm
- Warranty: 3 years (incl battery)
| Wattage | Solar Panels | Colour Temperature | Lumens | Lighting area (m2) | Dimensions | Optimal mounting
height | Weight |
| 20w | Monocrystalline 25w | 5700k | 2000lm | 16 x 6 | 677 × 265 × 302 mm | 3-4m | 6 kg |
| 40w | Monocrystalline 37.5w | 5700k | 4000lm | 23 x 8 | 962 × 270 × 302 mm | 4-5m | 8.16 kg |
| 60w | Monocrystalline 60w | 5700k | 6000lm | 28 x 13 | 1326 × 282 × 381 mm | 5-6m | 13.45 kg |
| 80w | Monocrystalline 75w | 5700k | 8000lm | 32 x 16 | 1563 × 282 × 381 mm | 6-7m | 17.26 kg |
| 100w | Monocrystalline 75w | 5700k | 10000lm | 37 x 18 | 1563 × 282 × 381 mm | 7-8m | 18.39 kg |
| | | | | | | |
Lighting modes
Red - Stays at 30% dim lighting from dusk until dawn, unless activated by the motion sensor. When activated, it will switch to 100% brightness.
Green - For the first five hours after dusk, the light remains at 100% brightness. After that time, the light reduces to 25% and the motion sensor is switched on. When activated, the light will switch to 70% brightness.
Orange - The light remains at 70% brightness from dusk until dawn.
Uses:
- parks
- pools
- community centres
- bicycle ways
- car parks
- playgrounds
- roadways
SOLAR LIGHTING TECHNOLOGIES
ALS: Adaptive Lighting System
Innovative patented technology that automatically adjusts lighting levels according to surrounding weather conditions without impacting passer-by visibility. ALS maximises battery efficiency and life of charge (redundancy).
VFT: Variable Frequency Technology
Special Technology managing LED output thereby maximising battery charge life.
TCS: Temperature Control System
Provides critical battery control system to protect the battery from overheating thus maximising battery life and output.
