Product Description
Description:

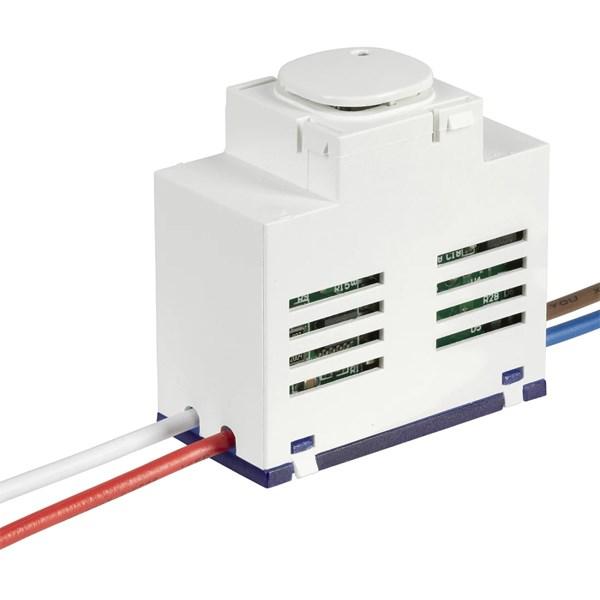

WiFi Smart push button lighting master and slave dimmers that allow simple automation and two-way switching.
Features:
• Make your dimmable lights smart by converting your current dimmer to our Smart dimming module
• Designed for two-way switching when Slave Mech is used in conjunction with Master Mech with a quicker response.
• Perfect for new or retro-fit installations
• Trailing edge dimmer suitable for most LED lighting products
• Slots seamlessly into HPM®, Clipsal® and Vynco® branded wall plates
• Control from anywhere via app or voice control
• Build schedules and timing to automate your home
• Create virtual automation looping without the hassle of installing long cable runs
• Programmable minimum brightness level to avoid light flickering
• Incorporates on/off switching and dimming control into one mechanism
• Soft start for improved lamp life
• Connects to other BrilliantSmart devices and other compatible products
• Overheat and over-current protection
• Manual push button is in perfect sync with app
Application:
• Connects to any dimmable downlight – indoor only
• Two-way switching for existing looped installations
• Group lights, so they can be switched on or off at the one time
• Create scenes using IFTTT, so lights come on based on certain behaviour, ie: when movement is detected via a sensor, the lights turn on automatically
Specifications:
• Dim Method: Trailing edge
• Advanced settings: Programmable minimum dimming level Selectable load type
• Operating Voltage: 240v / 50Hz
• Class: Class II (2)
• Maximum Load: 200w LED / 300w Resistive
• Operating Temperature: 10°C - 30°C
• Protection Type: Over heat & over current
• Control Type: Push button / BrilliantSmart app; Soft start for improved lamp life
• Connection Terminals: Fly wire
• Material: Flame retardant ABS for housing
• LED Indicator: Blue
• Plate Compatibility: Slots seamlessly into HPM®, Clipsal® and Vynco® branded wall plates with multiple button head shapes (series 30 type)
• Warranty: 1 year replacement
• WiFi Info: IEEE802.11b/g/n, 2.4GHz Mac Encryption; WEP/WAPI/TKIP/AES
• Device Requirements: iOS 8.0 or higher, Android 4.1 or higher
• Standards: AS/NZS 60669-2-1 IEC 60669-1
Dimension:
• Width: 42mm
• Height: 43.2mm
• Depth: 21.5mm
• Weight: 0.05kg
Installation:
• Must be installed by a licensed electrician
